Mitsubishi Colt Ralliart. Manual - part 221





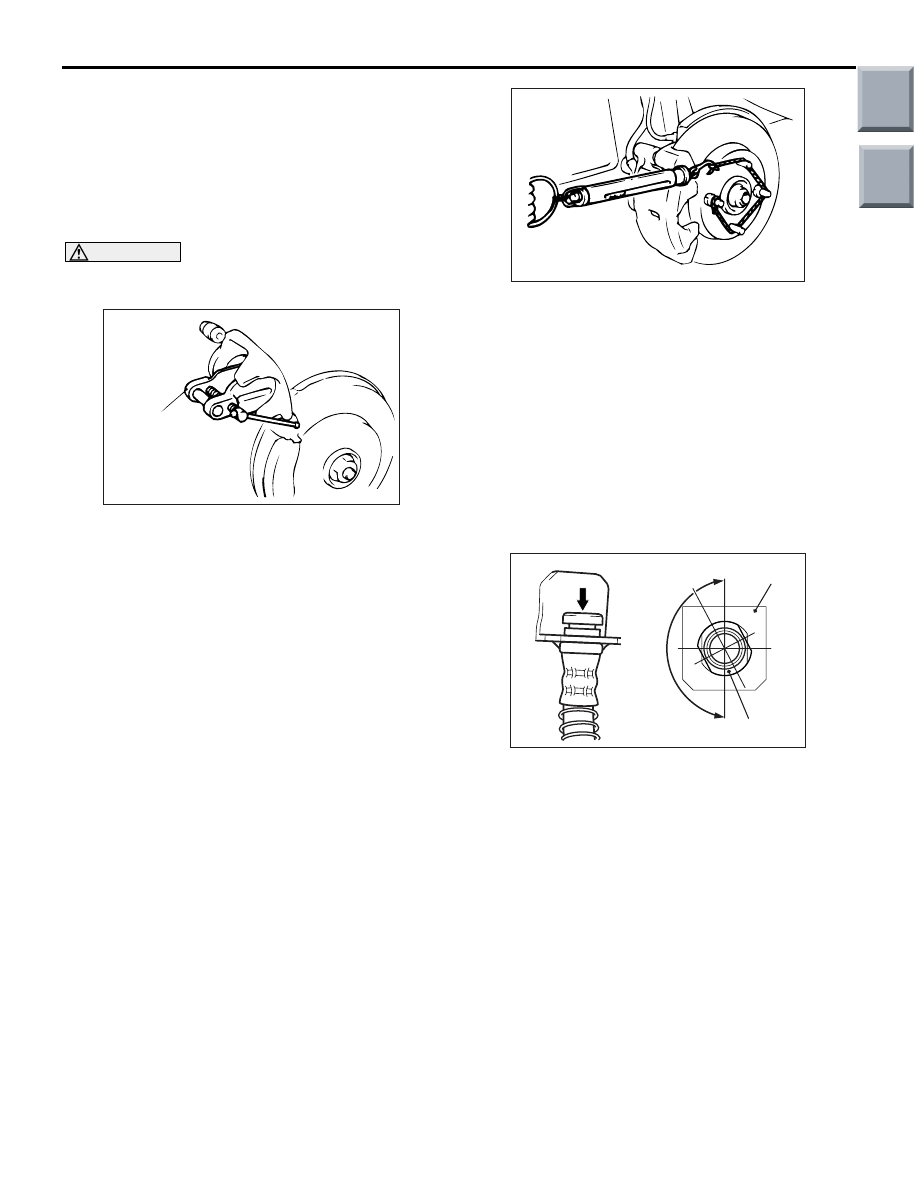

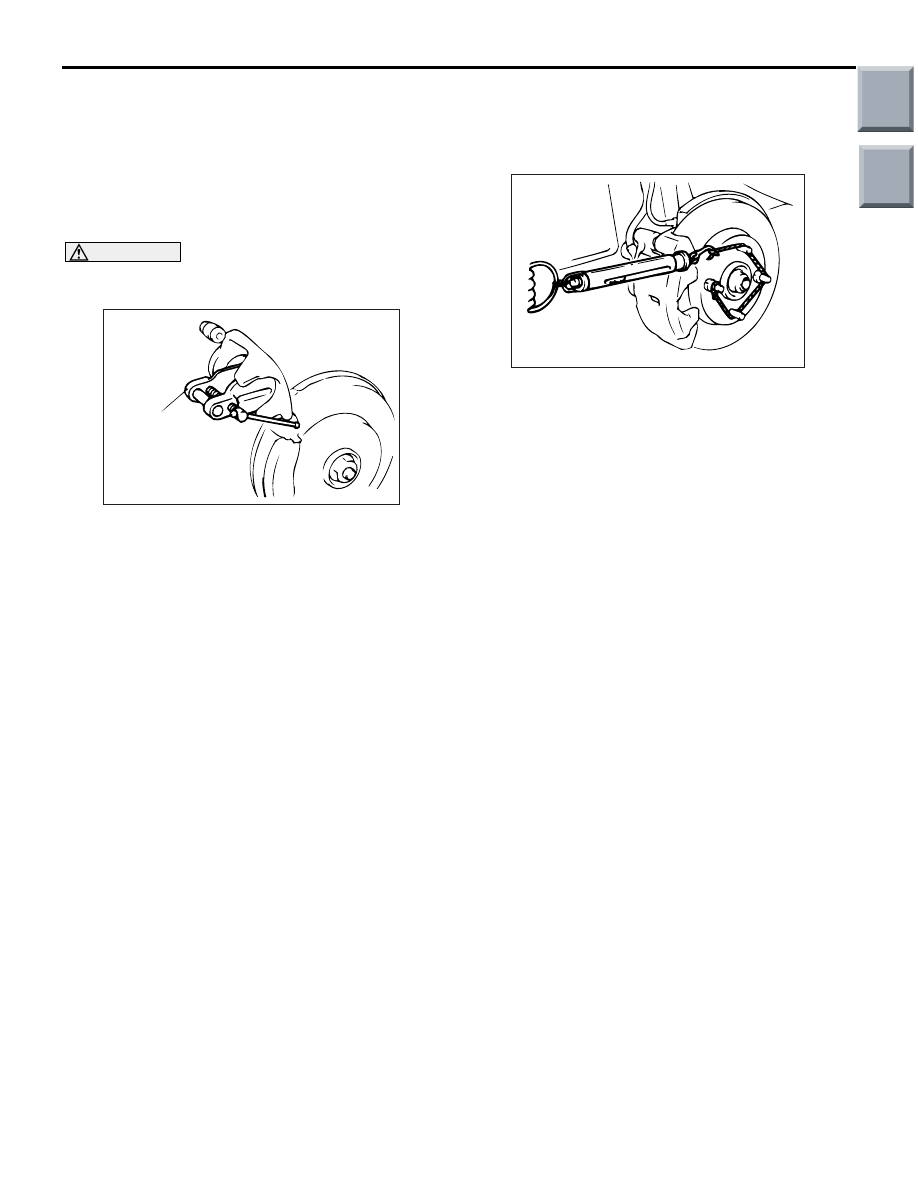

FRONT DISC BRAKE ASSEMBLY

BASIC BRAKE SYSTEM

35A-30

INSTALLATION SERVICE POINTS
>>A<< BRAKE CALIPER ASSEMBLY
INSTALLATION

1. In order to measure the brake drag force after pad

installation, measure the hub sliding torque in the
forward direction (with no pad attached) using a
spring balance.

CAUTION

Keep grease or other fouling off the pad and
brake disc friction surface.

AC102474

MB990520

MB990520

AB

2. Clean the piston, and press the piston into the

cylinder using the special tool, piston expander
(MB990520).

3. Assemble the pad clip and pad to the caliper

support, and tighten the slide pin bolt to the
specified torque.

Tightening torque:  49

± 4 Nm

4. Start the engine, and depress the brake pedal

forcibly two or three times. Then stop the engine.

5. Rotate the brake disc 10 turns in the forward

direction.

AC210114AB

6. Using a spring balance, measure the hub sliding

torque in the forward direction.

7. Obtain the disc brake drag force (difference

between measured values of item 1 and item 6).

Standard value: 83 N or less.

8. If the brake drag force exceeds the standard

value, disassemble the piston to check for
fouling/rust on the piston sliding section and
piston/seal deterioration, and confirm whether the
slide pin slides properly.

>>B<< BRAKE HOSE INSTALLATION

AC403716

A

AC

Brake hose

Wrong

Correct

Bracket

View A

Twist the brake hose towards the lesser torsion
between the brake hose and body bracket as shown,
and secure it to the body bracket.

Main

Index

Group

TOC

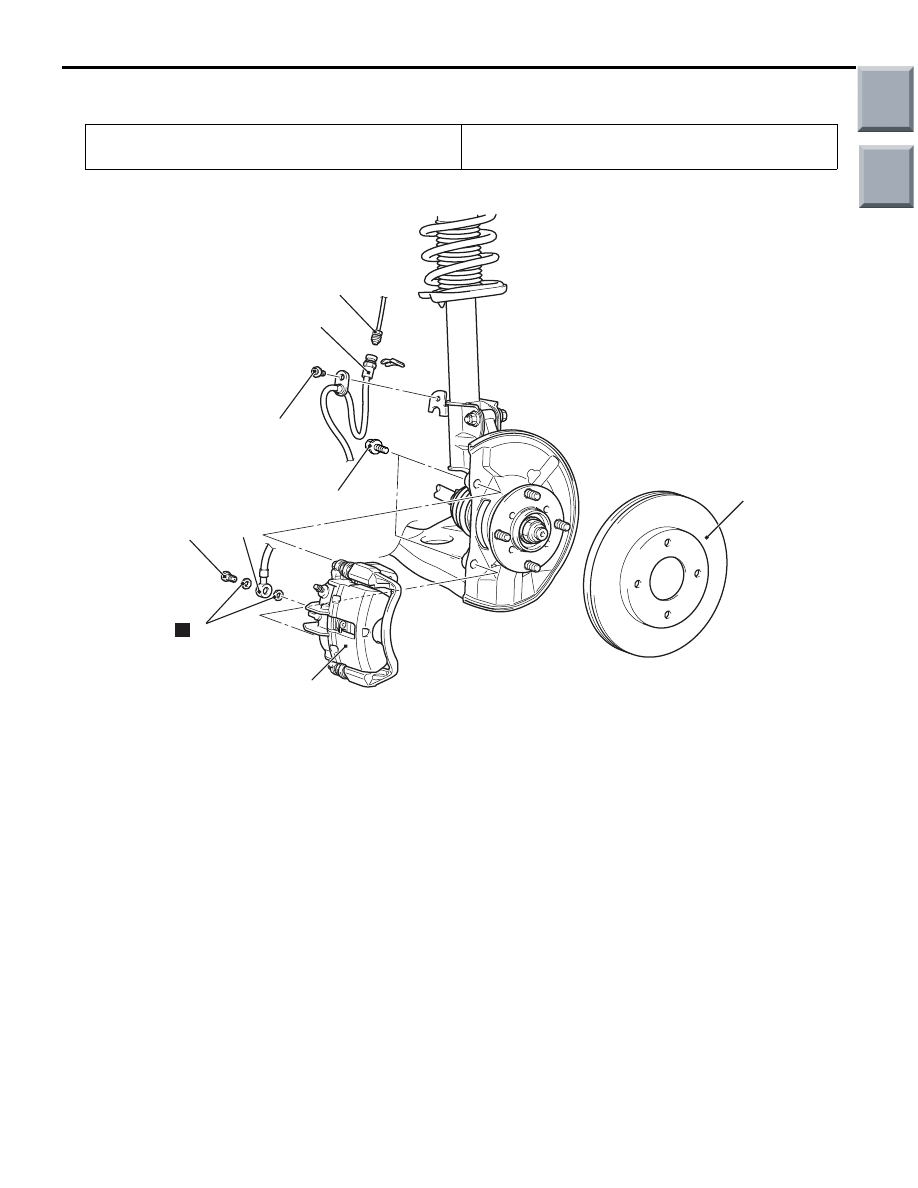

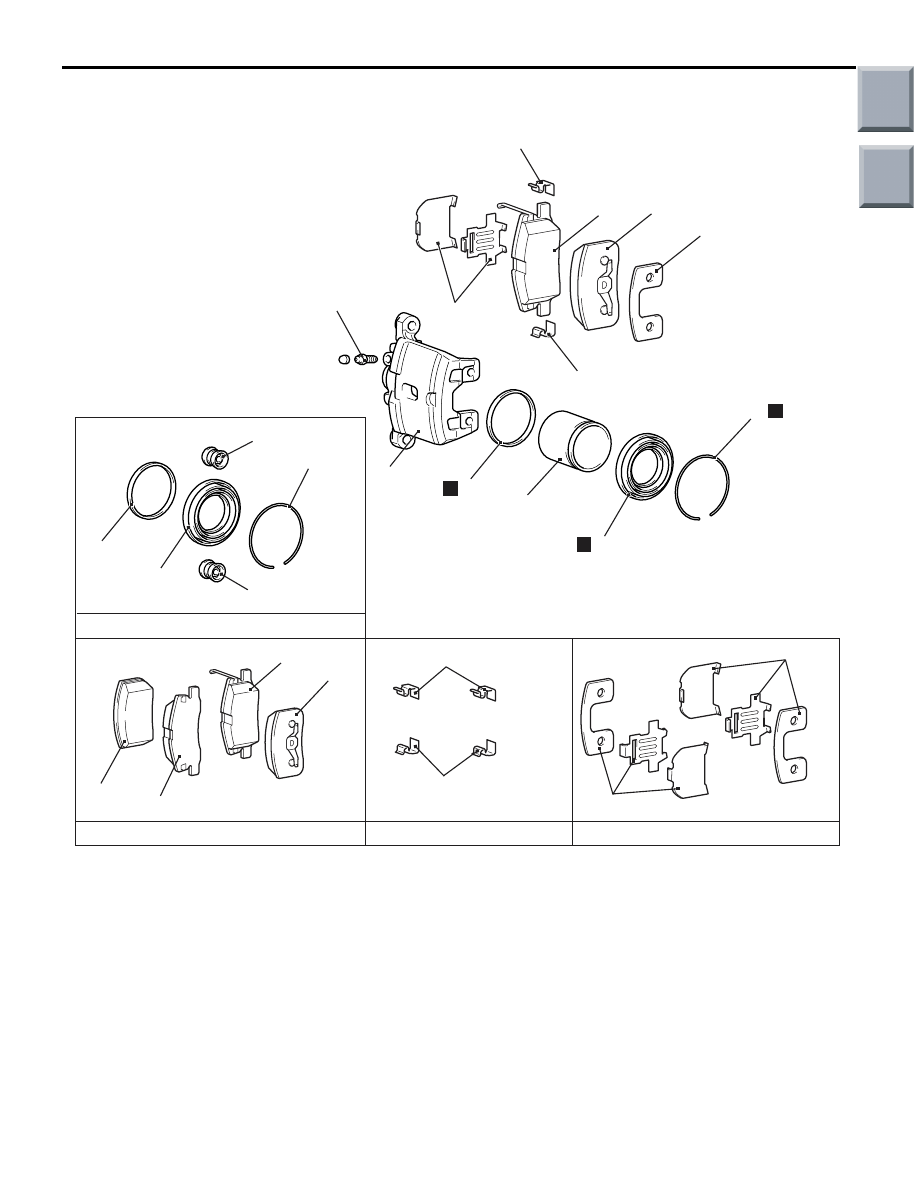

FRONT DISC BRAKE ASSEMBLY

BASIC BRAKE SYSTEM

35A-31

REMOVAL AND INSTALLATION <15-INCH (RALLIART Version-R)>

M1351006000957

Pre-removal Operation
Brake fluid draining

Post-installation Operation
Brake fluid refilling and air bleeding (Refer to

P.35A-10

).

AC312917AG

N

105 ± 5 N·m

2

1

3

30 ± 4 N·m

4

1

9 ± 1 N·m

15 ± 2 N·m

Removal steps

1.

Connection between brake hose
and brake caliper

2.

Gasket

>>

A

<<

3.

Brake caliper assembly

4.

Brake disc

Removal steps (Continued)

Main

Index

Group

TOC

FRONT DISC BRAKE ASSEMBLY

BASIC BRAKE SYSTEM

35A-32

INSTALLATION SERVICE POINTS
>>A<< BRAKE CALIPER ASSEMBLY
INSTALLATION

1. In order to measure the brake drag force after pad

installation, measure the hub sliding torque in the
forward direction (with no pad attached) using a
spring balance.

CAUTION

Keep grease or other fouling off the pad and
brake disc friction surface.

AC102474

MB990520

MB990520

AB

2. Clean the piston, and press the piston into the

cylinder using the special tool, piston expander
(MB990520).

3. Assemble the pad clip and pad to the caliper

support, and tighten the slide pin bolt to the
specified torque.

Tightening torque:  28

± 2 Nm

4. Start the engine, and depress the brake pedal

forcibly two or three times. Then stop the engine.

5. Rotate the brake disc 10 turns in the forward

direction.

AC210114AB

6. Using a spring balance, measure the hub sliding

torque in the forward direction.

7. Obtain the disc brake drag force (difference

between measured values of item 1 and item 6).

Standard value: 95 N or less

8. If the brake drag force exceeds the standard

value, disassemble the piston to check for
fouling/rust on the piston sliding section and
piston/seal deterioration, and confirm whether the
slide pin slides properly.

Main

Index

Group

TOC

FRONT DISC BRAKE ASSEMBLY

BASIC BRAKE SYSTEM

35A-33

DISASSEMBLY AND REASSEMBLY <14-INCH>

M1351006201017

AC602358

6

1

7.9 ± 0.9 N·m

9

8

N

N

7

2

3

4

5

5

6

8

2

3

2

3

4

4

1

1

AB

N

1

4

Pin boot

Pin boot

Brake caliper kit

Pad set

Shim set

Clip set

Disassembly steps

1. Shim
2. Outer pad
3. Pad assembly <RH>, pad and wear

indicator assembly <LH>

4. Pad clip
5. Boot ring

<<

A

>>

6. Piston boot

<<

A

>>

7. Piston

<<

B

>>

8. Piston seal
9. Caliper body

Disassembly steps (Continued)

Main

Index

Group

TOC
