EMISSION CONTROL

ENGINE AND EMISSION CONTROL

17-23

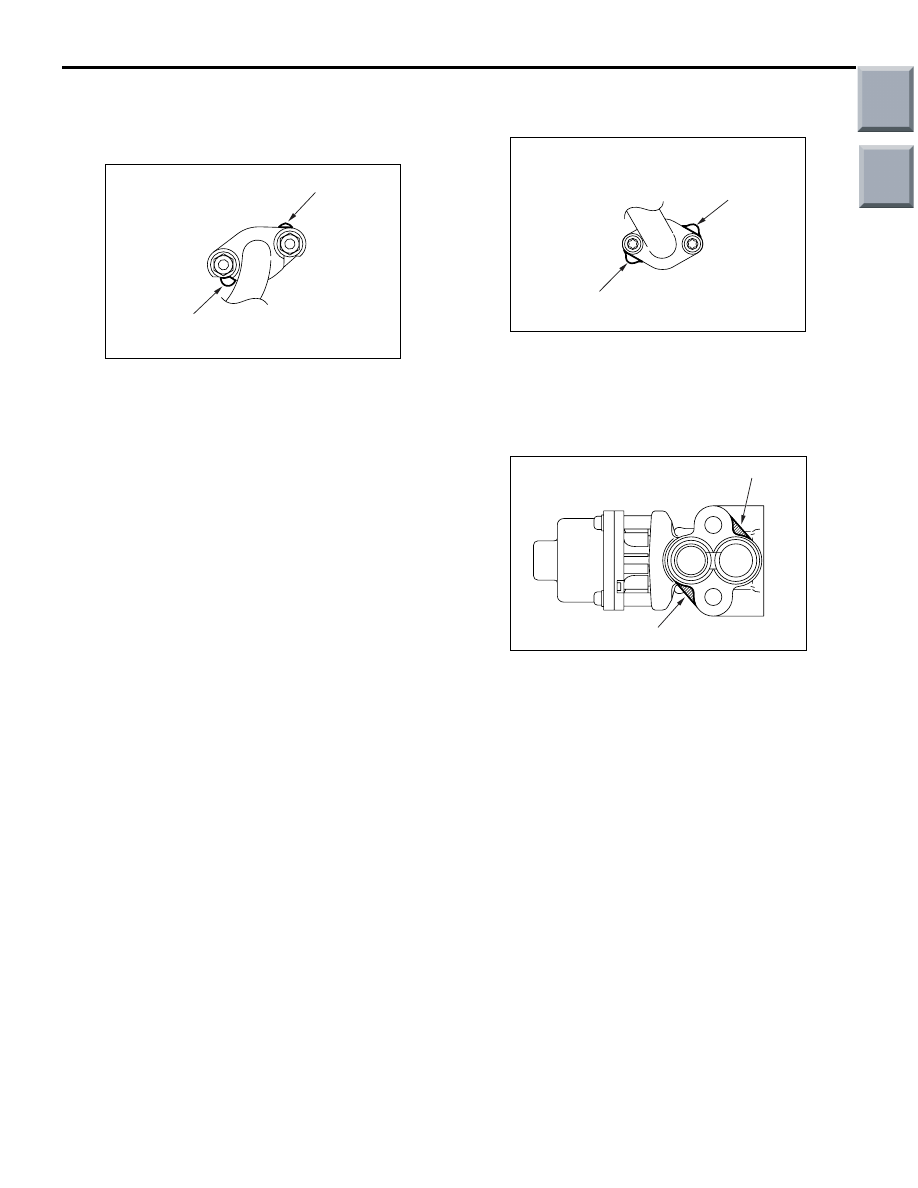

INSTALLATION SERVICE POINTS
>>A<< EGR PIPE GASKET A INSTALLA-
TION

AC402804

AB

Projection

Projection

Install the gasket so that its projection is set in the
position shown.

>>B<< EGR PIPE GASKET B
INSTALLATION

AC402805

AB

Projection

Projection

Install the gasket so that its projection is set in the
position shown.

>>C<<EGR VALVE GASKET
INSTALLATION

AC402803

AB

Shaded portion

Shaded portion

Install the EGR valve gasket so that the shaded por-
tion of the gasket is set as shown. Be sure to check
which side of the gasket faces outside.

Main

Index

Group

TOC

EMISSION CONTROL

ENGINE AND EMISSION CONTROL

17-24

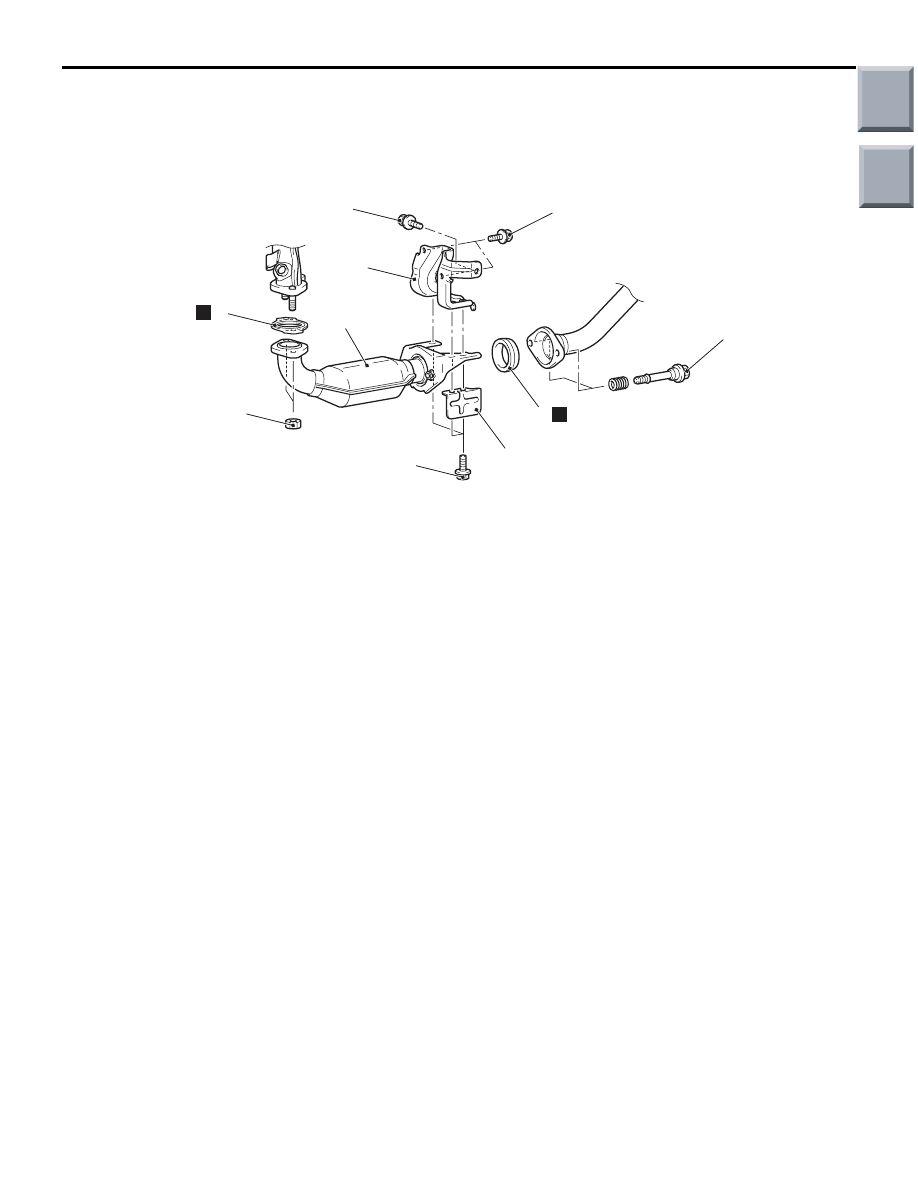

CATALYTIC CONVERTER

REMOVAL AND INSTALLATION <4G1>

M1173003900977

<FRONT CATALYTIC CONVERTER>

AC600451

50 ± 10 N·m

AB

N

4

5

2

3

N

24 ± 4 N·m

41 ± 10 N·m

42 ± 8 N·m

48 ± 6 N·m

1

Removal steps

1.

Protector

2.

Front catalytic converter assembly

3.

Gasket

4.

Seal ring

5.

Bracket

Removal steps (Continued)

Main

Index

Group

TOC

GROUP 00E

GENERAL

<ELECTRICAL>

CONTENTS

HOW TO READ WIRING



DIAGRAMS  . . . . . . . . . . . . . . . . . . . .

00E-2

COMPOSITION AND CONTENTS OF



WIRING DIAGRAMS. . . . . . . . . . . . . . . . . .

00E-2

HOW TO READ CONFIGURATION



DIAGRAMS . . . . . . . . . . . . . . . . . . . . . . . . .

00E-3

HOW TO READ CIRCUIT DIAGRAMS . . . .

00E-4

MARKINGS FOR CONNECTOR AND



EARTHING  . . . . . . . . . . . . . . . . . . . . . . . . .

00E-5

WIRE COLOUR CODE . . . . . . . . . . . . . . . .

00E-8

ABBREVIATION SYMBOLS . . . . . . . . . . . .

00E-9

Main

Index

Group

TOC

HOW TO READ WIRING DIAGRAMS

GENERAL <ELECTRICAL>

00E-2

HOW TO READ WIRING DIAGRAMS

COMPOSITION AND CONTENTS OF
WIRING DIAGRAMS

M1001012800150

In each section, all specifications are listed, including optional specifications. Accordingly, some specifica-
tions may not be applicable for individual vehicles.

Section

Basic contents

Component
locations

Locations are shown for each point of relays, ECUs, sensors, solenoid valves,
inspection connectors, fusible links, fuses, etc. In the part’s lists, parts are listed in
alphabetical order.

Configuration
diagrams

Connector locations and harness wiring configurations on actual vehicles are
illustrated.

Circuit diagrams

Circuits from power source to earth are shown completely, classified according to
system. There is a main division into power source circuits and circuits classified by
system.

• Junction block

The entire circuit for the junction block is described, because only the part of the
junction block needed is normally shown in each circuit diagram.

• Joint connectors

The internal circuits for all joint connectors are described, because only the part
needed is shown in each circuit diagram.

• Power source circuits

Circuits from the battery to fusible link, fuse, ignition switch, etc are shown.

• Circuits classified by system

For each system, the circuits are shown from fuse to earth, excluding the power
source sections.
