Mitsubishi Canter (FE, FG). Manual - part 73

9 Technical  data

9.16 Electrical wiring diagram

292

MITSUBISHI FUSO body/equipment mounting directives for FE, FG  Issue date: 06. 07. 2012

!

 Only print out complete sections from the current version

i

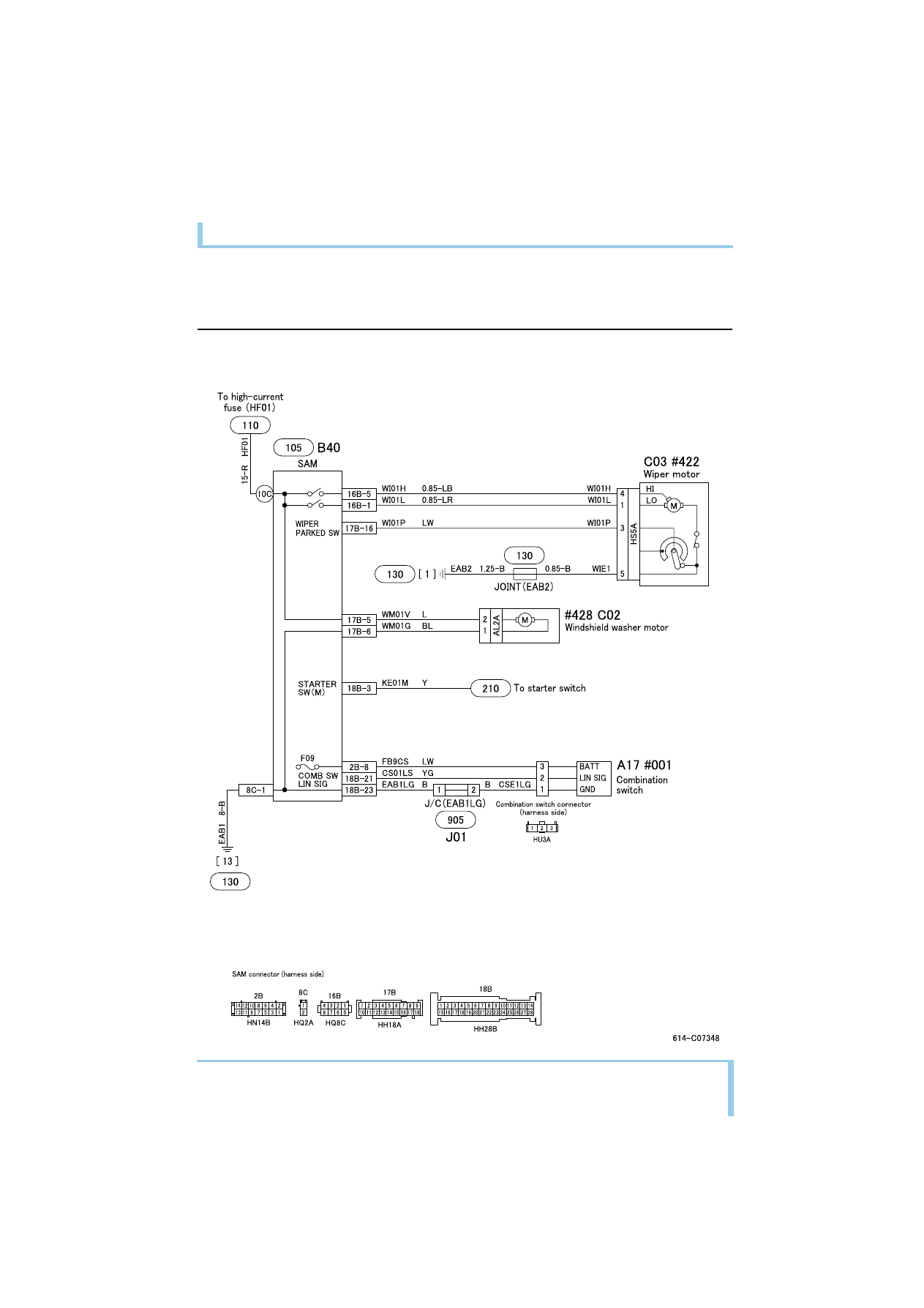

WIPER AND WASHER CIRCUIT

9 Technical  data

9.16 Electrical wiring diagram

293

MITSUBISHI FUSO body/equipment mounting directives for FE, FG  Issue date: 06. 07. 2012

!

 Only print out complete sections from the current version

i

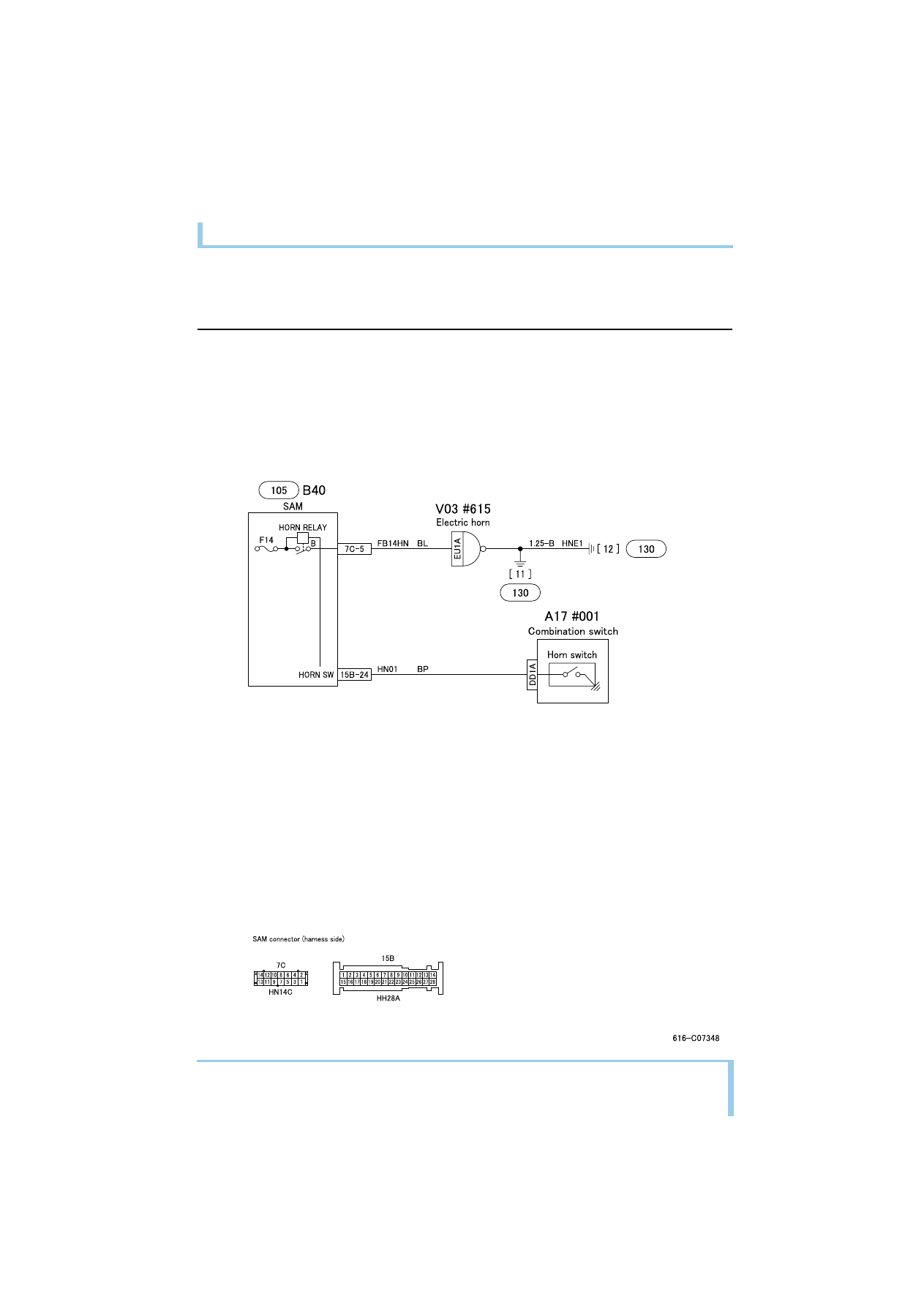

HORN CIRCUIT

9 Technical  data

9.16 Electrical wiring diagram

294

MITSUBISHI FUSO body/equipment mounting directives for FE, FG  Issue date: 06. 07. 2012

!

 Only print out complete sections from the current version

i

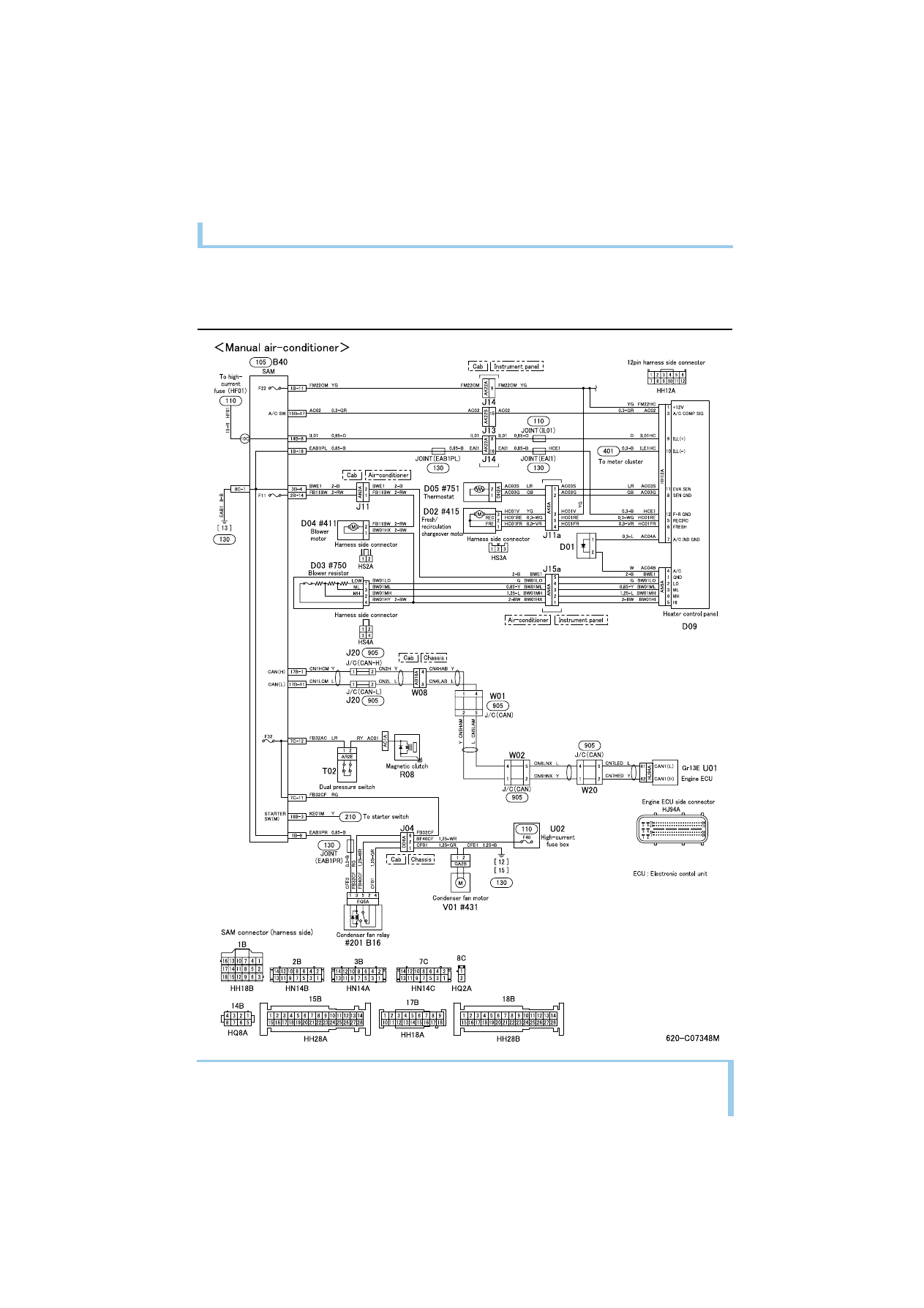

AIR-CONDITIONER CIRCUIT (1)

9 Technical  data

9.16 Electrical wiring diagram

295

MITSUBISHI FUSO body/equipment mounting directives for FE, FG  Issue date: 06. 07. 2012

!

 Only print out complete sections from the current version

i

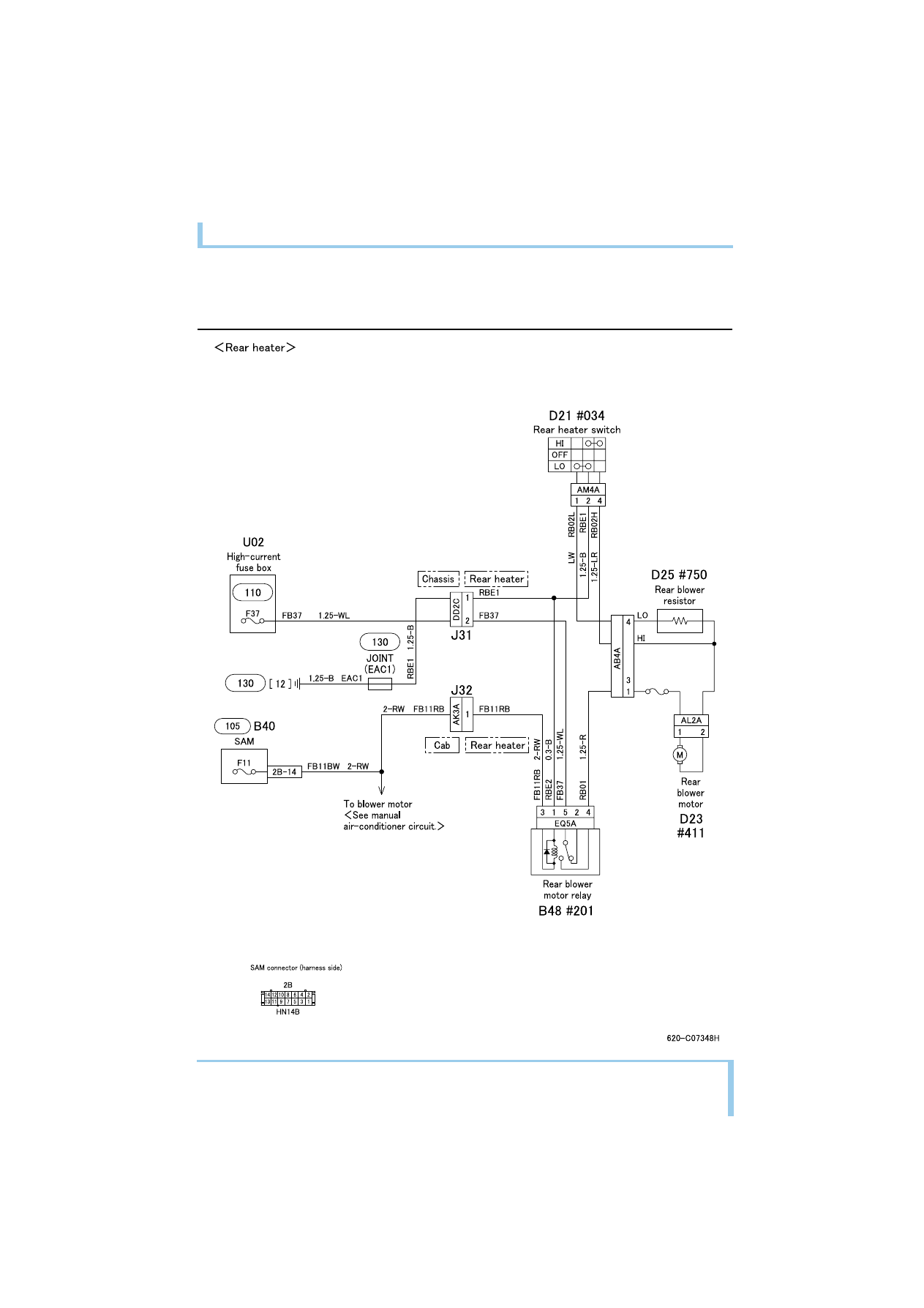

AIR-CONDITIONER CIRCUIT (2)
