9 Technical  data

9.16 Electrical wiring diagram

288

MITSUBISHI FUSO body/equipment mounting directives for FE, FG  Issue date: 06. 07. 2012

!

 Only print out complete sections from the current version

i

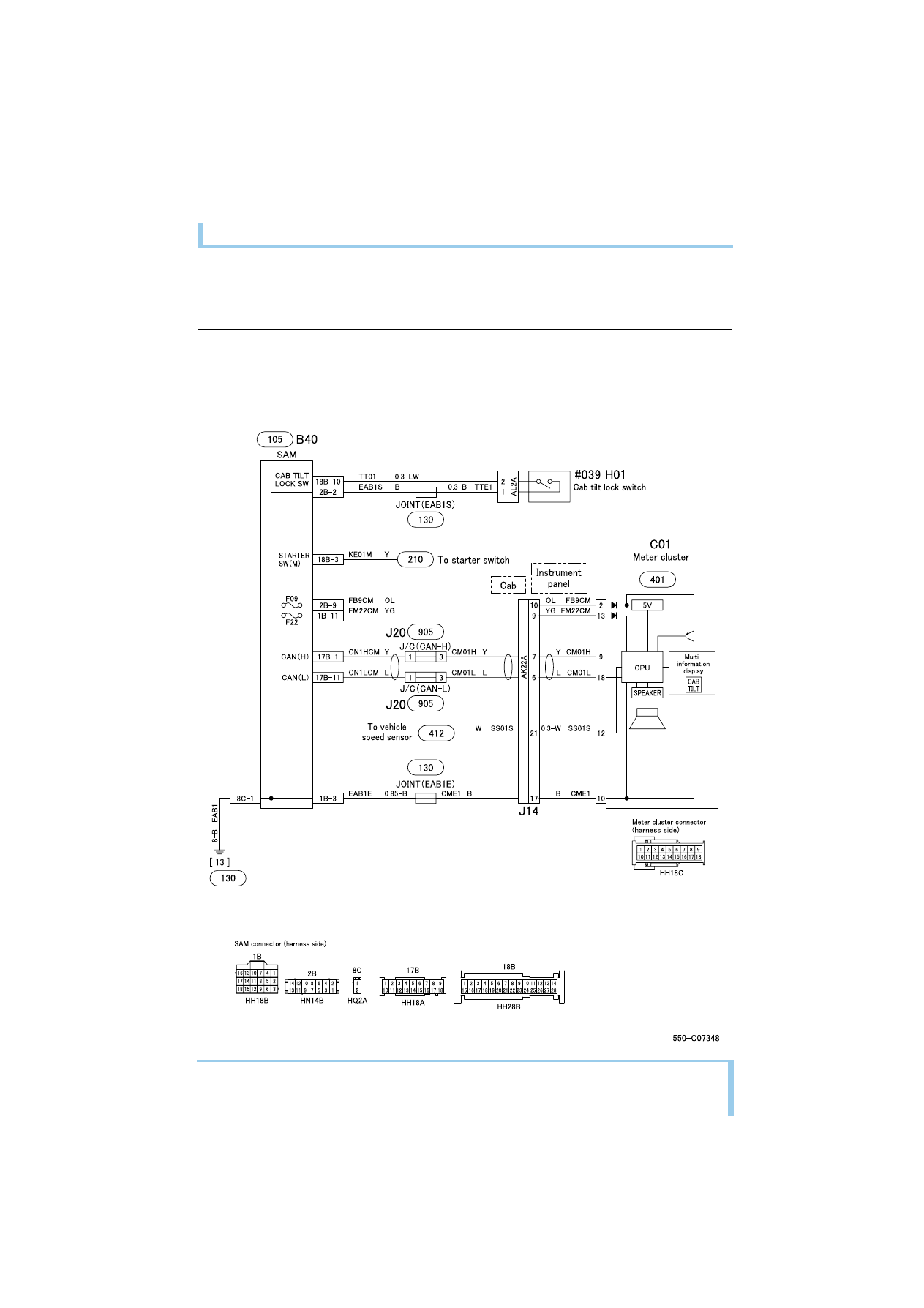

CAB TILT WARNING CIRCUIT

9 Technical  data

9.16 Electrical wiring diagram

289

MITSUBISHI FUSO body/equipment mounting directives for FE, FG  Issue date: 06. 07. 2012

!

 Only print out complete sections from the current version

i

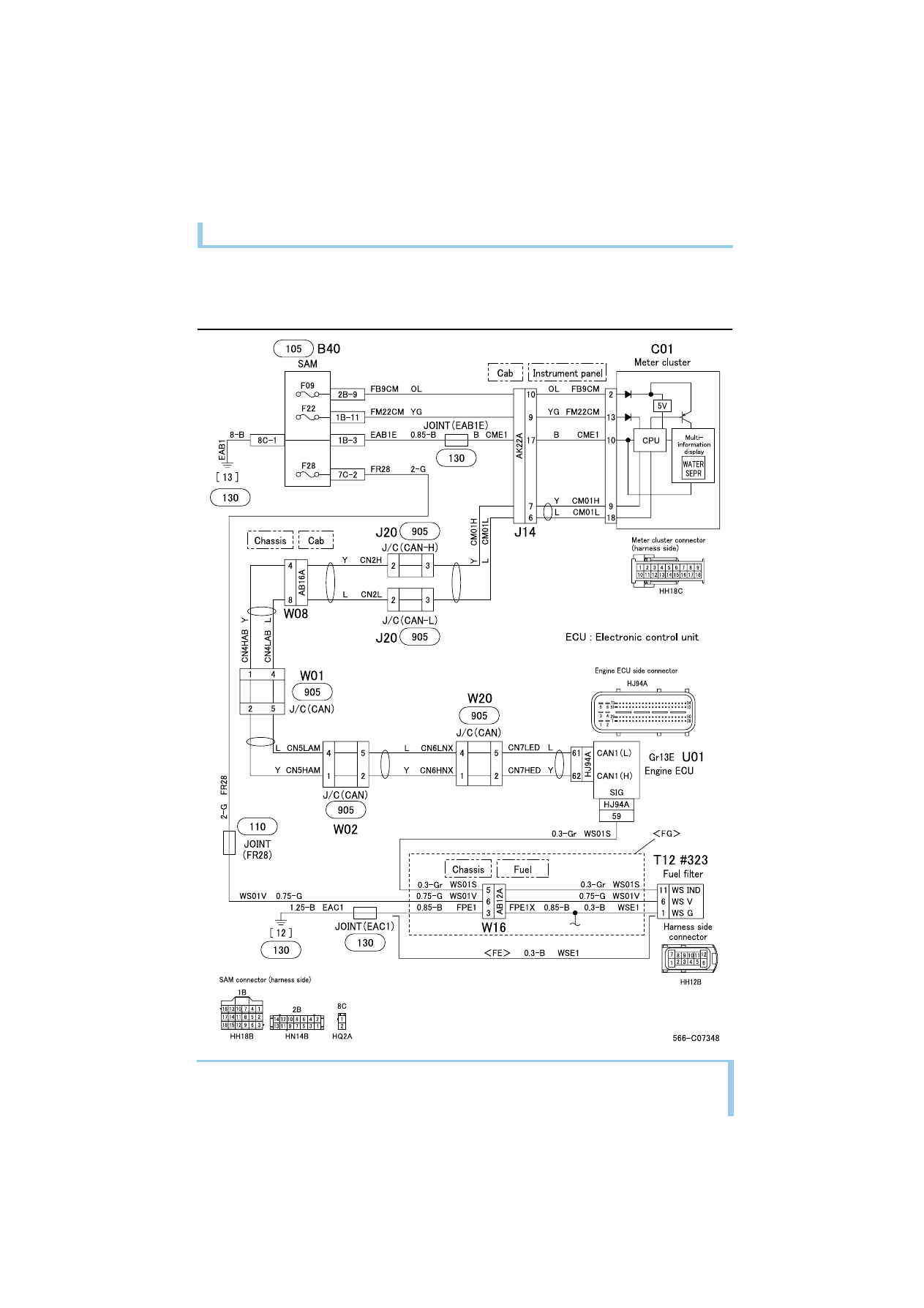

FUEL FILTER WARNING CIRCUIT

9 Technical  data

9.16 Electrical wiring diagram

290

MITSUBISHI FUSO body/equipment mounting directives for FE, FG  Issue date: 06. 07. 2012

!

 Only print out complete sections from the current version

i

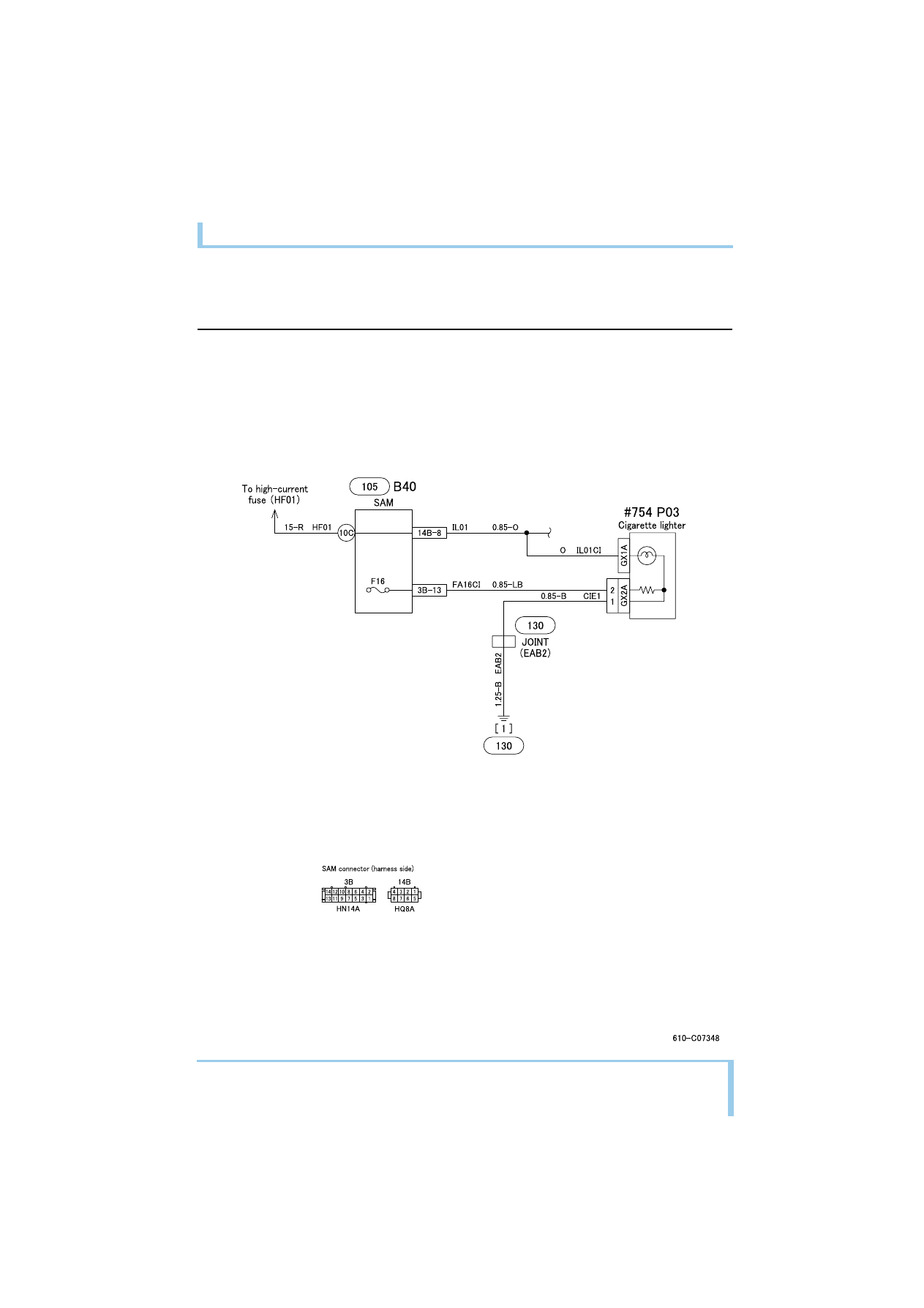

CIGARETTE LIGHTER CIRCUIT

9 Technical  data

9.16 Electrical wiring diagram

291

MITSUBISHI FUSO body/equipment mounting directives for FE, FG  Issue date: 06. 07. 2012

!

 Only print out complete sections from the current version

i

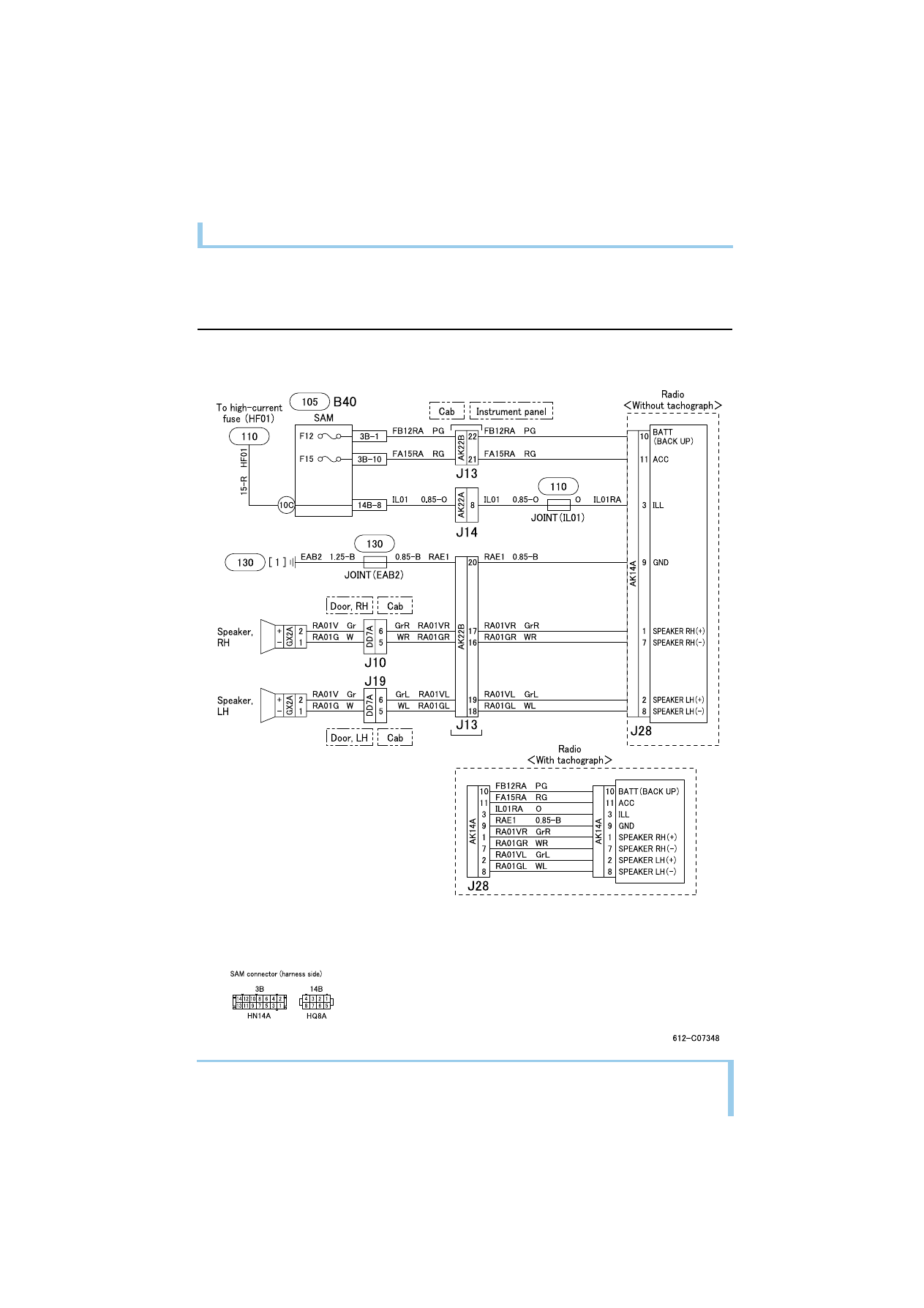

AUDIO CIRCUIT
