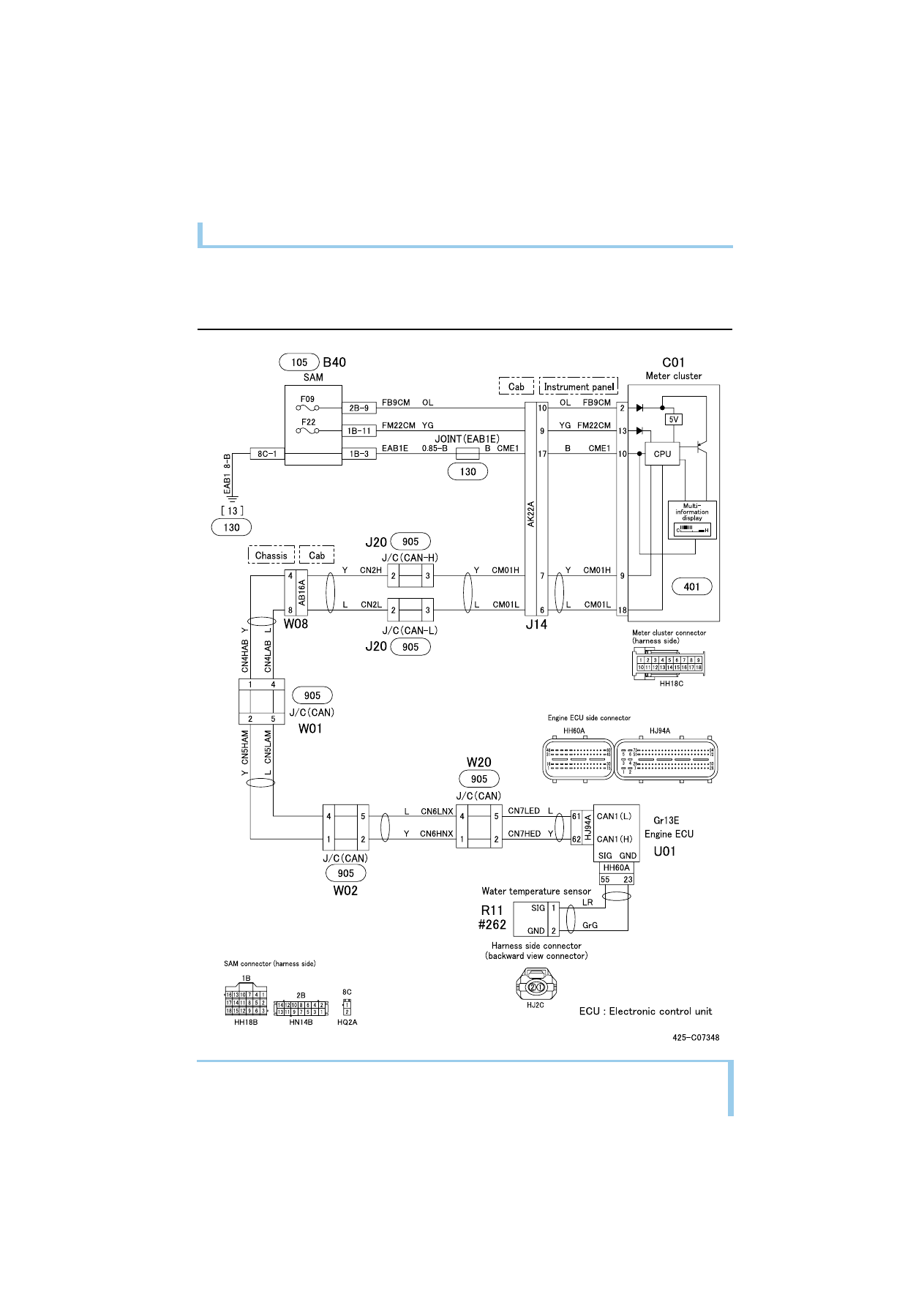

WATER TEMPERATURE GAUGE CIRCUIT

9 Technical  data

9.16 Electrical wiring diagram

285

MITSUBISHI FUSO body/equipment mounting directives for FE, FG  Issue date: 06. 07. 2012

!

 Only print out complete sections from the current version

i

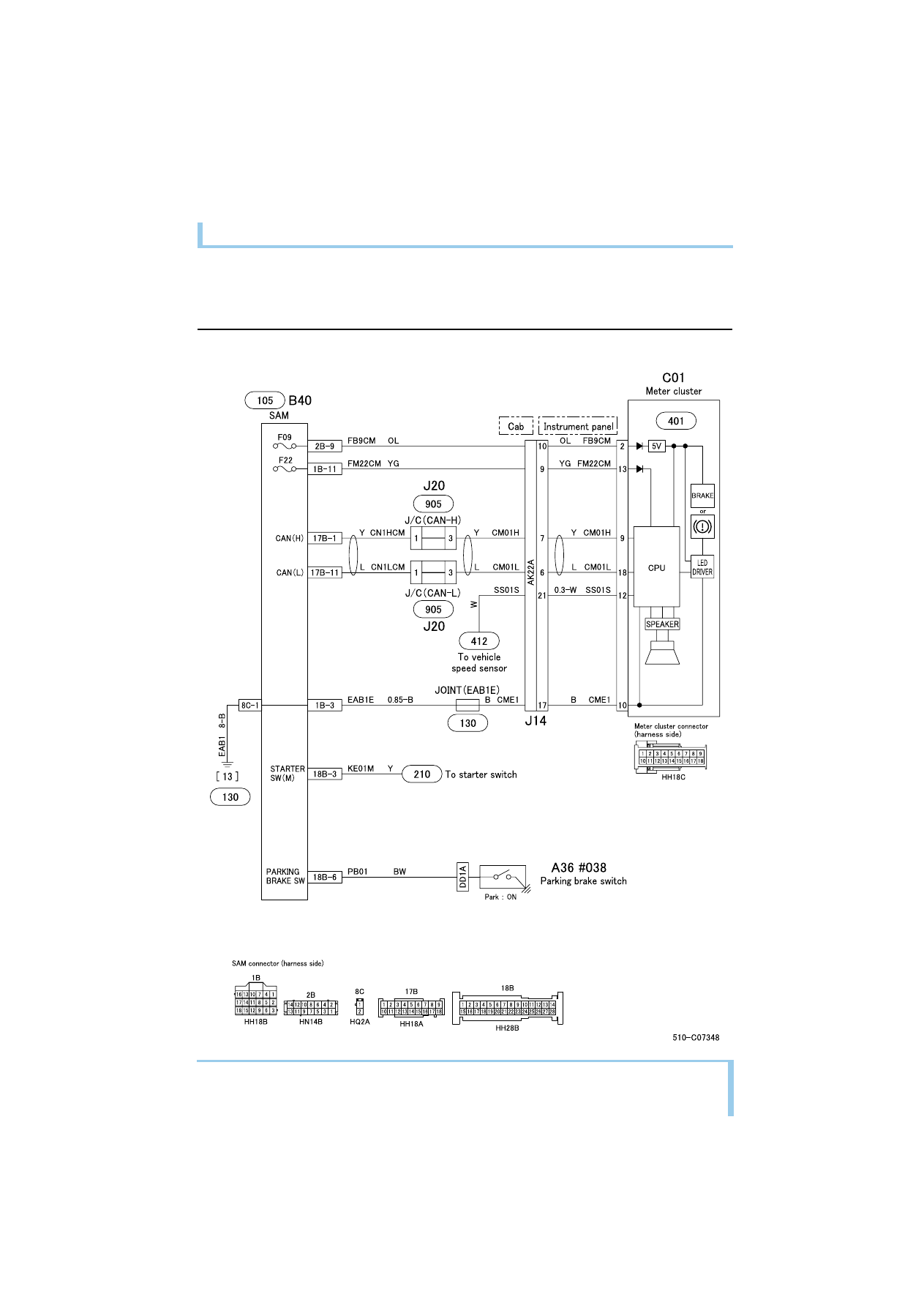

PARKING BRAKE INDICATOR CIRCUIT

9 Technical  data

9.16 Electrical wiring diagram

286

MITSUBISHI FUSO body/equipment mounting directives for FE, FG  Issue date: 06. 07. 2012

!

 Only print out complete sections from the current version

i

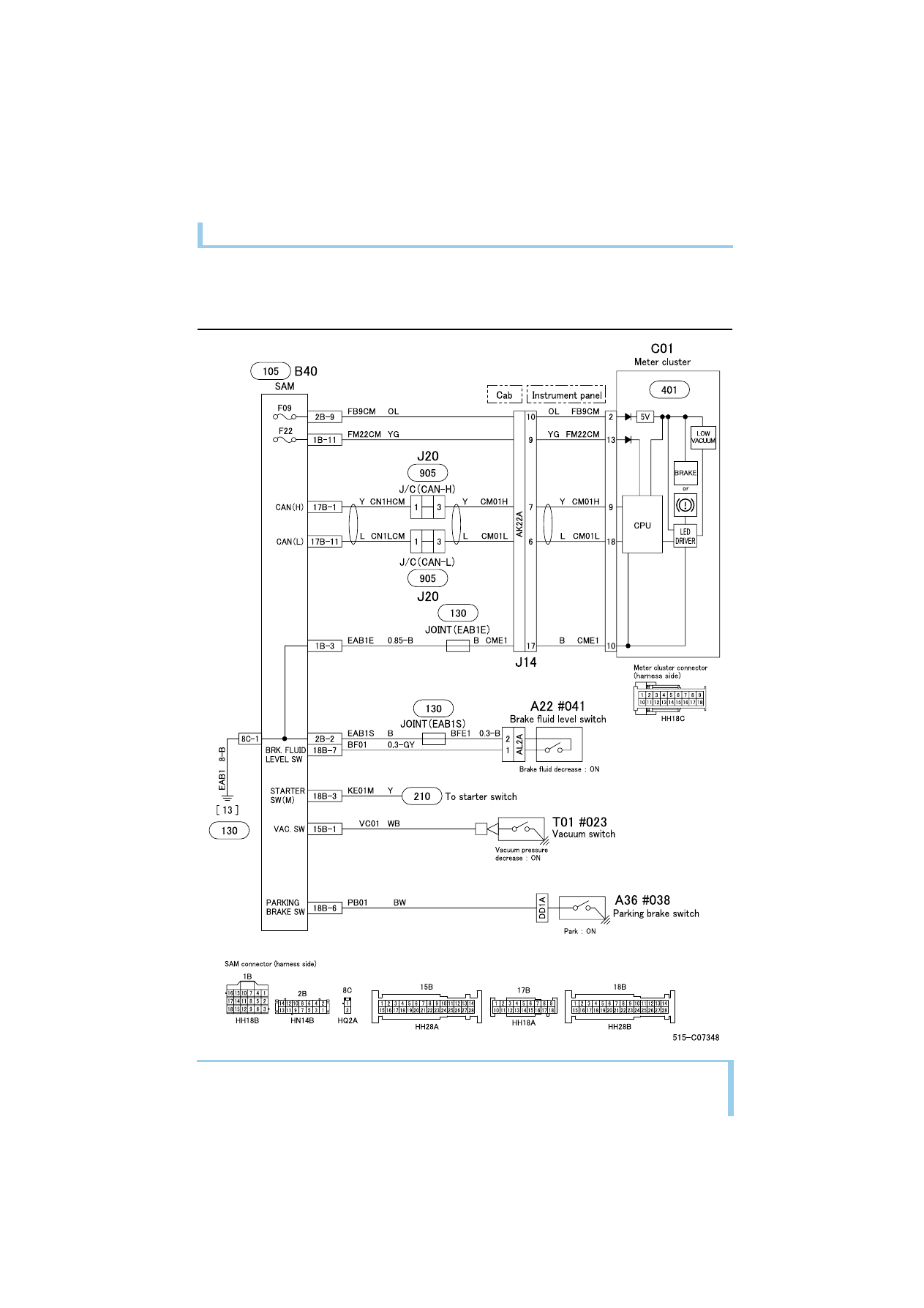

BRAKE WARNING CIRCUIT

9 Technical  data

9.16 Electrical wiring diagram

287

MITSUBISHI FUSO body/equipment mounting directives for FE, FG  Issue date: 06. 07. 2012

!

 Only print out complete sections from the current version

i

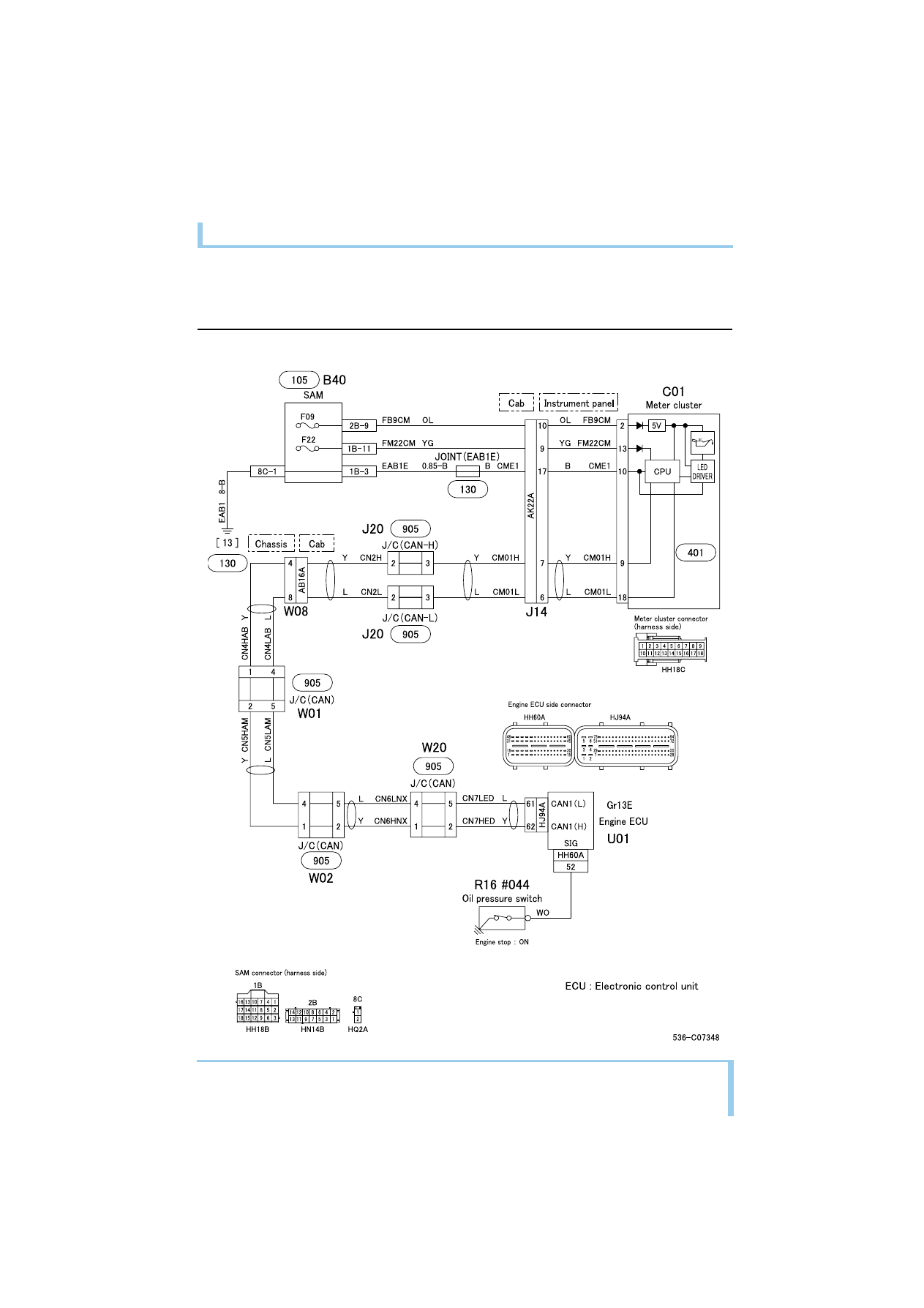

ENGINE OIL PRESSURE WARNING CIRCUIT
