Mitsubishi Canter (FE, FG). Manual - part 70

9 Technical  data

9.16 Electrical wiring diagram

280

MITSUBISHI FUSO body/equipment mounting directives for FE, FG  Issue date: 06. 07. 2012

!

 Only print out complete sections from the current version

i

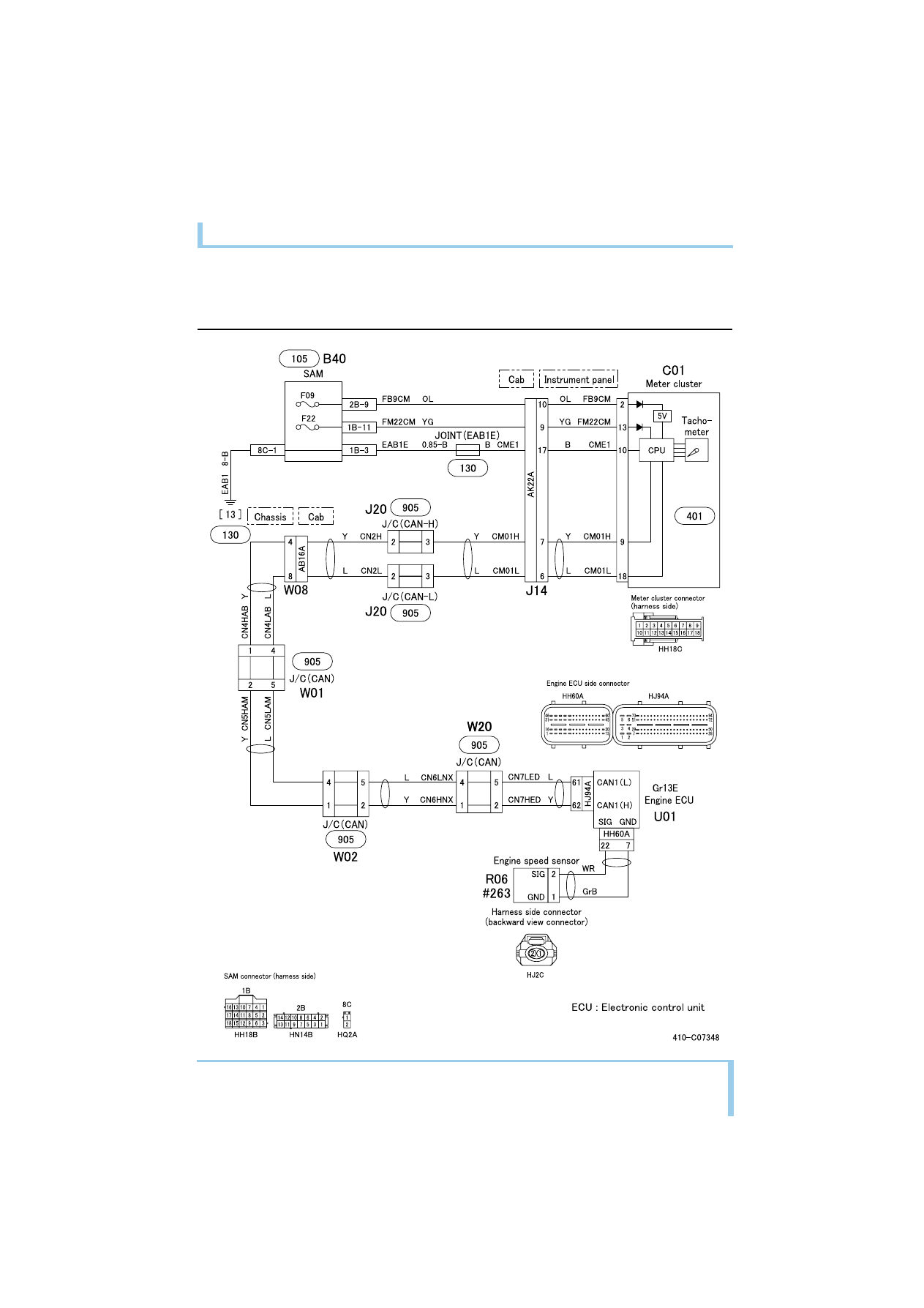

TACHOMETER CIRCUIT

9 Technical  data

9.16 Electrical wiring diagram

281

MITSUBISHI FUSO body/equipment mounting directives for FE, FG  Issue date: 06. 07. 2012

!

 Only print out complete sections from the current version

i

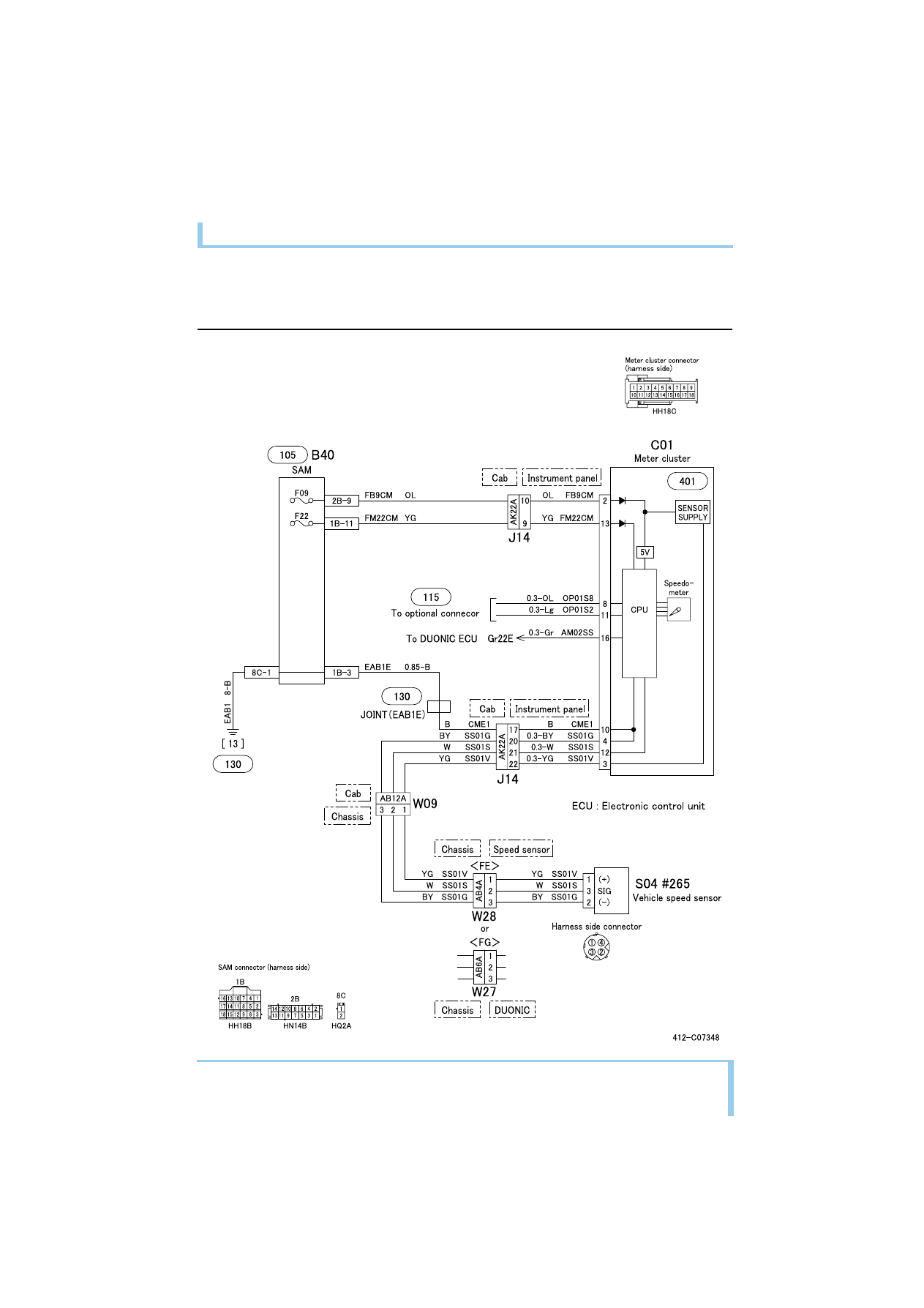

SPEEDOMETER CIRCUIT

9 Technical  data

9.16 Electrical wiring diagram

282

MITSUBISHI FUSO body/equipment mounting directives for FE, FG  Issue date: 06. 07. 2012

!

 Only print out complete sections from the current version

i

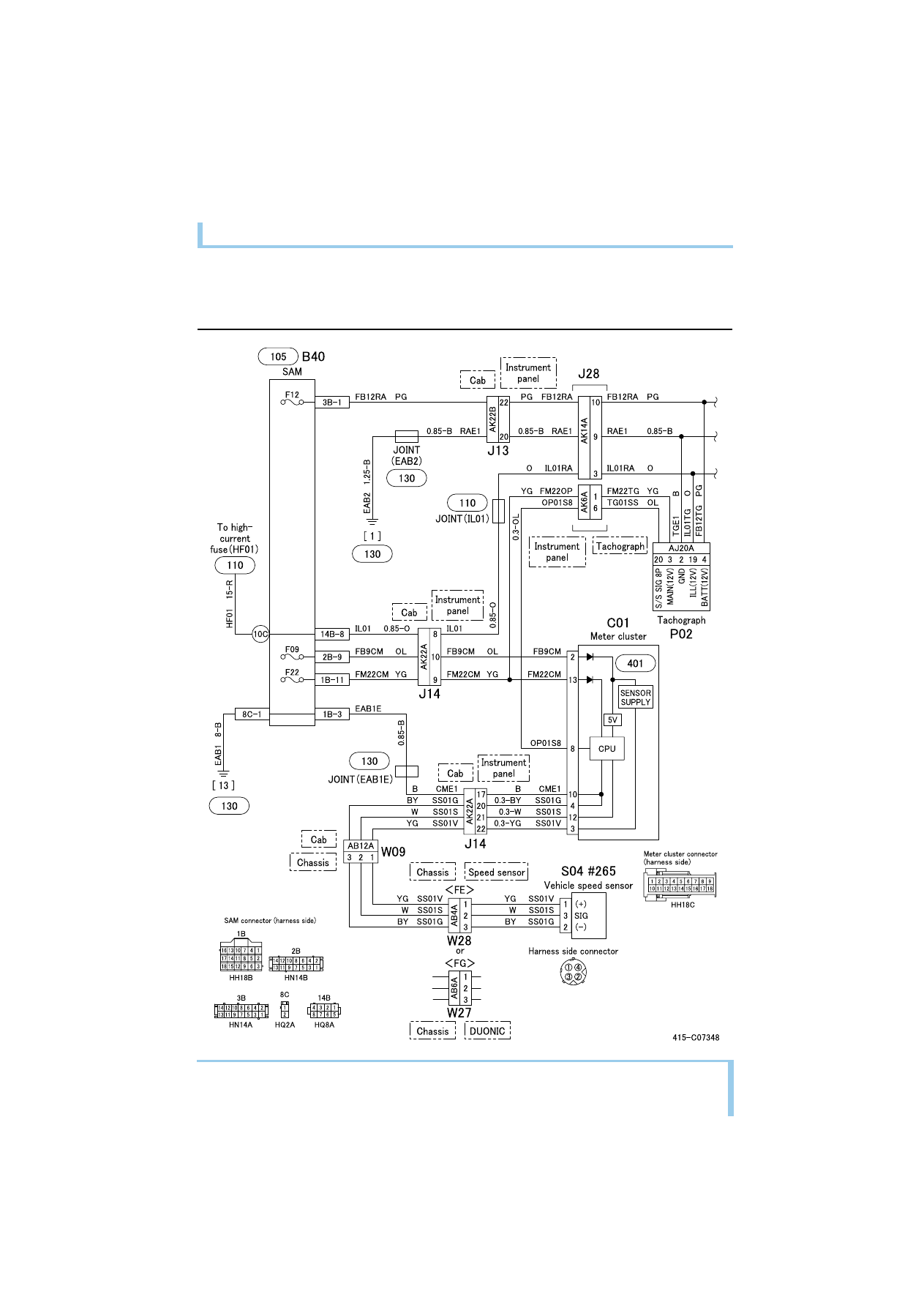

TACHOGRAPH CIRCUIT

9 Technical  data

9.16 Electrical wiring diagram

283

MITSUBISHI FUSO body/equipment mounting directives for FE, FG  Issue date: 06. 07. 2012

!

 Only print out complete sections from the current version

i

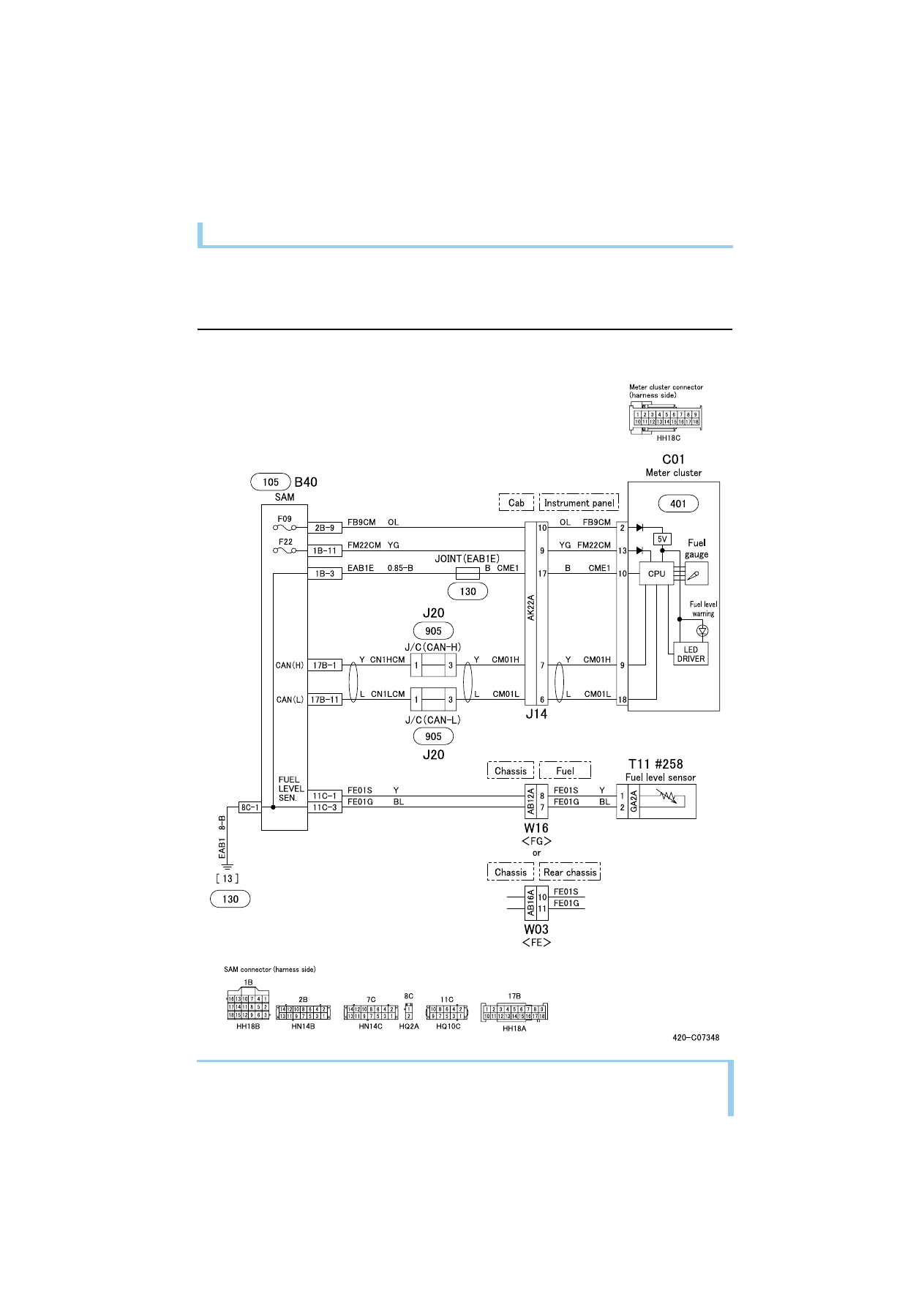

FUEL GAUGE CIRCUIT
