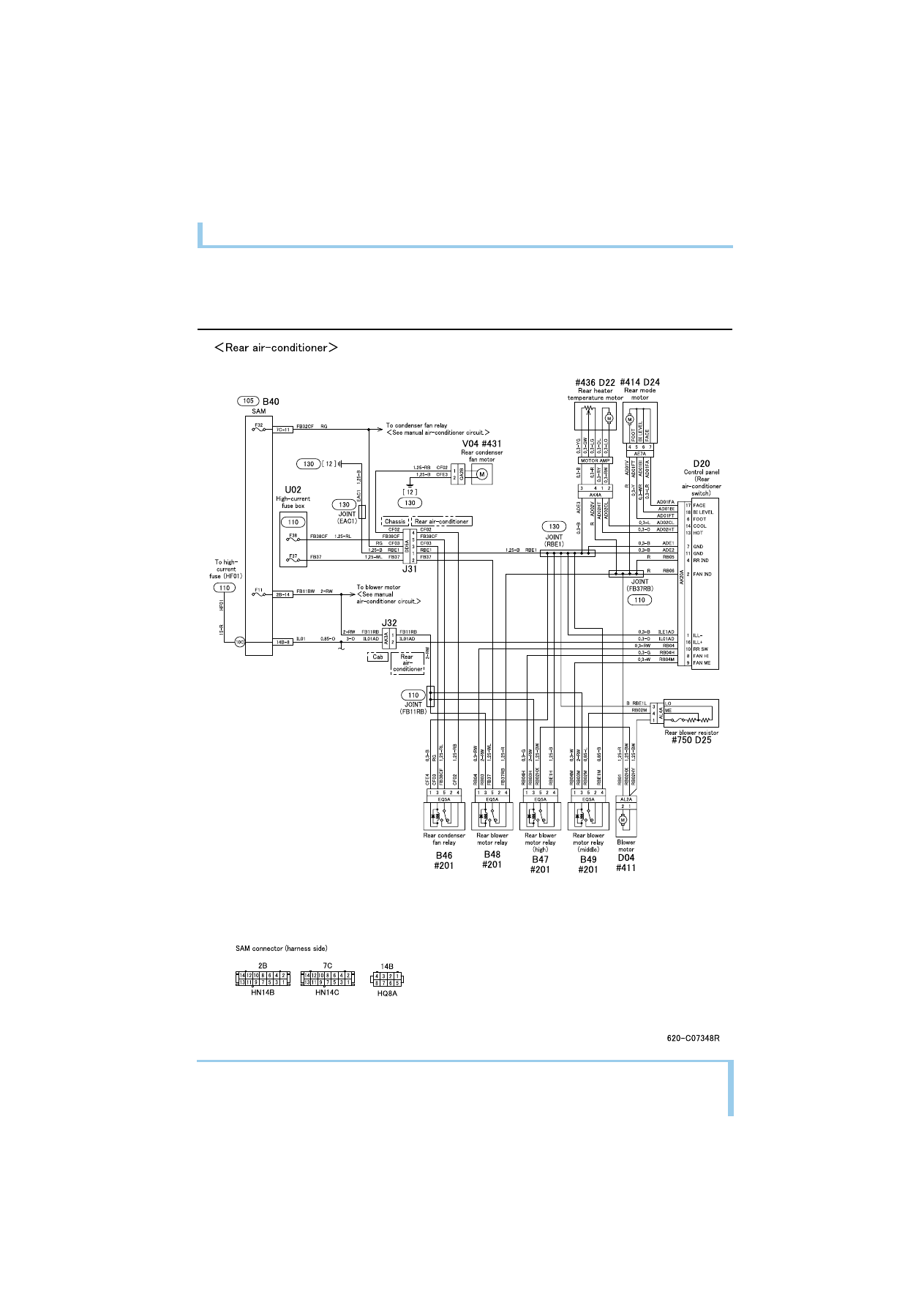

AIR-CONDITIONER CIRCUIT (3)

9 Technical  data

9.16 Electrical wiring diagram

297

MITSUBISHI FUSO body/equipment mounting directives for FE, FG  Issue date: 06. 07. 2012

!

 Only print out complete sections from the current version

i

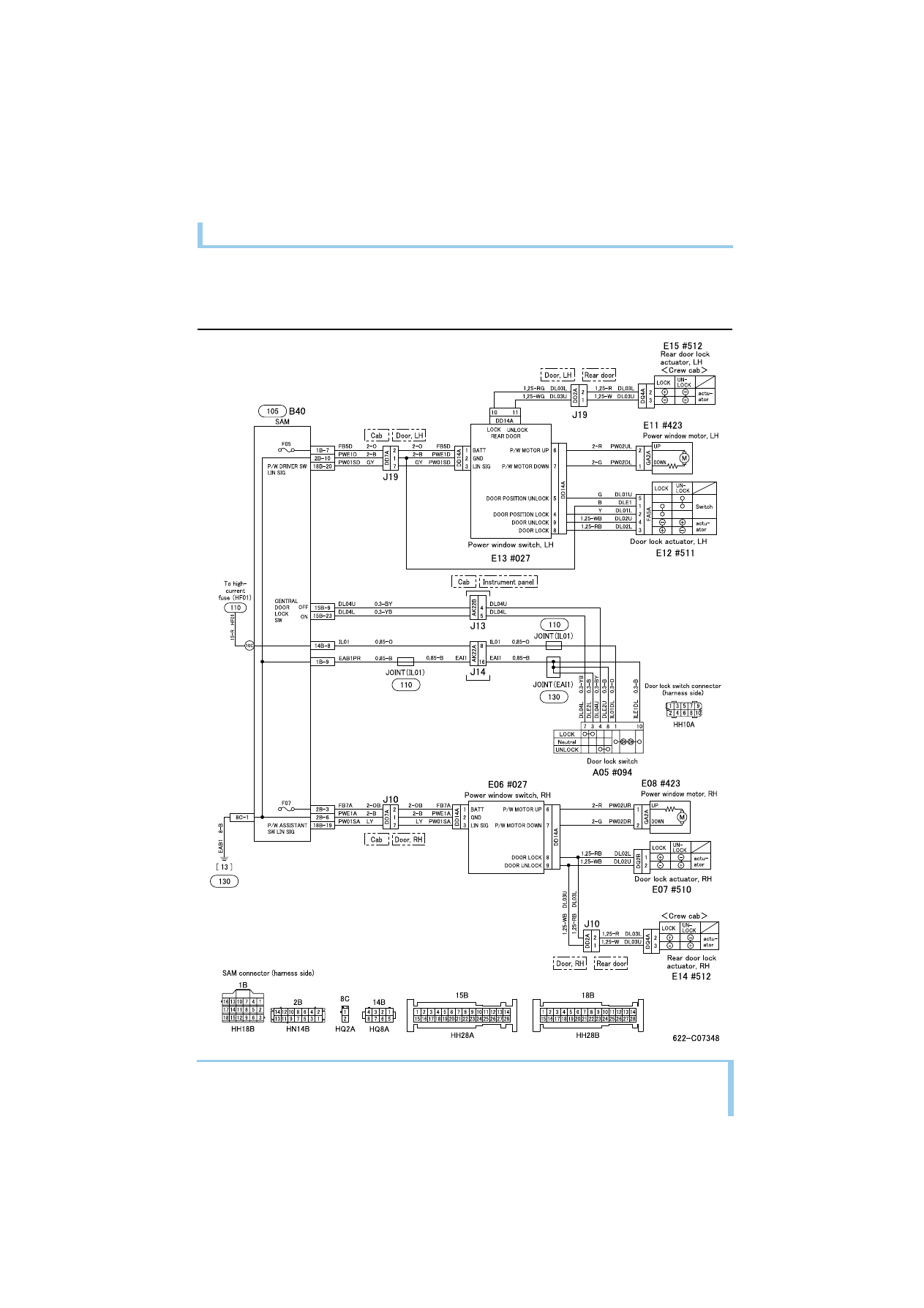

POWER WINDOW AND CENTRAL DOOR LOCK CIRCUIT

9 Technical  data

9.16 Electrical wiring diagram

298

MITSUBISHI FUSO body/equipment mounting directives for FE, FG  Issue date: 06. 07. 2012

!

 Only print out complete sections from the current version

i

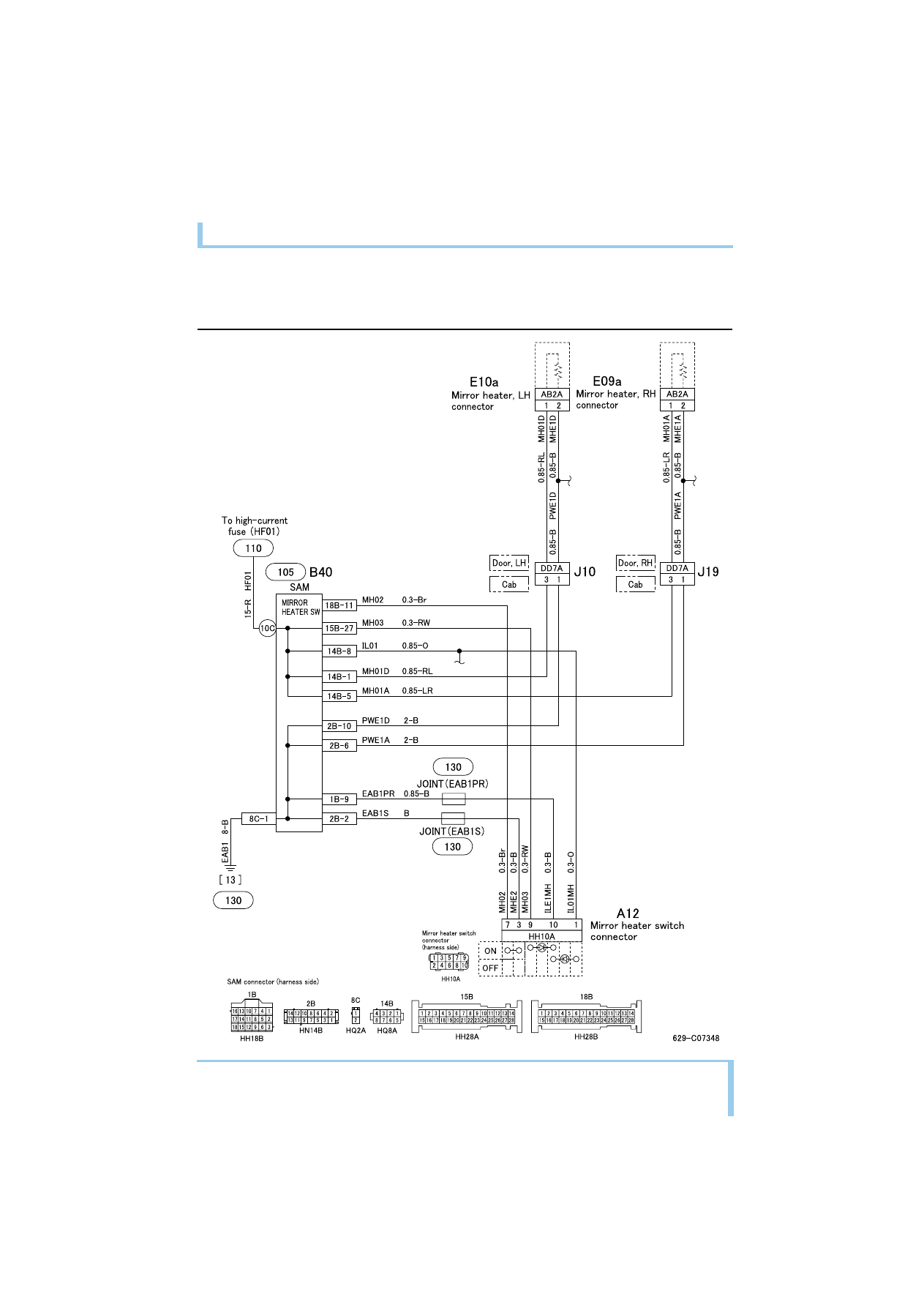

MIRROR HEATER CIRCUIT

9 Technical  data

9.16 Electrical wiring diagram

299

MITSUBISHI FUSO body/equipment mounting directives for FE, FG  Issue date: 06. 07. 2012

!

 Only print out complete sections from the current version

i

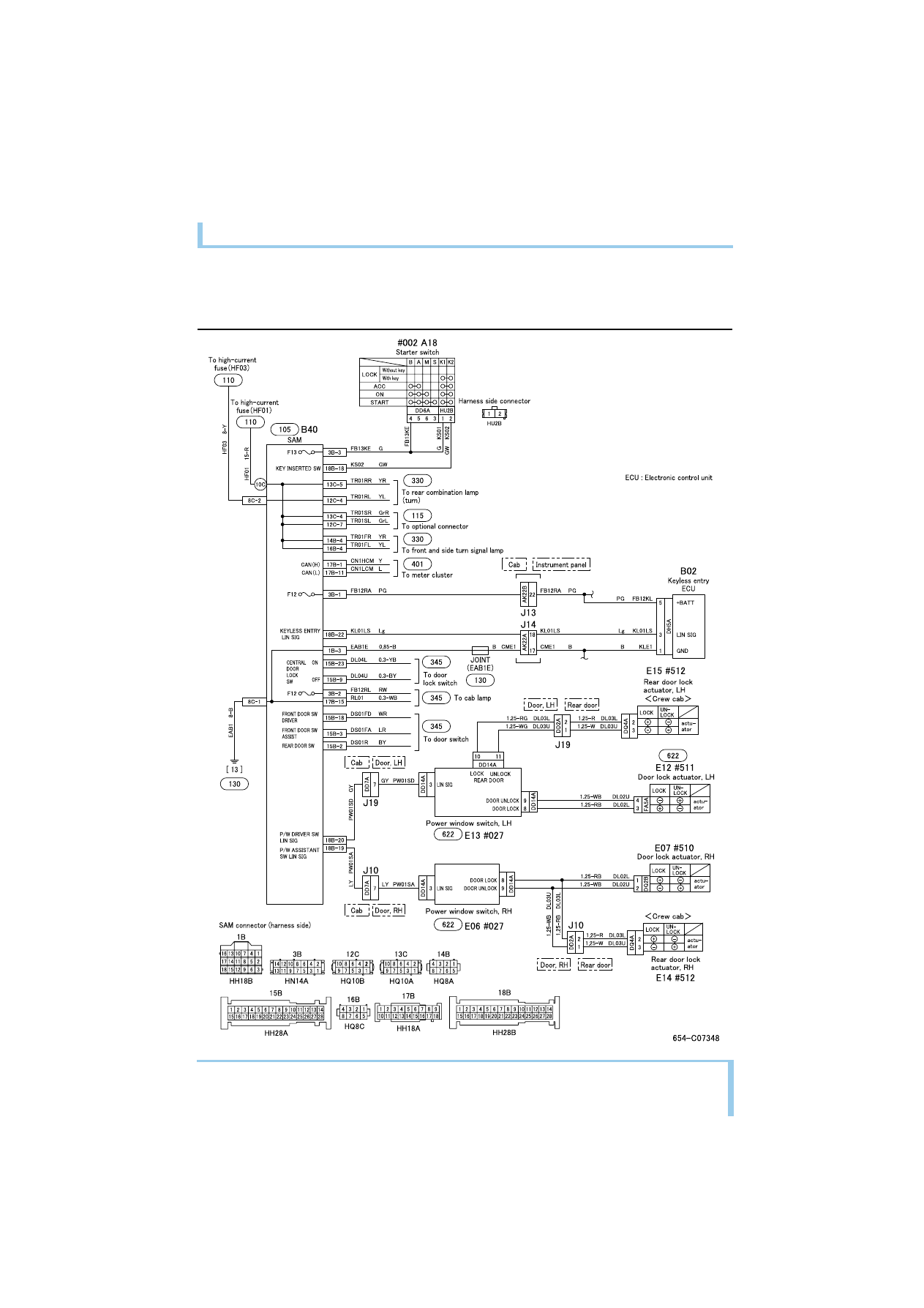

KEYLESS ENTRY CIRCUIT
