9 Technical  data

9.16 Electrical wiring diagram

228

MITSUBISHI FUSO body/equipment mounting directives for FE, FG  Issue date: 06. 07. 2012

!

 Only print out complete sections from the current version

i

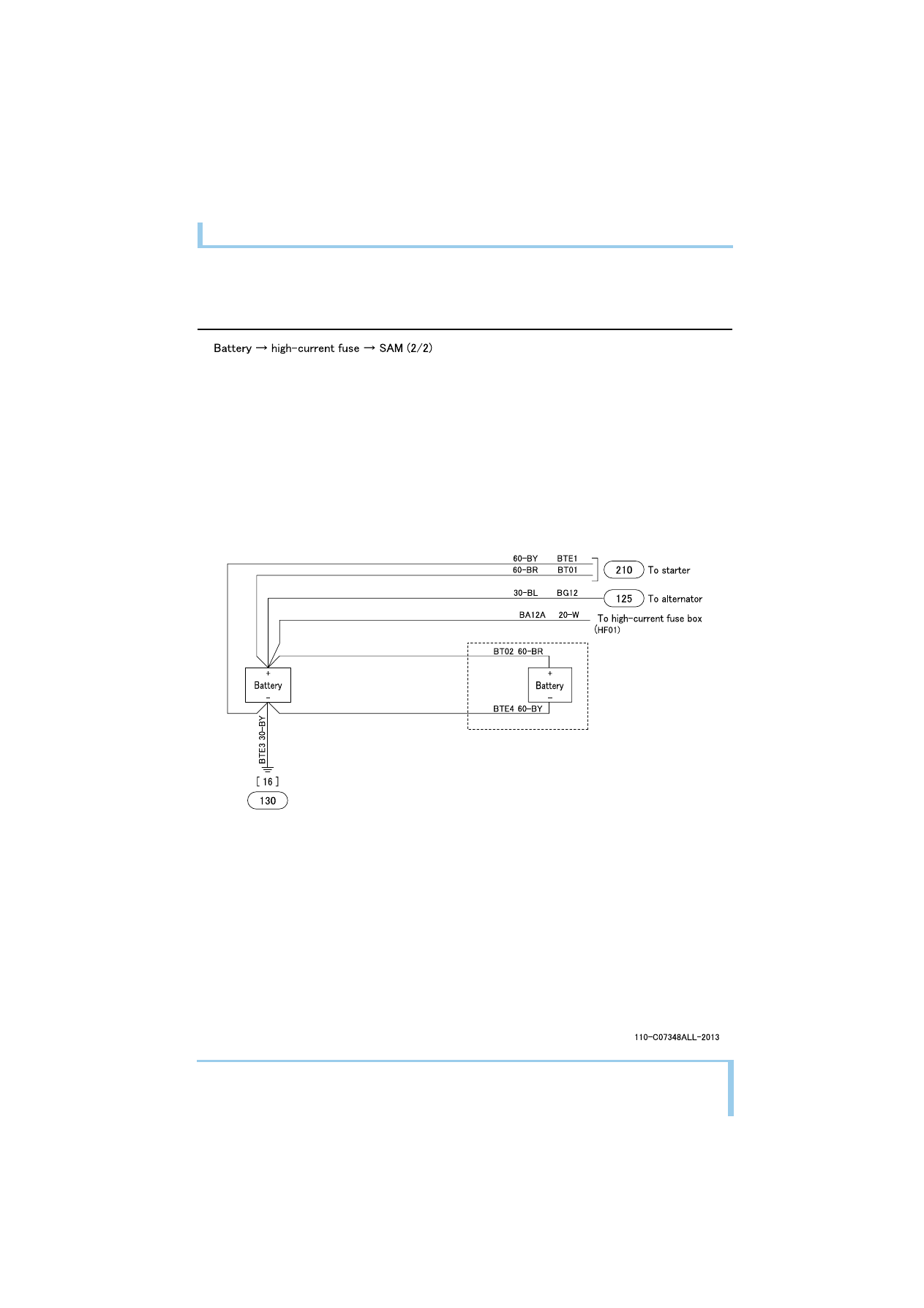

POWER CIRCUIT (2)

9 Technical  data

9.16 Electrical wiring diagram

229

MITSUBISHI FUSO body/equipment mounting directives for FE, FG  Issue date: 06. 07. 2012

!

 Only print out complete sections from the current version

i

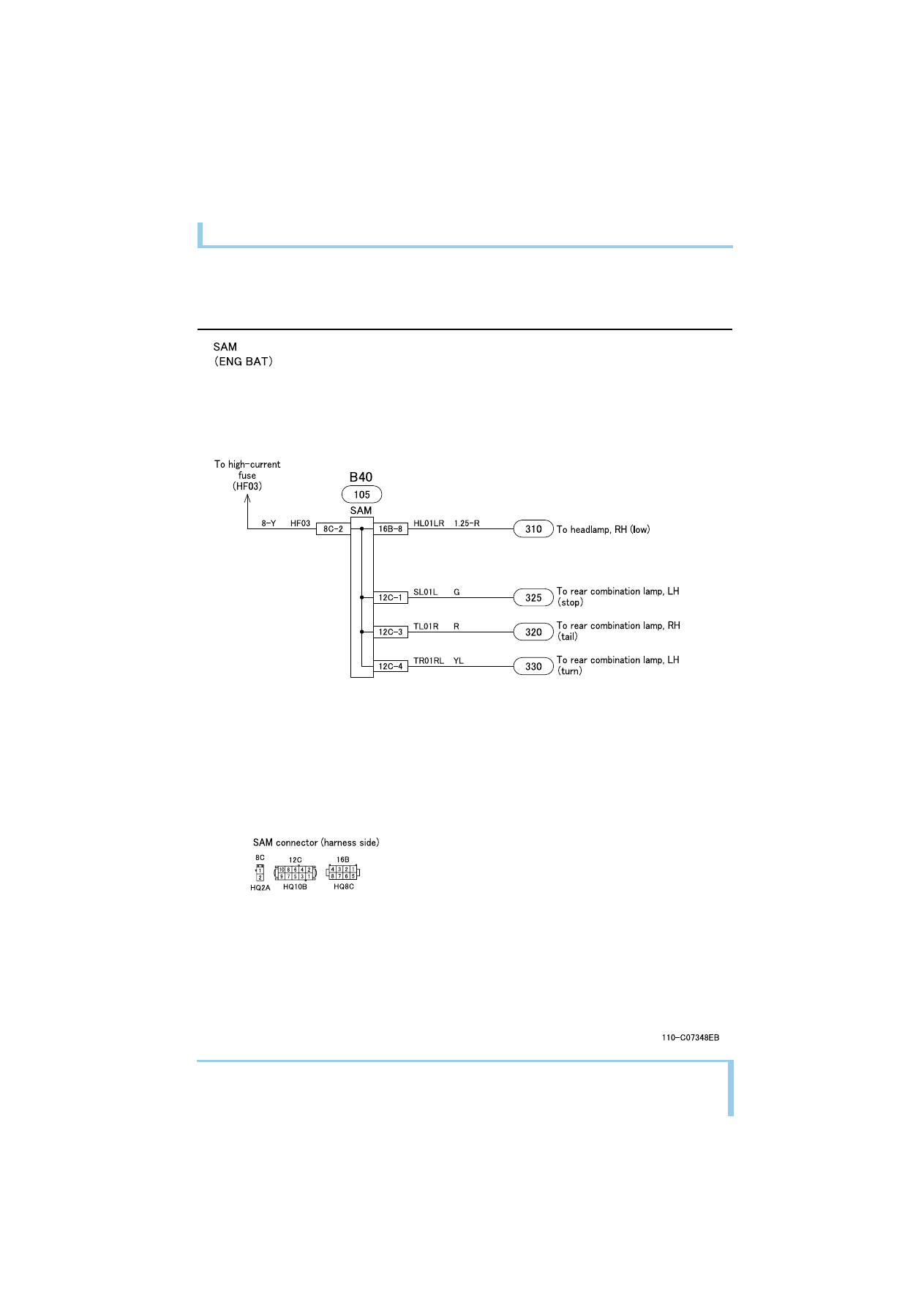

POWER CIRCUIT (3)

9 Technical  data

9.16 Electrical wiring diagram

230

MITSUBISHI FUSO body/equipment mounting directives for FE, FG  Issue date: 06. 07. 2012

!

 Only print out complete sections from the current version

i

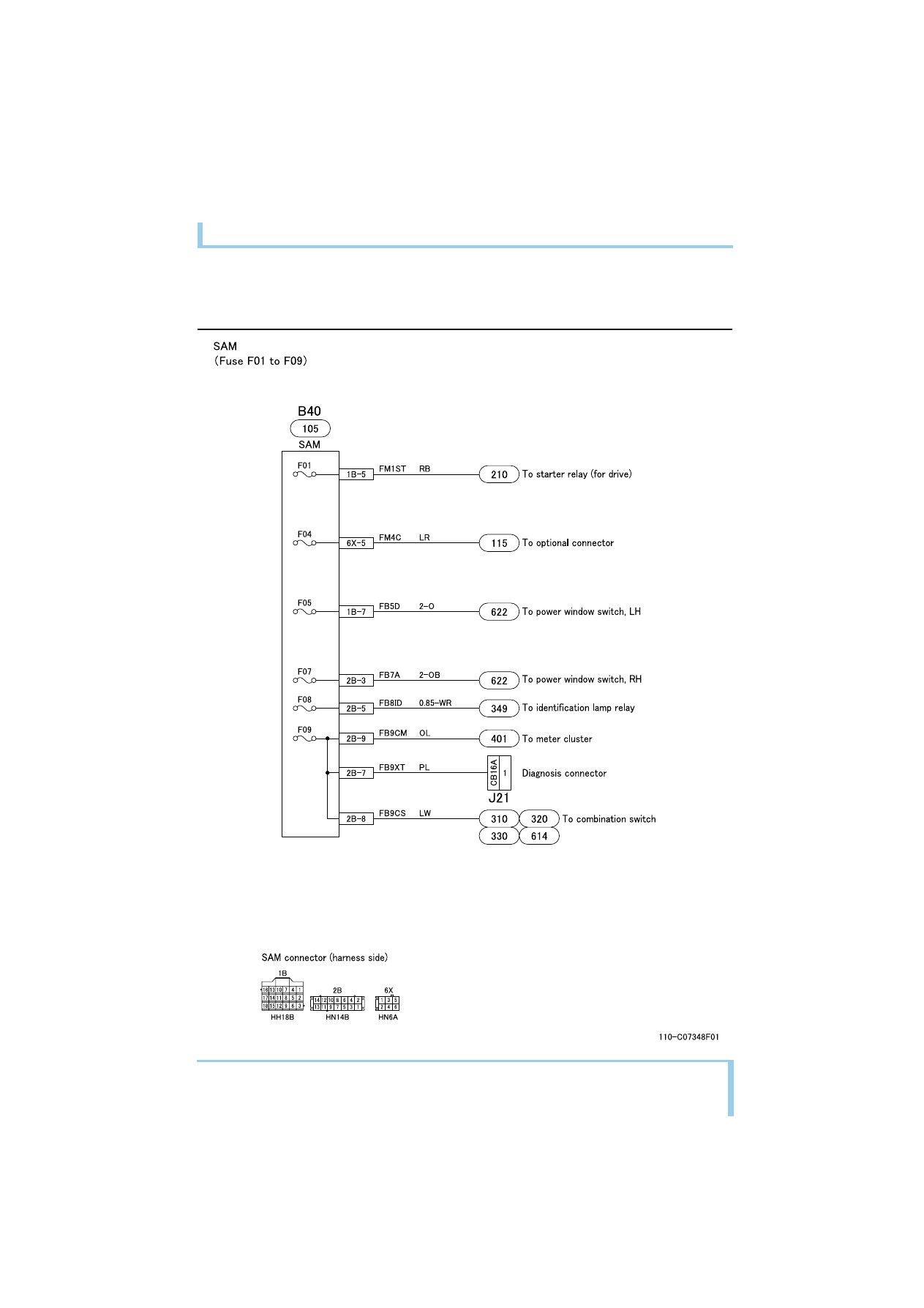

POWER CIRCUIT (4)

9 Technical  data

9.16 Electrical wiring diagram

231

MITSUBISHI FUSO body/equipment mounting directives for FE, FG  Issue date: 06. 07. 2012

!

 Only print out complete sections from the current version

i

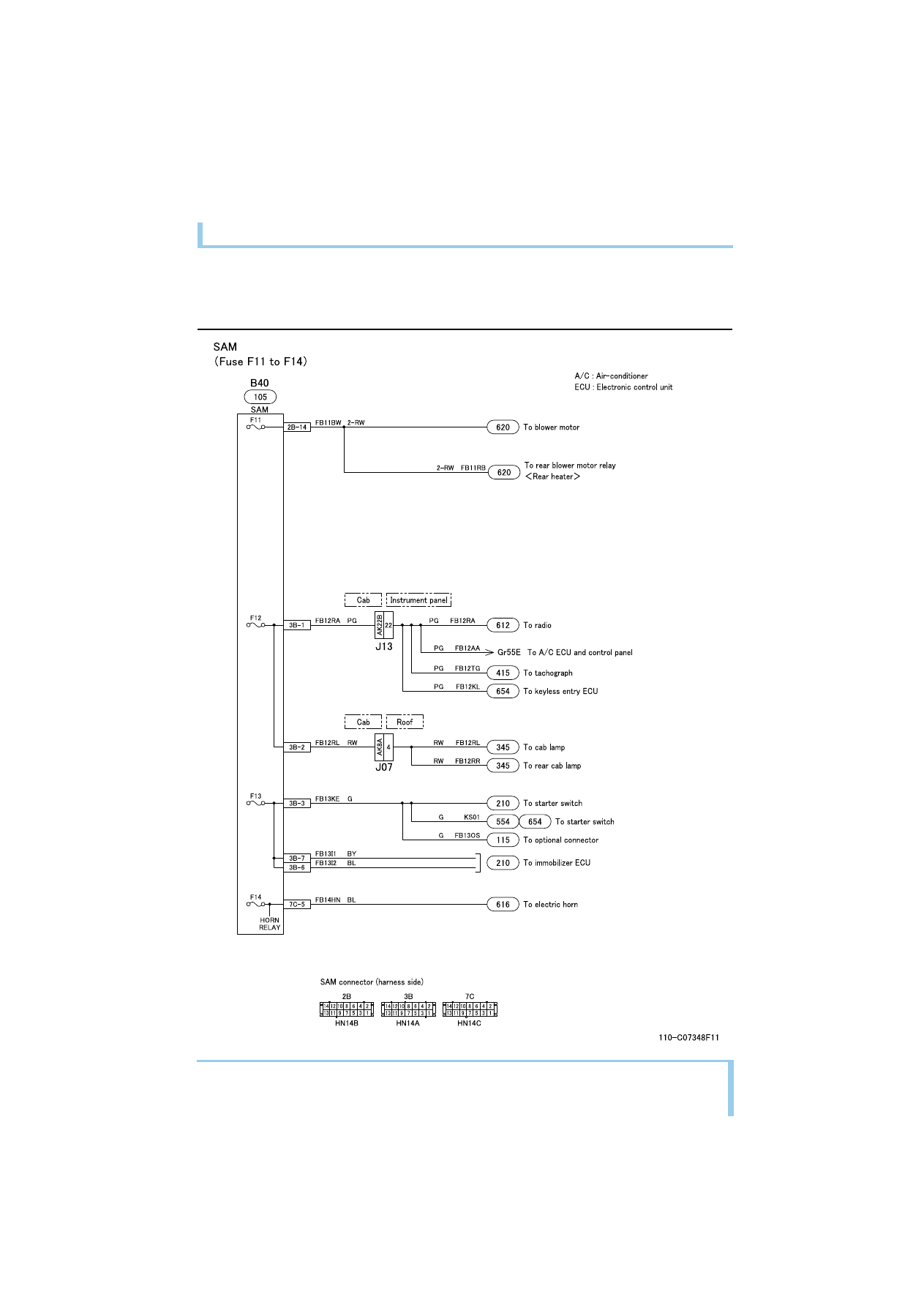

POWER CIRCUIT (5)
