Mitsubishi Canter (FE, FG). Manual - part 58

9 Technical  data

9.16 Electrical wiring diagram

232

MITSUBISHI FUSO body/equipment mounting directives for FE, FG  Issue date: 06. 07. 2012

!

 Only print out complete sections from the current version

i

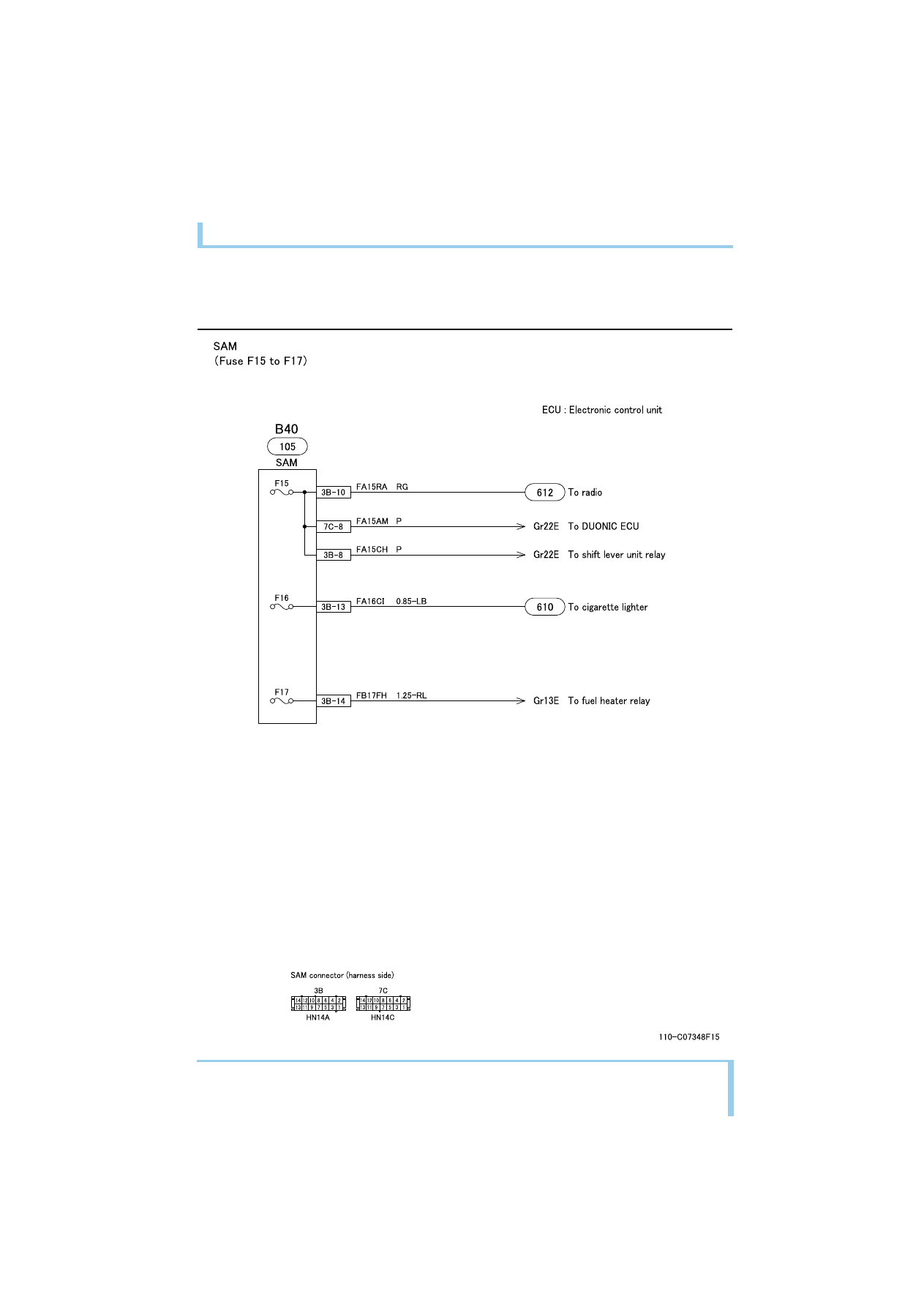

POWER CIRCUIT (6)

9 Technical  data

9.16 Electrical wiring diagram

233

MITSUBISHI FUSO body/equipment mounting directives for FE, FG  Issue date: 06. 07. 2012

!

 Only print out complete sections from the current version

i

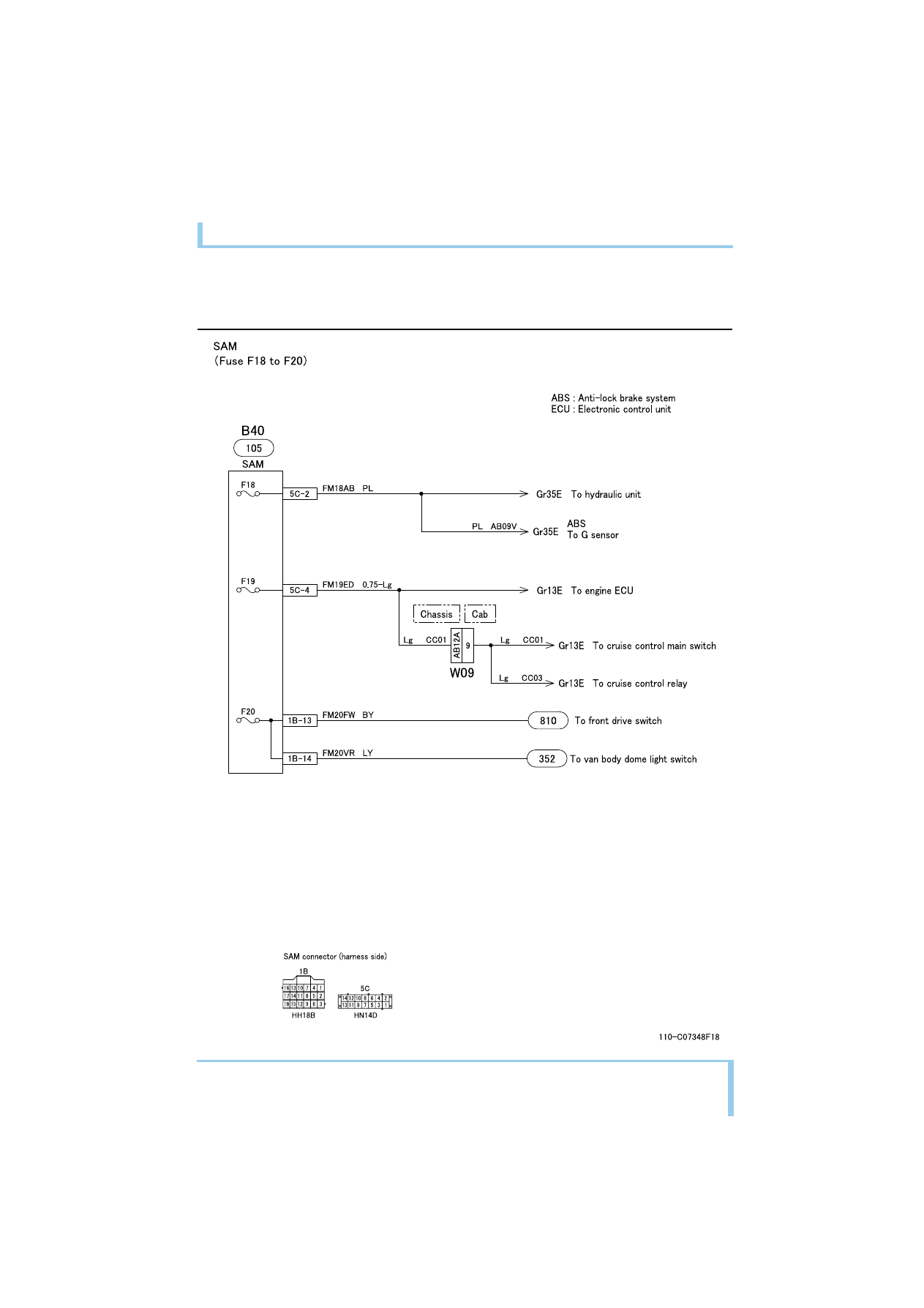

POWER CIRCUIT (7)

9 Technical  data

9.16 Electrical wiring diagram

234

MITSUBISHI FUSO body/equipment mounting directives for FE, FG  Issue date: 06. 07. 2012

!

 Only print out complete sections from the current version

i

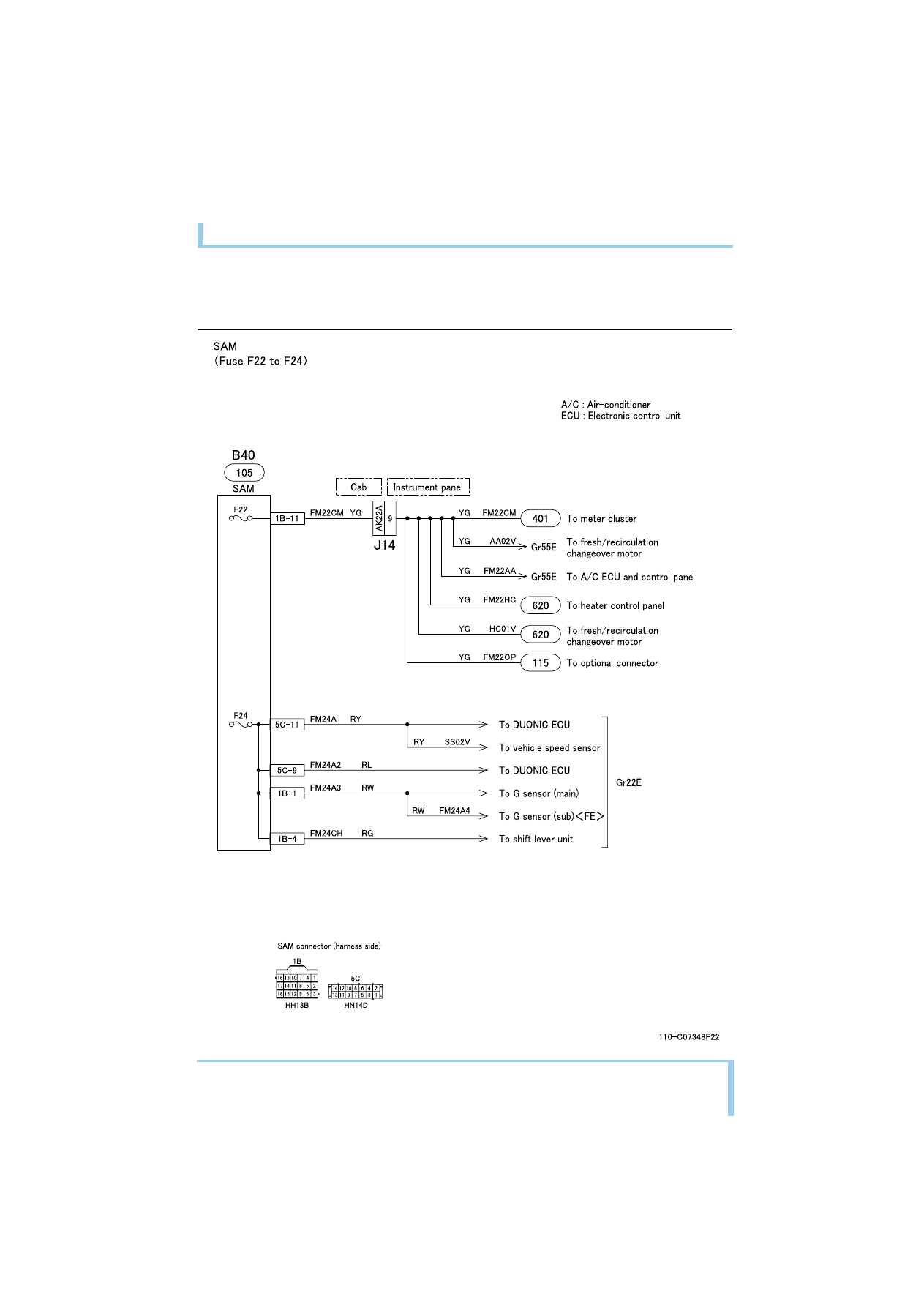

POWER CIRCUIT (8)

9 Technical  data

9.16 Electrical wiring diagram

235

MITSUBISHI FUSO body/equipment mounting directives for FE, FG  Issue date: 06. 07. 2012

!

 Only print out complete sections from the current version

i

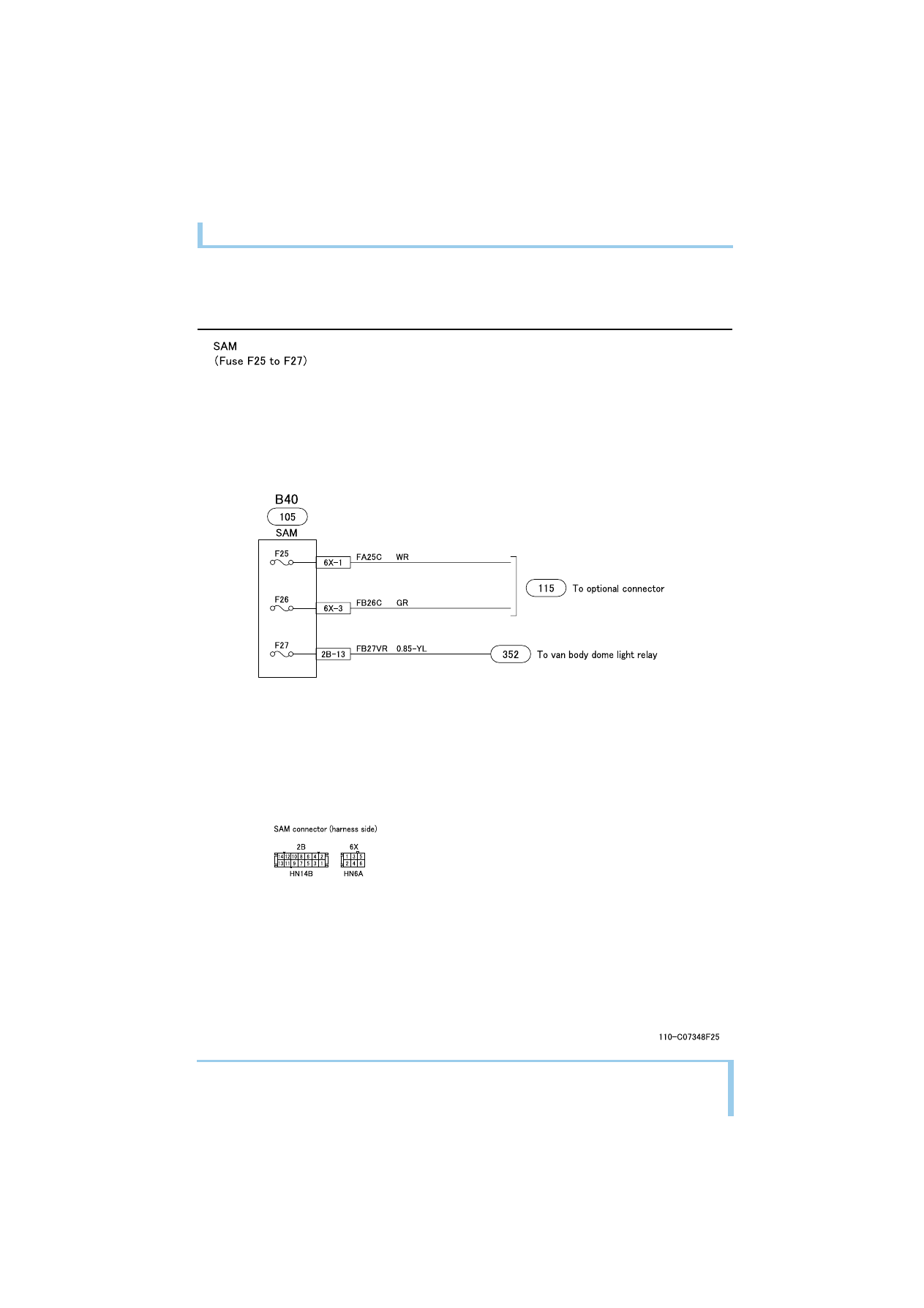

POWER CIRCUIT (9)
