Mitsubishi Canter (FE, FG). Manual - part 56
9 Technical data

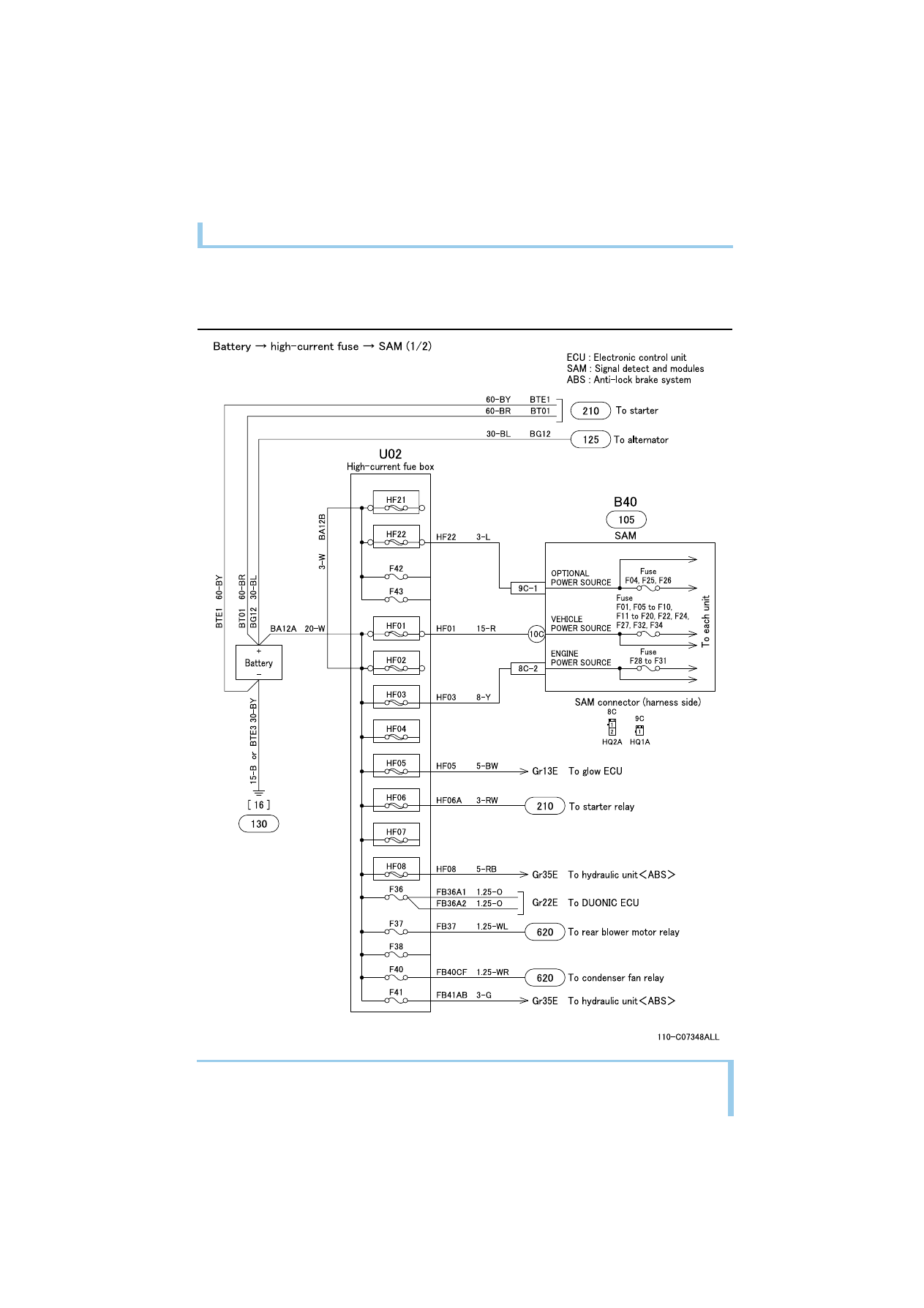

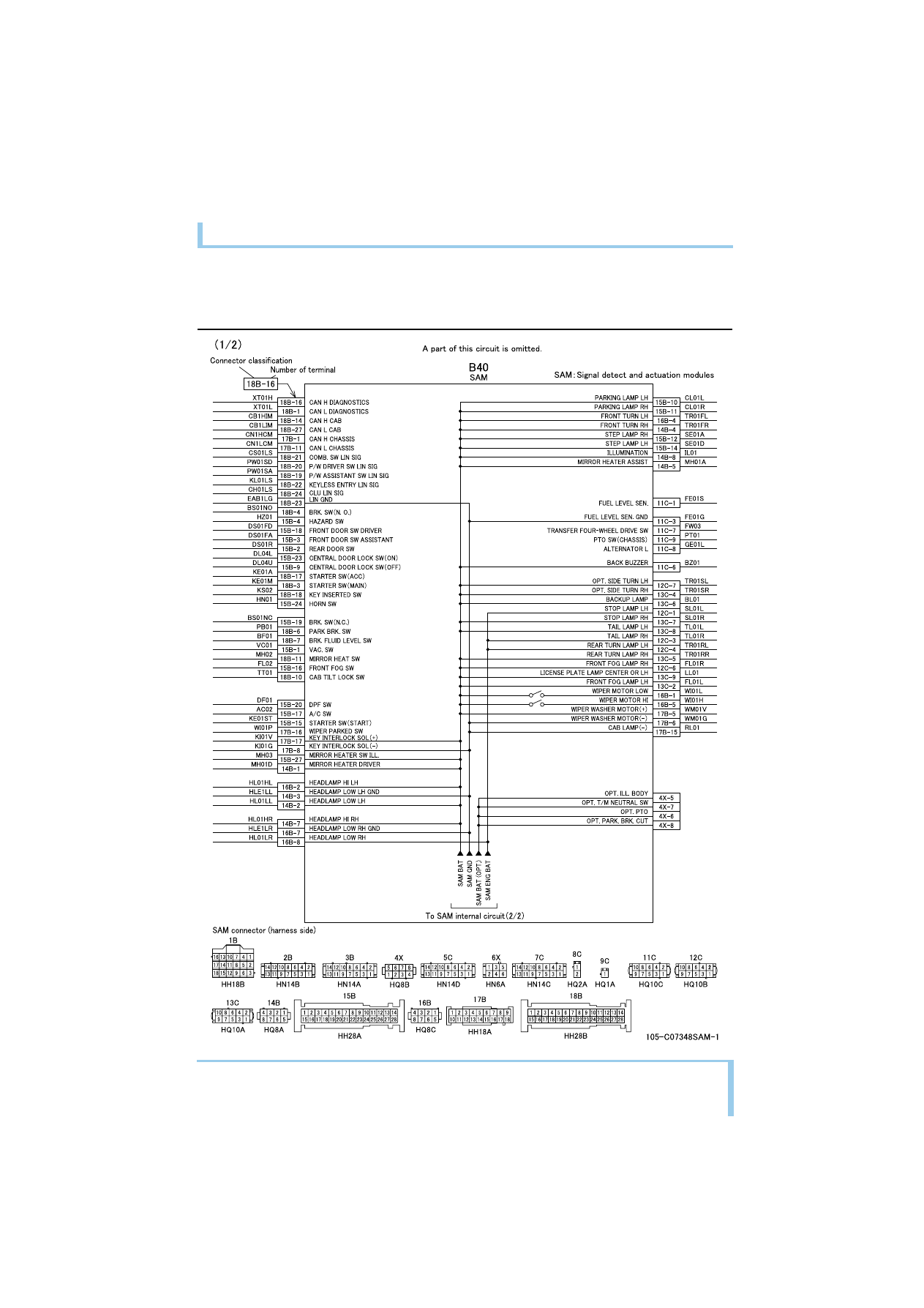

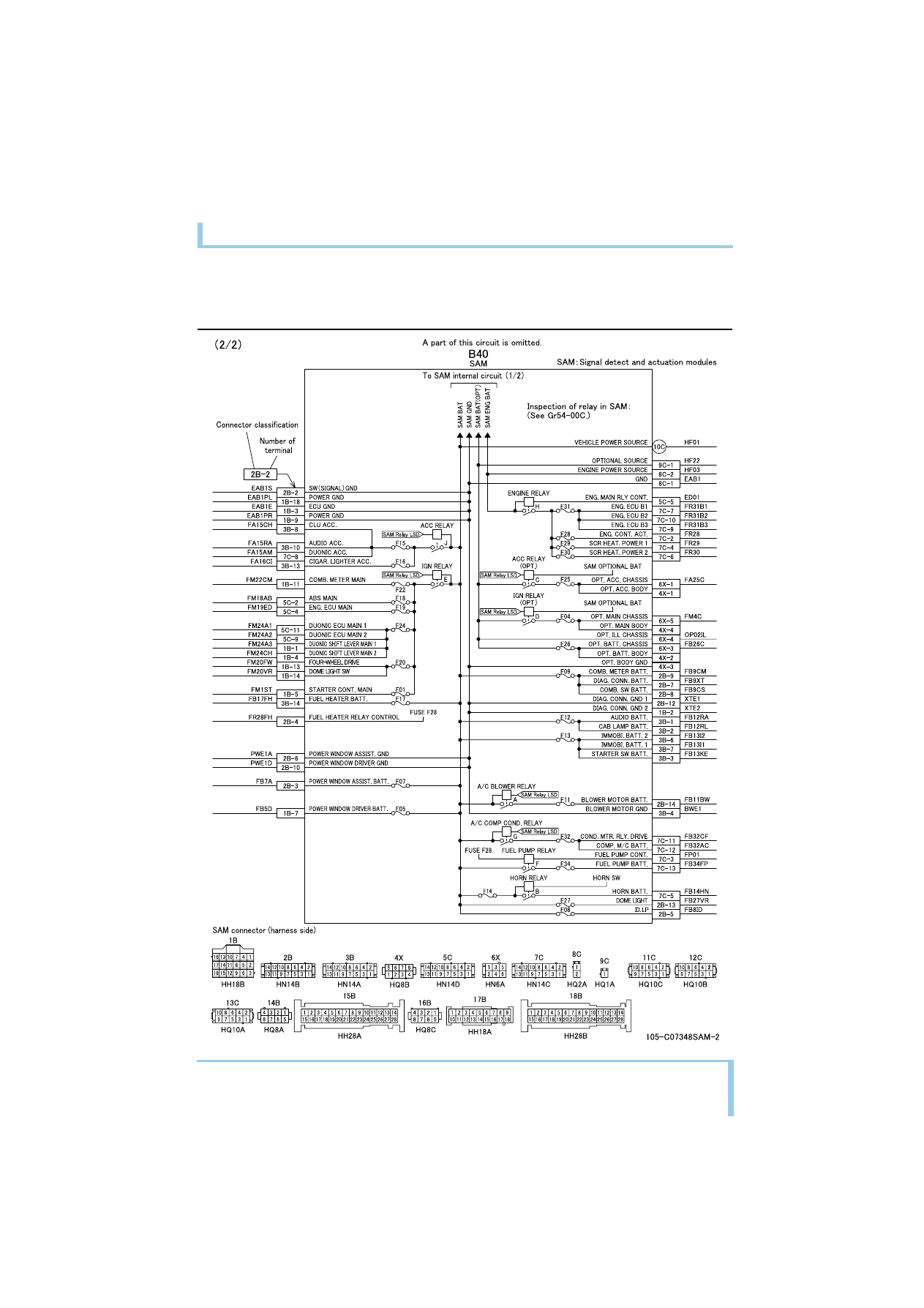

9.16 Electrical wiring diagram
224
MITSUBISHI FUSO body/equipment mounting directives for FE, FG Issue date: 06. 07. 2012
!
Only print out complete sections from the current version
i
Wire color
Wire color
Insulation color + tracer
B
Black BW
black/white
BY
black/yellow
BR
black/red
BG
black/green
BL
black/blue
Br
Brown BrW
brown/white
BrB
brown/black
BrY
brown/yellow
BrR
brown/red
BrG
brown/green
G
Green GW
green/white
GR
green/red
GY
green/yellow
GB
green/black
GL
green/blue
GO
green/orange
Gr
Gray GrL
gray/blue
GrR
gray/red
L
Blue LW
blue/white
LR
blue/red
LY
blue/yellow
LB
blue/black
LO
blue/orange
LG
blue/green
Lg
Light
green
LgR
light green/
red
LgY
light green/
yellow
LgB
light green/
black
LgW
light green/
white
O
Orange OL
orange/blue
OB
orange/black
OG
orange/green
P
Pink PB
pink/black
PG
pink/green
PL
pink/blue
PW
pink/white
Pu
Purple
R
Red RW
red/white
RB
red/black
RY
red/yellow
RG
red/green
RL
red/blue
RO
red/orange
Sb Sky blue
V
Violet VY
violet/yellow
VW
violet/white
VR
violet/red
VG
violet/green
W
White WR
white/red
WB
white/black
WL
white/blue
WG
white/green
WO
white/orange
Y
Yellow
YR
yellow/red
YB
yellow/black
YG
yellow/green
YL
yellow/blue
YW
yellow/white
YO
yellow/
orange
YP
yellow/pink
YV
yellow/violet
