9 Technical  data

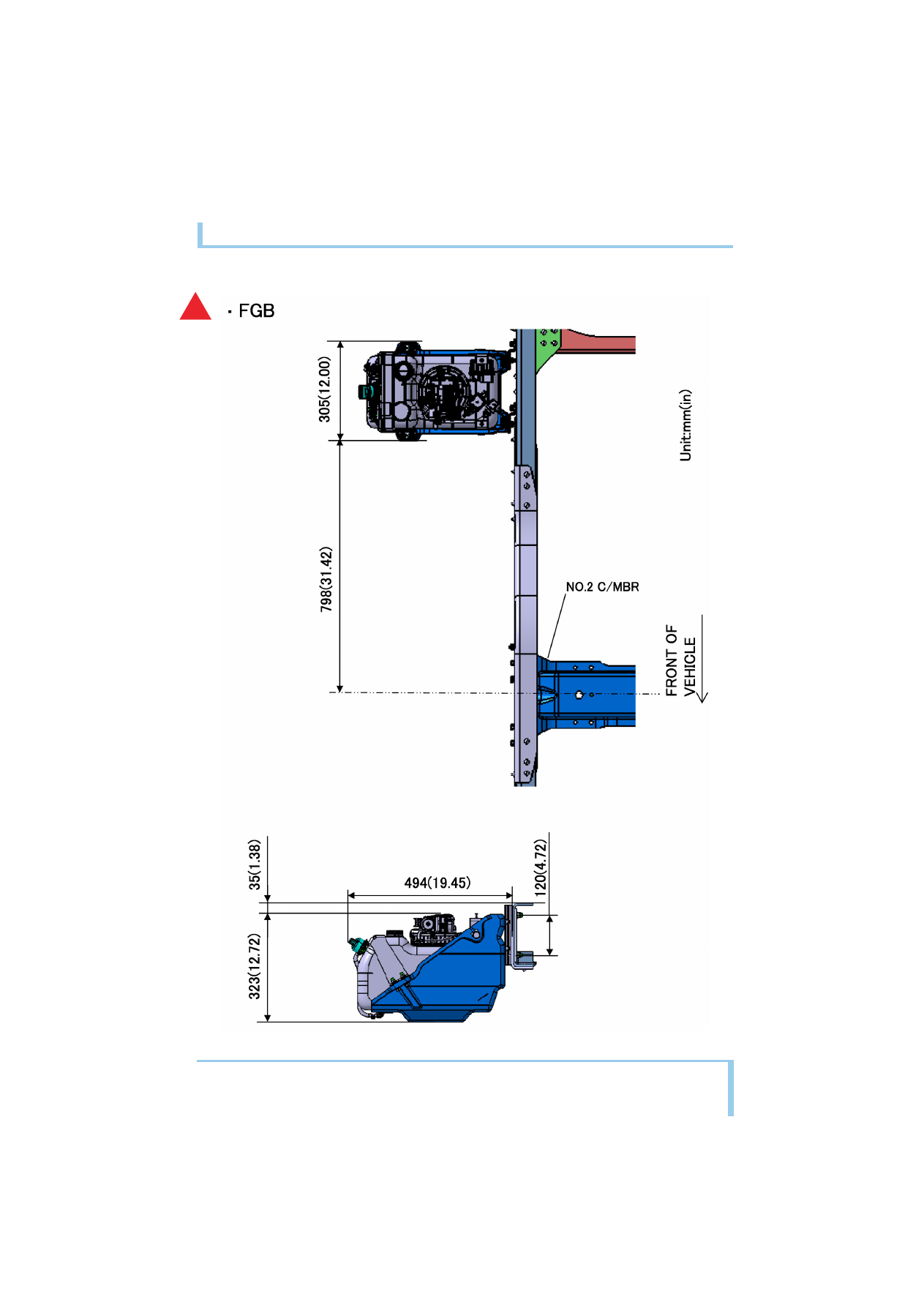

9.14 BlueTec

®

 exhaust gas aftertreatment

216

MITSUBISHI FUSO body/equipment mounting directives for FE, FG  Issue date: 06. 07. 2012

!

 Only print out complete sections from the current version

i

9 Technical  data

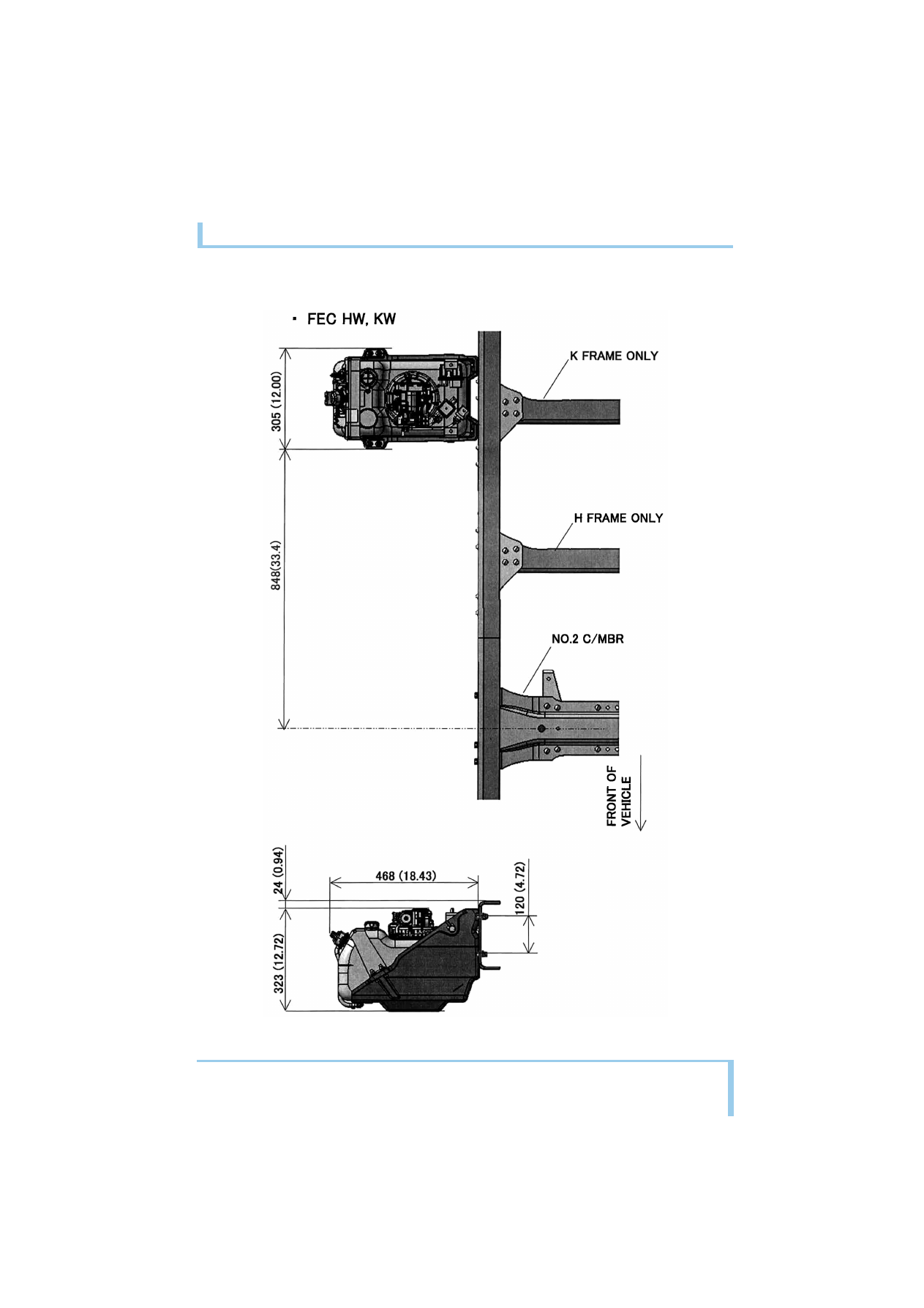

9.14 BlueTec

®

 exhaust gas aftertreatment

217

MITSUBISHI FUSO body/equipment mounting directives for FE, FG  Issue date: 06. 07. 2012

!

 Only print out complete sections from the current version

i

A

9 Technical  data

9.15 Labels and marks

218

MITSUBISHI FUSO body/equipment mounting directives for FE, FG  Issue date: 06. 07. 2012

!

 Only print out complete sections from the current version

i

9.15 Labels and marks

• When peeling off a label or emblem, order the part

number from the responsible division and attach
the label or emblem while referring to

컄 page 219.

9.15.1 List of the attaching locations of labels

and emblems

NOTE: Types of the label and emblem attaching on a
vehicle differ depending on the vehicle types.

Locations

Description

Front face of

cab

RH and LH

doors

FUSO

앪

—

DUONIC

—

앪

BlueTec

—

앪

9 Technical  data

9.15 Labels and marks

219

MITSUBISHI FUSO body/equipment mounting directives for FE, FG  Issue date: 06. 07. 2012

!

 Only print out complete sections from the current version

i

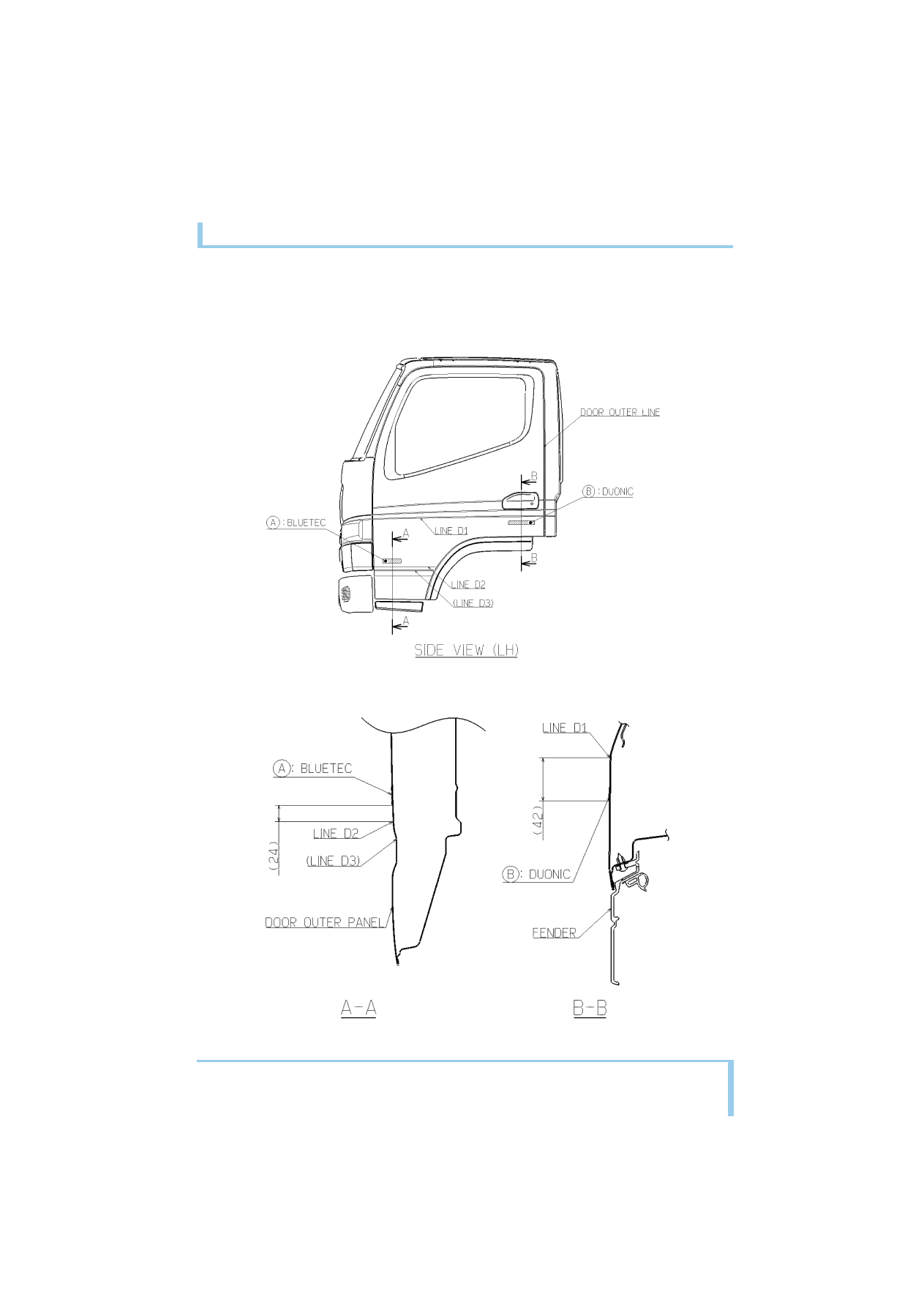

9.15.2 Installation of marks

Clean the indicated areas where the CUSTOM mark, BLUETEC mark, and DUONIC mark are to be stuck, peel off
the backing paper from each sticker, and affix it in position according to the illustration.
