9.12 Battery mounting layout

208

MITSUBISHI FUSO body/equipment mounting directives for FE, FG  Issue date: 06. 07. 2012

!

 Only print out complete sections from the current version

i

9.12 Battery mounting layout

E

<FE>

<FG>

9 Technical  data

9.13 Fuel tank mounting layout

209

MITSUBISHI FUSO body/equipment mounting directives for FE, FG  Issue date: 06. 07. 2012

!

 Only print out complete sections from the current version

i

9.13 Fuel tank mounting layout

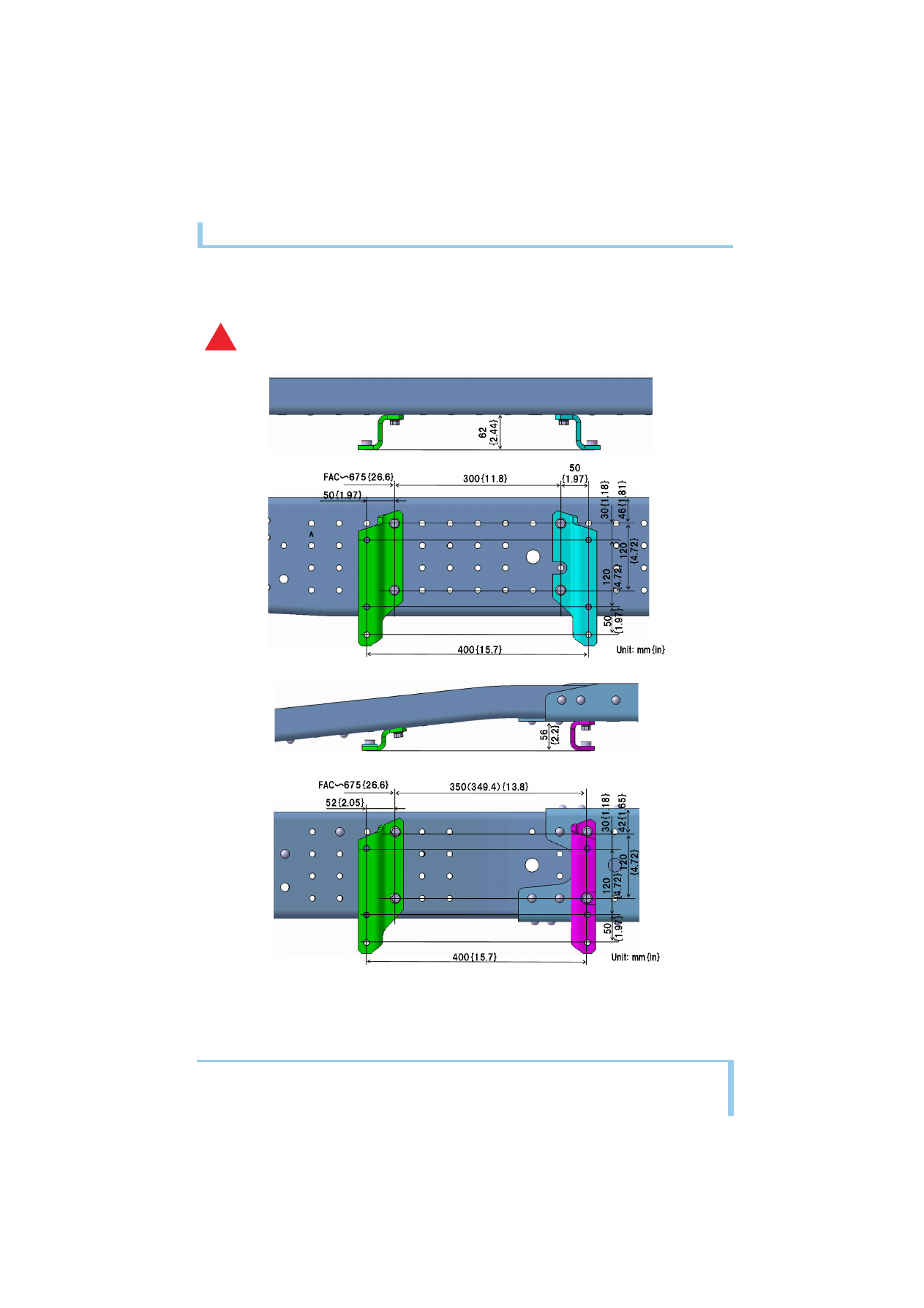

9.13.1 Fuel tank

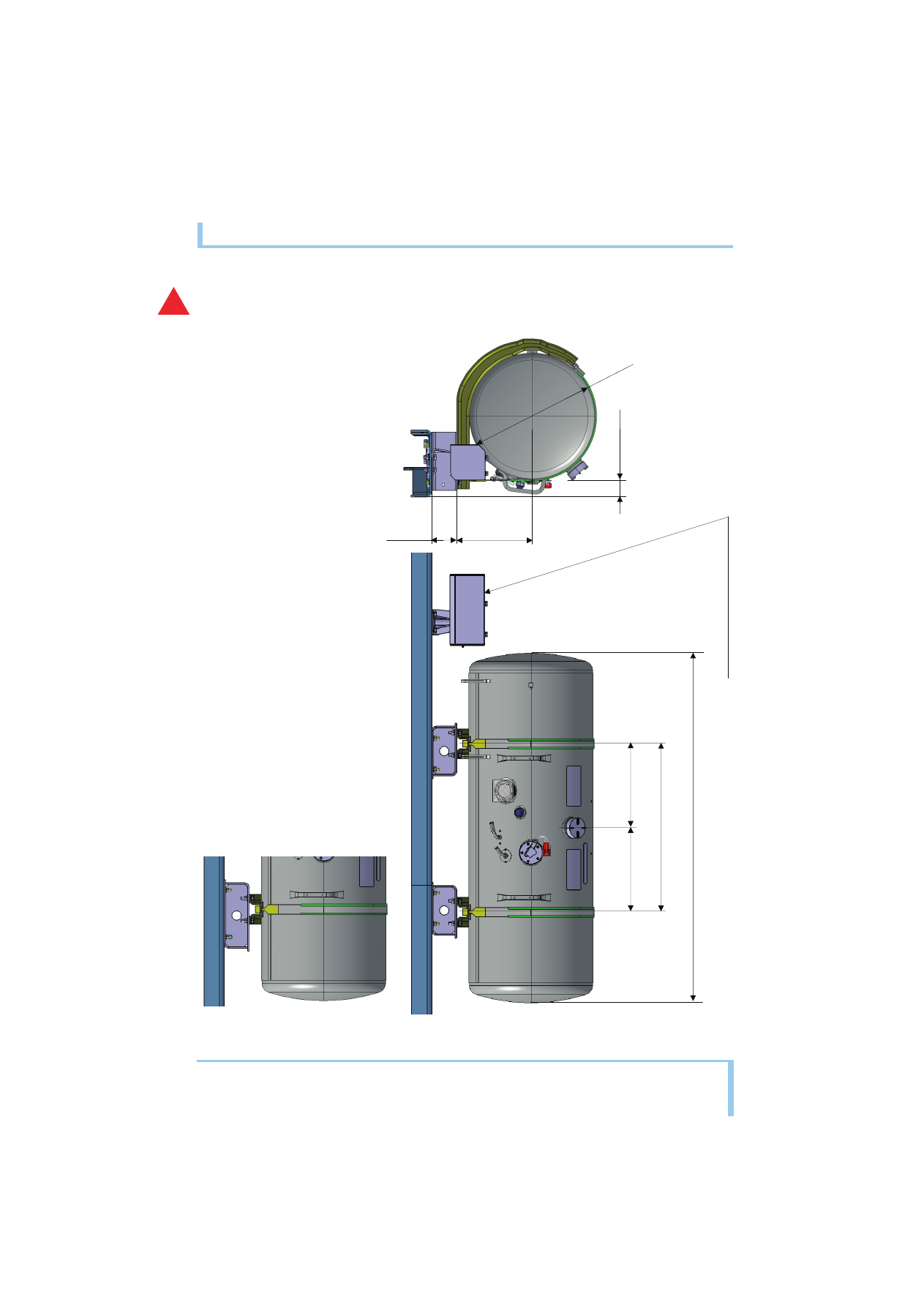

<FE>

9 Technical  data

9.13 Fuel tank mounting layout

210

MITSUBISHI FUSO body/equipment mounting directives for FE, FG  Issue date: 06. 07. 2012

!

 Only print out complete sections from the current version

i

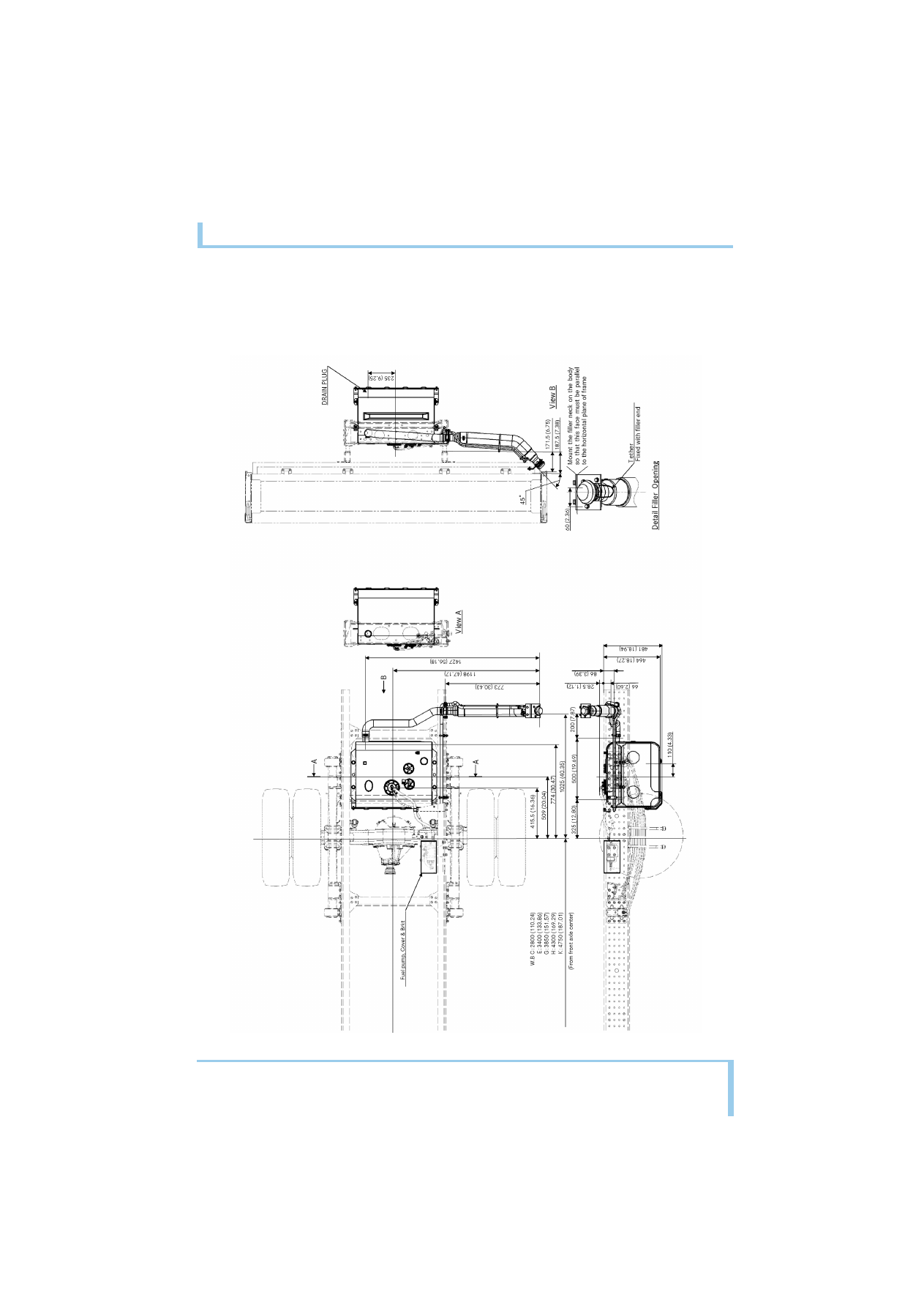

<FG>

A

9 Technical  data

9.13 Fuel tank mounting layout

211

MITSUBISHI FUSO body/equipment mounting directives for FE, FG  Issue date: 06. 07. 2012

!

 Only print out complete sections from the current version

i

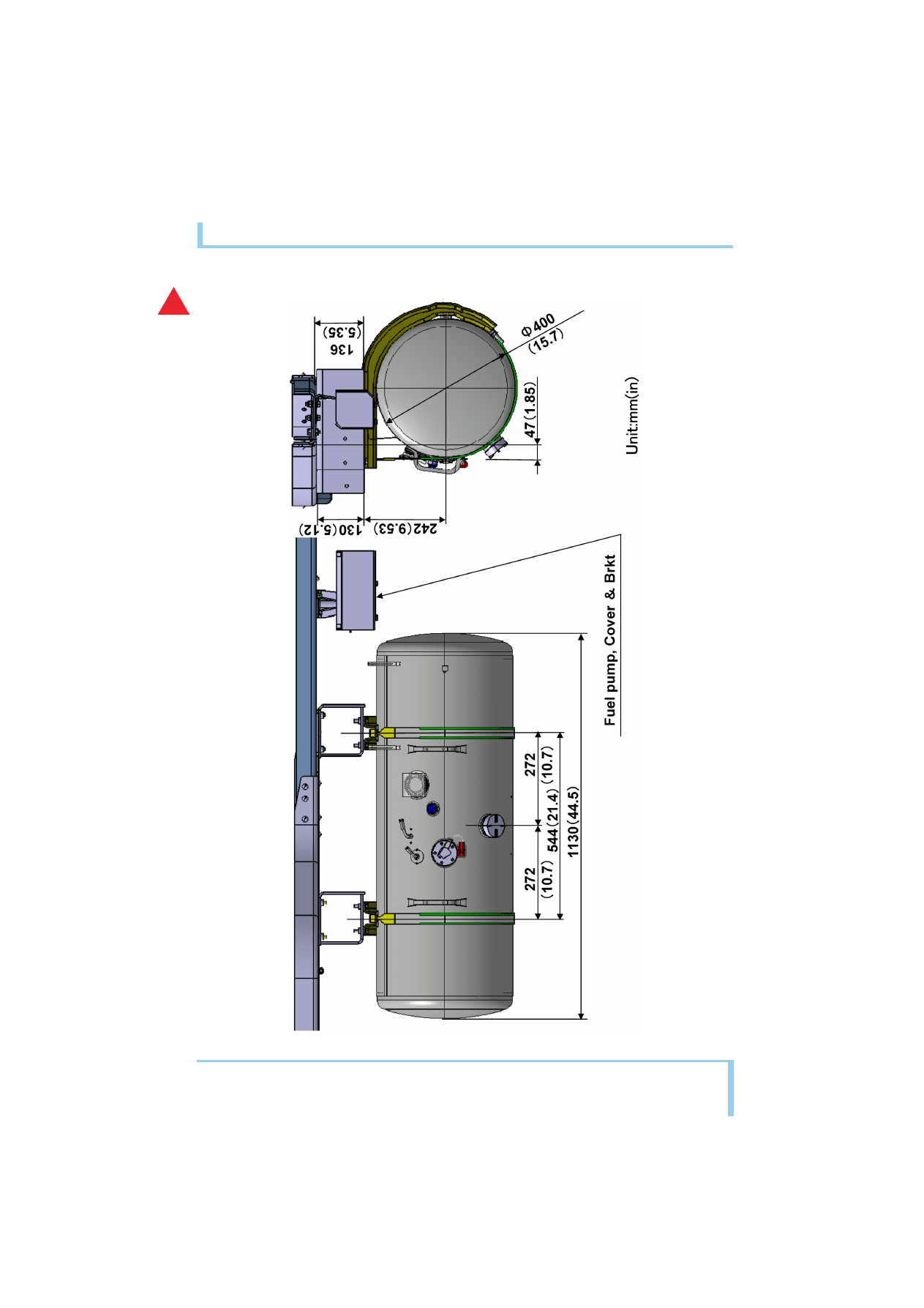

<Option 125L Fuel tank>

E

Unit : mm (in)

53 (2.09)

240

(9.45)

80

(3.15)

㱢4

00

(15.

7)

272 (10.7)

272 (10.7)

544 (21.4)

1130 (44.5)

Fuel pump, Cover &

 Brkt

CREW CAB  WB : K  ONLY

SINGLE CAB   WB : E,G,H,K

CREW CAB     WB : H,K
