108

6 Modifications to the basic vehicle

6.12 Electrics/electronics

MITSUBISHI FUSO body/equipment mounting directives for FE, FG  Issue date: 06. 07. 2012

!

 Only print out complete sections from the current version

i

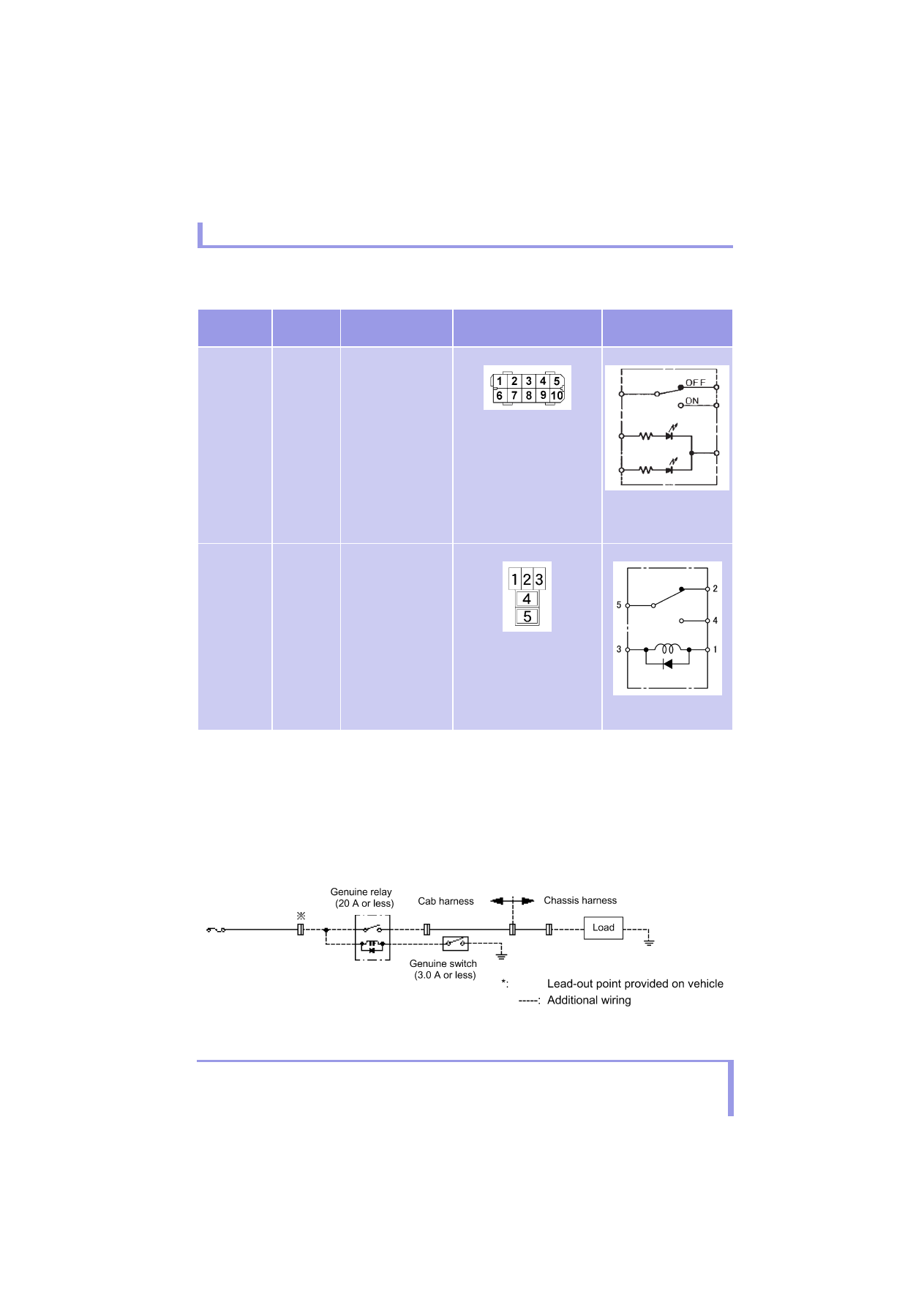

Installation of switches and relays for equipment

Notes:

1. If the total load current to the equipment connected to the switch for equipment exceeds 3.0 A, a relay must

be added to prevent the flow of any load current exceeding 3.0 A through the switch.
Night lighting and ON lighting are available for the switch for equipment. Use them as required.

2. The allowable current for the output line for equipment is specified separately from that for the relay above.

Select the connected load that will not exceed either allowable current.

3. Typical example of use

Part Name

Mitsubishi

Part No.

Allowable Current

Connector (Harness side)

Circuit

Rocker

switch

MK645424

3.0 A or less

MCP2.8 type connector
Housing: A0145450026
Terminal: A0145451126KZ
(wire diameter: 0.3 mm

2

)

A0135457626KZ
(wire diameter: 0.5 to
0.85 mm

2

)

Relay

MK420480
For 12 V

Between (5) and (4)
(normal open side):
20 A or less
Between (5) and (2)
(normal close side):
10 A or less

Connector type
EQ5A
(MH059820)

3: Power supply side
1: Ground side

ON lighting

Night
lighting

7

6

10

8

9

1

109

6 Modifications to the basic vehicle

6.12 Electrics/electronics

MITSUBISHI FUSO body/equipment mounting directives for FE, FG  Issue date: 06. 07. 2012

!

 Only print out complete sections from the current version

i

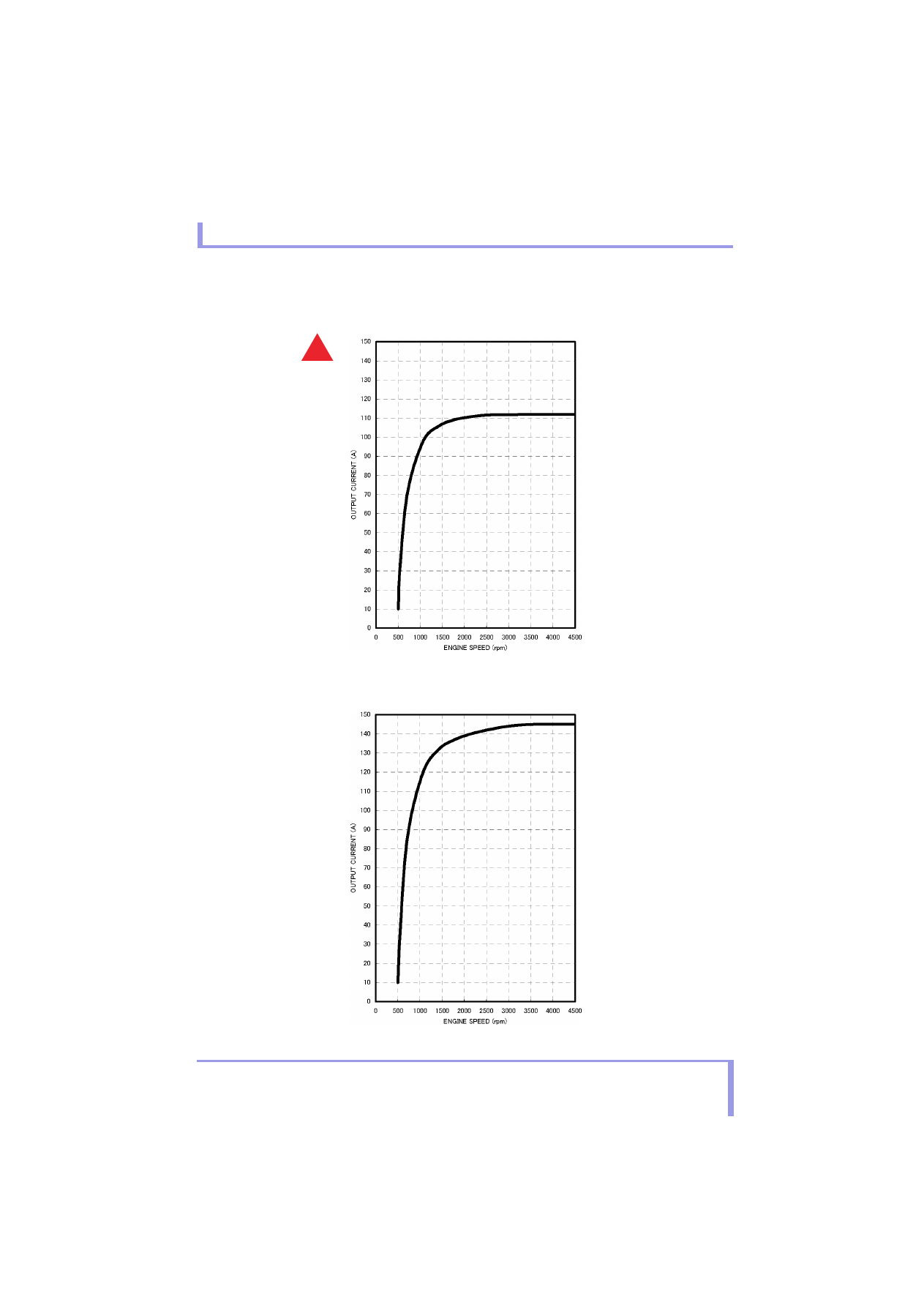

• Engine Alternator Performance Curves

4P10 Engine Alternator Performance Curve

Nominal output: 12V-110A

4P10 Engine Alternator Performance Curve

Nominal output: 12V-140A

D

110

6 Modifications to the basic vehicle

6.13 Installation of propeller shafts

MITSUBISHI FUSO body/equipment mounting directives for FE, FG  Issue date: 06. 07. 2012

!

 Only print out complete sections from the current version

i

6.13 Installation of propeller shafts

Observe the following when installing propeller shafts:

• Installation guidelines of the propeller shaft

manufacturer.

• If necessary, fit several propeller shafts with

intermediate bearings.

• The flanging surfaces must be completely flat.
• The angular offsets must be identical at both

universal joints (ß

1

 = ß

2

). They must not be greater

than 6° or less than 1°.

• Balancing plates must not be removed.
• Make sure that the marks are aligned on the

propeller shafts during installation.

• Eliminate any vibrations, e.g. by optimising the

propeller shaft angles.

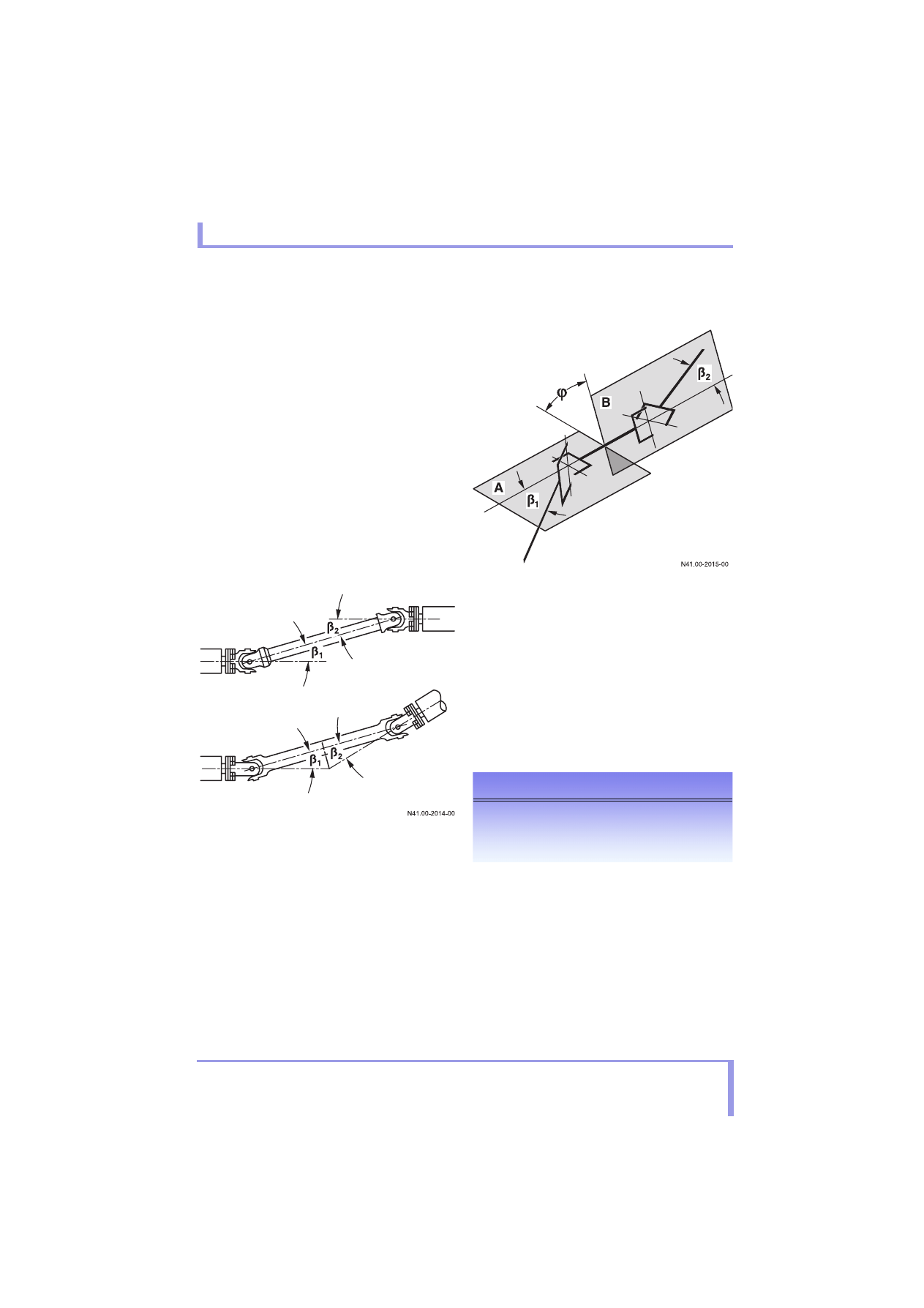

6.13.1 Types of angular offset

Angle in one plane (two-dimensional offset)

ß

1

 = ß

2

Upper = Z-type offset
Lower = W-type offset

Angles in two planes (three-dimensional offset)

ß

1

 = ß

2

With three-dimensional offset, the input and output
shafts intersect in different planes (combined W- and
Z-offset).

In order to compensate for any irregularities, the inner
joint fork must be offset.

!

Failure to observe these instructions could result in
damage to the major assemblies.

111

7.1 General

MITSUBISHI FUSO body/equipment mounting directives for FE, FG  Issue date: 06. 07. 2012

!

 Only print out complete sections from the current version

i

!

Bodies on which the gearbox can be expected to be
exposed to high levels of water, e.g. cleaning water
(flushing, overflowing or similar), require an
effective cover over the gearbox (gearbox guard)
which will prevent abrupt cooling as well as water
ingestion via the gearbox breather.

i

Further information on bolted and welded
connections can be found in Section 3 "Planning of
bodies"

컄 page 27 and Section 5 "Damage

prevention"

컄 page 53.

7.1 General

a

Risk of accident and injury

Do not modify any bolted connections that are
relevant to safety, e.g. that are required for wheel
alignment, steering or braking functions.

When unfastening bolted connections make sure
that, when work is complete, the connection again
corresponds with the original condition.

Welding work on the chassis/body may only be
carried out by trained and qualified personnel.

The body, attached or installed equipment and any
modifications must comply with the applicable laws
and directives as well as workplace safety or
accident prevention regulations, safety rules and
accident insurer requirements.

a

Risk of fire

With all bodies make sure that neither flammable
objects nor flammable liquids can come into
contact with hot assemblies (including through
leakages in the hydraulic system) such as the
engine, gearbox, exhaust system, turbocharger,
etc.

Appropriate caps, seals and covers must be
installed on the body in order to avoid the risk of
fire.

7 Construction of bodies
