Mitsubishi Canter (FE, FG). Manual - part 26





104

6 Modifications to the basic vehicle

6.12 Electrics/electronics

MITSUBISHI FUSO body/equipment mounting directives for FE, FG  Issue date: 06. 07. 2012

!

 Only print out complete sections from the current version

i

-: The connector marked with - is used for signal cabling only, not used to connect the loads.

*1:  Loads to be connected to the connector marked with *1 should be arranged so that the total value of the

connector output in each of the cab and chassis side shall not exceed the permissible current.

No.

Part Name

Connector

No.

Circuit Description

Mating

Connector

No.

Circuit

Line

color

 Load

B

OPTION CONNECTOR
(Only When sub harness
(MK649751) is
arranged)

MH052847

01
02
03
04
05
06
07
08

PARKING ON
NEUTRAL
PTO
ILL
MAIN
GND
BATT
ACC

Br

R-G

Lg-R

O-B

L-R

B

G-R

W-R

*1
*1
*1
*1
*1

10A

*1
*1

MH052805

C

OPTION CONNECTOR

MH056867

01
02

IDLE UP
(SWtoGND)

R-B

-

MH056800

105

6 Modifications to the basic vehicle

6.12 Electrics/electronics

MITSUBISHI FUSO body/equipment mounting directives for FE, FG  Issue date: 06. 07. 2012

!

 Only print out complete sections from the current version

i

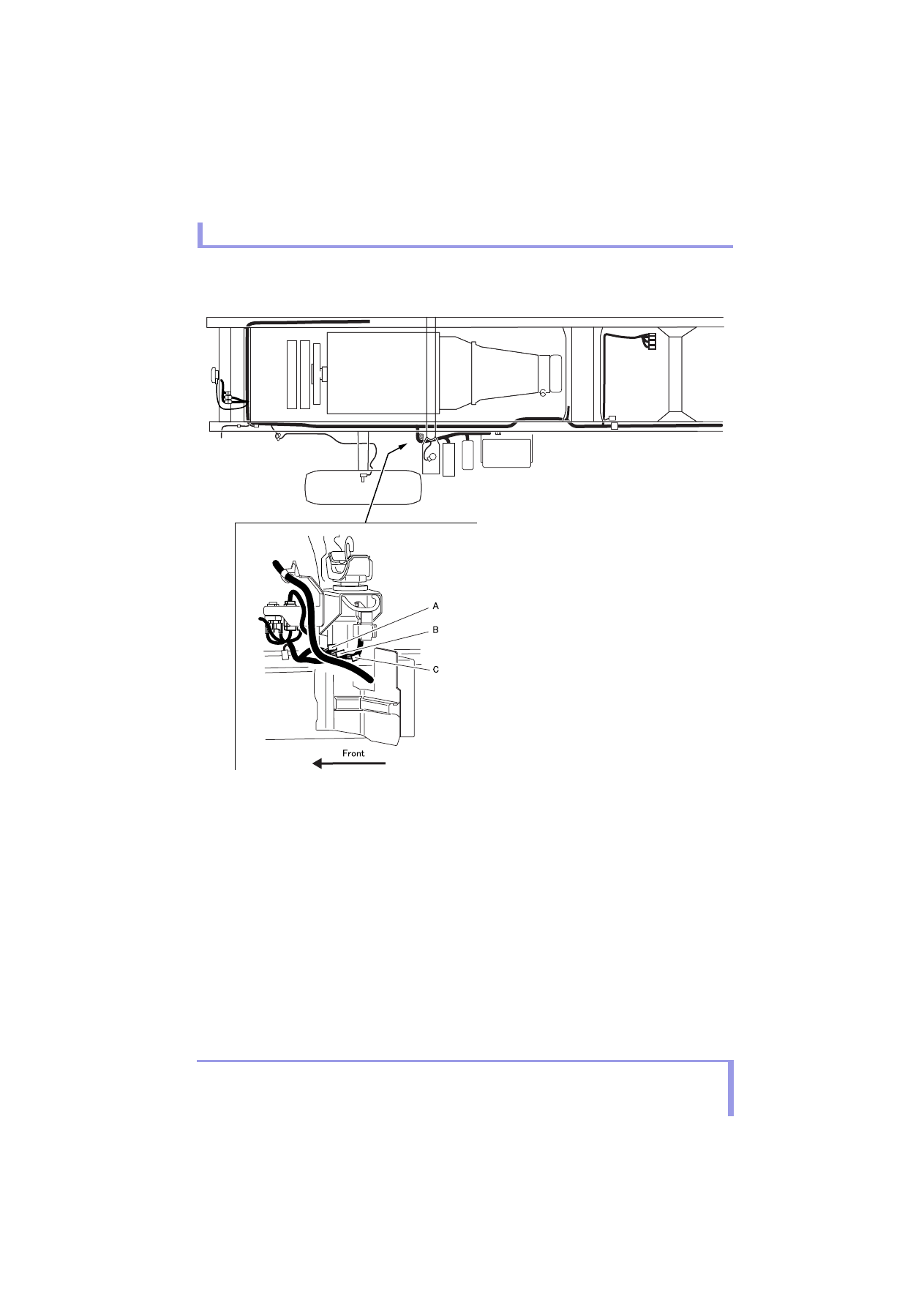

• Mounting Location of Optional Terminal Outside Cab

106

6 Modifications to the basic vehicle

6.12 Electrics/electronics

MITSUBISHI FUSO body/equipment mounting directives for FE, FG  Issue date: 06. 07. 2012

!

 Only print out complete sections from the current version

i

-: The connector marked with - is used for signal cabling only, not used to connect the loads.

*1:  In a vehicle with a connector marked with *1, one lamp as shown in the following can be additionally

mounted for one side of the vehicle at manufacturer's option: voltage:12 V, lamp type: 21 W.

*2:  Loads to be connected to the connector marked with *2 should be arranged so that the total value of the

connector output in each of the cab and chassis side shall not exceed the permissible current.

No.

Part Name

Connector

No.

Circuit Description

Mating

Connector

No.

Circuit

Line

color

Load

A

OPTION CONNECTOR
(van roomlanp & ID
lamp)

MH056453

01
02
03

VAN ID RAMP
GND
VAN ROOM LAMP

G-W

R
B

5A
9A
5A

MH056403

B

OPTION CONNECTOR
(side turn)

MH056451

01
02

TURN LH
TURN RH

Gr-L

Gr-R

*1
*1

MH056401

C

OPTION CONNECTOR
(chassis)

MH056457

01
02
03
04
05
06

BATT
ACC
MAIN
IDEL UP
ILL
GND

G-R

W-R

L-R

B

O

R-B

*2
*2
*2

-
-
-

MH050090

107

6 Modifications to the basic vehicle

6.12 Electrics/electronics

MITSUBISHI FUSO body/equipment mounting directives for FE, FG  Issue date: 06. 07. 2012

!

 Only print out complete sections from the current version

i

• Cautions when Grounding the Frame

When moving the battery or when grounding a new
rear body on the frame, remove masked or painted
areas then reliably ground the connection terminal.

• About Charging/Discharging Balance

The charging/discharging balance may become
unequalized in the following operating conditions.
For this reason, reduce the electrical load during
work referring to the Engine Alternator
Performance Curves on page

컄 page 109.

• When there is a lot of night work
• When working for a long time with the engine

idling

• When many electrical load capacities are

placed on installation items.

In particular, when mainly idling the engine during
night work, make sure that the electrical load is
lower than the output current of the alternator.
