ACCESSORY SOCKET

CHASSIS ELECTRICAL

54A-174

ACCESSORY SOCKET

 REMOVAL AND INSTALLATION

M1543008900267

CAUTION

• When you connect an electrical device, make

sure it is rated at 12V and its electrical capac-
ity does not exceed 120W. When using both
sockets at the same time, make sure the total
power consumption of the electrical accesso-
ries does not exceed 120W at 12V.

• When the accessory socket is not in use, be

sure to close the cap, because the socket
might become clogged by foreign material
and be short-circuited.

NOTE:

.

• Long use of the electric appliance without running

the engine may run down the battery. Especially
avoid using it with the cigarette lighter.

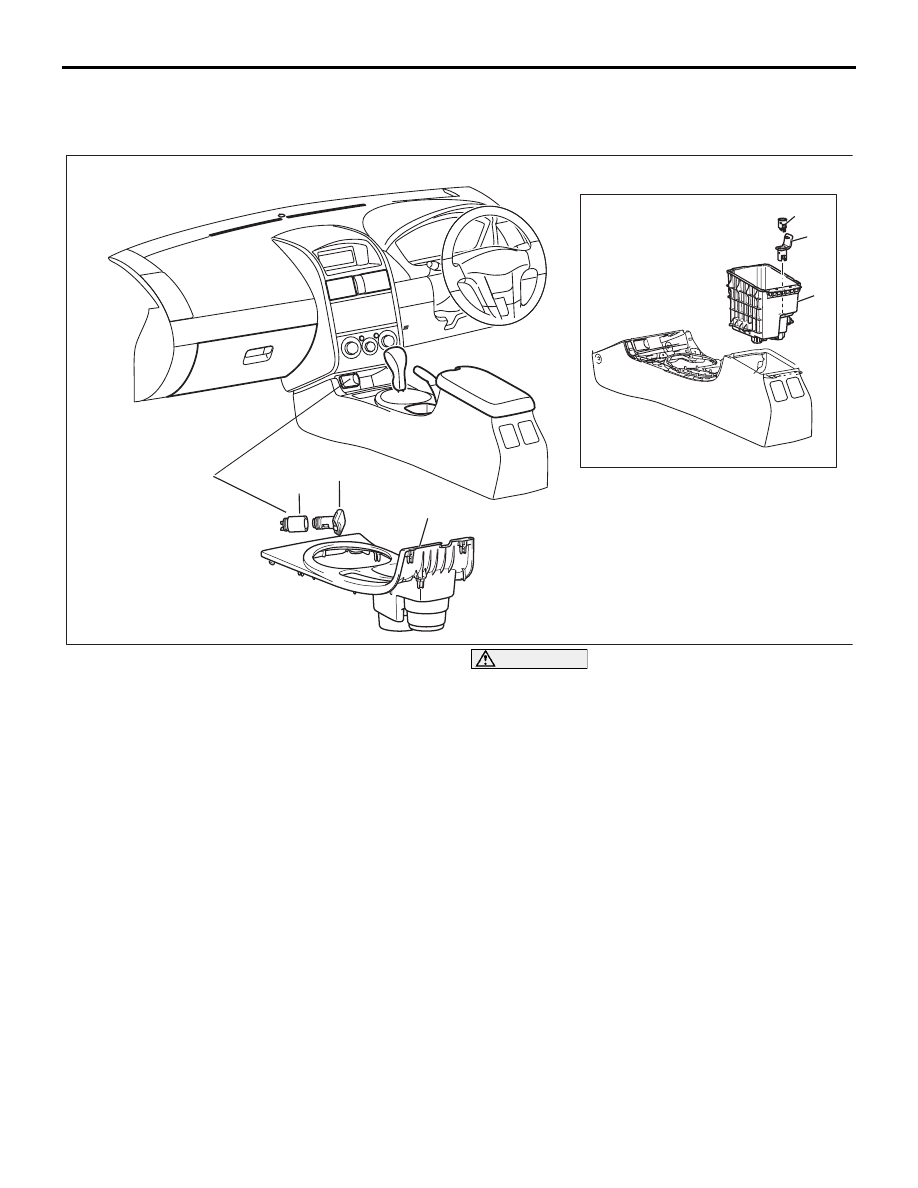

16DB529A

3

2

1

Accessory
 Socket
(Type 1)


4

5

6

*  Accessory
 Socket (Type 2)
[where fitted]


REMOVAL STEPS

1.

GEARSHIFT LEVER PANEL

2.

ACCESSORY SOCKET (ACC)
Type 1

3.

ACCESSORY SOCKET COVER

FRONT BOX, PLATE, FLOOR
CONSOLE ASSEMBLY (REFER
TO GROUP 52A, FLOOR
CONSOLE ASSEMBLY

P.52A-10

.)

4

INNER BOX

5

*ACCESSORY SOCKET (TYPE
2) [WHERE FITTED] (B+)

6

*ACCESSORY SOCKET COVER
[WHERE FITTED]

ACCESSORY SOCKET

CHASSIS ELECTRICAL

54A-175

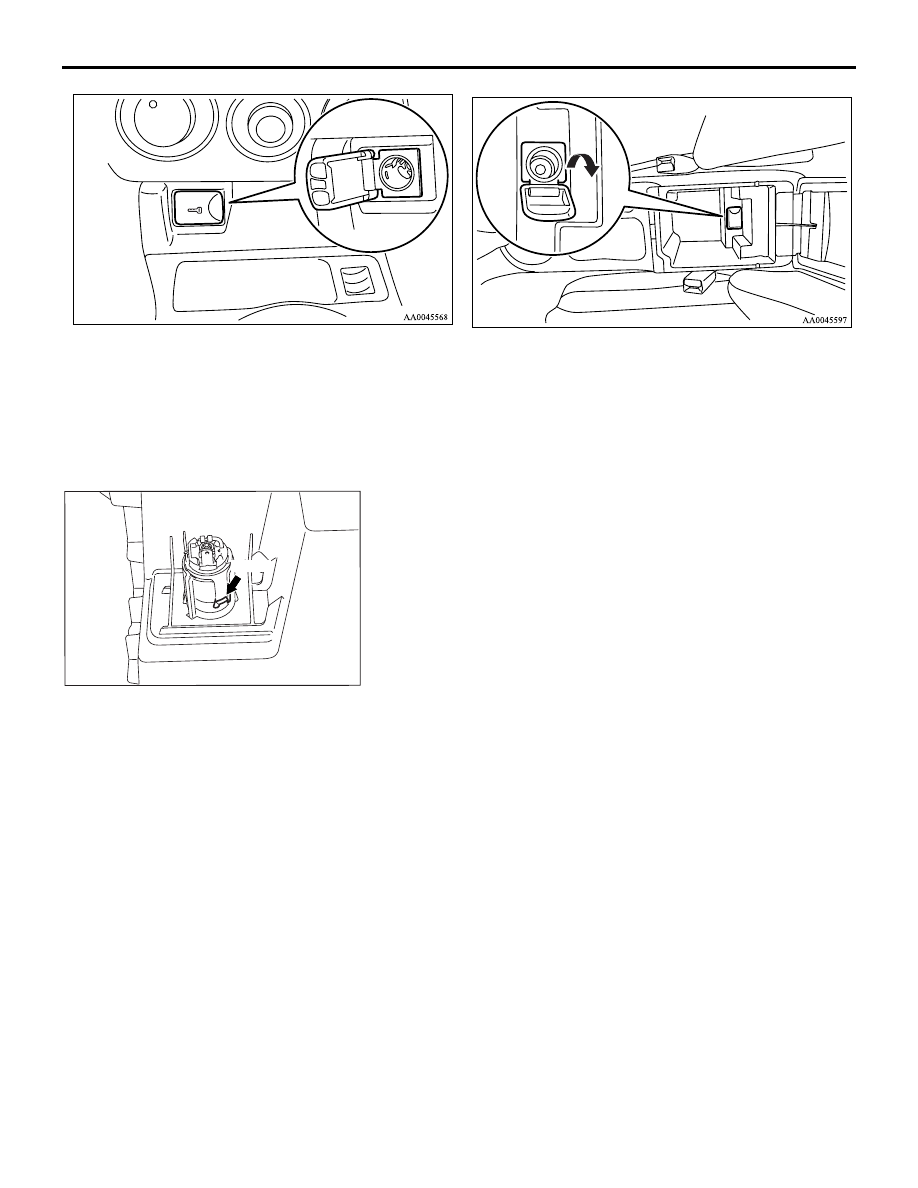

• TYPE  1:  The accessory socket can be used

while the ignition switch is "ON" or "ACC" posi-
tions.

• **TYPE  2 [Where fitted]:  The accessory socket

can be used while the ignition switch is on ALL
positions.

REMOVAL SERVICE POINT

.

<<A>> ACCESSORY SOCKET REMOVAL

Disengage the claw shown in the illustration and remove the
accessory socket.

AC307190

CLAW

AC

RADIO WITH CD PLAYER

CHASSIS ELECTRICAL

54A-176

RADIO WITH CD PLAYER

GENERAL DESCRIPTION

M1544000100099

<Vehicles without CD changer>

• Radio and CD player

• Shows textual information regarding audio

system operation on the audio unit.

<Vehicles with CD changer>

• Radio, CD player and CD changer

• Shows graphical information regarding audio

system operation on the  type multi-centre
display.

RADIO WITH CD PLAYER, SPEAKER AND ANTENNA DIAGNOSIS

INTRODUCTION TO AUDIO SYSTEM DIAGNOSIS

M1544004700101

The diagnosis for symptoms such as noise being
emitted, no sound being played, or sound coming
only out of one speaker (or set of speakers) is pro-
vided.

AUDIO ERROR CODES

If the radio and CD player or radio, CD player and
CD changer detects any malfunction in itself or the
inserted CD, the error codes below will be shown on
the audio unit (type 1) or multi-centre display (type 2)

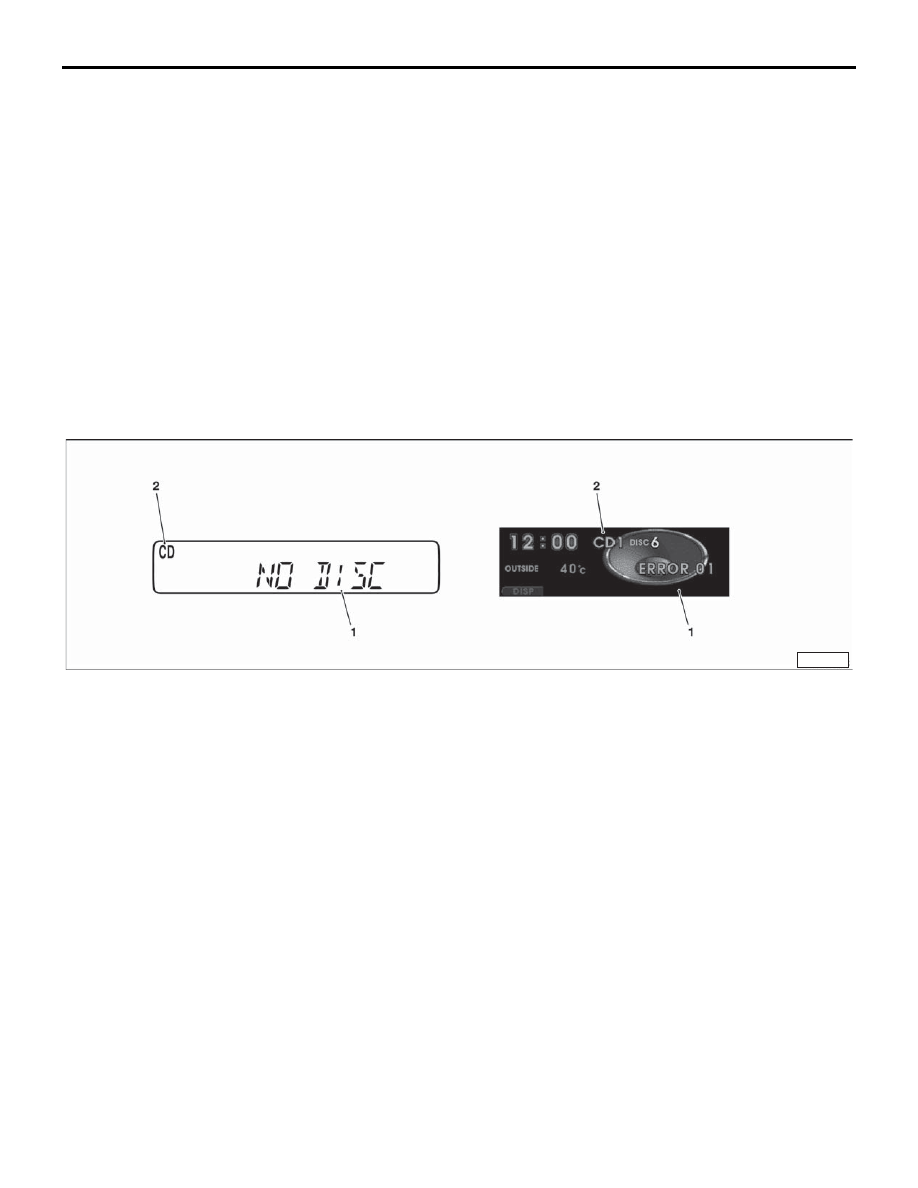

• If an error code (1) and a faulty player (2)

appear in the frequency display, take action in
accordance with the table shown below.

AM/ FM electronically tuned radio
with CD player (Type 1)

AM/ FM electronically tuned radio
with CD autochanger (Type 2)

16DB529A

RADIO WITH CD PLAYER

CHASSIS ELECTRICAL

54A-177

AUDIO SYSTEM DIAGNOSTIC TROUBLESHOOTING STRATEGY

M1544004800379

Use these steps to plan your diagnostic strategy. Fol-
low through with each step to ensure that you have
exhausted all possible methods of finding an audio
system fault.
1. Gather information from the customer.

2. Verify that the condition described by the

customer exists.

3. Find the malfunction by following the Symptom

Chart.

4. Verify that the malfunction is eliminated.

TROUBLE SYMPTOM CHART

M1544004900428

ERROR CODES

CAUSE

CAUSE OF TROUBLE AND ITS SOLUTION

TYPE (1) TYPE (2)

NO DISC       -

No disc inside

Insert disc.

E01
E02

ERROR
01
ERROR
02

Faulty disc (most likely)

Insert several other discs. If the error code appears
only with certain disc(s), the problem may be due to
scratch(es) and/or dirt on the disc(s). Refrain from
using any damaged disc(s). If the error code appears
with all discs, the problem may be due to
condensation or dirt inside the the equipment. Wait
several hours and try again. If the error code still
appears with all discs, please have the equipment
inspected by an authorised Mitsubishi Motors dealer.

E
E03

ERROR
ERROR
03

Connection error
Mechanical error
(Faulty equipment) most
likely

Have the equipment inspected by an authorised
Mitsubishi Motors dealer. This error code will be
shown if the radio and CD player or radio, CD player
and CD changer are not connected to their related
components correctly. Check the connectors and
wiring harness for open or short circuit.
This error codes will be shown if there is any internal
mechanical or electrical problem in the radio and CD
player or radio, CD player and CD changer. Replace
the radio and CD player or radio, CD player and CD
changer, and check that no error codes are shown.

E HOT

ERROR
HOT

Player or changer is
excessively hot inside.
(Playback is temporarily
disabled).

Allow equipment to cool off. When the temperature
retuns to normal, the error code will disappear and
playback will automatically resume.

SYMPTOM

INSPECTION
PROCEDURE

REFERENCE PAGE

When power switch is turned "ON," no power is available.

1

P.54A-178

Remote controlled radio
switch

When remote controlled radio power
switch is turned "ON," no power is
available. But radio, CD player and CD
changer power switch is available.
<vehicles with audio amplifier>

2

P.54A-183

The system does not recognize the
remote controlled radio switch (RH)
only. <vehicles with audio amplifier>

3

P.54A-191

The system does not recognize the
remote controlled radio switch (LH) only.
<vehicles with audio amplifier>

4

P.54A-193
