HIGH-MOUNTED STOPLIGHT

CHASSIS ELECTRICAL

54A-166

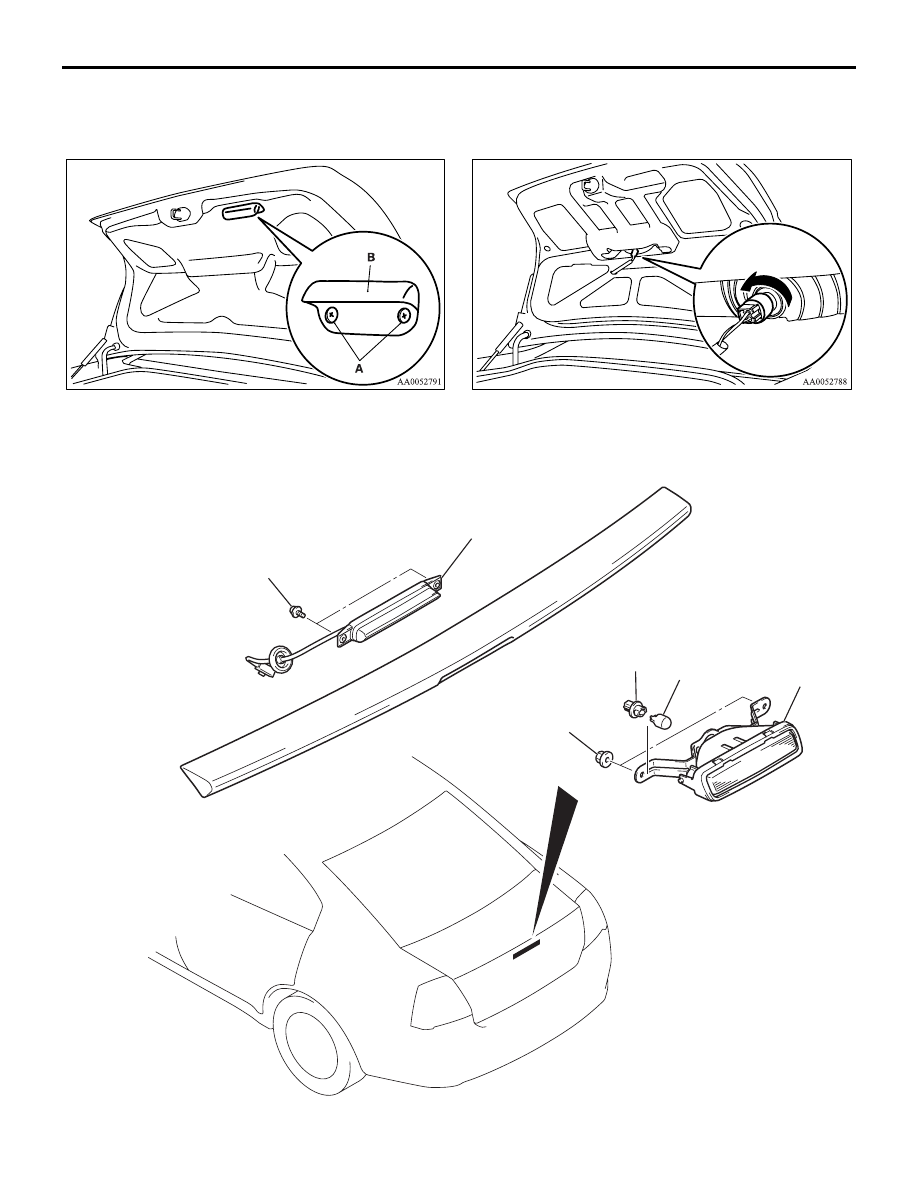

HIGH-MOUNTED STOPLIGHT

REMOVAL AND INSTALLATION

M1542005100463

1. On vehicles fitted with trim cover, remove the trim

cover using a flat screwdriver and prying the 13
clips. Remove the screws (A), and remove trunk
lid grip handle (B).

2. Remove the socket assembly and bulb together

by turning it anticlockwise. Then remove the bulb
by pulling it out.

AC307185

2

3

4

4.9 ± 0.7 N·m
44 ± 6 in-lb

4.9 ± 0.7 N·m
44 ± 6 in-lb

AB

1

HIGH-MOUNTED STOPLIGHT

CHASSIS ELECTRICAL

54A-167

HIGH- MOUNTED STOPLIGHT
<WITH TRUNK LID TYPE>
REMOVAL STEP

1.

HIGH-MOUNTED STOPLIGHT
<WITH TRUNK LID TYPE>

2.

SOCKET <WITH TRUNK LID
TYPE>

3.

BULB <WITH TRUNK LID TYPE>

HIGH- MOUNTED STOPLIGHT
<WITH REAR SPOILER TYPE>
REMOVAL STEP

•

REAR SPOILER ASSEMBLY
(REFER TO GROUP 51, REAR
SPOILER

P.51-11

.)

4.

HIGH-MOUNTED STOPLIGHT
<WITH REAR SPOILER TYPE>

HAZARD WARNING LIGHT SWITCH

CHASSIS ELECTRICAL

54A-168

HAZARD WARNING LIGHT SWITCH

HAZARD WARNING LIGHT DIAGNOSIS

M1542000701399

The hazard warning lights are controlled by the Sim-
plified Wiring System (SWS). For troubleshooting,
refer to GROUP 54B, SWS Diagnosis

P.54B-57

.

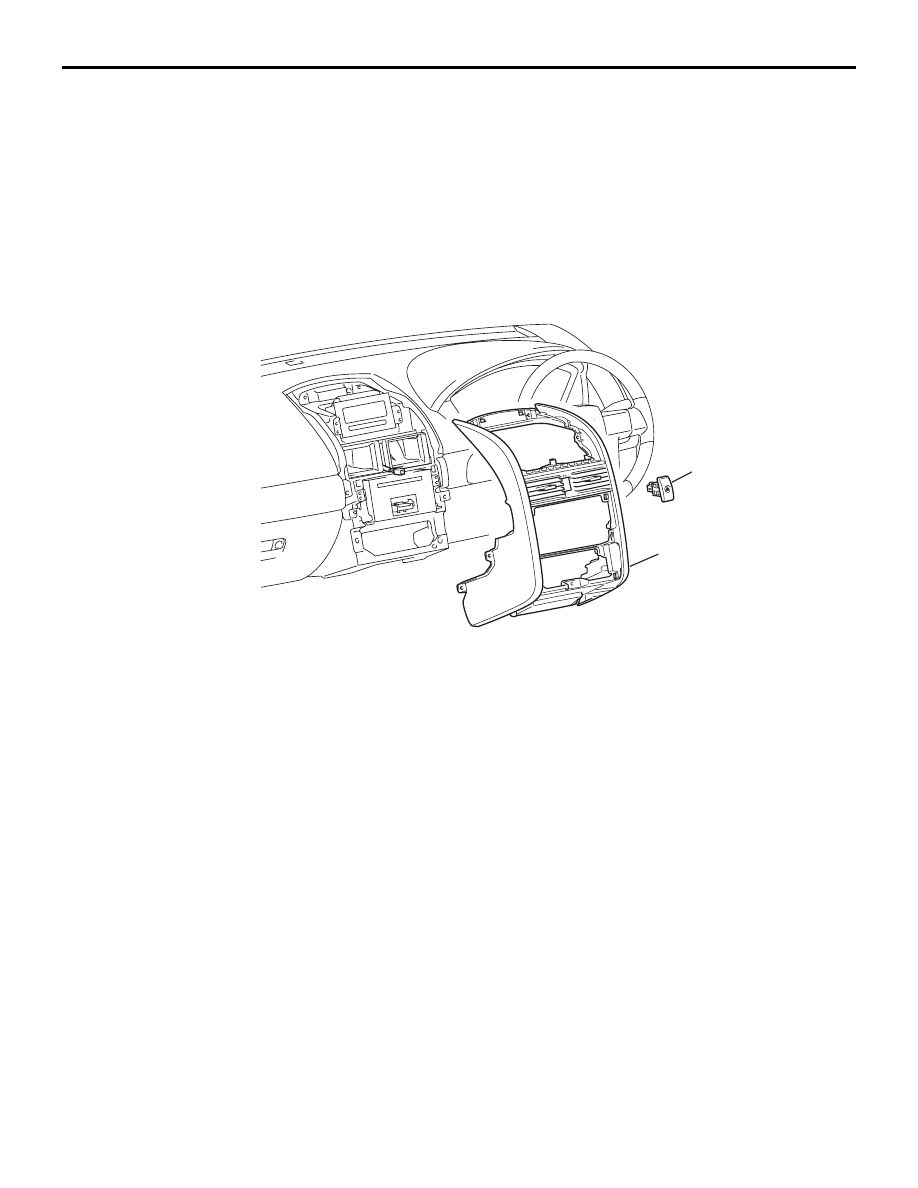

HAZARD WARNING LIGHT SWITCH

REMOVAL AND INSTALLATION

M1542006600450

54DB035A

2

1

HAZARD WARNING LIGHT SWITCH
REMOVAL STEPS

•

GLOVEBOX ASSEMBLY, INSTRUMENT
PANEL PARCEL BOX (REFER TO GROUP
52A, INSTRUMENT PANEL ASSEMBLY

P.52A-4

.)

•

HOOD LOCK RELEASE HANDLE (REFER TO
GROUP 42, HOOD

P.42-8

.)

•

INSTRUMEN LOWER PANEL, INSTURMENT
CENTER PANEL ASSEMBLY, CONSOLE
METER HOOD (REFER TO GROUP 52A,
INSTRUMENT PANEL ASSEMBLY

P.52A-4

.)

1.

CENTER CONSOLE ASSEMBLY (REFER TO
GROUP 52A, INSTRUMENT PANEL
ASSEMBLY

P.52A-4

.)

<<A>>

2.

HAZARD WARNING LIGHT SWITCH

HAZARD WARNING LIGHT SWITCH

CHASSIS ELECTRICAL

54A-169

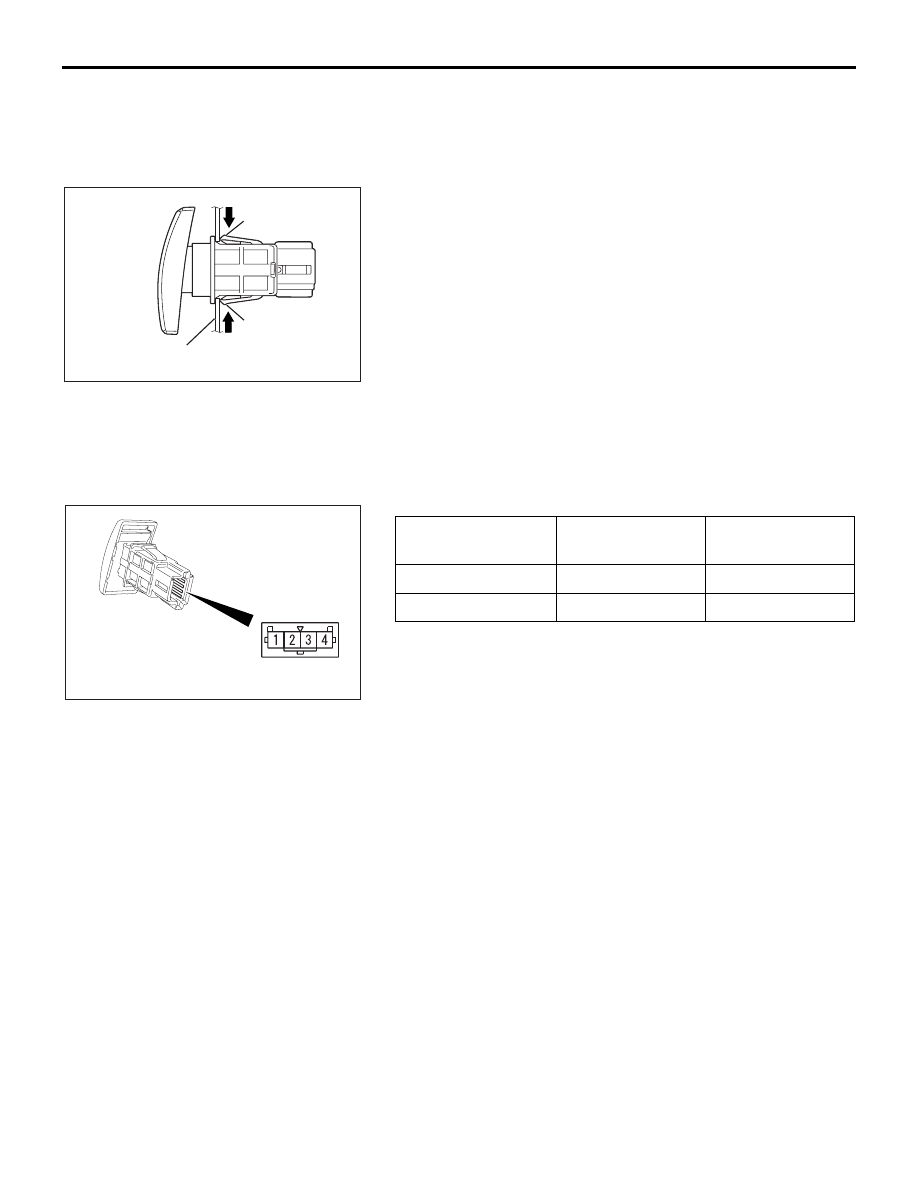

REMOVAL SERVICE POINT

.

<<A>> HAZARD WARNING LIGHT SWITCH
REMOVAL

Remove the hazard warning light by pushing the claw toward
the arrow in the illustration.

INSPECTION

M1543019502504

HAZARD WARNING LIGHT SWITCH CONTINUITY
CHECK

AC307133

CLAW

CLAW

CENTER CONSOLE
ASSEMBLY

AB

SWITCH POSITION TESTER

CONNECTION

SPECIFIED
CONDITION

Pressed

1

− 2

Less than 2 ohms

Released

1

− 2

Open circuit

AC307450
