COLUMN SWITCH

CHASSIS ELECTRICAL

54A-170

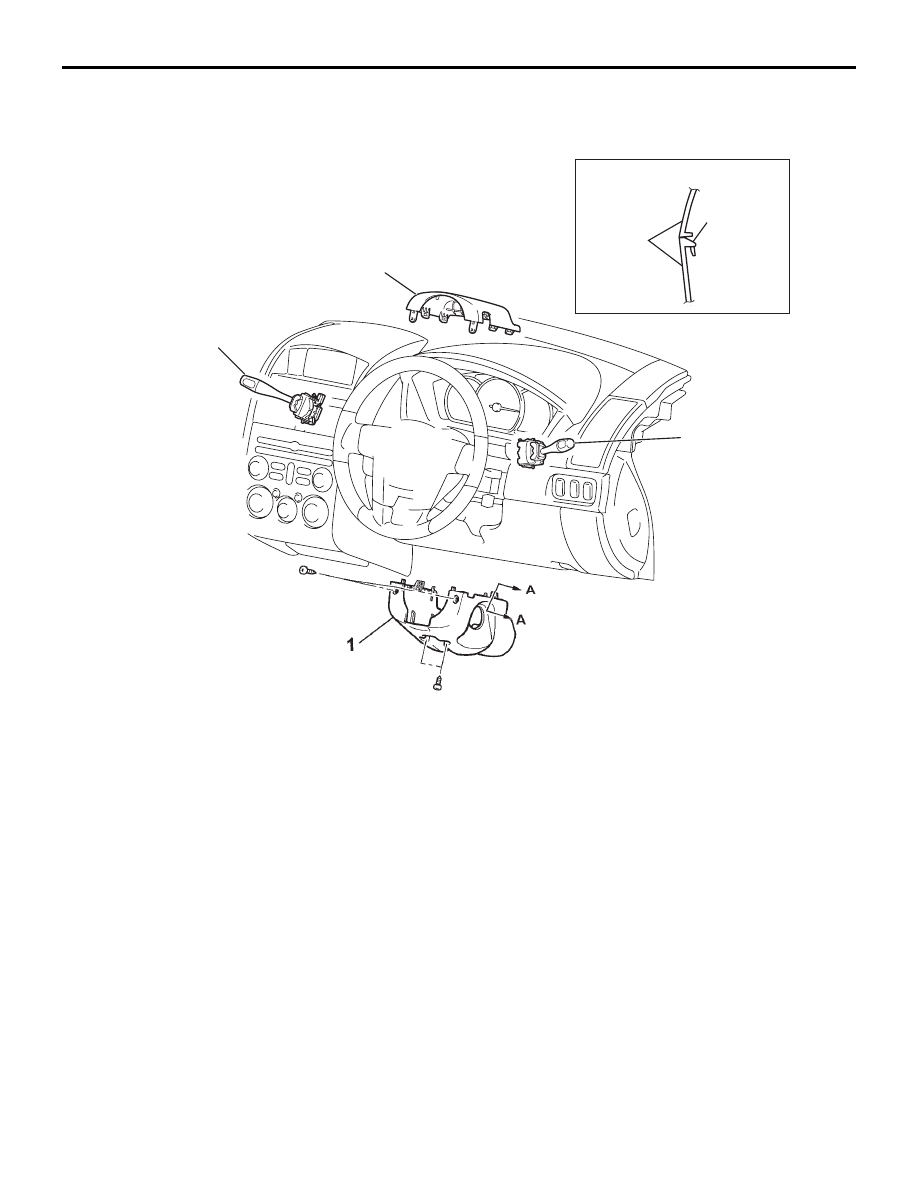

COLUMN SWITCH

REMOVAL AND INSTALLATION

M1543009100457

54DB036A

1

3

2

SECTION A – A

1

CLAW

REMOVAL STEPS

<<A>>

1. STEERING COLUMN COVER

(REFER TO GROUP 52A,
INSTRUMENT PANEL ASSEMBLY

P.52A-4

.)

<<B>>

•

COLUMN SWITCH CONNECTOR

2. TURN-SIGNAL LAMP AND

LIGHTING SWITCH

3. WINDSHIELD WIPER AND

WINDSHIELD WASHER SWITCH

REMOVAL STEPS (Continued)

COLUMN SWITCH

CHASSIS ELECTRICAL

54A-171

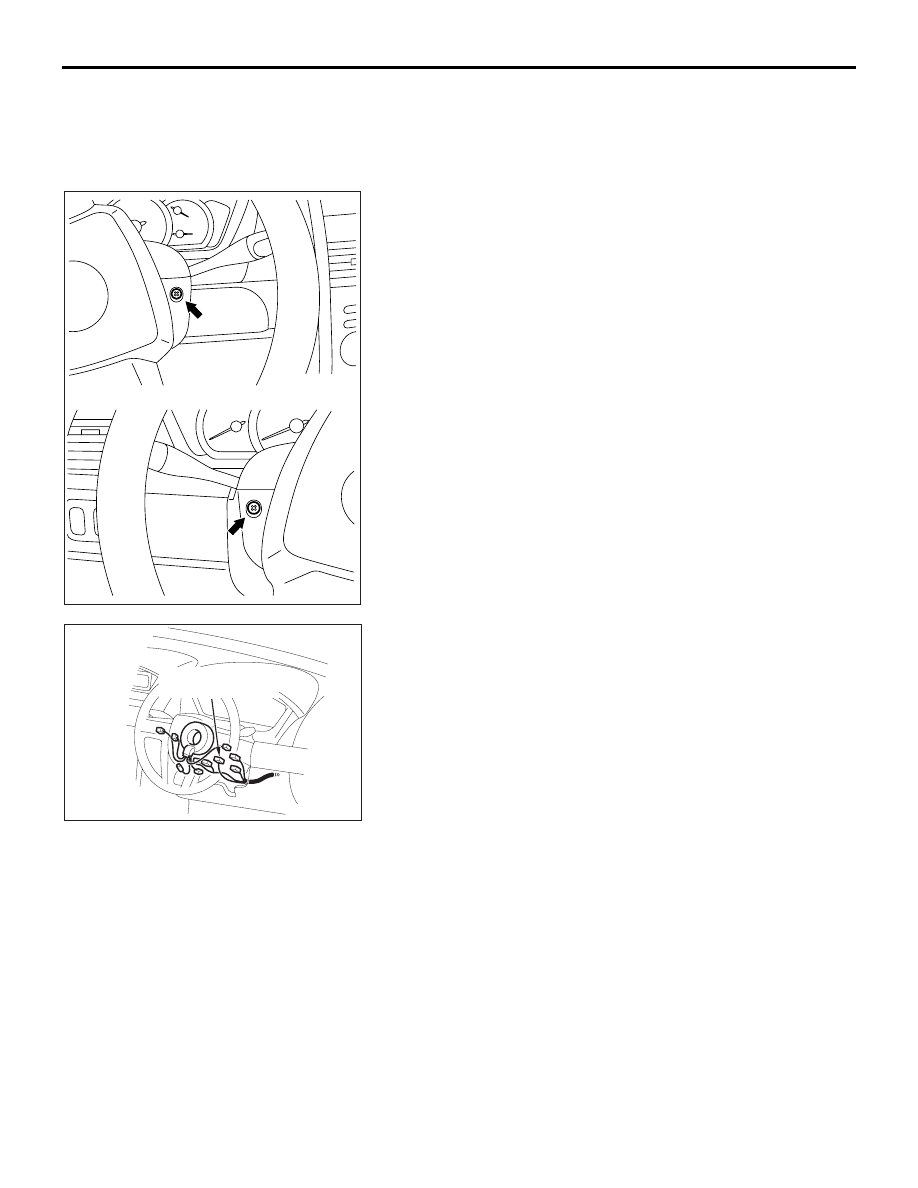

REMOVAL SERVICE POINT

.

<<A>> STEERING COLUMN UPPER
COVER/STEERING COLUMN LOWER COVER
REMOVAL

1. Rotate the steering wheel with a slightly side-to-side to

access and remove the mounting screws.

.

<<B>> COLUMN SWITCH CONNECTOR
REMOVAL

AC307459AB

54DB037A

COLUMN SWITCH
CONNECTOR

HORN

CHASSIS ELECTRICAL

54A-172

HORN

DIAGNOSIS <VEHICLE WITH KEYLESS ENTRY SYSTEM>

M1543000701057

The keyless entry system horn answerback are con-
trolled by the Simplified Wiring System (SWS). For
troubleshooting, refer to GROUP 54B, SWS Diagno-
sis

P.54B-57

.

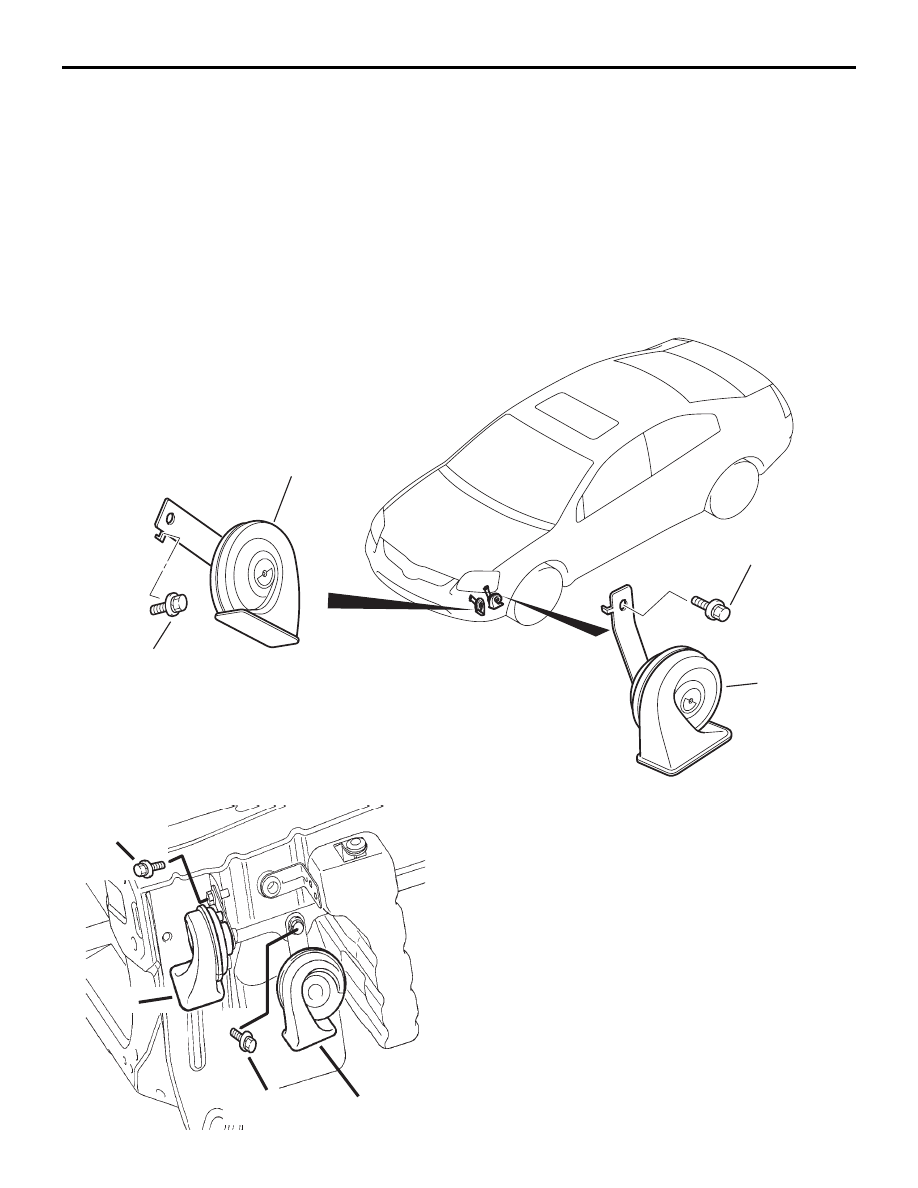

HORN

REMOVAL AND INSTALLATION

M1543007900491

16DB417A

21 ± 4 N·m
16 ± 2 ft-lb

2

21 ± 4 N·m
16 ± 2 ft-lb

1

1

21 ± 4 N·m
16 ± 2 ft-lb

21 ± 4 N·m
16 ± 2 ft-lb

2

16DB576A

REMOVAL STEPS

1.

HORN (LOW)

2.

HORN (HIGH)

HORN

CHASSIS ELECTRICAL

54A-173

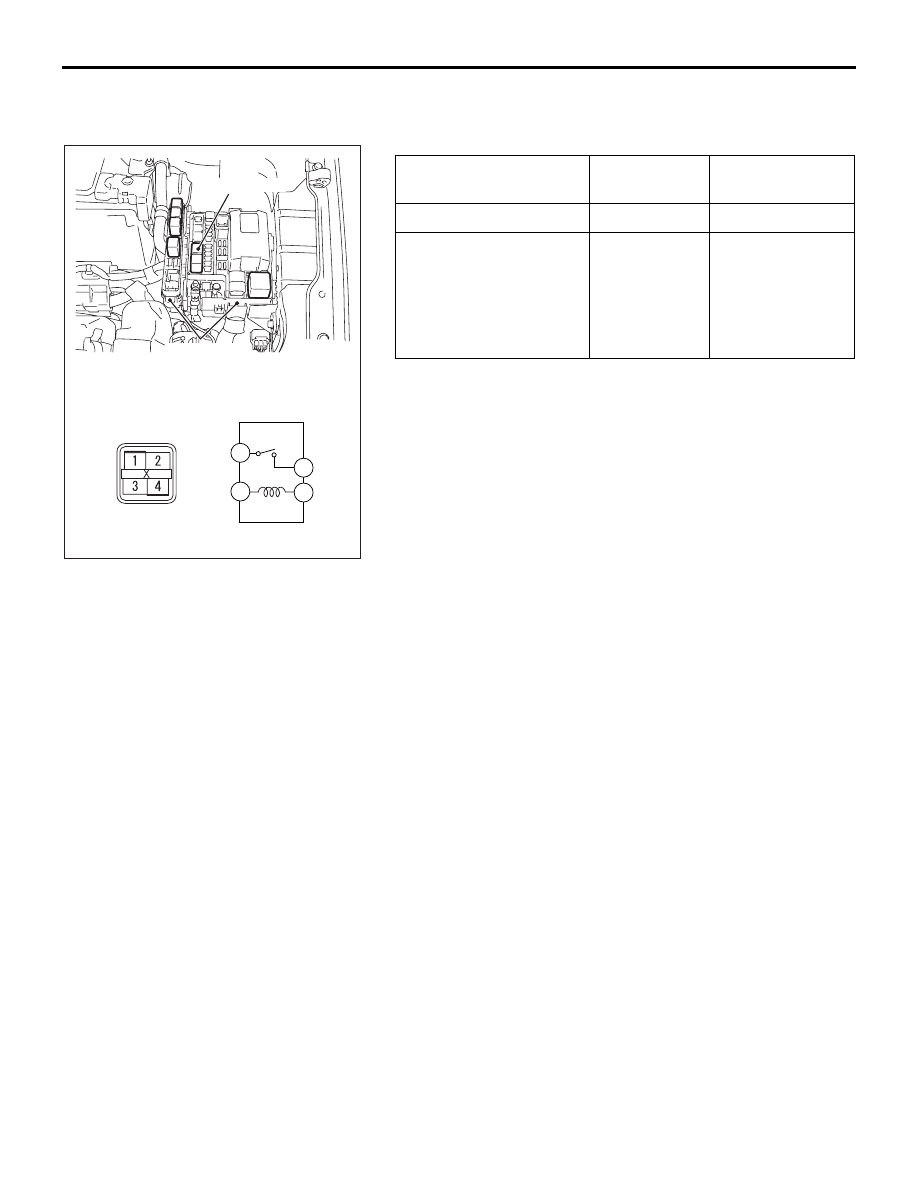

INSPECTION

M1543019502526

HORN RELAY CONTINUITY CHECK

BATTERY VOLTAGE

TESTER
CONNECTION

SPECIFIED
CONDITION

Not applied

1-4

Open circuit

• Connect terminal 2 to

the positive battery
terminal

• Connect terminal 3 to

the negative battery
terminal

1-4

Less than 2 ohms

1

4

3

2

AC306711AB

HORN RELAY

RELAY BOX
