NOTE: The adjustment function allows you to change the timer
lock period from 30 seconds (initial setting) to 60, 120 or 180
seconds. Prior to this inspection, confirm which setting is acti-
vated.

ENABLING/DISABLING THE ANSWERBACK
FUNCTION

BGBDGCGD

When the doors are locked or unlocked by using the transmit-
ter, the dome light will flash/illuminate, the turn-signal lights will
flash (hazard answerback), or the horn will sound (horn
answerback) to inform the driver.
The hazard answerback and horn answerback functions can be
enabled or disabled according to the following procedure:

ENABLING/DISABLING THE HAZARD
ANSWERBACK FUNCTION

.

How to adjust hazard answerback when the trans-
mitter is used to lock doors

1. Remove the ignition key.

2.  Push the ”unlock” button and then push the ”lock“ button

within 4 seconds to 10 seconds.

3. Release the ”lock” button within 10 seconds after Step 2 and

then release the “unlock” button. The ETACS-ECU tone
alarm will sound, indicating that the hazard answerback
function can be enabled or disabled when the doors are
locked.

• Enable the hazard answerback function when the

doors are locked: The ETACS-ECU tone alarm will
sound once.

• Disable the hazard answerback function when the

doors are locked: The ETACS-ECU tone alarm will
sound twice.

.

How to adjust hazard answerback when the
transmitter is used to unlock doors

1. Remove the ignition key.

2.  Push the ”unlock” button and then push the ”lock“ button

within 4 seconds to 10 seconds.

3. Release the ”lock” button within 10 seconds after Step 2 and

then release the “unlock” button. The ETACS-ECU tone
alarm will sound, indicating that the hazard answerback
function can be enabled or disabled when the door are
unlocked.

• Enable the hazard answerback function when the

doors are unlocked: The ETACS-ECU tone alarm
will sound once.

• Disable the hazard answerback function when the

doors are unlocked: The ETACS-ECU tone alarm
will sound twice.

KEYLESS ENTRY SYSTEM

BODY

42-73

ENABLING/DISABLING THE HORN
ANSWERBACK FUNCTION

.

1. Remove the ignition key.

2.  Push the ”unlock” button and then push the ”lock“ button

within 4 seconds to 10 seconds.

3. Release the ”lock” button within 10 seconds after Step 2 and

then release the “unlock” button. The ETACS-ECU tone
alarm will sound, indicating that the horn answerback
function can be enabled or disabled.

• Enable the horn answerback function*: The

ETACS-ECU tone alarm will sound once.

• Disable the horn answerback function: The

ETACS-ECU tone alarm will sound twice.

• Enable the horn answerback function**: The

ETACS-ECU tone alarm will sound three times.

NOTE:

.

*: The horn will sound if "LOCK" button is pressed with the

doors locked.

**: The horn will sound if the doors are locked with the key-

less entry system.

HOW TO REGISTER SECRET CODE

BGBHCCCB

Required Special Tools:

• : MUT-III Sub Assembly

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991910: MUT-III Main harness A

Each individual secret code is registered inside the transmitter,
and so it is necessary to resister these codes with the
EEPROM inside the receiver in the following cases.

• When the transmitter or ETACS-ECU is replaced

• If more transmitters are to be used

• If it appears that a problem is occurring because of faulty

registration of a code.

A maximum of four different codes can be stored in the
EEPROM memory (four different transmitters can be used).
When the code for the first transmitter is registered, the previ-
ously registered codes for all transmitters are cleared. There-
fore, if you are using four transmitters or are adding more
transmitters, the codes for all transmitters must be registered at
the same time.

WHEN SPECIAL TOOL MB991824 (V.C.I.) IS USED

.

1. Check that the doors lock normally when the key is used.

2. Insert the ignition key.

KEYLESS ENTRY SYSTEM

BODY

42-74

CAUTION

To prevent damage to special tool MB991824 (V.C.I.),
always turn the ignition switch to “LOCK” (OFF) position
before connecting or disconnecting special tool MB991824
(V.C.I.).

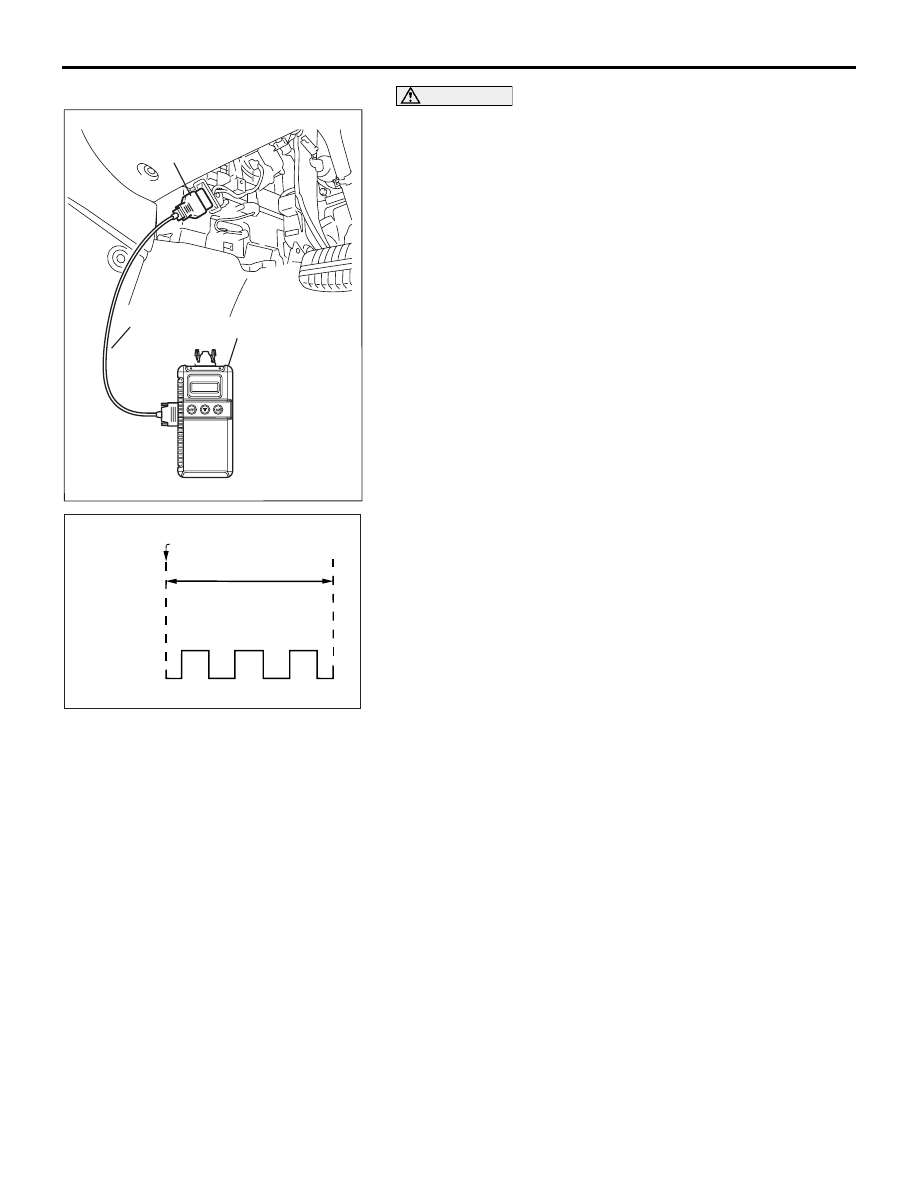

3. Connect special tool MB991824 (V.C.I.) to the data link

connector.

4. Press the hazard warning light switch six times within 10

seconds.

NOTE: When the hazard warning light switch has been
pressed six times, the ETACS-ECU locks and unlocks the
doors automatically once. The ETACS-ECU is ready to reg-
ister an encrypted code.

NOTE: The hazard warning light switch is a toggle switch.

5. Press the transmitter button, and then press it two times

within 10 seconds of the first press. This will register the
code.

6. When the encrypted code has been registered, the

ETACS-ECU locks and unlocks the doors automatically
once.

7. If you are using two or more transmitters or have added a

second transmitter, the next transmitter should be registered
within one minute after registering the code for the previous
transmitter. The registration procedure is common for all the
transmitter.

8. Registration mode will be canceled under the following

conditions:

• When the secret code for four transmitters has been regis-

tered;

• When passing one minute after finishing the registration of

all transmitters;

• When special tool MB991824 (V.C.I.) is disconnected;

• When the key is removed from the key cylinder;

9. After the registration is completed, remove the ignition key

and close all the doors, and then check that the keyless
entry system operates normally.

AC302077

AC305412

00DB086A

MB991824

MB991910

DATA LINK

CONNECTOR

ACX00571

V. C. I. CONNECTED

WITHIN 10 SECONDS

HAZARD

WARNING

LIGHT

SWITCH

ON

OFF

1

2

3

4

5

6

AR

SUNROOF ASSEMBLY

BODY

42-75

SUNROOF ASSEMBLY

GENERAL DESCRIPTION

M1426000100234

A motor-driven inner slide-type glass sunroof with a
tilt-up mechanism is available in some models as a
standard or optional equipment. Even when the sun-
roof is fully closed, a sufficient amount of lighting and
a feeling of openness can still be obtained by open-
ing the sunroof sunshade.

SUNROOF DIAGNOSIS

M1426000700311

The sunroof system is controlled by the Simplified
Wiring System (SWS). Refer to GROUP 54B, SWS
Diagnosis

P.54B-57

.

SPECIAL TOOL

M1426000600228

ON-VEHICLE SERVICE

WATER TEST

M1426000900274

Check if there are any leaks in the sunroof by the following pro-
cedure.
1. Fully close the roof lid glass.

2. Adjust the water pressure so that water comes out of the

hose to a height of approximately 50 cm (19.7 inches) when
the hose is held vertically facing upwards.

3. Hold the end of the hose approximately 30 cm (11.8 inches)

above the roof and let the water run onto the weatherstrip for
5 minutes or more.

4. Check if any water leaks can be found in the room while

watering. Even though there are any water leaks around the
roof lid glass, it can be acceptable as long as water is caught
in the drip area.

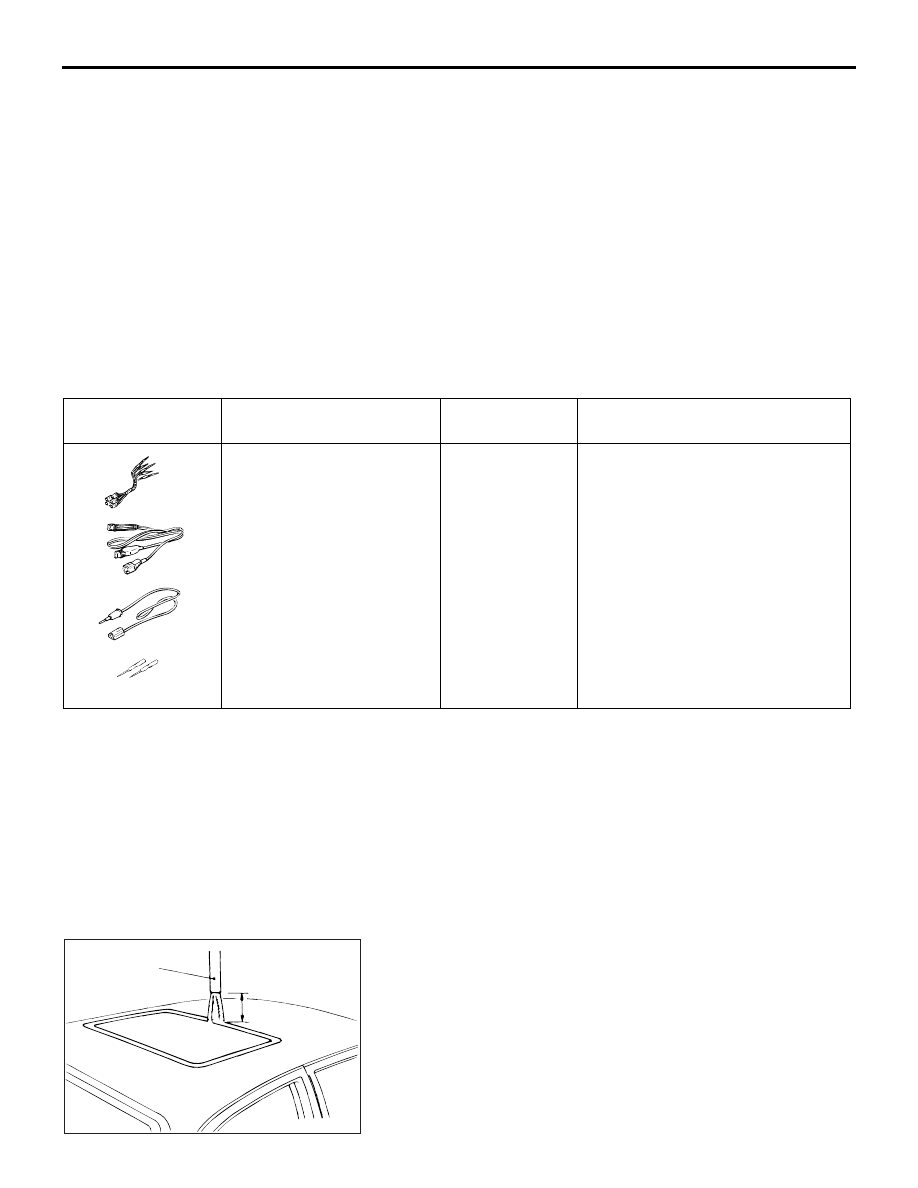

TOOL

TOOL NUMBER AND
NAME

SUPER
SESSION

APPLICATION

MB991223
Harness set

• A: MB991219

Test harness

• B: MB991220

LED harness

• C: MB991221

LED harness adapter

• D: MB991222

Probe

General service
tools

Measurement of terminal voltage

• A: Connector pin contact

pressure inspection

• B: Power circuit inspection

• C: Power circuit inspection

• D: Commercial tester connection

MB991223

A

D

C

B

AD

ACX00572AB

HOSE

APPROX

30 cm (11.8 in)
