SUNROOF ASSEMBLY

BODY

42-76

SUNROOF TIMER FUNCTION CHECK

M1426004300100

Keep the door closed, turn OFF the ignition switch and check to
see if the sunroof can be operated for 30 seconds after that. If
not, perform troubleshooting (Refer to GROUP 54B, SWS
Diagnosis

P.54B-57

SUNROOF FIT ADJUSTMENT

M1426001000285

1. Fully close the roof lid glass.

2. Fully open the sunshade.

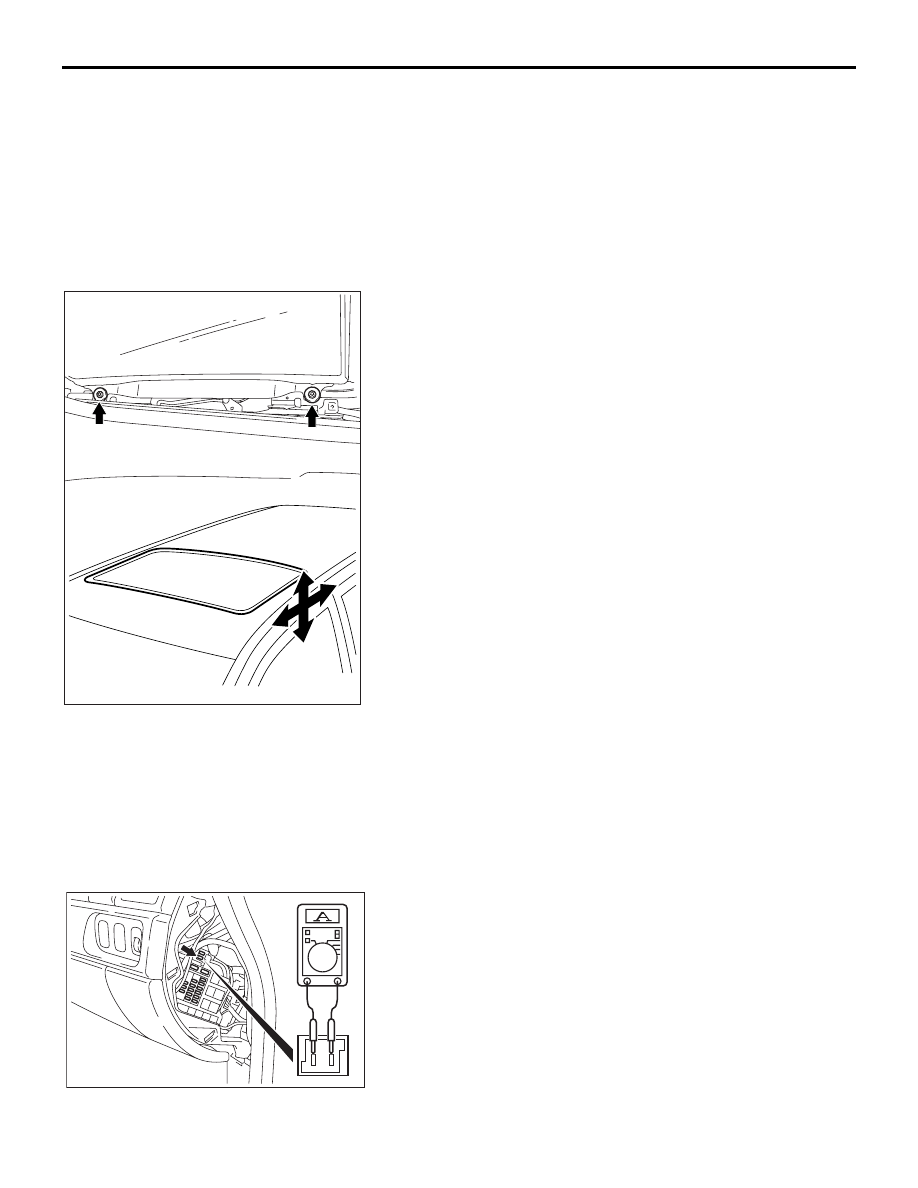

3. Loosen the roof lid glass assembly mounting screws. Align

the roof lid glass by moving it backward, forward, up or down
along the guide oblong hole so that the clearance between
the glass and the vehicle body is even.

4. Check to be sure that the roof lid glass is flush with the roof

panel at corner areas.

5. Check to be sure that the sunroof operates smoothly.

SUNROOF CHECK

M1426004700119

Check to see that the sunroof operates by pressing the sunroof
switch. Perform troubleshooting if operations malfunction
(Refer to GROUP 54B, SWS Diagnosis

P.54B-57

ROOF LID GLASS OPERATION CURRENT CHECK

M1426003200166

1. Remove the fuse of the sunroof, then connect the circuit

tester as shown in the Figure.

2. Turn ON the sunroof switch, then measure the operating

current when the roof lid glass is halfway opened.

Standard value: 7 A or less [at 20

°C (68 °F)]

3. Check the following areas if the operating current of

exceeds the standard value:

• Sunroof installation, deformation and appearance of any

foreign substances.

• Drive cable installation.

• Tilting of roof lid glass.

AC306510

AC307290

AC206306

18DB172A

SUNROOF ASSEMBLY

BODY

42-77

SUNROOF INITIALIZATION

M1426004600123

The sunroof should be initialized when any of the following
components are replaced, the sunroof position is miss timed.

• Roof lid glass assembly

• Sunroof motor assembly

1. Ensure the components are correctly assembled. Ensure all

the connectors are connected securely.

2. If the sunroof is already in learn mode, go to step 3. If the

sunroof is not in learn mode, enter learn mode by (1) or (2)
below.

(1) Disconnect the sunroof motor assembly connector while

the sunroof is operating.

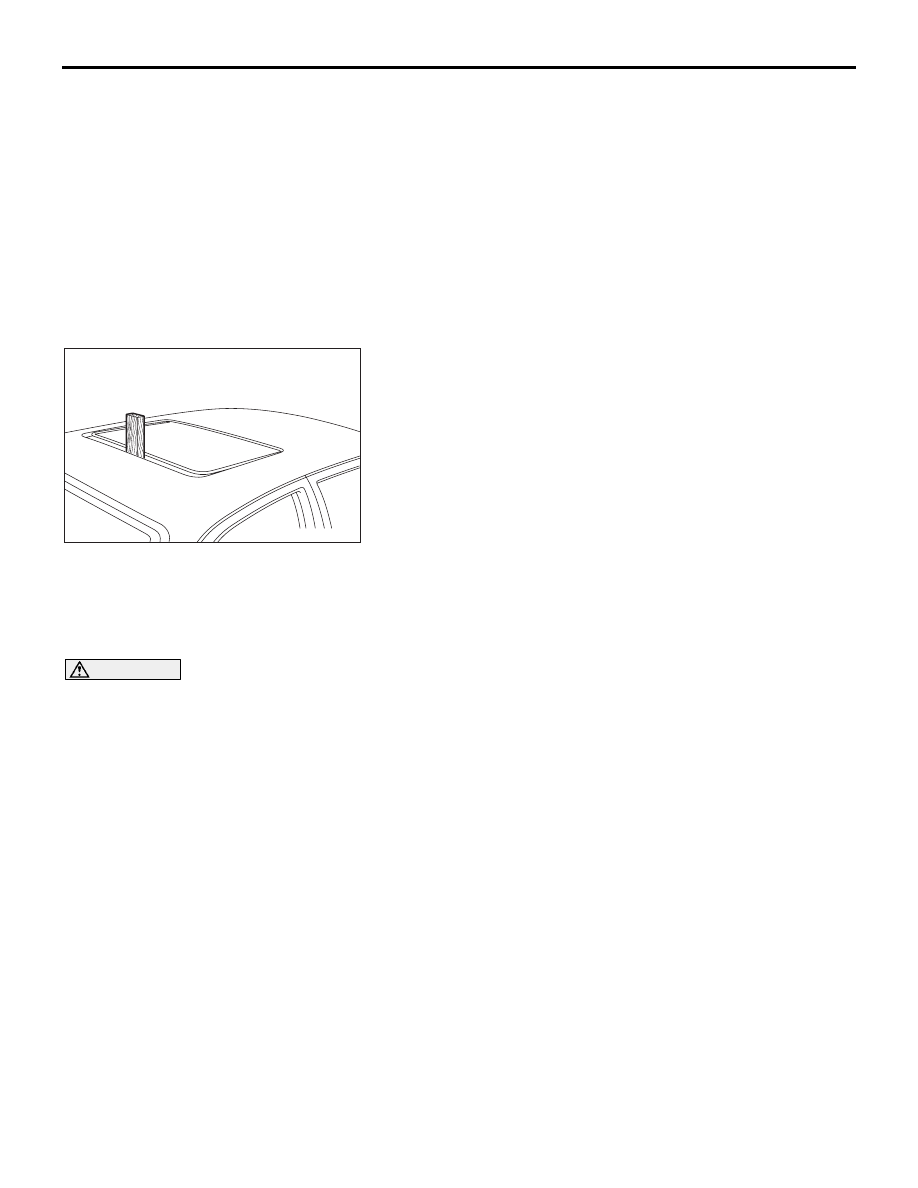

(2) Stop the sunroof operation by fitting the block (board

etc.). Then press and hold the sunroof close switch for 10
seconds with the sunroof stopped.

3. Press the sunroof Close switch repeatedly until the sunroof

is tilted up fully.

4. Press and hold the sunroof Close switch for at least three

seconds.

5. Press the sunroof Close switch until the sunroof closes fully.

6. The sunroof should work normally.

NOTE: Do not stop the sunroof before it reaches the fully
closed position during operations in steps 5 above. If the sun-
roof has stopped accidentally, repeat the procedure from step
1.

SUNROOF OPERATION CHECK

M1426002600332

CAUTION

Check that the following items are normal before carrying out this operation check.

• Installation condition of the sunroof assembly
• Installation condition, deformation and contamination of the sunroof drive cable
• Installation of sunroof lid glass
• Sunroof switch and sunroof motor assembly

Check that the following items. If faulty, replace the
sunroof motor assembly.

AC203084AB

SUNROOF ASSEMBLY

BODY

42-78

Basic operation

AC209094

AC306500

AC306368

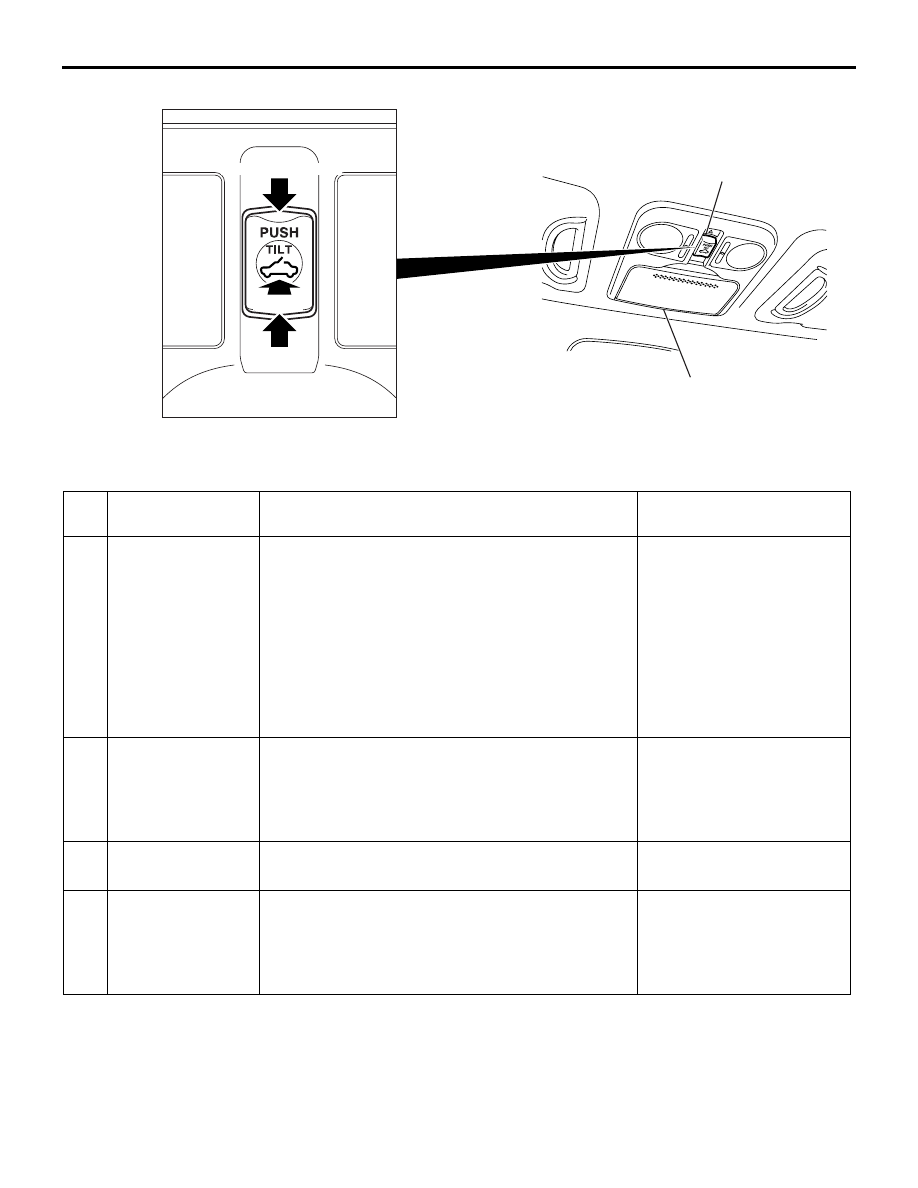

SUNROOF SWITCH

OPEN

TILT-UP

CLOSE/TILT-DOWN

OVERHEAD CONSOLE

NO. SUNROOF

FUNCTION

REQUIREMENTS FOR THE SUNROOF TO
FUNCTION

NORMAL OPERATION

OPEN

1. Ignition switch: ON
2. Sunroof switch: OPEN

The sunroof opens fully and
automatically and stops
several centimeters forward
of the fully open position
(position for less wind
noise).
Then, when the sunroof
switch is operated again,
the sunroof opens further to
fully open position.

1. Ignition switch: ON
2. Sunroof switch: CLOSE/TILT-DOWN

The sunroof closes while
the sunroof switch is
pushed to the
CLOSE/TILT-DOWN
position.

TILT-UP

1. Ignition switch: ON
2. Sunroof switch: TILT-UP

The sunroof tilts up fully and
automatically.

TILT-DOWN

1. Ignition switch: ON
2. Sunroof switch: CLOSE/TILT-DOWN

The sunroof closes while
the sunroof switch is
pushed to the
CLOSE/TILT-DOWN
position.

SUNROOF ASSEMBLY

BODY

42-79

Sunroof timer mechanism

In cases except the following, the basic operation
and jam preventing mechanism will be maintained
for thirty seconds after the ignition switch is turned to
the LOCK (OFF) position. (Sunroof timer function)

• If you open a door within that period (i.e. a door

switch is on), the sunroof timer function will be
cancelled immediately.

• If you turn the ignition switch to the LOCK (OFF)

position while the timer is working, the sunroof
will continue moving until it closes fully, regard-
less of the time-out period.

AUTOMATIC
OPERATION
INTERRUPTION
(OPEN)

1. Ignition switch: ON
2. Sunroof switch: OPEN or TILT-UP

The sunroof stops the
automatic opening
operation.

1. Ignition switch: ON
2. Sunroof switch: CLOSE/TILT DOWN (Push

the sunroof switch to the
CLOSE/TILT-DOWN position while the
sunroof is automatically opening and
release the switch within two seconds)

The sunroof stops the
automatic opening
operation.

1. Ignition switch: ON
2. Sunroof switch: CLOSE/TILT DOWN (Push

the sunroof switch to the
CLOSE/TILT-DOWN position more than
two seconds while the sunroof is
automatically opening)

The sunroof stops the
automatic opening
operation, and the sunroof
closes while the sunroof
switch is pushed to the
CLOSE/TILT-DOWN
position.

AUTOMATIC
OPERATION
INTERRUPTION
(TILT-UP)

1. Ignition switch: ON
2. Sunroof switch: OPEN or TILT-UP, CLOSE/TILT

DOWN

The sunroof stops the
automatic opening
operation.

NO. SUNROOF

FUNCTION

REQUIREMENTS FOR THE SUNROOF TO
FUNCTION

NORMAL OPERATION
