KEYLESS ENTRY SYSTEM

BODY

42-68

• If none of the doors is opened or the ignition key

is not inserted in the ignition switch within 30 sec-
onds after the doors are unlocked using the
transmitter, the ETACS-ECU will relock the doors
automatically. This is called "Timer lock function."
This timer lock function prevents accidental
unlocking of doors. The adjustment function
allows you to change the timer lock period from

30 seconds (default setting) to 60, 120 or 180
seconds. For further details on using the
multi-center display (middle grade type) to adjust
the timer lock period, refer to GROUP 54B,
On-vehicle Service

P.54B-486

NOTE: The timer lock period begins when the doors
are unlocked, and ends when the doors is relocked
automatically.

KEYLESS ENTRY SYSTEM DIAGNOSIS

BGBCJGAI

The keyless entry system is controlled by the Simpli-
fied Wiring System (SWS). Refer to GROUP 54B,
SWS Diagnosis

P.54B-57

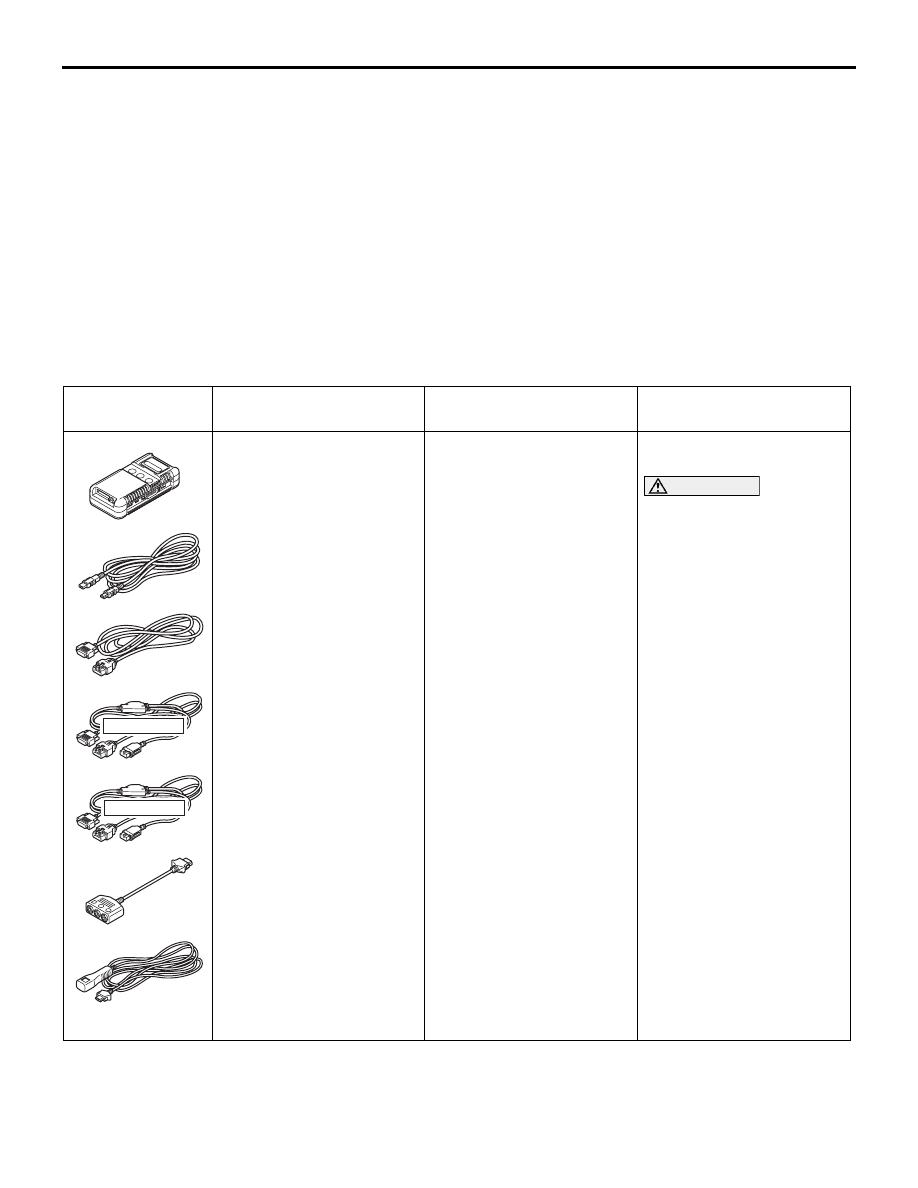

SPECIAL TOOL

BGBBBGDH

TOOL

TOOL NUMBER AND
NAME

SUPERSESSION

APPLICATION

A: MB991824
B: MB991827
C: MB991910
D: MB991911
E: MB991914
F: MB991825
G: MB991826

MUT-III Sub Assembly

A: Vehicle communication

interface (V.C.I.)

B: MUT-III USB cable
C: MUT-III main harness A

(Vehicles with CAN
communication system)

D: MUT-III main harness B

(Vehicles without CAN
communication system)

E: MUT-III main harness C

(for Daimler Chrysler
models only)

F: MUT-III measurement

adapter

G: MUT-III trigger harness

MB991824-KIT

NOTE: G: MB991826
MUT-III Trigger Harness is
not necessary when
pushing V.C.I. ENTER key.

For registration of secret
code

CAUTION

For vehicles with CAN
communication, use
MUT-III main harness A to
send simulated vehicle
speed. If you connect
MUT-III main harness B
instead, the CAN
communication does not
function correctly.

MB991910

MB991826

MB991958

MB991911

MB991914

MB991824

MB991827

MB991825

DO NOT USE

KEYLESS ENTRY SYSTEM

BODY

42-69

ON-VEHICLE SERVICE

INSPECTION

M1428003800089

KEY TRANSMITTER BATTERY CHECK

Measure the voltage of the battery. If the voltage of the battery
is not within the standard value, replace the battery.

Standard value:2.5

− 3.2 V

AC004486

KEYLESS ENTRY SYSTEM

BODY

42-70

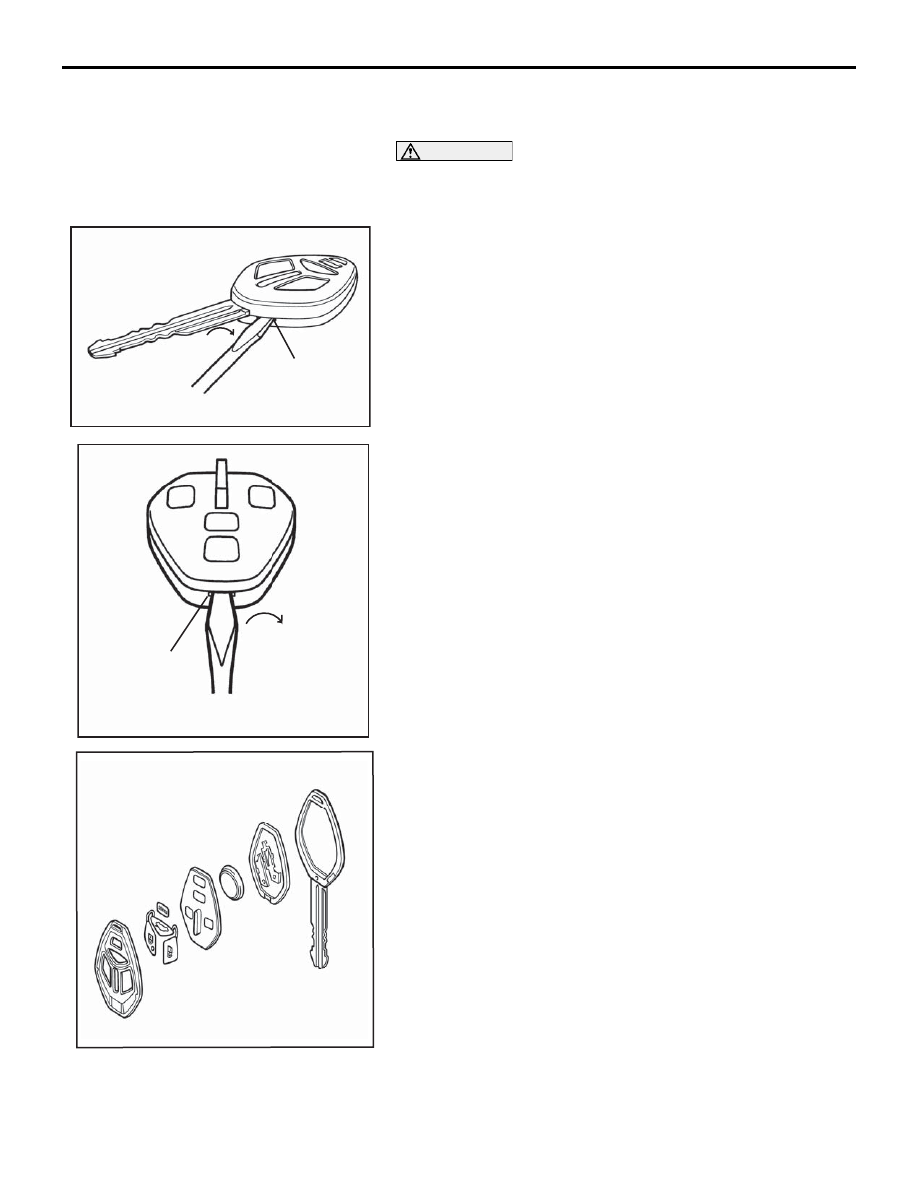

HOW TO REPLACE THE TRANSMITTER
BATTERY

BGBCHGFB

CAUTION

Do not allow water or dust to enter the inside of the trans-
mitter when it is opened. Also, do not touch the precision
electronic device.
1. Insert a flat blade screwdriver (cloth covered) at the base of

the key transmitter case (in slot) and twist, to open the case,
as shown in figure 1, (be careful not to lose switch button
pads when opening).

2. Remove internal case and insert a flat blade screwdriver

(cloth covered) at the switch assembly (in slot) as shown in
figure 2 and twist, to open the internal case (be careful not
to lose battery when opening).

Battery required for replacement: Coin type battery
CR1620 (3V)

3. Install a battery with its (+) side face-down, at base of

switch, and reassemble the key transmitter.

4. Verify that the keyless entry system operates.

Figure 2

Use small flat
blade screwdriver
in slot to open

twist to
open

18DB173A

Figure 1

Use small flat
blade screwdriver
in slot to open

twist to
open

18DB174A

18DB175A

KEY TRANSMITTER

KEYLESS ENTRY SYSTEM

BODY

42-71

KEYLESS ENTRY SYSTEM INSPECTION

BGBHCDAE

Check the following items. If defective, refer to GROUP 54B,
SWS Diagnosis

P.54B-10

1. Operate the transmitter to check that the doors can be

locked and unlocked.

NOTE: The adjustment function allows you to change the
unlock operation setting as follows. Prior to that check, con-
firm which setting is activated.

a. When the unlock button is pressed once, the driver's

door will be unlocked. Then when the button is pressed
once again, all the doors will be opened (initial setting).

b. When the unlock button is pressed only once, all the

doors will be opened.

2. Press the trunk lid button of transmitter twice (press once,

and then press again within 5 seconds) and confirm that the
trunk lid opens.

3. Operate the transmitter to check that the answerback

function works in response to doors locking/unlocking.

NOTE: The adjustment function allows you to change the
hazard answerback setting as follows. Prior to that check,
confirm which setting is activated.

a. Turn-signal lights: Flash once when doors are locked,

and twice when unlocked (initial setting)

b. Turn-signal lights: Flash once when doors are locked,

but does not flash when unlocked.

c. Turn-signal lights: Do not flash when doors are locked,

but flash twice when unlocked.

d. Turn-signal lights: Do not flash when doors are locked

and unlocked.

NOTE: The adjustment function allows you to change the
horn answerback setting as follows. Prior to that check, con-
firm which setting is activated.

a. Horn: Sounds once when the lock button is pressed.
b. Horn: Sounds once when the lock button is pressed (ini-

tial setting).

c. Horn: Does not sound.

KEYLESS ENTRY SYSTEM TIMER LOCK
FUNCTION INSPECTION

BGBEBDIA

If the doors are not locked within 30 seconds after the unlock
button is pressed, refer to GROUP 54B, SWS Diagnosis

P.54B-10

NOTE: If either of the doors is opened or the key is inserted in
the ignition switch within that 30-second period, the timer lock
function will be cancelled.
