Mitsubishi 380. Manual - part 283

TRUNK LID

BODY

42-64

AC305830

AC306174

AB

ADHESIVE: 3M™ AAD PART NO.8531 HEAVY DRIP CHECK SEALER, 3M™ AAD PART NO.8646 AUTOMOTIVE JOINT

AND SEAM SEALER OR EQUIVALENT

12

REMOVAL

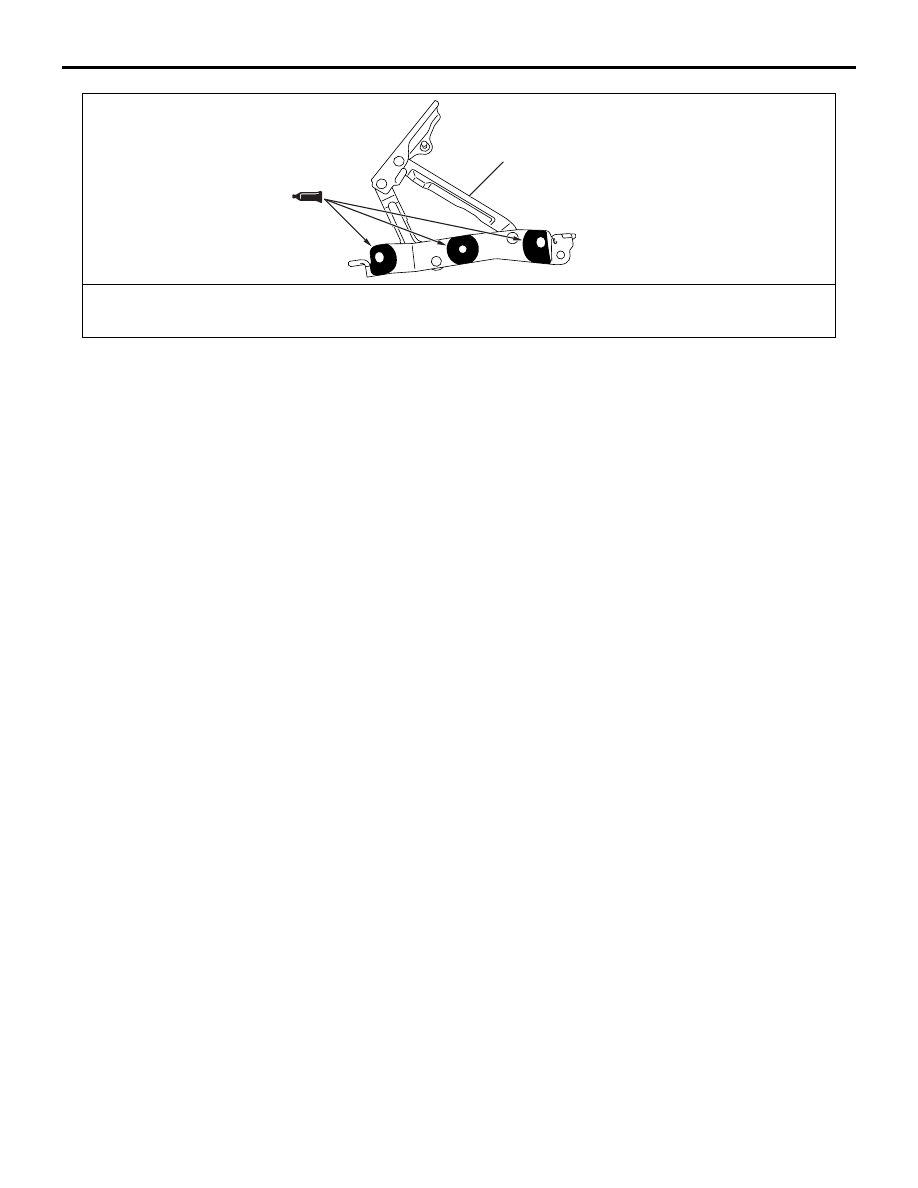

1. TRUNK LID DAMPER
2. TRUNK LID STRIKER
3. TRUNK LID INSIDE HANDLE

TRUNK LID WEATHERSTRIP
REMOVAL STEPS

•

REAR END TRIM (REFER TO
GROUP 52A, TRIMS

P.52A-11

.)

>>A<<

4. TRUNK LID WEATHERSTRIP

TRUNK LID LATCH REMOVAL
STEPS

•

REAR END TRIM (REFER TO
GROUP 52A, TRIMS

P.52A-11

.)

5. TRUNK LID LATCH ASSEMBLY

TRUNK LID EMERGENCY
RELEASE CABLE AND TRUNK LID
EMERGENCY RELEASE HANDLE
REMOVAL STEPS

•

REAR END TRIM (REFER TO
GROUP 52A, TRIMS

P.52A-11

.)

•

TRUNK TRIM ASSEMBLY (REFER
TO GROUP 52A, TRIMS

P.52A-11

.)

•

REAR SEAT (REFER TO GROUP
52A, SEAT

P.52A-55

.)

•

CENTER PILLAR LOWER TRIM
(REFER TO GROUP 52A, TRIMS

P.52A-11

.)

•

COWL SIDE TRIM (REFER TO
GROUP 52A, TRIMS

P.52A-11

.)

7. TRUNK LID EMERGENCY

RELEASE HANDLE

8. TRUNK LID EMERGENCY

RELEASE CABLE
TRUNK LID PANEL ASSEMBLY
REMOVAL STEPS

1. TRUNK LID DAMPER
2. TRUNK LID STRIKER
3. TRUNK LID INSIDE HANDLE
•

THREE-DIAMOND MARK (REFER
TO GROUP 51 MARKS

P.51-25

.)

•

HIGH MOUNT STOPLIGHT
<VEHICLES WITHOUT REAR
SPOILER> (REFER TO GROUP
54A, HIGH-MOUNTED STOPLIGHT

P.54A-166

.)

•

REAR SPOILER ASSEMBLY
<VEHICLES WITH REAR SPOILER>
(REFER TO GROUP 51, REAR
SPOILER

P.51-11

.)

9. TRUNK LID PANEL ASSEMBLY

MOUNTING BOLT AND NUT

10. TRUNK LID PANEL ASSEMBLY

TRUNK LID HINGE REMOVAL
STEPS

10. TRUNK LID PANEL ASSEMBLY

<<A>>

11. TRUNK LID GAS SPRING
12. TRUNK LID HINGE

TRUNK LID EMERGENCY
RELEASE CABLE AND TRUNK LID
EMERGENCY RELEASE HANDLE
REMOVAL STEPS (Continued)

TRUNK LID

BODY

42-65

REMOVAL SERVICE POINT

.

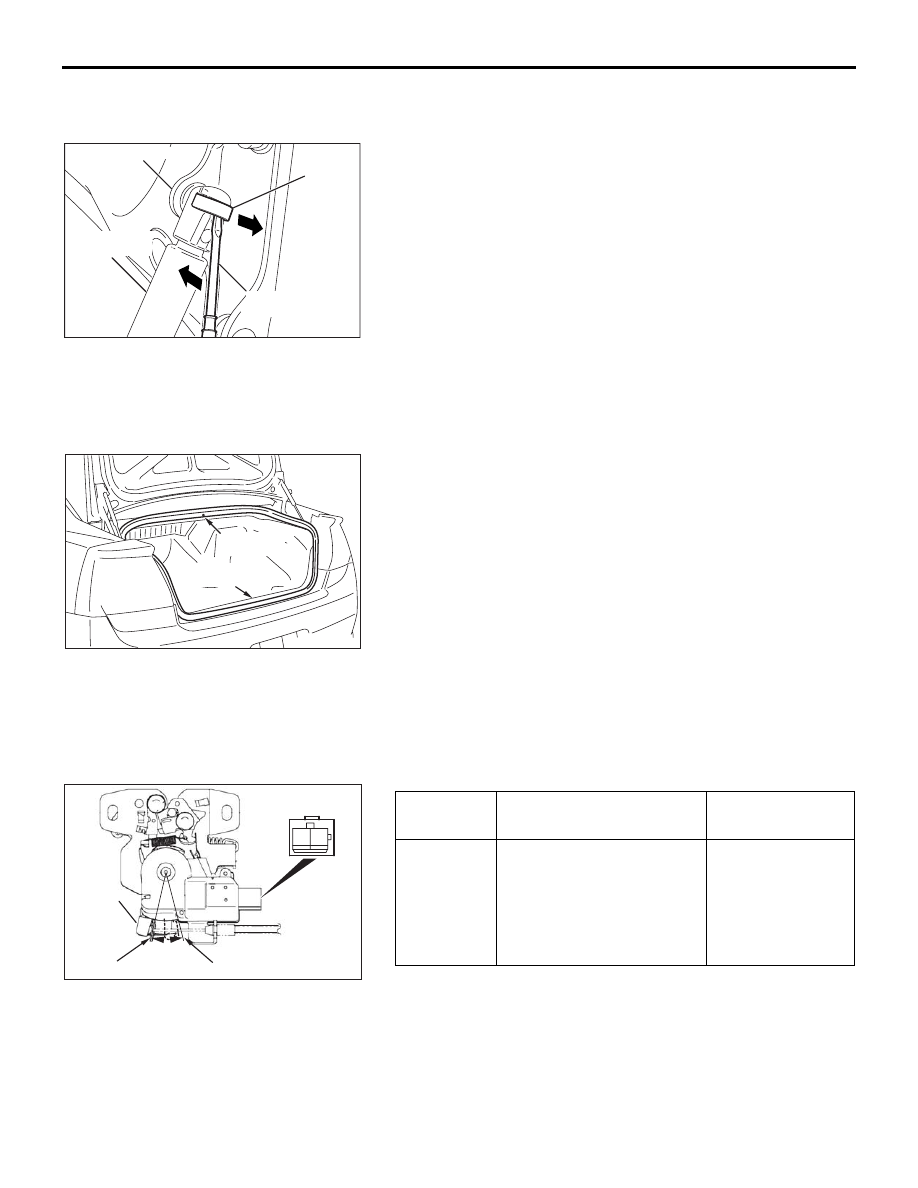

<<A>> TRUNK LID GAS SPRING REMOVAL

As shown in the figure, slide the pin upward, then remove the
trunk lid gas spring in the direction of the arrow to unscrew the
trunk lid hinge.

INSTALLATION SERVICE POINT

.

>>A<< TRUNK LID WEATHERSTRIP
INSTALLATION

Install the trunk lid weatherstrip so that the marking and the
joint are aligned with the body center line,

INSPECTION

M1421004800144

TRUNK LID LATCH ASSEMBLY CHECK

.

TRUNK LID LATCH ACTUATOR CHECK

.

AC305996

PIN

AB

TRUNK LID

GAS SPRING

TRUNK LID HINGE

FLAT-TAPPED

SCREWDRIVER

AC305825AB

MARKING

SECTION

JOINT

SECTION

LEVER
POSITION

BATTERY CONNECTION

LEVER
OPERATION

At the "OFF"
position

• Connect ground and the

negative battery
terminal.

• Connect terminal No. 1

and the positive battery
terminal.

The lever moves
from the "OFF"
position to the
"OPEN" position.

18DB168A

1 2

OFF

LEVER

OPEN

<REAR VIEW>

TRUNK LID

BODY

42-66

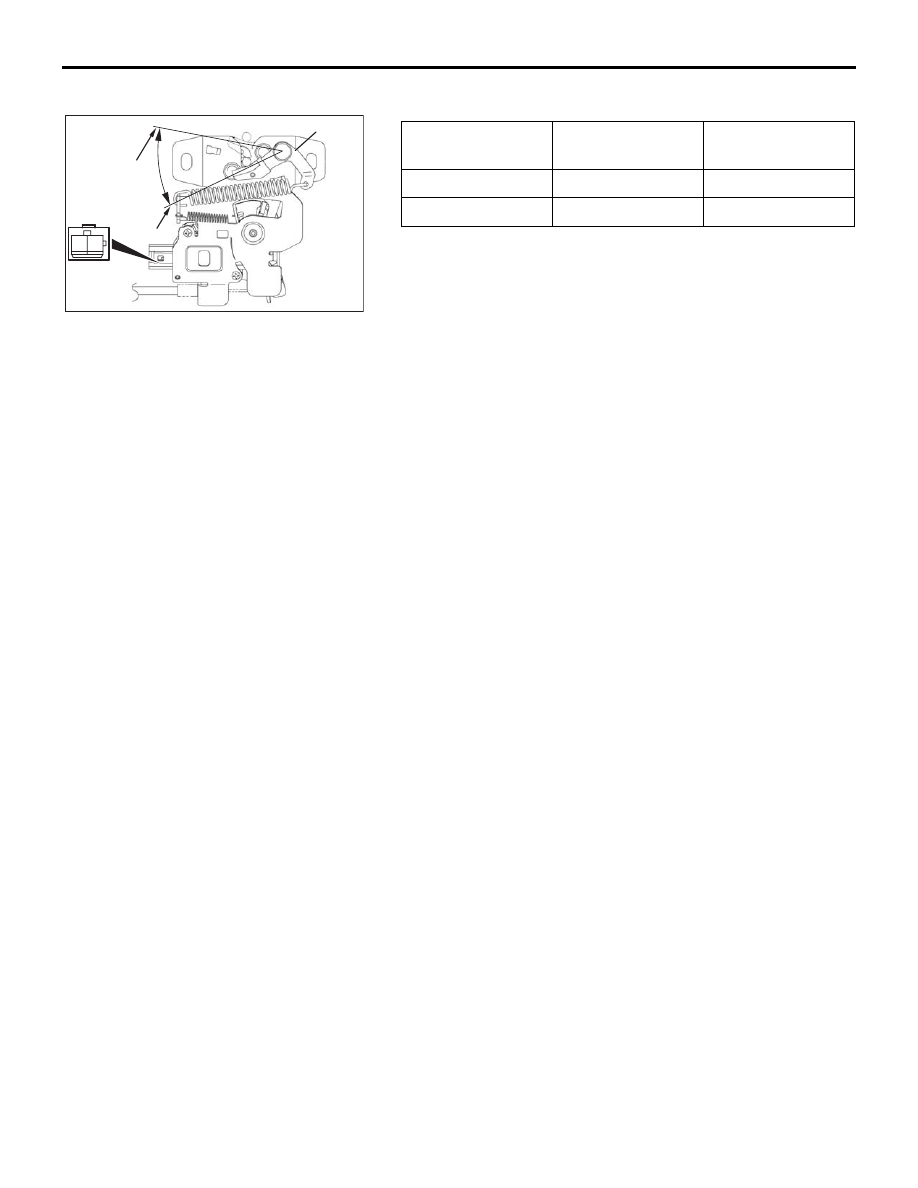

TRUNK LID LATCH SWITCH CONTINUITY CHECK

LEVER POSITION TESTER

CONNECTION

SPECIFIED
CONDITION

ON (Latch open)

2

− Ground

Less than 2 ohms

OFF (Latch shut)

2

− Ground

Open circuit

18DB169A

1 2

<FRONT

VIEW>

ON

OFF

LEVER

KEYLESS ENTRY SYSTEM

BODY

42-67

KEYLESS ENTRY SYSTEM

GENERAL DESCRIPTION

BGBJABIE

• Antenna and receiver are incorporated in the

ETACS-ECU.

• ID code can be registered by using Diagnostic

tool (MUT-III).

• Transmitter is a key holder type, which incorpo-

rates lock button, unlock button, trunk button and
panic button <Vehicles with panic alarm system>.

• When the transmitter unlock button is pressed

once, the driver's door will be unlocked. If the but-
ton is pressed twice, all the doors will be
unlocked. The adjustment function also allows
you to open all the doors by pressing the unlock
button only once. For further details on using the
multi-center display to adjust the unlock opera-
tion, refer to GROUP 54B, On-vehicle Service

P.54B-486

.

• When the transmitter is operated, the answer-

back function will work as follows:

• The answerback operation can be altered as fol-

lows:

NOTE: Enabling/disabling the hazard warning
light flashing, the horn sounding in accordance
with the answerback function. For further details
on using the transmitter to adjust answerback,

P.42-72

 see the section below. For further details

on using the multi-center display to adjust
answerback, refer to GROUP 54B, On-vehicle
Service

P.54B-486

.

ITEM

OPERATION

DOORS LOCKED

DOORS UNLOCKED

Dome light

Flashes once

Illuminates for 15 seconds

Turn-signal lights (RH and LH)

Flashes once

Flashes twice

Horn

Sounds once when the lock button
is pressed with all the doors locked

-

ITEM

ADJUSTMENT ITEM

ADJUSTMENT DETAIL

Keyless entry system
confirmation by turn
signal lights

Adjustment of hazard answerback
when the transmitter is used to
lock doors

When adjusting hazard answerback after the
doors are locked with the transmitter, the
following flashing conditions can be selected.

a. Flash (default)
b. No flash

Adjustment of hazard answerback
when the transmitter is used to
unlock doors

When adjusting hazard answerback after the
doors are unlocked with the transmitter, the
following flashing conditions can be selected.

a. Flash (default)
b. No flash

Keyless entry system
confirmation by horn

Adjustment of horn answerback
when the transmitter is used to
lock doors

When adjusting horn answerback after the
doors are locked with the transmitter, the
following horn conditions can be selected.

a. Horn sounds
b. Horn sounds if doors are already locked

(default)

c. Horn does not sound
