Mitsubishi 380. Manual - part 260





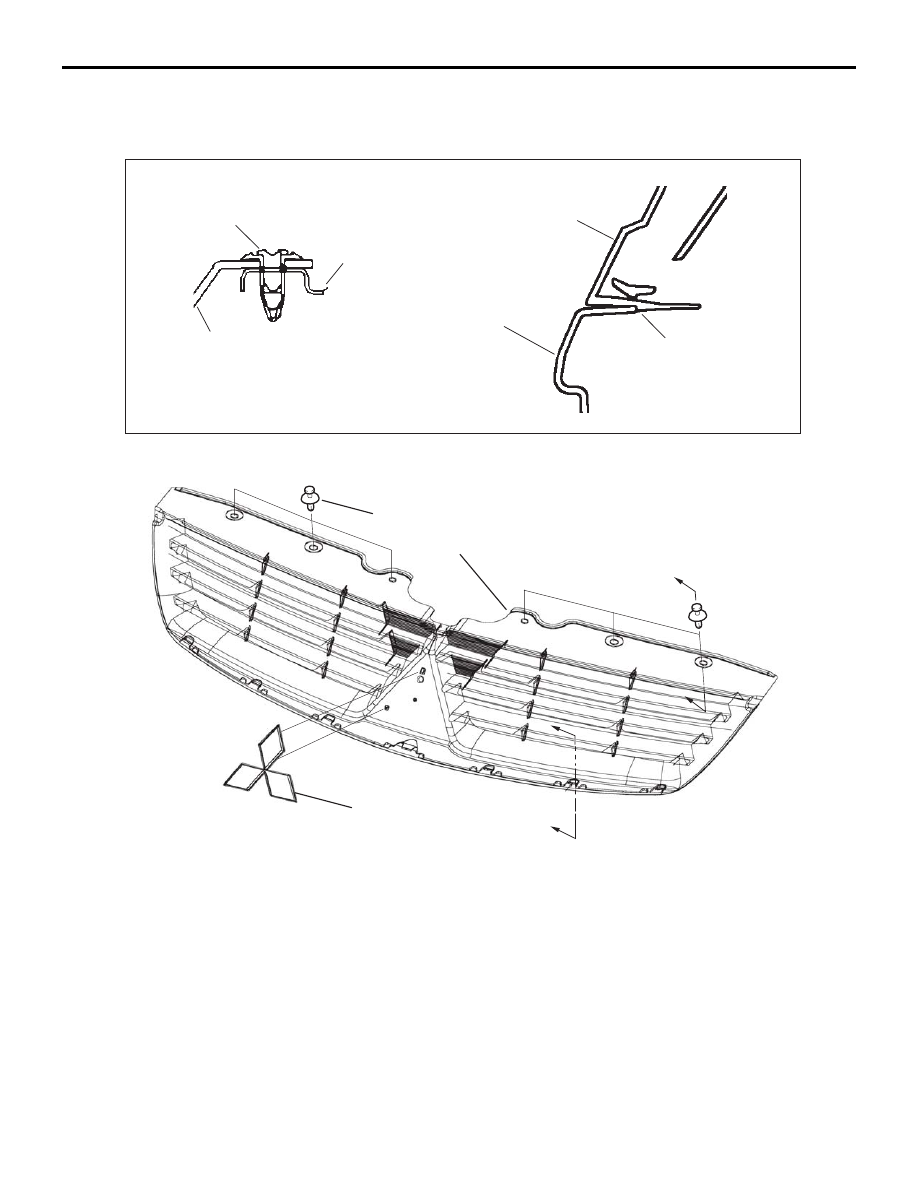

RADIATOR GRILLE

EXTERIOR

51-6

RADIATOR GRILLE

REMOVAL AND INSTALLATION

M1511002900237

Required Special Tools:

• MB990784: Ornament Remover

REMOVAL SERVICE POINTS

.

<<A>> RADIATOR GRILLE ASSEMBLY REMOVAL

Ensure that the front bumper surface around grille is clean and
free of any foreign material to prevent damaging paint surface
during grille removal.

20DB118A

SECTION B – B

SECTION A – A

CLIP

CLIP POINT

RADIATOR GRILLE

RADIATOR GRILLE

RADIATOR GRILLE

FRONT BUMPER

FRONT END

UPPER BAR

B

B

A

A

1

2

3

REMOVAL STEPS

<<A>>

1. RADIATOR GRILLE
2. SCRIVETS
3. FRONT THREE-DIAMOND MARK

(REFER TO

P.51-25

GARNISHES AND MOLDINGS

EXTERIOR

51-7

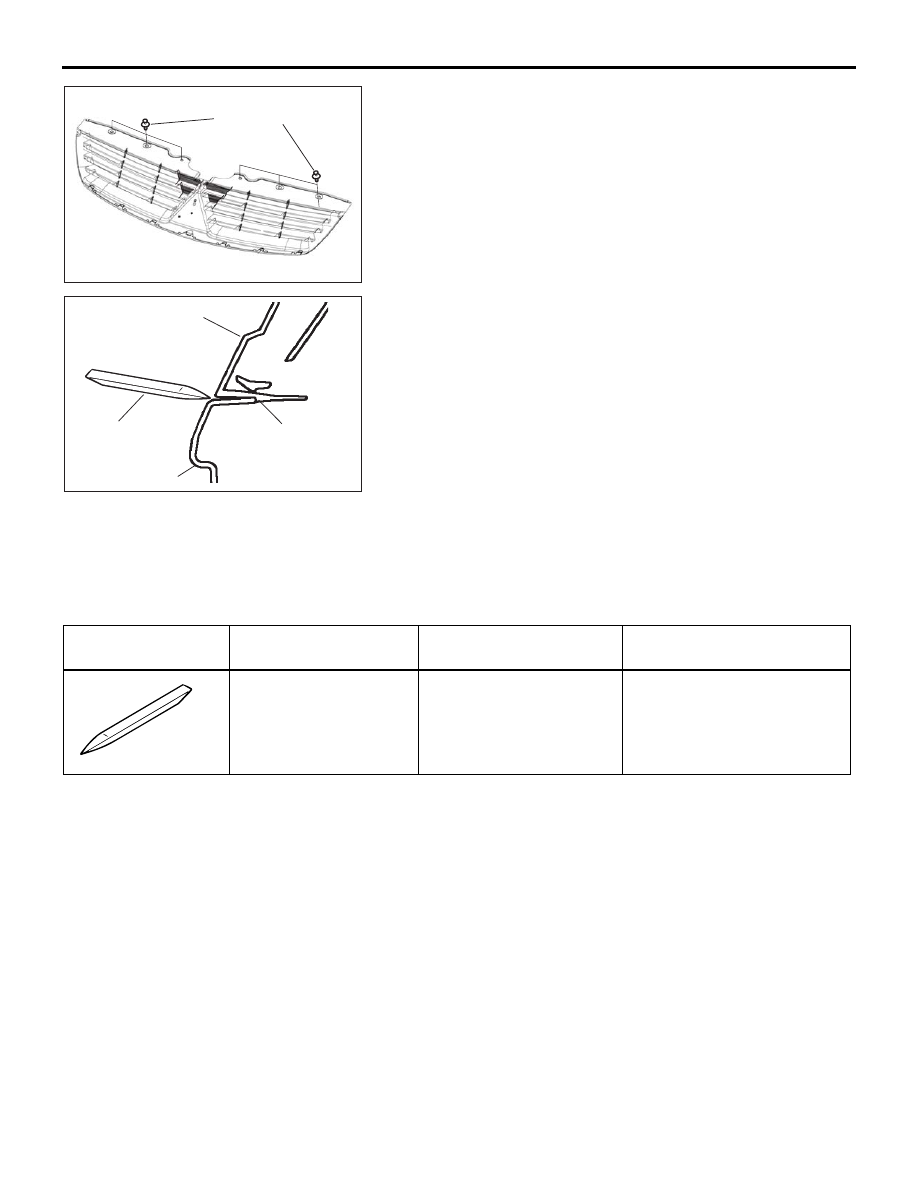

1. Open the engine hood and remove the 6 attaching scrivets

from the top edge of grille.

2. Using Special Tool MB990784 or similar. Insert the tool

between the top surface of the bumper and lower edge of
the grille at each clipping point and release grille lower side.

3. Carefully remove the grille from bumper and avoid any paint

damage.

GARNISHES AND MOLDINGS

SPECIAL TOOLS

M1511000601158

20DB119A

SCRIVETS

20DB120A

SPECIAL TOOL

CLIP POINT

RADIATOR GRILLE

FRONT BUMPER

TOOL

TOOL NUMBER AND
NAME

SUPERSESSION

APPLICATION

MB990784 Ornament
remover

General service tool

Side protector molding
Roof drip molding

MB990784

GARNISHES AND MOLDINGS

EXTERIOR

51-8

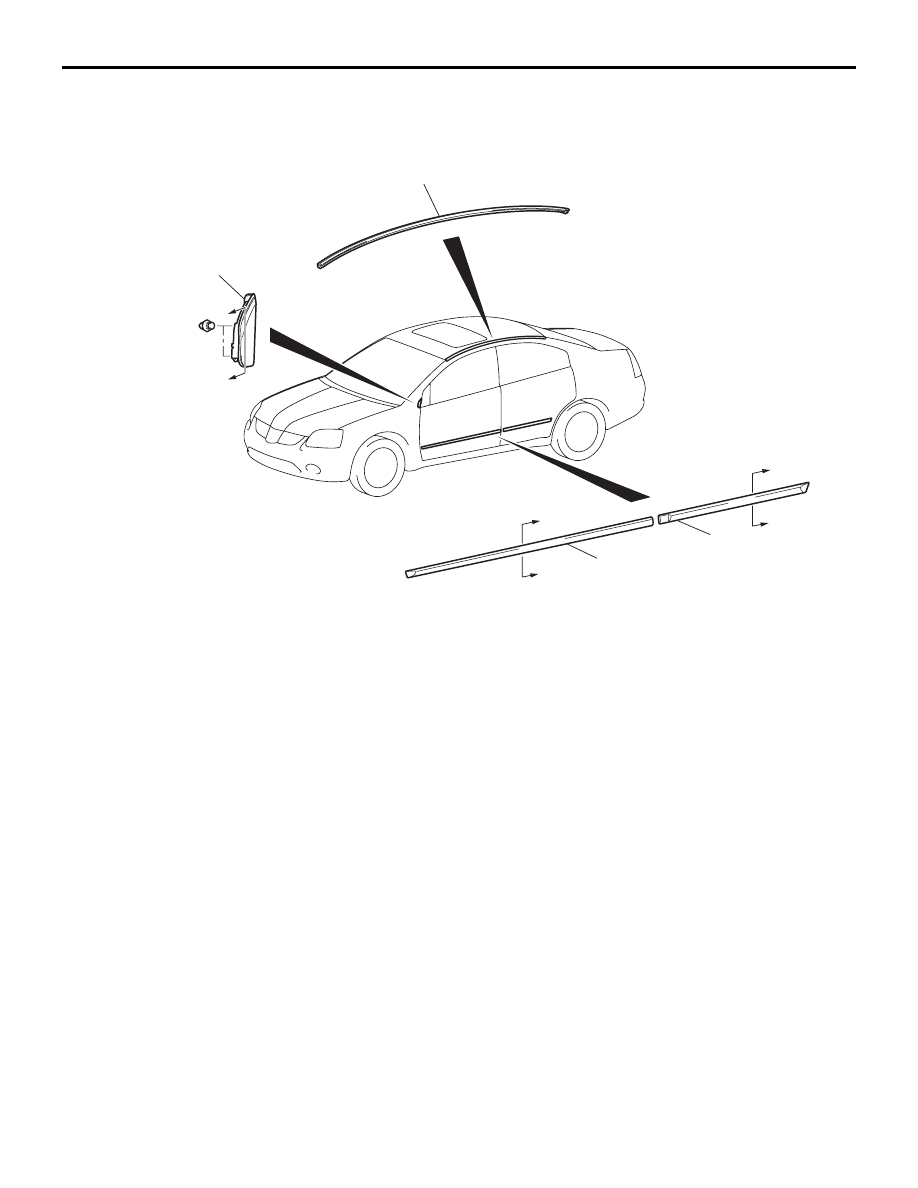

MOLDINGS

REMOVAL AND INSTALLATION

M1511004700165

Required Special Tools:

• MB990784: Ornament Remover

AC306486

AB

2

4

3

1

A

A

A

A

B

B

AB

REMOVAL

<<A>> >>A<<

1. FRONT DOOR SIDE PROTECTOR

MOLDING

<<A>> >>A<<

2. REAR DOOR SIDE PROTECTOR

MOLDING

ROOF DRIP MOLDING REMOVAL
STEPS

<<A>> >>A<<

3. ROOF DRIP MOLDING

FRONT DELTA GARNISH REMOVAL
STEPS
4. FRONT DELTA GARNISH

GARNISHES AND MOLDINGS

EXTERIOR

51-9

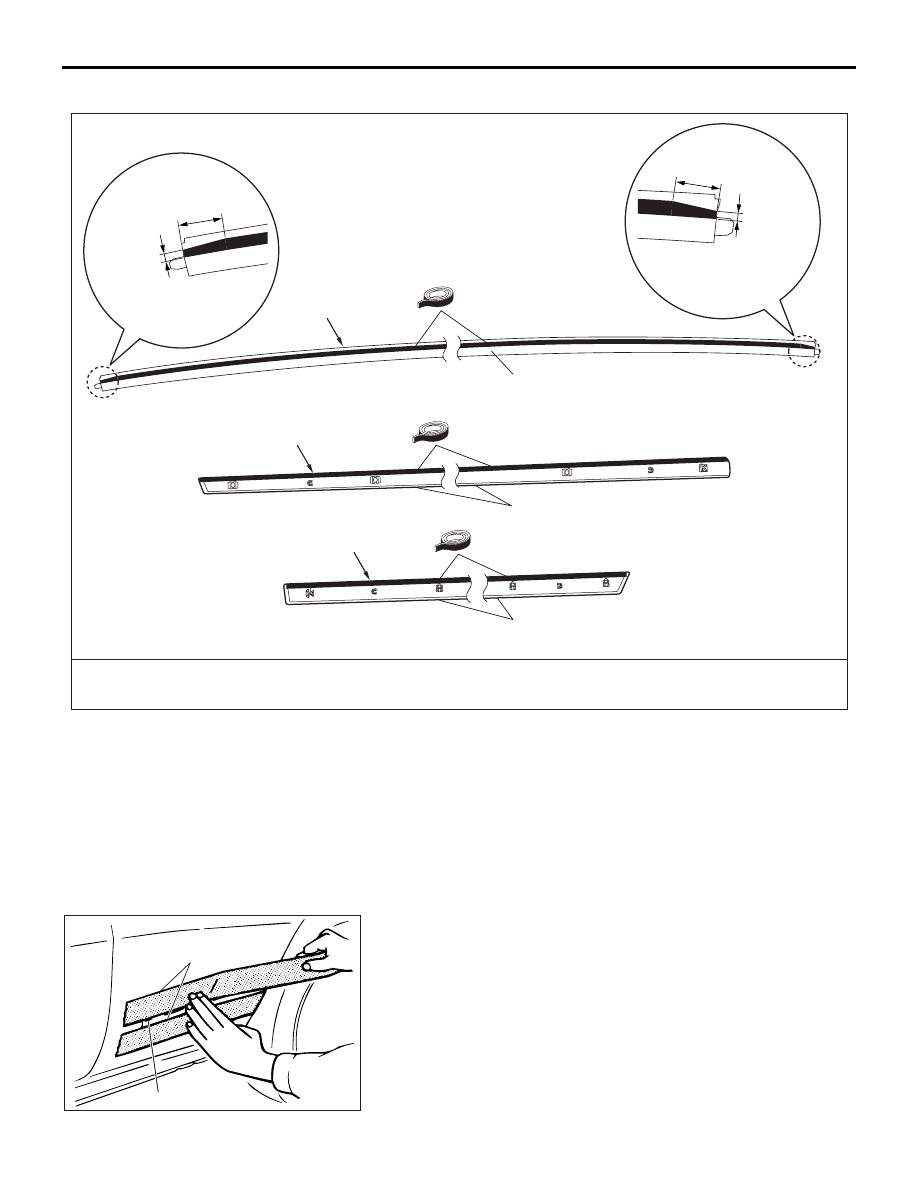

ADHESIVE TAPE POSITION

REMOVAL SERVICE POINTS

.

<<A>> SIDE PROTECTOR MOLDING/ROOF DRIP
MOLDING REMOVAL

Gently lift and remove the side protector molding/roof drip
molding. If there is any double-sided tape remaining on the side
protector molding, remove according to the following instruc-
tions.
<Remove double-sided tape remaining on the body surface>
1. Attach protection tape all the way along the edges of the

double-sided tape which is still adhering to the body.

AC306520 AC

ADHESIVE TAPE: DOUBLE-SIDED TAPE

                                     A: 10.0 mm ( 0.39 in ) WIDTH AND 1.52 mm ( 0.06 in ) THICKNESS,

                                     B: 8.0 mm ( 0.32 in ) WIDTH AND 1.2 mm ( 0.05 in ) THICKNESS

FRONT DOOR SIDE PROTECTOR MOLDING

REAR DOOR SIDE PROTECTOR MOLDING

ROOF DRIP MOLDING

B

B

A

36.5 ± 1 mm

(1.44 ± 0.04 inch)

29 ± 1 mm

(1.14 ± 0.04 inch)

5.5 ± 0.5 mm

(0.22 ± 0.02 inch)

6.4 ± 0.5 mm

(0.25 ± 0.02 inch)

AC000420

DOUBLE-SIDED TAPE

PROTECTION TAPE

AB
