WINDSHIELD WIPER AND WASHER

EXTERIOR

51-27

NOTE: For removal and installation of the wiper and
washer switch, refer to GROUP 54A, Column switch

P.54A-103

.

Removal service points
<<A>> Washer motor removal

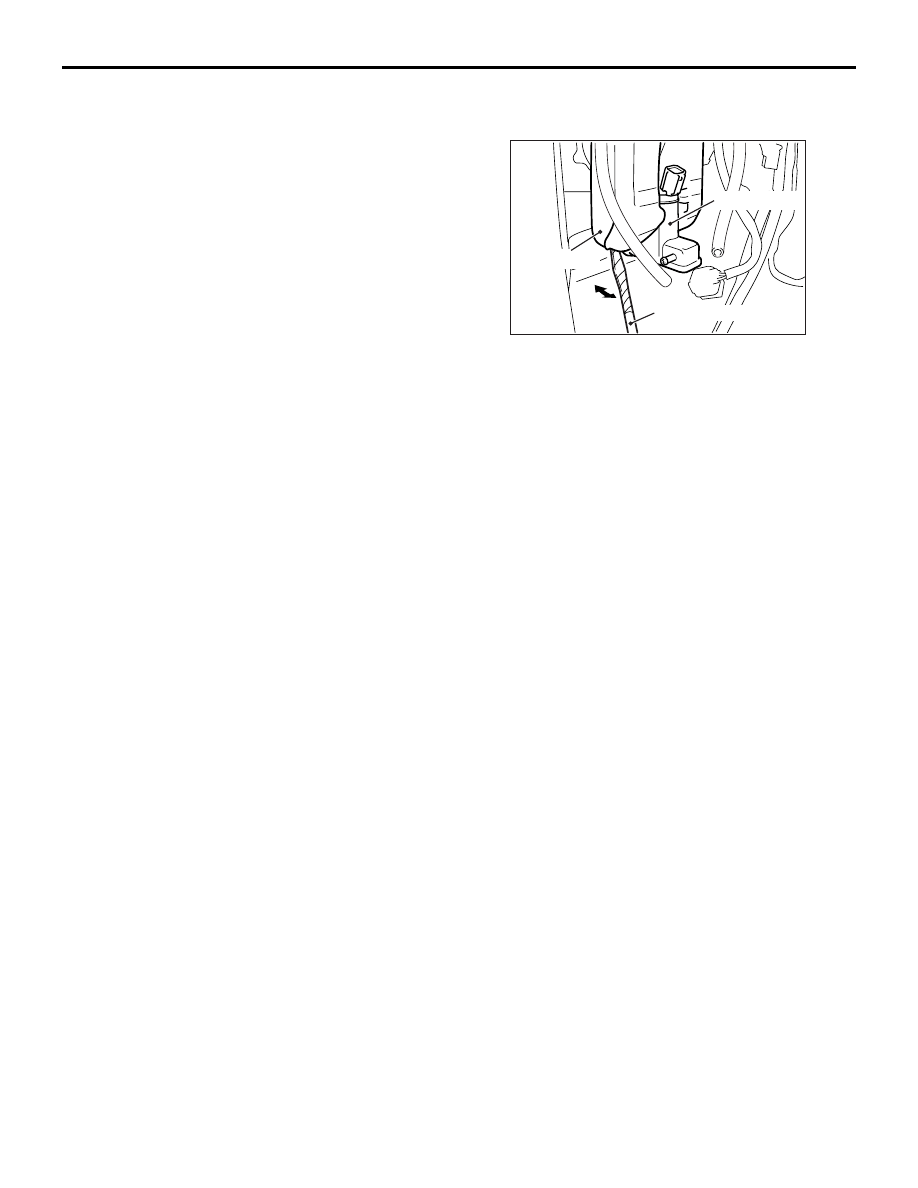

Insert a (

−) screwdriver wrapped with protective tape

between the washer tank and the lower outer side of
the washer motor. Pry out the washer motor.

Washer tank removal steps

Front bumper assembly (Refer to

P.51-3

.)

5. Washer tank assembly

<<A>>

6. Washer motor
7. Washer tank
8. Cap
9. Washer tank filler hose
Washer motor removal steps
10. Splash shield (RH)
6. Washer motor

AC302794AB

Washer motor

Washer tank

Flat-tipped screwdriver

REAR WIPER AND WASHER

EXTERIOR

51-28

INSPECTION

M1511019100501

WINDSHIELD WASHER FLUID EJECTION
CHECK

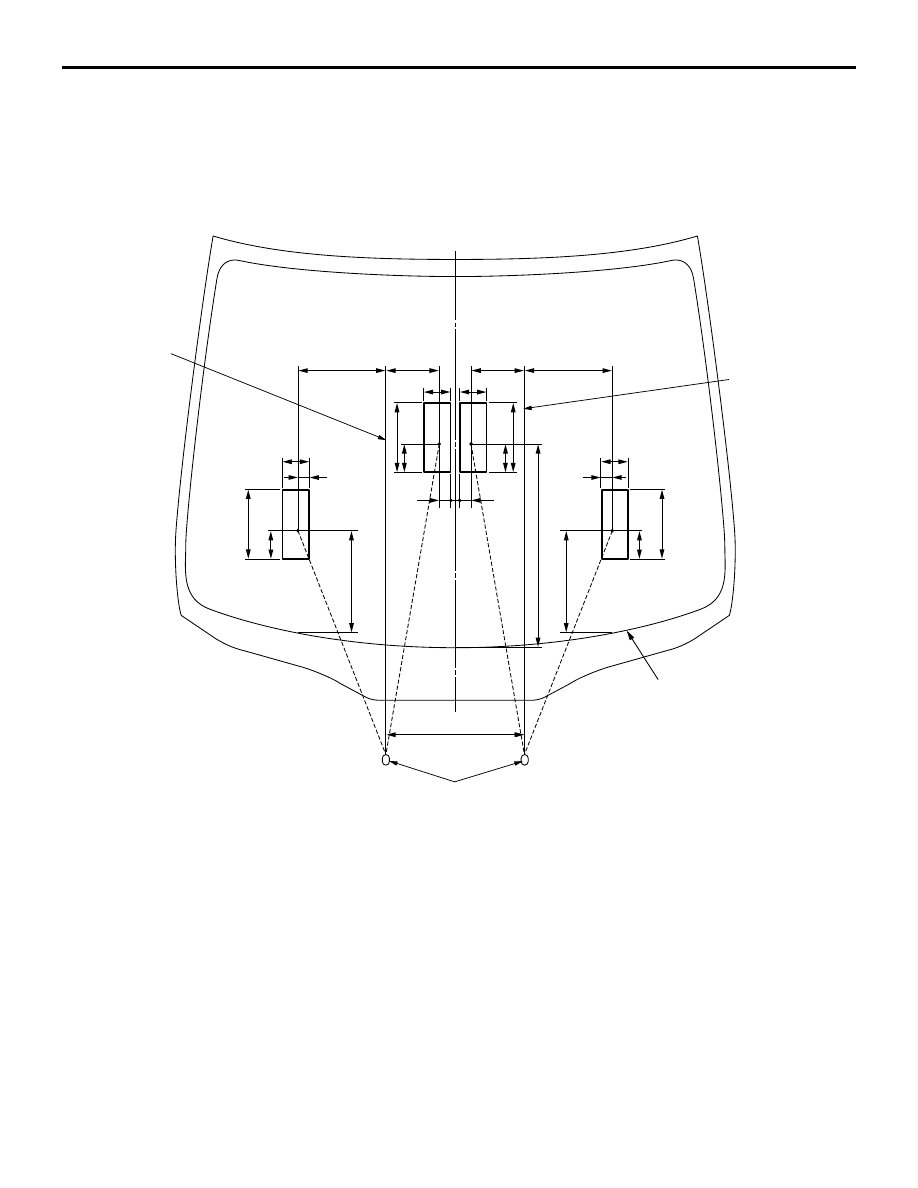

Move the nozzle to adjust the position so that the
spray is in the area shown in the illustration.

REAR WIPER AND WASHER

TROUBLESHOOTING

M1511020000188

The rear wiper and washer are controlled by the
Smart Wiring System (SWS). For troubleshooting,
refer to GROUP 54B, Troubleshooting

P.54B-74

 or

GROUP 54C, Troubleshooting

P.54C-44

.

AC302128

260

27

65

174

70

260

514

352

27

65

174

70

AB

223

137

223

137

65

65

174

174

70

70

27

27

Windshield washer nozzle

<Left>

<Right>

Ceramic line terminal

Unit: mm

Windshield

washer

nozzle

perpendicular

Windshield

washer

nozzle

perpendicular

REAR WIPER AND WASHER

EXTERIOR

51-29

ON-VEHICLE SERVICE

Operation check of reverse gear-linked
operation of the rear wiper

M1511022600023

1. When the selector lever is moved to the "R"

position with the rear wiper switch at the "INT"
position, the wiper should operate twice or three
times at low speed after approximately one
second.

2. If not, carry out the troubleshooting. (Refer to

GROUP 54B

− Troubleshooting

P.54B-74

 or

GROUP 54C

− Troubleshooting

P.54C-44

.)

WASHER MOTOR INSPECTION (REAR
WASHER)

M1511019100686

1. Check the washer fluid level, and refill if

necessary.

2. Remove the splash shield.
3. Disconnect the washer motor connector.
4. Disconnect the rear washer hose as shown.

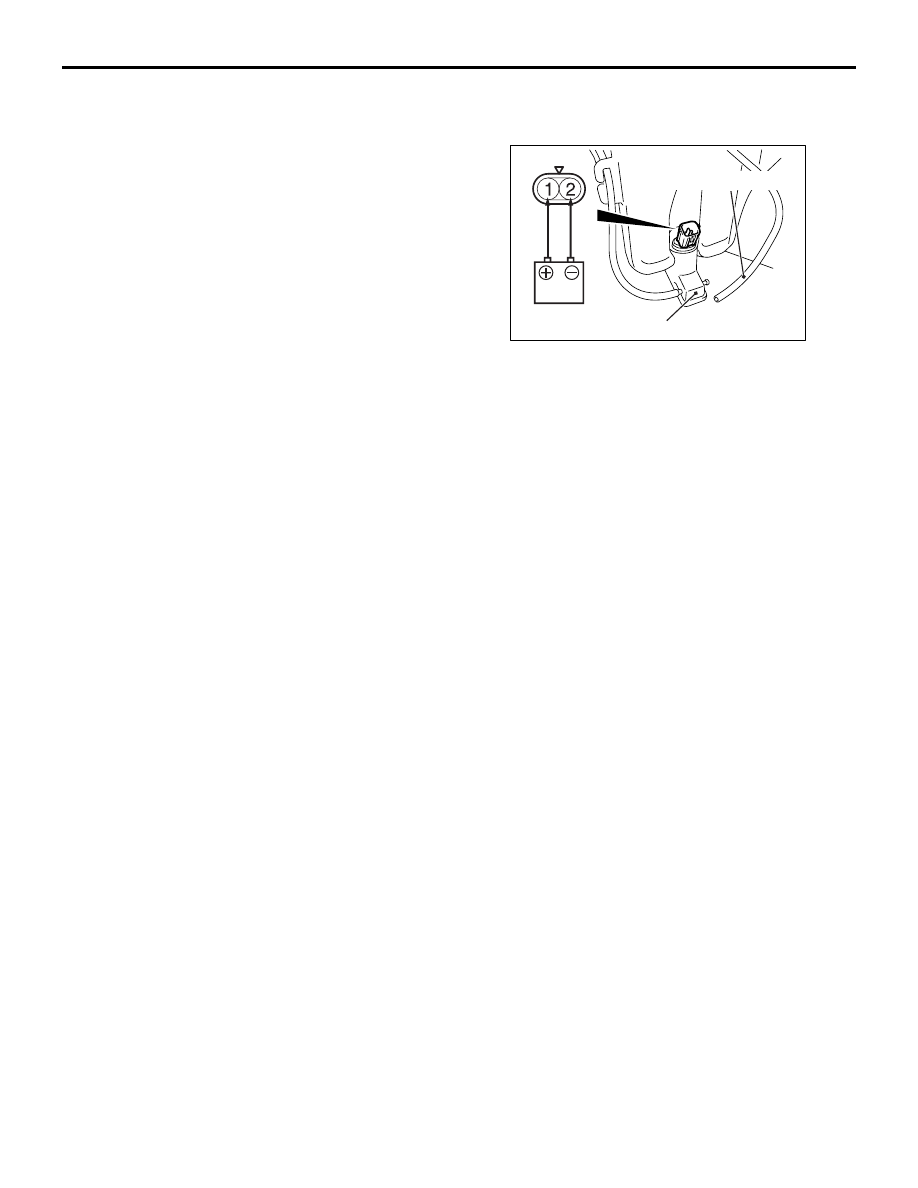

5. Connect the battery to the washer motor

connector as shown. Check that the washer motor
delivers washer strongly.

AC303909

AB

Rear washer hose

Washer motor

REAR WIPER AND WASHER

EXTERIOR

51-30

REAR WIPER AND WASHER

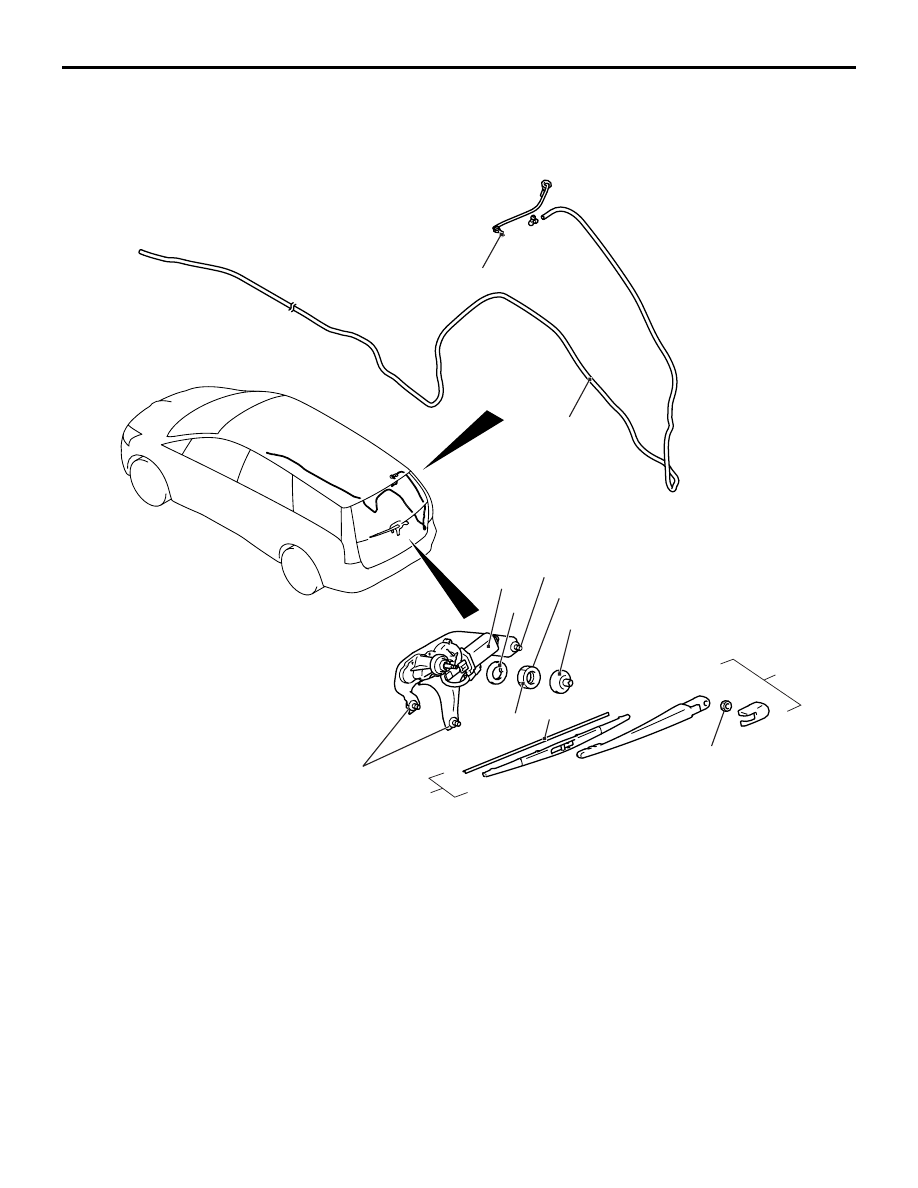

REMOVAL AND INSTALLATION

M1511008500163

NOTE: For removal and installation of the wiper and
washer switch, refer to GROUP 54A, Column switch

P.54A-103

.

AC312141

4

1

9

8

7

6

5

3

AB

2

7.4 ± 1.4 N·m

7.4 ± 1.4 N·m

9.8 ± 2.0 N·m

7.4 ± 1.4 N·m

Washer tank assembly removal

Washer tank (Refer to

P.51-26

.)

Washer motor (Refer to

P.51-26

.)

Rear washer nozzle removal steps

Tailgate spoiler (Refer to

P.51-19

.)

High-mounted stop lamp assembly
(Refer to GROUP 54A, High-mounted
stop lamp

P.54A-98

.)

1. Rear washer nozzle assembly
Rear wiper blade removal steps
2. Rear wiper blade assembly

>>A<<

3. Rear wiper blade
Rear wiper motor removal steps

>>B<<

4. Rear wiper arm blade assembly

Tailgate trim (Refer to GROUP 52A,
Tailgate trim

P.52A-16

.)

5. Cover
6. Nut
7. Washer packing
8. Rear wiper motor assembly
Rear washer hose removal steps

Cowl side trim, front scuff plate, rear
scuff plate, quarter trim (Refer to
GROUP 52A, Interior trim

P.52A-10

.)

Tailgate trim (Refer to GROUP 52A,
Tailgate trim

P.52A-16

.)

>>C<<

9. Rear washer hose

Rear wiper motor removal steps
