Mitsubishi Grandis. Manual - part 822





WINDSHIELD WIPER AND WASHER

EXTERIOR

51-23

NOTE: For removal and installation of the wiper and
washer switch, refer to GROUP 54A, Column switch

P.54A-103

.

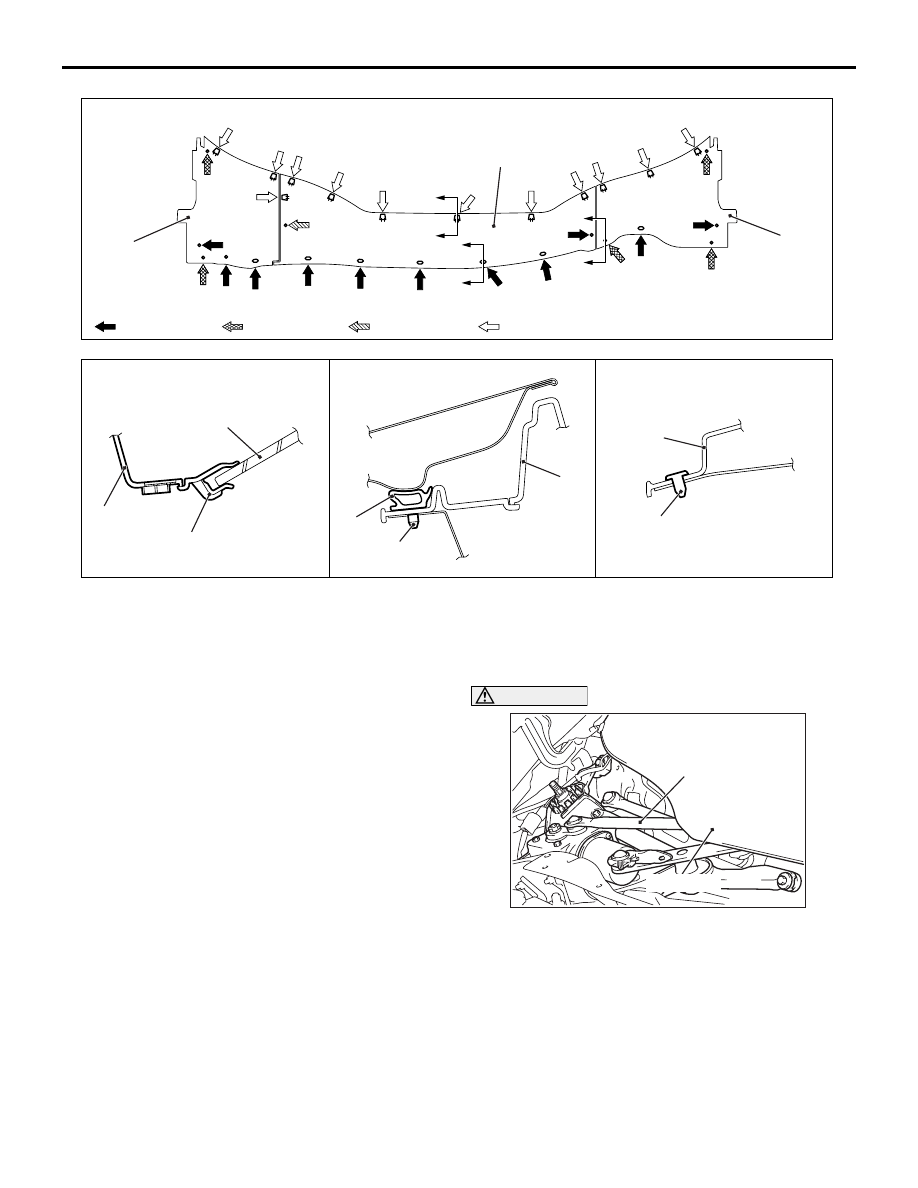

REMOVAL SERVICE POINT
<<A>> WINDSHIELD WIPER MOTOR
ASSEMBLY AND WIPER LINK REMOVAL

CAUTION

Be careful not to contact the windshield when the
windshield wiper motor assembly and the
windshield wiper link assembly are removed.

AC310648

5

8

6

8

C

C

D

D

B

B

6

AB

6

9

View A

Note

: Clip a positions

: Clip b positions

: Clip c positions

: Claw positions

Section B – B

Section C – C

Section D – D

Claw

Windshield

Clip a

Clip b, c

Deck garnish removal
1. Front deck garnish
Wiper blade assembly removal steps
2. Wiper blade assembly
3. Wiper blade
Windshield wiper motor and link
assembly removal steps

>>A<<

4. Wiper arm blade assembly

Cowl top centre panel (Refer to
GROUP 42, Loose Panel

P.42-67

.)

5. Hood weather strip
6. Front deck garnish
7. Drip molding clip
8. Front deck garnish (LH)
9. Front deck garnish (RH)

<<A>>

10. Windshield wiper link

<<A>>

11. Windshield wiper motor assembly

AC302593AB

Windshield

Windshield wiper
motor assembly

WINDSHIELD WIPER AND WASHER

EXTERIOR

51-24

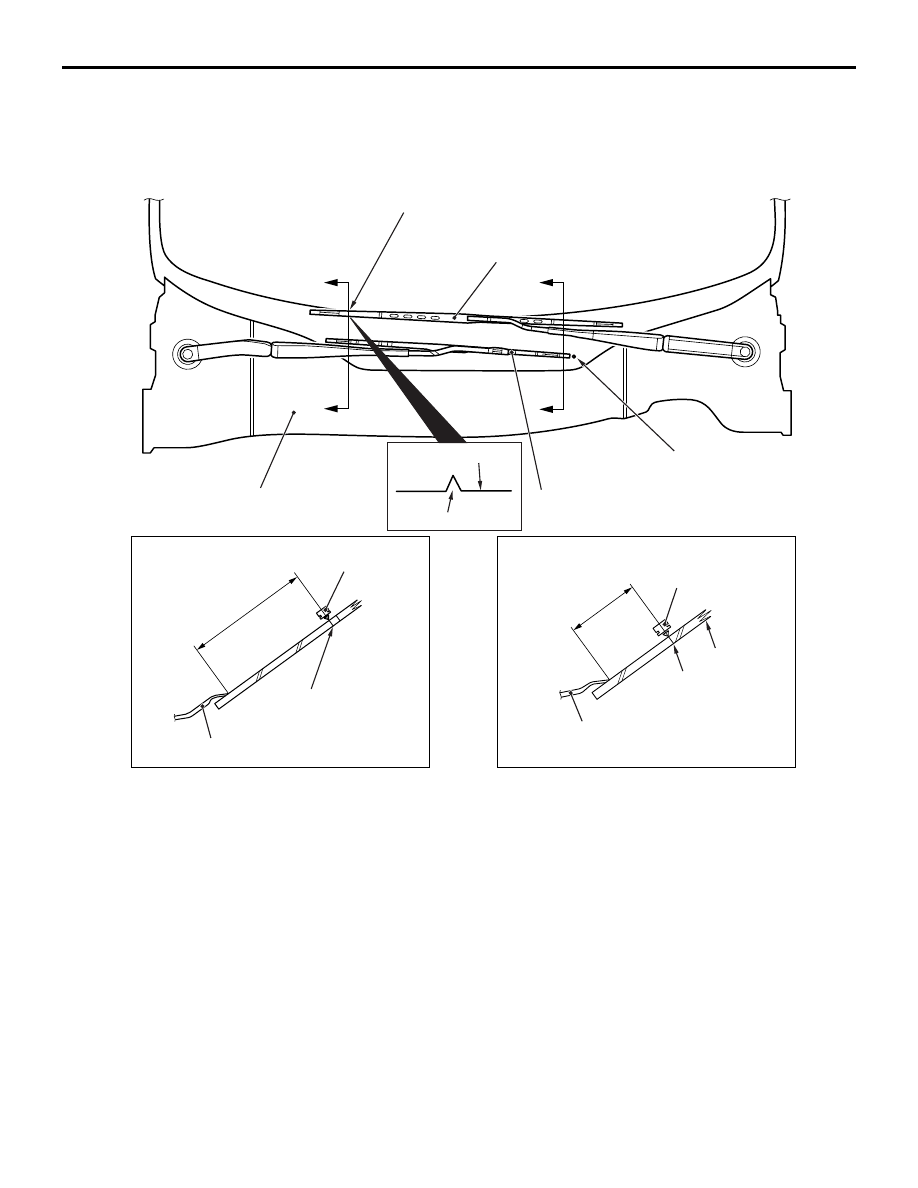

INSTALLATION SERVICE POINT
>>A<< WIPER ARM AND BLADE
ASSEMBLY INSTALLATION

Install the wiper arm and blade assembly at the
specified positions.

AC313569

A

A

B

B

AB

25 ± 5 mm

123 ± 5 mm

Section A – A

Section B – B

Front deck garnish

Wiper arm and blade
assembly (LH)

Wiper arm and blade
assembly (RH)

Ceramic line

Position mark

Position mark

Front deck garnish

Front deck centre garnish

Position mark

Wiper arm and blade
assembly (RH)

Wiper arm and blade
assembly (LH)

Wiper arm and blade
assembly (RH) position mark

Ceramic line

Wiper arm and blade
assembly (LH) position mark

WINDSHIELD WIPER AND WASHER

EXTERIOR

51-25

INSPECTION

M1511019100493

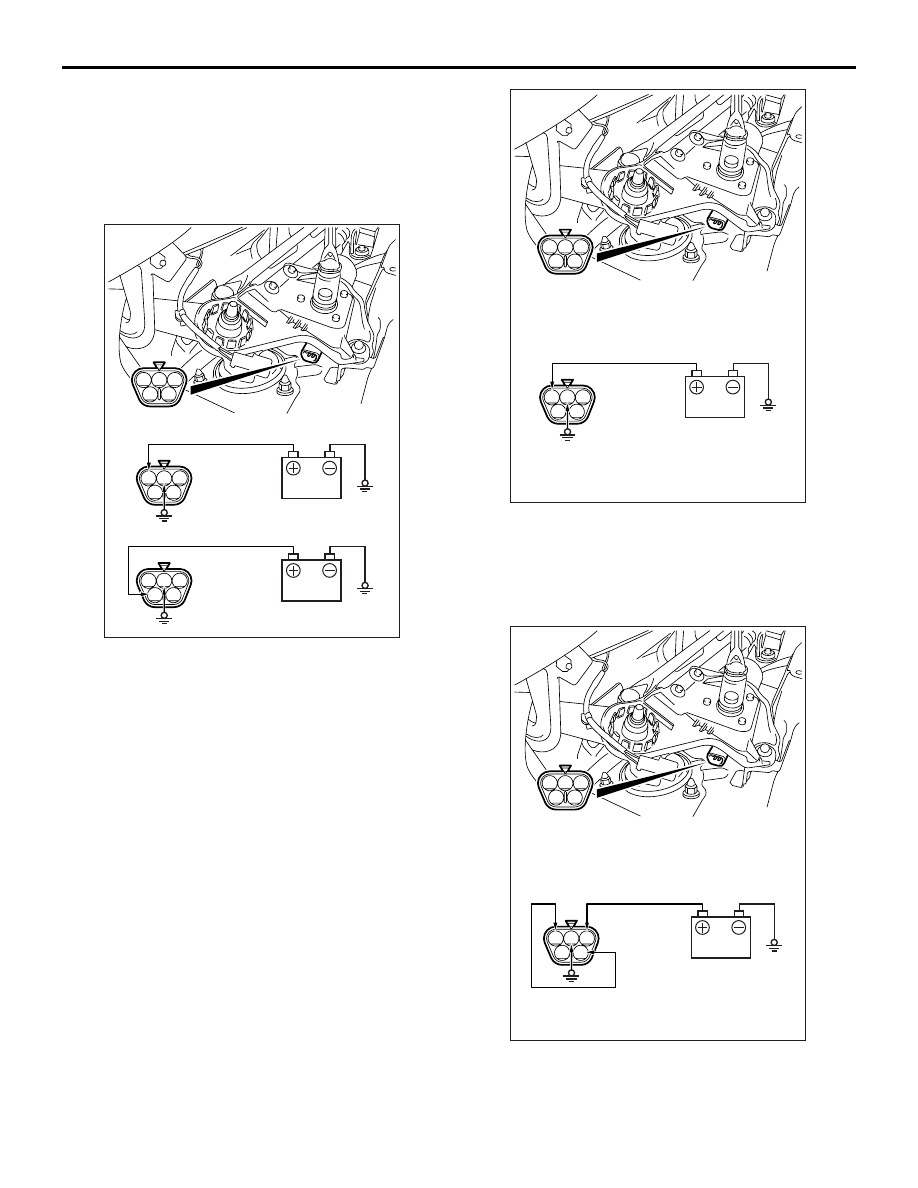

WINDSHIELD WIPER MOTOR CHECK
Operation check of the windshield wiper
motor when it is working at low or high
speed.

1. Connect the positive battery terminal to

windshield wiper motor connector terminal No.1
as shown. Check the low-speed operation of the
motor by earthing windshield wiper motor
connector terminal No.2.

2. Connect the positive battery terminal to

windshield wiper motor connector terminal No.4
as shown. Check the high-speed operation of the
motor by earthing windshield wiper motor
connector terminal No.2.

Check of stop position of the windshield
wiper motor

Prior to this check, ensure that there is no excessive
play at the windshield wiper link.

1. Connect the battery to windshield wiper motor

connector terminal No.1 as shown. Operate the
motor at low speed by earthing the motor.

2. Disconnect the battery cable from motor

connector terminal No.1. The motor should stop.

3. Connect the battery to motor connector terminal

No.3 as shown.

4. Connect motor connector terminal No.5 to No.1

as shown.

AC302785

1 2 3

4

5

1 2 3

4

5

1 2 3

4

5

AC302786

1 2 3

4

5

1 2 3

4

5

AC302787

1 2 3

4

5

1 2 3

4

5

WINDSHIELD WIPER AND WASHER

EXTERIOR

51-26

5. Check to see that the motor runs at low speed

and then stops at the automatic stop position.

Windshield wiper switch check

Check the input signals (mist, intermittent, low speed
and high speed) from the windshield wiper
switch.(Refer to GROUP 54B, Troubleshooting

P.54B-74

 or GROUP 54C, Troubleshooting

P.54C-44

.)

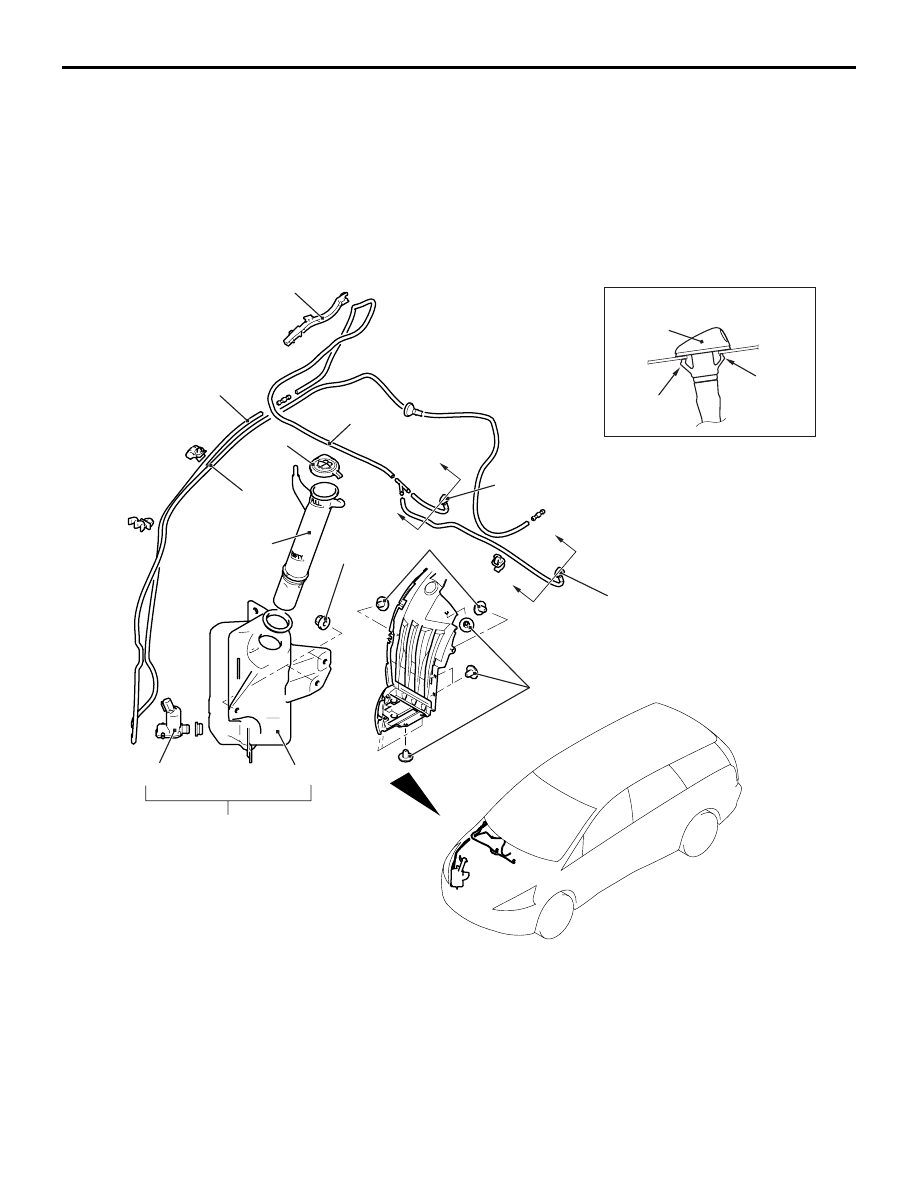

WINDSHIELD WASHER

REMOVAL AND INSTALLATION

M1511008200269

AC312095

AC302221

AC304079

1

1

1

2

3

8

10

9

3

4

6

5

7

10

AB

7.4 ± 1.5 N·m

Claw

Claw

Section A – A

A

A

A

A

Windshield washer nozzle removal
steps

Hood insulator (Refer to GROUP 42,
Hood

P.42-5

.)

1. Windshield washer nozzle
Windshield washer hose removal
steps
1. Windshield washer nozzle
2. Clip

Fender (RH) (Refer to GROUP 42,
Fender

P.42-6

.)

3. Windshield washer hose
4. Rear washer hose

Windshield washer hose removal
steps (Continued)
