DOOR SASH TAPE

EXTERIOR

51-15

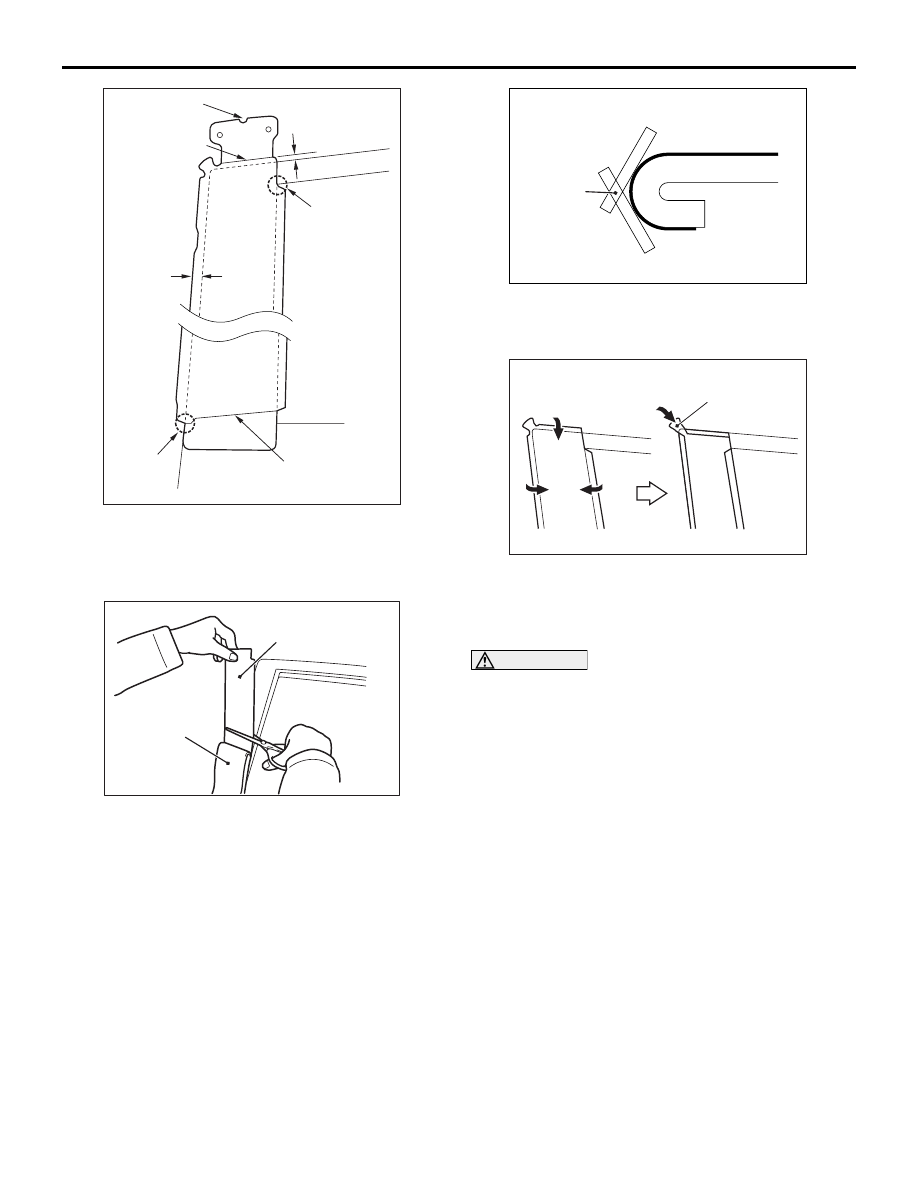

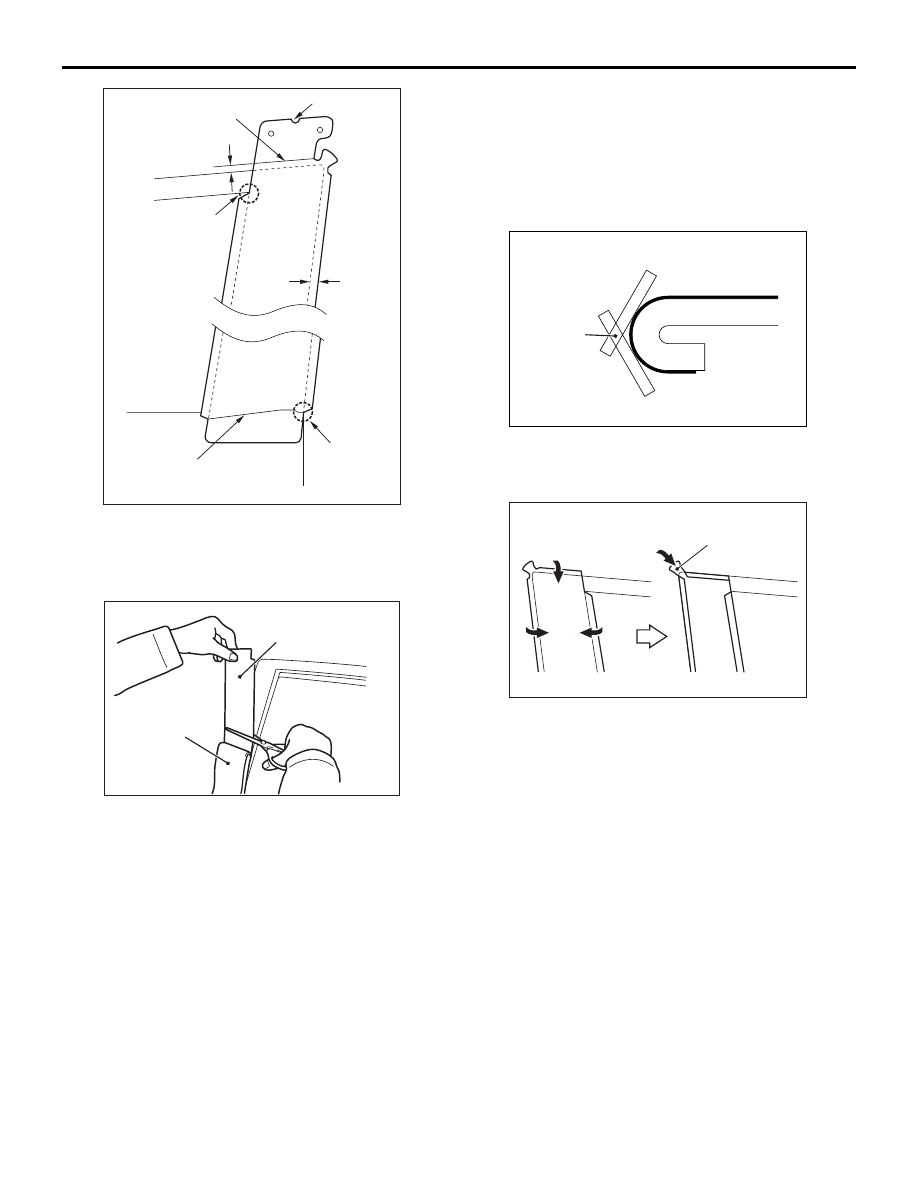

(1) Align the tape with the specified application

position.

(2) Position it with a magnet, and secure with a

clip temporarily.

(3) Cut the released paper in the upper area of

the tape by approximately 100 mm, and
secure the tape temporarily.

(4) While peeling off the remaining released paper

downward, press the tape.

(5) Peel off the application tape upward in the

direction of 180 degrees.

(6) Press the folded area of the tape at 3 positions

(60 degrees, 120 degrees, and holding),
rolling in toward the vehicle inside direction.

(7) Finally roll in the A section with the palms.

AC303466

AB

4.5 mm

3.5 mm

RH only

Locating
point

Locating
point

Backing paper
cut-line

Backing paper
cut-line

AC303110AB

Backing paper

Door sash tape

AC303415

AB

MB990528

120˚

60˚

Hemming part

AC303443AB

A

Tape pasting onto corner

DOOR SASH TAPE

EXTERIOR

51-16

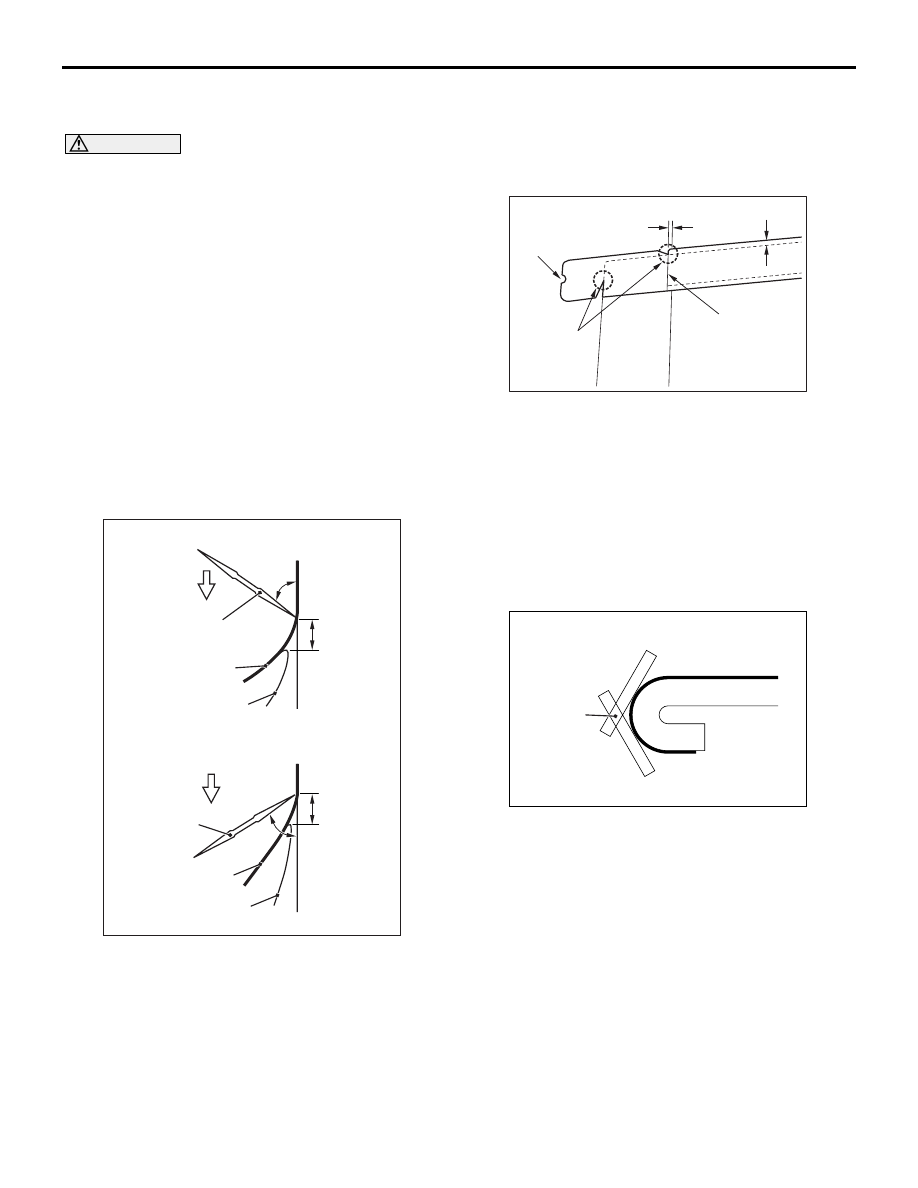

>>B<< REAR DOOR SASH OUTER TAPES
INSTALLATION

CAUTION

• The ambient temperature should be 20 to

30

°C.  Ensure that the working area is clean.

Ideally, the tape application should be done at
ambient temperature of 25

°C.

• If ambient temperature is less than 15°C, heat

the tape and application surface to a
temperature of 20 to 30

°C. If ambient

temperature is 35

°C or higher, cool down

them.

• The adhesive property of the tape is

deteriorated at low temperature, so the tape
may come adrift easily. Meanwhile, it gets
softened at hot temperature.

• When beginning to apply the tape, pay

particular attention. If the end of the tape
cannot be applied to the specified position
with an accuracy of less than 1 mm, it may
cause the poor appearance or adhesion.

•

Use the special tool Stripe tape spatula with a

steady pace and pressure. If you do not apply
the tape with a steady pace or pressure, or
abort the application, a shallow groove
(lateral groove called as "Shock line") may be
present on the tape surface. Meanwhile, if you
apply it too quickly, air bubbles may be
formed under the tape.

1. Wrap a soft cloth (synthetic fiber) around the tip of

the special tool.

2. Use isopropyl alcohol to degrease the tape

application surface.

3. Wipe away dirt from the tape.
4. Apply the rear door sash outer (E) according to

the procedure below.

(1) Align the tape with the specified application

position.

(2) Position it with a magnet, and secure with a

clip temporarily.

(3) Peel off the released paper behind the cut line

in the vehicle rear side, and press the tape.

(4) While peeling off the remaining released paper

from vehicle rear to front, press the tape.

(5) Peel off the application tape in the direction of

180 degree from the applied direction.

(6) Press the folded area of the tape at 3 positions

(60 degrees, 120 degrees, and holding),
rolling in toward the vehicle inside direction.

5. Apply the door sash tape outer (C and D)

according to the procedure below.

AC303428

40 to 50˚

30 to 45˚

10 to 20 mm

10 to 20 mm

AB

MB990528

MB990528

Door sash tape

Door sash tape

Backing paper

Backing paper

<Pushing direction>

<Pulling direction>

3 to 7 cm/sec.

3 to 7 cm/sec.

AC303467

3.5 mm

AB

Overlap: 3mm

RH only

Locating
point

Backing paper
cut-line

AC303415

AB

MB990528

120˚

60˚

Hemming part

DOOR SASH TAPE

EXTERIOR

51-17

(1) Align the tape with the specified application

position.

(2) Position it with a magnet, and secure with a

clip temporarily.

(3) Cut the released paper in the upper area of

the tape by approximately 100 mm, and
secure the tape temporarily.

(4) While peeling off the remaining released paper

downward, press the tape.

(5) Peel off the application tape upward in the

direction of 180 degrees.

(6) Press the folded area of the tape at 3 positions

(60 degrees, 120 degrees, and holding),
rolling in toward the vehicle inside direction.

(7) Finally roll in the A section with the palms.

>>C<< FRONT DOOR SASH INNER
TAPES INSTALLATION

CAUTION

• The ambient temperature should be 20 to

30

°C.  Ensure that the working area is clean.

• If ambient temperature is less than 15°C, heat

the tape and application surface to a
temperature of 20 to 30

°C. If ambient

temperature is 35

°C or higher, cool down

them.

• The adhesive property of the tape is

deteriorated at low temperature, so the tape
may come adrift easily. Meanwhile, it gets
softened at hot temperature.

• Ideally, the tape application should be done at

ambient temperature of 25

°C.

1. Use isopropyl alcohol to degrease the tape

application surface.

2. Wipe away dirt from the tape.
3. Apply the door sash tape inner (G) according to

the procedure below.

AC303468

AB

4.5 mm

3.5 mm

RH only

Locating
point

Locating
point

Backing paper
cut-line

Backing paper
cut-line

AC303110AB

Backing paper

Door sash tape

AC303415

AB

MB990528

120˚

60˚

Hemming part

AC303443AB

A

Tape pasting onto corner

DOOR SASH TAPE

EXTERIOR

51-18

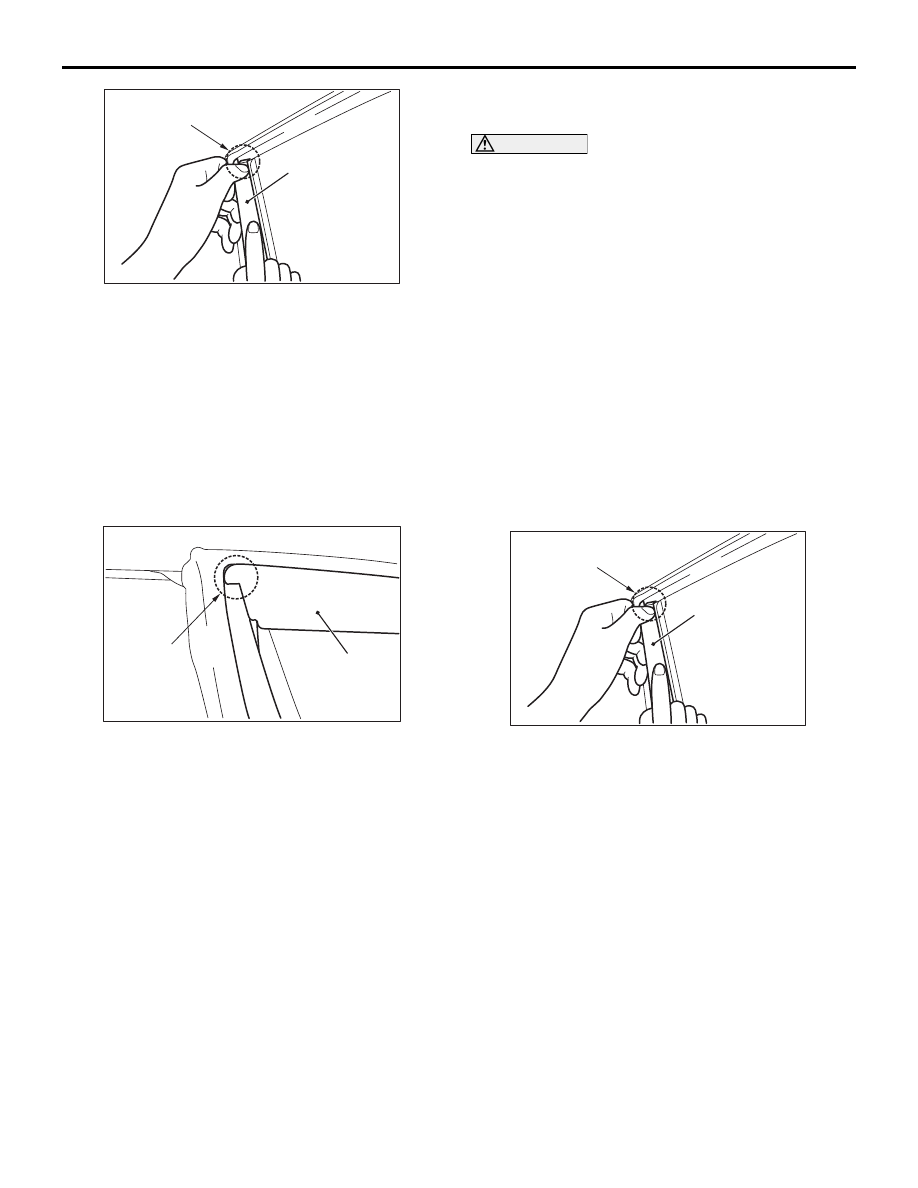

(1) Fold the upper area of the tape by 1 mm, and

press it against the door frame.

(2) Peel off the upper area of the released paper,

and press the tape.

(3) While peeling off the remaining released paper

downward, press the tape along the frame line
with the fingers.

(4) Roll in the tape into the inside not to get

wrinkled.

4. Apply the door sash tape inner (F) according to

the procedure below.

(1) Press the tape against the door frame, and

overlay it on the vertical tape by 2 mm.

(2) Peel off the upper area of the released paper,

and press the tape.

(3) While peeling off the remaining released paper

downward, press the tape along the frame line
with the fingers.

(4) Roll in the tape into the inside not to get

wrinkled.

>>D<< REAR DOOR SASH INNER TAPES
INSTALLATION

CAUTION

• The ambient temperature should be 20 to

30

°C.  Ensure that the working area is clean.

• If ambient temperature is less than 15°C, heat

the tape and application surface to a
temperature of 20 to 30

°C. If ambient

temperature is 35

°C or higher, cool down

them.

• The adhesive property of the tape is

deteriorated at low temperature, so the tape
may come adrift easily. Meanwhile, it gets
softened at hot temperature.

• Ideally, the tape application should be done at

ambient temperature of 25

°C.

1. Use isopropyl alcohol to degrease the tape

application surface.

2. Wipe away dirt from the tape.
3. Apply the door sash tapes (I and J) according to

the procedure below.

(1) Fold the upper area of the tape by 1 mm, and

press it against the door frame. Overlay it on
the vertical tape by 2 mm.

(2) Peel off the upper area of the released paper,

and press the tape.

(3) While peeling off the remaining released paper

downward, press the tape along the frame line
with the fingers.

(4) Roll in the tape into the inside not to get

wrinkled.

4. Apply the door sash tape (H) according to the

procedure below.

AC303114AB

Locating
point

Door sash tape

AC303505AB

Door sash tape

Overlap:
2 mm

AC303114AB

Locating
point

Door sash tape
