TAILGATE SPOILER

EXTERIOR

51-19

(1) Set the tape along the door frame, and overlay

it on the vertical tape by 2 mm.

(2) Peel off the upper area of the released paper,

and press the tape.

(3) While peeling off the remaining released paper

backward, press the tape along the frame line
with the fingers.

(4) Overlay the end of the tape on the vertical tape

by 2 mm.

(5) Roll in the tape into the inside not to get

wrinkled.

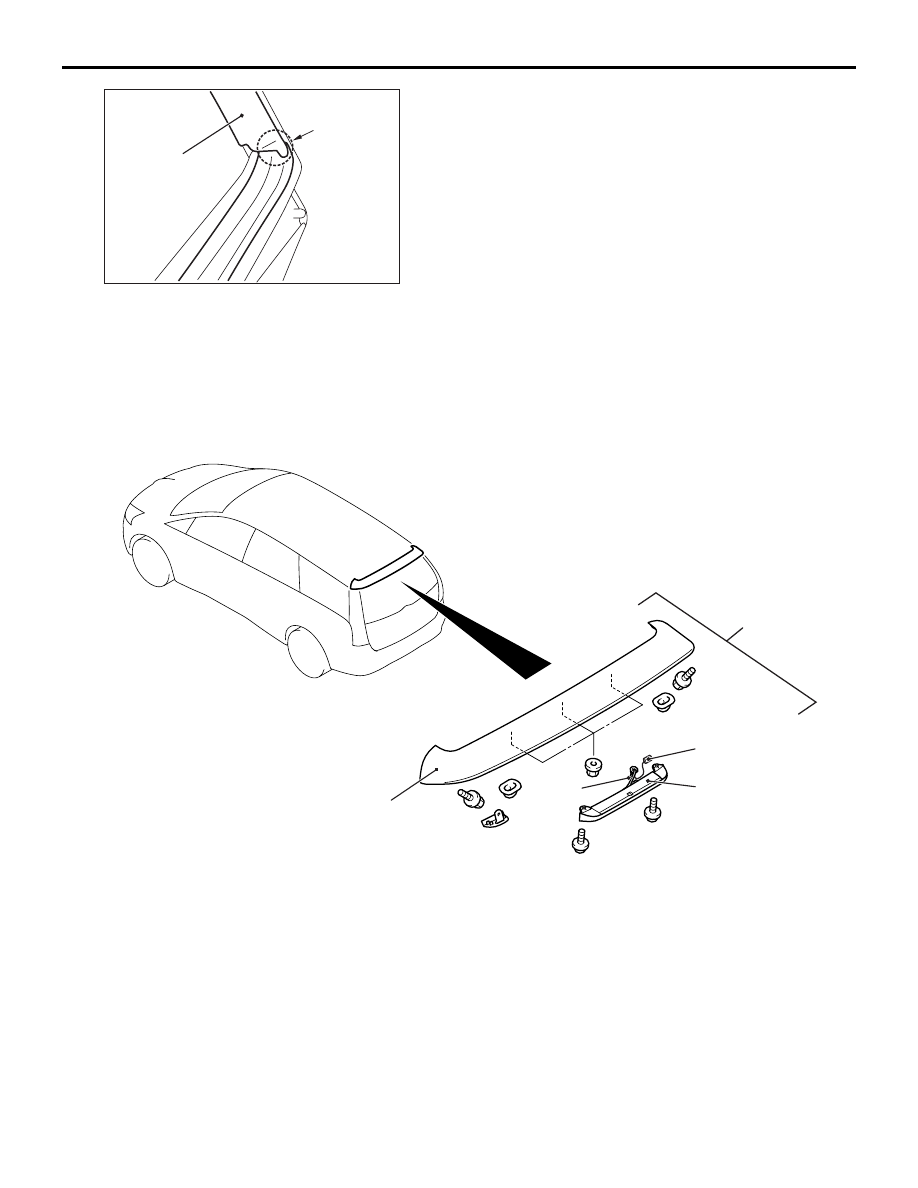

TAILGATE SPOILER

REMOVAL AND INSTALLATION

M1511019900091

AC303115AB

Door sash tape

Overlap:
2 mm

AC312064

3

4

1

2

5

AB

Removal steps
•

Tailgate upper trim (Refer to GROUP
52A, Tailgate trim

P.52A-16

.)

1. High-mounted stop lamp connector

connection

2. Rear washer hose connection
3. Tailgate spoiler assembly
4. High-mounted stop lamp assembly
5. Tailgate spoiler

Removal steps (Continued)

ROOF RAIL

EXTERIOR

51-20

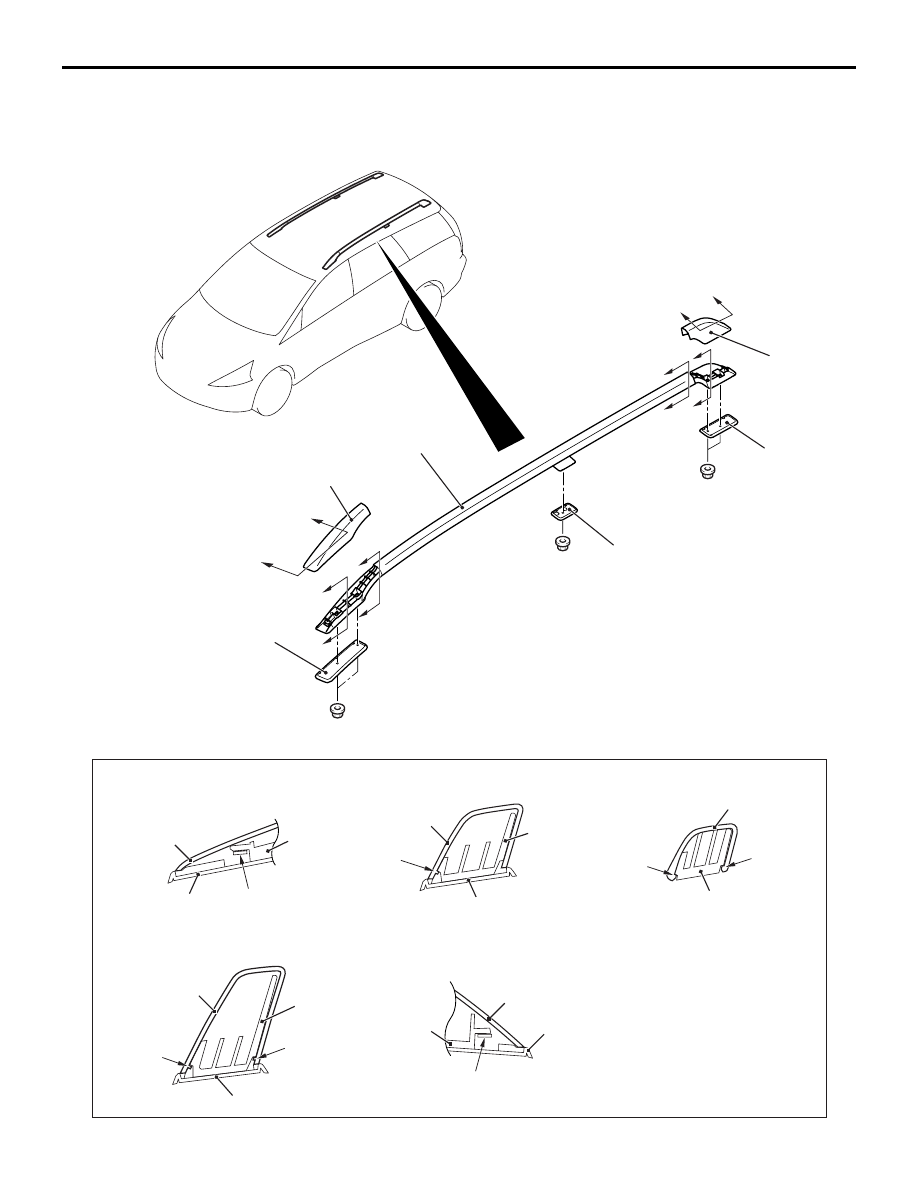

ROOF RAIL

REMOVAL AND INSTALLATION

M1511016600217

AC313502

1

6

5

2

3

4

AB

B

B

A

A

C

C

C

C

D

D

E

E

AC302137

5

6

1

1

6

4

5

1

1

2

2

1

5, 6

4

AB

Section A – A

Section D – D

Section E – E

Section B – B

Section C – C

Claw

Claw

Claw

Claw

Claw

Claw

Claw

WINDSHIELD WIPER AND WASHER

EXTERIOR

51-21

WINDSHIELD WIPER AND WASHER

SERVICE SPECIFICATION

M1511000300433

TROUBLESHOOTING

M1511020000177

The windshield wiper and washer are controlled by
the Smart Wiring System (SWS). For
troubleshooting, refer to GROUP 54B,
Troubleshooting

P.54B-74

 or GROUP 54C,

Troubleshooting

P.54C-44

.

NOTE: Even when the ETACS-ECU has failed, the
windshield wiper can work at low speed as fail-safe
mode. (Normally, the windshield wiper operates
when the ignition switch is at the "ACC" position. But,
if it enters the fail-safe mode, the wiper can operate
only when the ignition switch is at the "ON" position.)

ON-VEHICLE SERVICE

WINDSHIELD INTERMITTENT WIPER
INSPECTION

M1511023600015

1. Check the wipers operate in the intermittent

action when the windshield intermittent wiper
switch is at the intermittent operation.

2. Check that the intermittent wiper interval is

changed as the intermittent wiper volume is
operated.

3. Turn the windshield intermittent wiper switch to

the intermittent operation position. Use the
MUT-III to set a simulated vehicle speed with the
wiper volume held. The intermittent wiper interval
should be changed as the simulated vehicle
speed is changed.

4. If either of above is defective, carry out the

troubleshooting. (Refer to GROUP 54B,
Troubleshooting

P.54B-74

 or GROUP 54C,

Troubleshooting

P.54C-44

.)

WASHER MOTOR INSPECTION
(WINDSHIELD WASHER)

M1511019100675

1. Check the washer fluid level, and refill if

necessary.

2. Remove the splash shield.

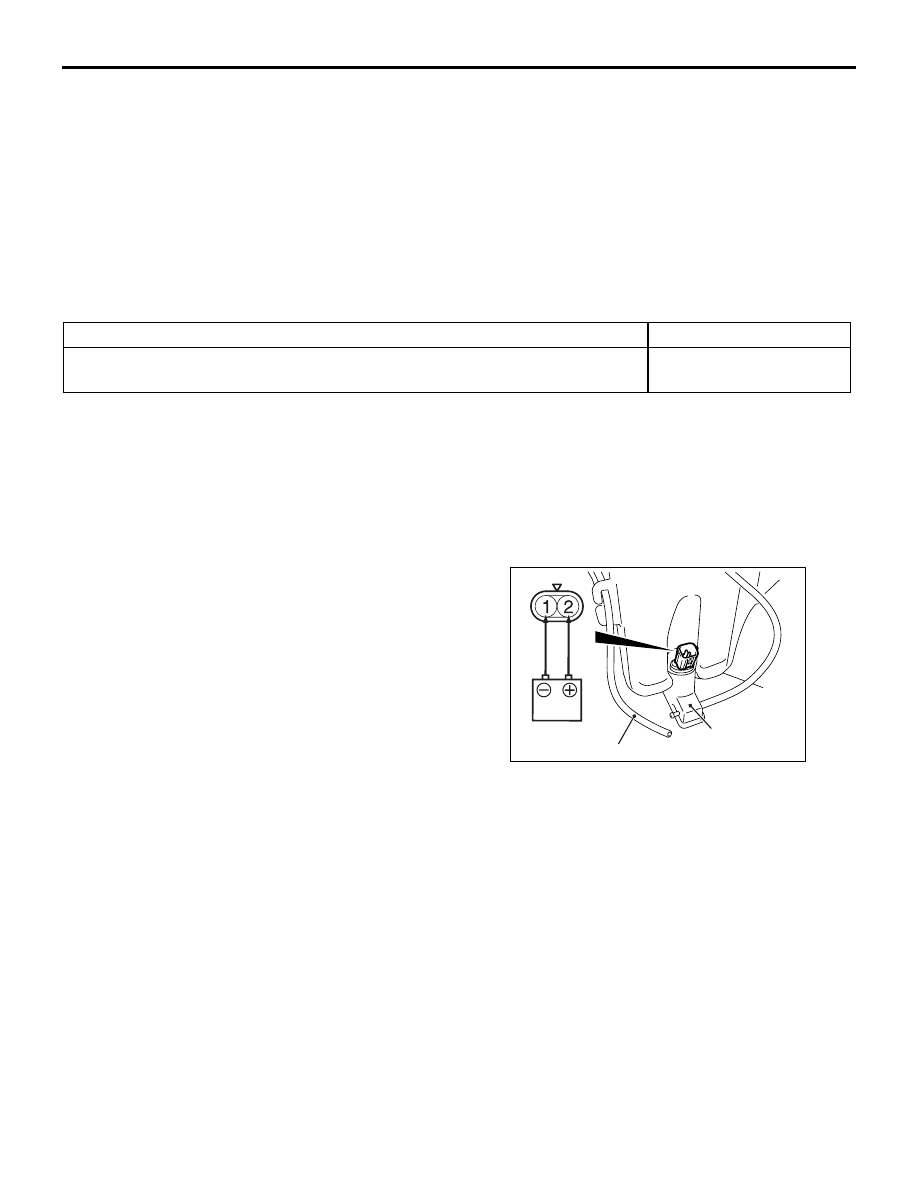

3. Disconnect the washer motor connector.
4. Disconnect the front washer hose as shown.
5. Connect the battery to the washer motor

connector as shown. Check that the washer motor
delivers washer strongly.

Removal steps
•

Headlining assembly (Refer to
GROUP 52A, Headlining

P.52A-17

.)

1. Roof rail
2. Front packing

3. Centre packing
4. Rear packing
5. Front roof rail cover
6. Rear roof rail cover

Removal steps (Continued)

Item

Standard value

Stop position of the windshield wiper arm/blade assembly (Distance between
the edge of the wiper blade and the end of the deck garnish) mm

Driver’s side: 123

± 5

Passenger’s side: 25

± 5

AC303908

AB

Washer motor

Front washer hose

WINDSHIELD WIPER AND WASHER

EXTERIOR

51-22

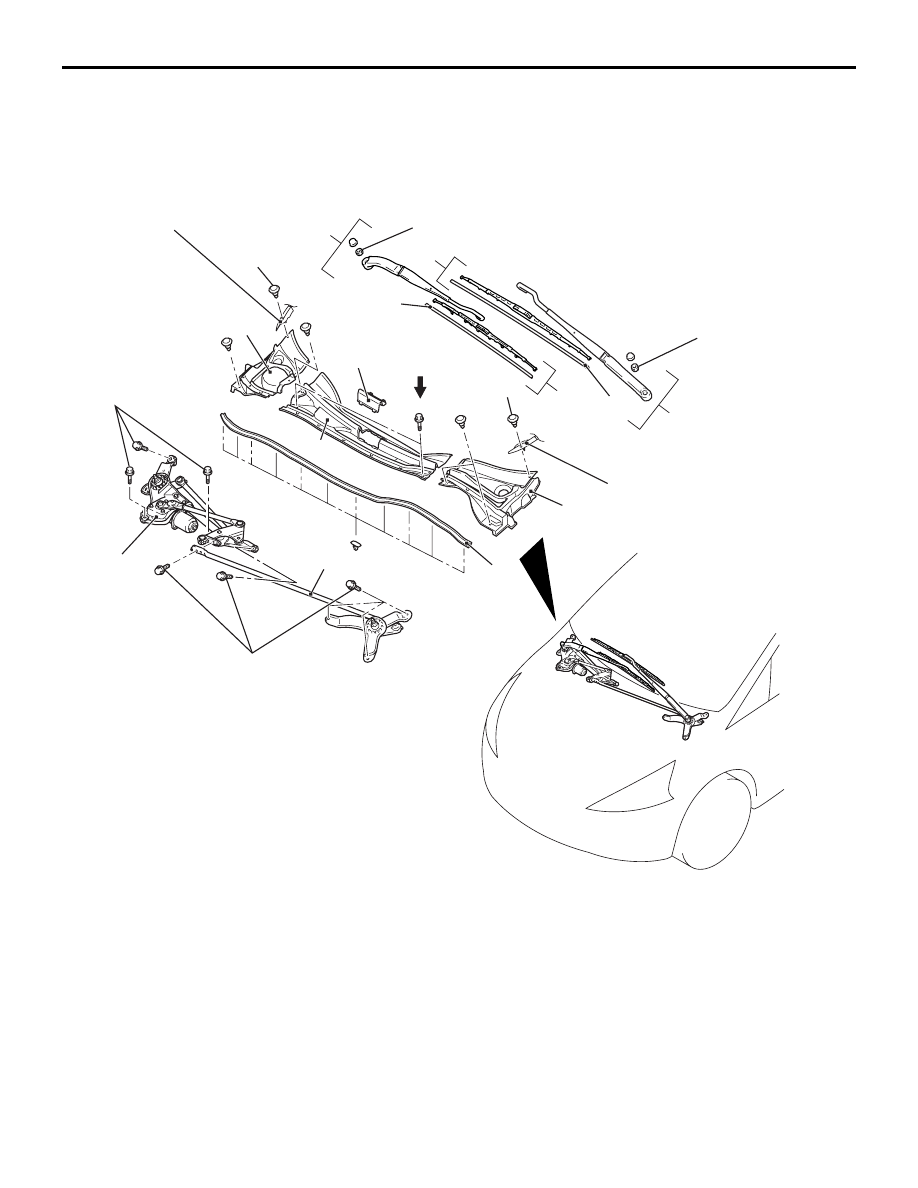

WINDSHIELD WIPER

REMOVAL AND INSTALLATION

M1511007900157

AC310899

3

1

7

9

AB

7.4 ± 1.4 N·m

30 ± 3 N·m

30 ± 3 N·m

4

4

2

3

2

7

8

5

6

7.4 ± 1.4 N·m

10

11

Roof drip moulding

Roof drip moulding

View A
