Mitsubishi Grandis. Manual - part 675





DOOR

BODY

42-28

NOTE: The customisation function allows you to

change the power window timer setting from "all
of the door windows can be operated by using
the power window main switch (default setting)"
to "none of the door windows excluding the
driver's door can be operated by using the power
window main switch". Prior to that check, confirm
which setting is activated.

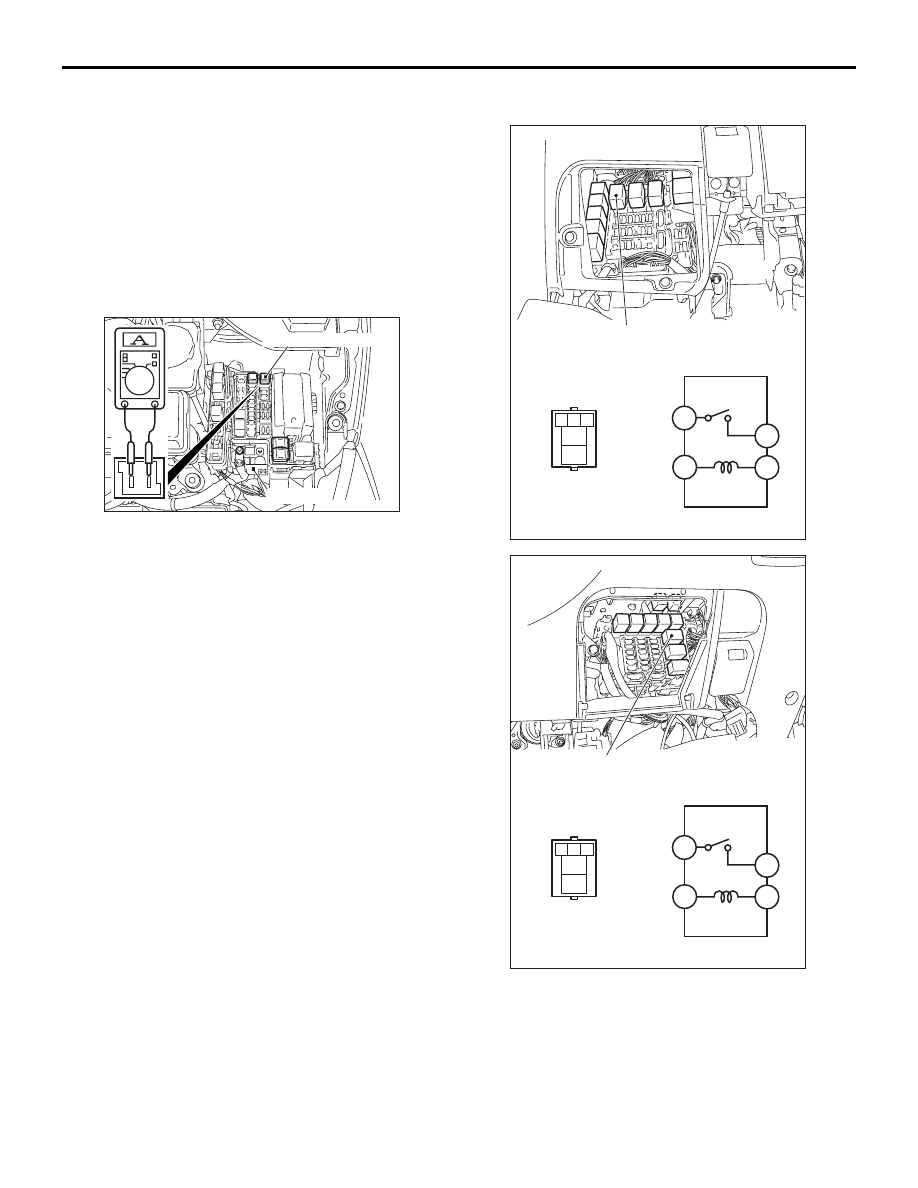

POWER WINDOW OPERATING CURRENT
CHECK

M1429001100258

1. Remove the power window fuse and connect an

ammeter as shown in the illustration.

2. When the power window switch is pressed to the

“UP” position, a large amount of current flows at
the time the window starts to close and when it is
fully closed, so measure the operation current in
the interval between these two points.

Standard value: 5

± 1A (Power supply

voltage 14.5

± 0.5V, 25°C)

NOTE: If the power supply voltage does not meet
the standard value, check and repair the
alternator and the battery. Then carry out this
check again.

3. If the operation current is outside the standard

value, refer to

P.42-27

.

POWER WINDOW RELAY CHECK

M1429001800246

AC310697

AC311244AB

Relay box

Power window fuse

AC309959

AC310863

AC310890AB

<LH drive vehicles>

Power window relay

1

3

4

5

1 2

4

5

3

AC309957

AC310865

AC310891AB

<RH drive vehicles>

Power window relay

1

3

4

5

1 2

4

5

3

DOOR

BODY

42-29

CIRCUIT BREAKER (INCORPORATED IN
THE POWER WINDOW MOTOR)
INSPECTION

M1429001700120

1. Pull the power window switch to the UP position

to fully close the door window glass, and keep
pulling the switch for 10 additional seconds.

2. Release the power window switch from the UP

position and immediately press it to the DOWN
position. The condition of the circuit breaker is
good if the door window glass starts to move
downwards within 60 seconds.

CENTRAL DOOR LOCKING SYSTEM
INSPECTION

M1427001100229

• Check that the central door locking functions

when the key cylinder of the driver's door, the
front passenger door or the tailgate (vehicles
without keyless entry system) or the driver's door
inside lock knob is operated. If it does not
operate, perform troubleshooting. Refer to
GROUP 54B, Troubleshooting

P.54B-27

, or

GROUP 54C, Troubleshooting

P.54C-8

.

NOTE: When the driver's door inside lock knob is

operated with the driver's door opened, the
driver's door is not locked.

• Check whether the driver's door is opened when

the driver's door inside handle is pulled with all
the doors locked. If it does not operate, replace
the driver's door latch assembly. Refer to

P.42-36

.

CHECK OF KEY LOCK PREVENTION
FUNCTION

M1427003300047

Check that the driver's door is not locked when the
driver's door inside lock knob is operated with the
driver's door opened. If it is locked, replace the door
latch. Refer to

P.42-36

.

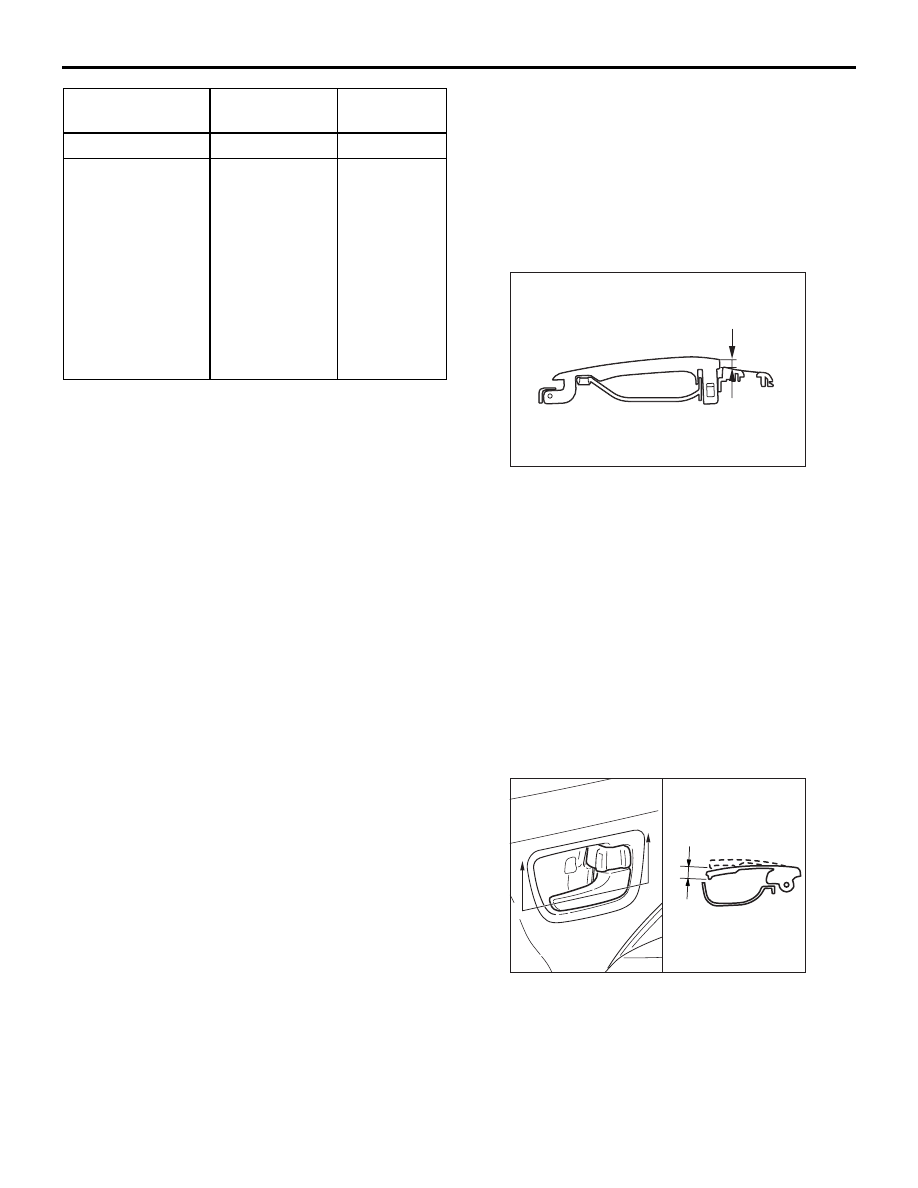

DOOR OUTSIDE HANDLE PLAY CHECK

M1423001600307

1. Check that the door outside handle play is within

the standard value range.

Standard value (A): 0

5.1 mm (target value:

2.2 mm)

2. If the door outside handle play is not within the

standard value range, check the door outside
handle or the door latch assembly. Replace if
necessary.

DOOR INSIDE HANDLE PLAY
ADJUSTMENT

M1423001500322

DOOR INSIDE HANDLE KNOB PLAY
CHECK

1. Check that the door inside handle knob play

satisfies the standard value.

Standard value (B): 5.2

19.6 mm (target

value: 10.9 mm)

2. Check the door inside handle and door latch

assembly, and replace them if they are out of the
standard value.  Refer to

P.42-36

.

BATTERY
VOLTAGE

TESTER
CONNECTION

SPECIFIED
CONDITION

Not applied

− 5

Open circuit

• Connect

terminal No.1
and the positive
battery
terminal.

• Connect

terminal No.3
and the
negative
battery
terminal.

− 5

Less than 2
ohms

AC006113AB

A

AC303375AB

A

B

A

Section A – A

DOOR

BODY

42-30

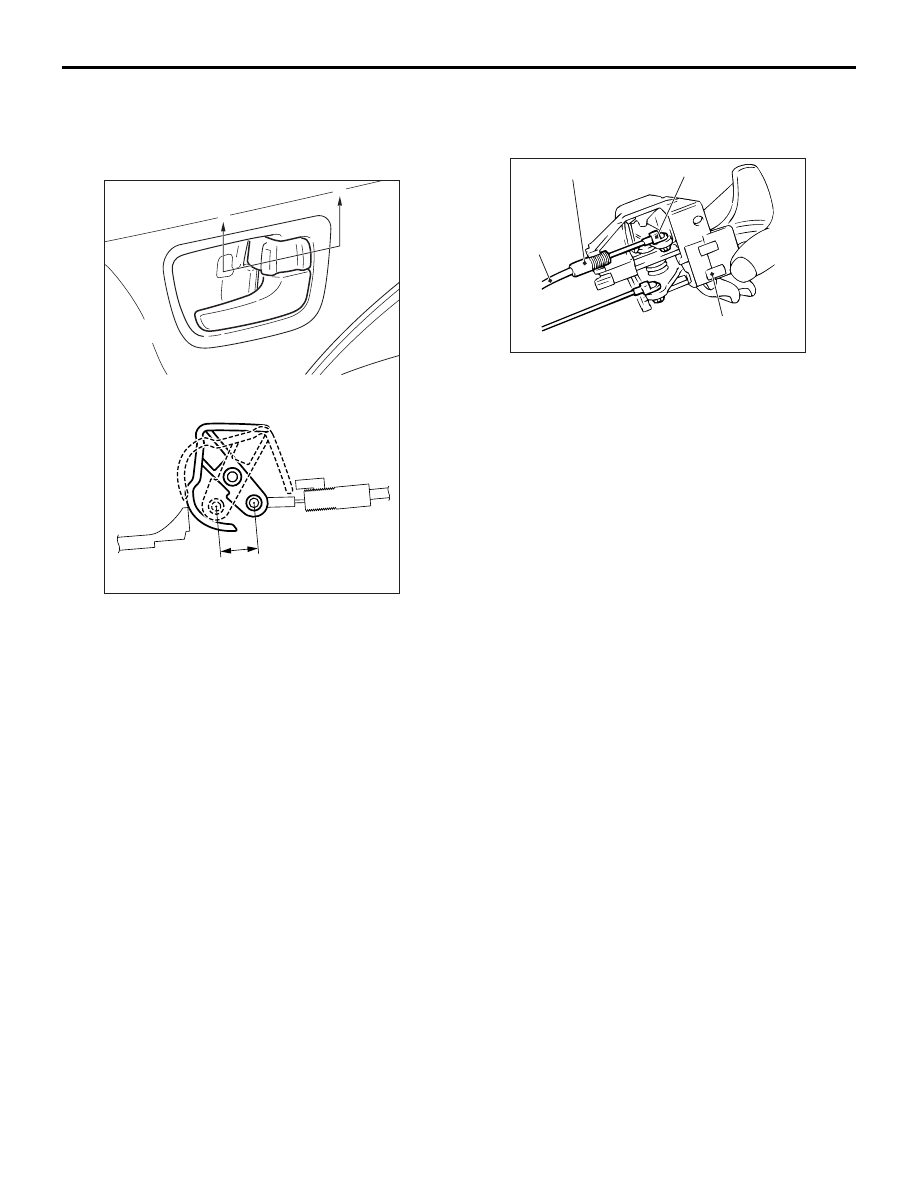

DOOR INSIDE HANDLE LOCK KNOB
STROKE CHECK

1. Removal tte door trim assembly. Refer to GROUP

52A, Door Trim

P.52A-12

.

2. Check that the stroke of the door inside handle

lock knob satisfies the standard value.

Standard value (B): 15 mm

3. If it is outside the standard value, adjust the stroke

of the inside handle lock knob by using the outer
cable end, which connects the inside handle lock
knob to the inside lock cable.

AC303376

AB

B

A

A

Section A – A

AC100404 AD

Clip

Outer cable end

Inside lock

cable

Door inside handle

DOOR

BODY

42-31

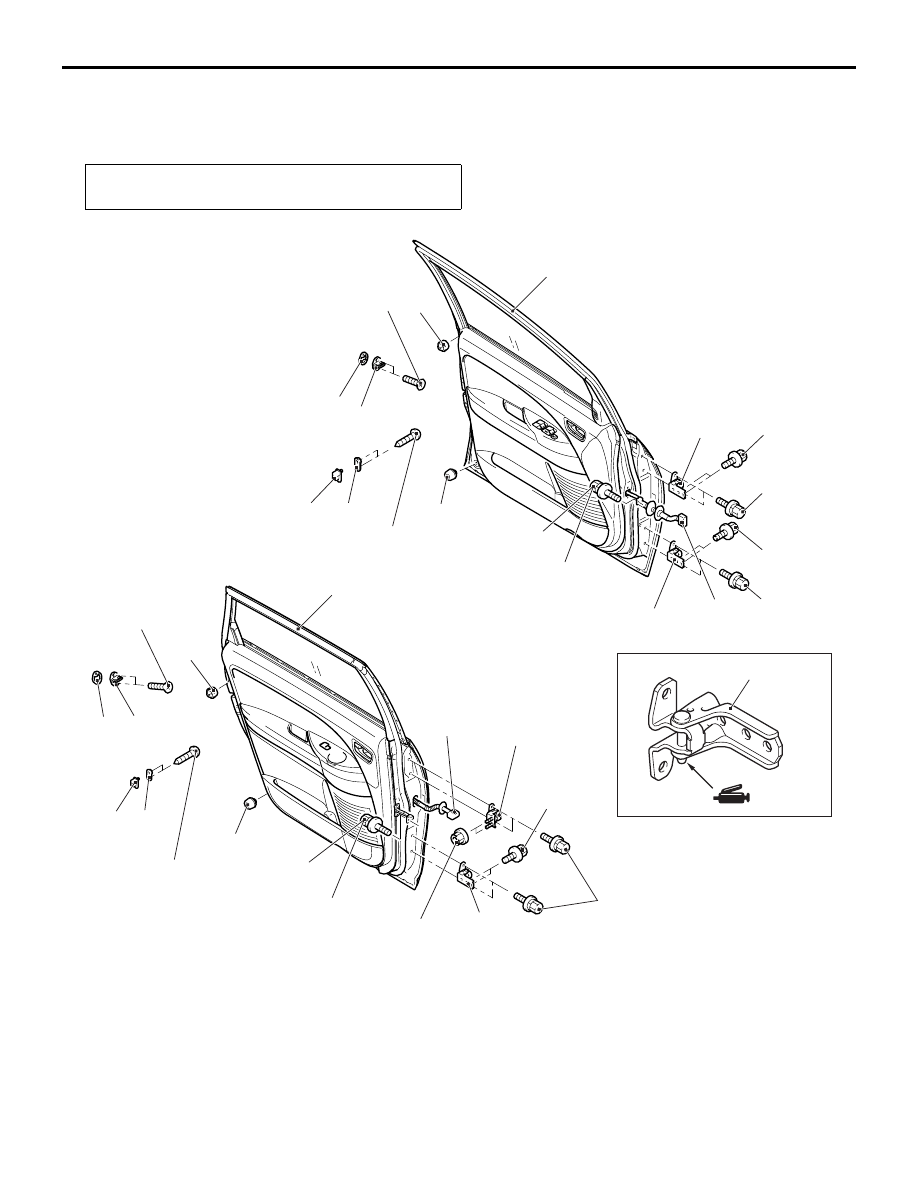

DOOR ASSEMBLY

REMOVAL AND INSTALLATION

M1423002200346

Post-installation Operation
• Door Fit Adjustment (Refer to

P.42-24

).

AC302988

AC310898

AC302987

AC205357

1

1

2

2

3

3

4

4

5

6

7

8

9

10

AB

<Front door>

<Rear door>

1

1

27 ± 5 N·m

27 ± 5 N·m

21 ± 4 N·m

21 ± 4 N·m

27 ± 5 N·m

27 ± 5 N·m

21 ± 4 N·m

11 ± 2 N·m

9

10

11 ± 2 N·m

3.9 ± 0.9 N·m

24 ± 4 N·m

24 ± 4 N·m

11

12

3.9 ± 0.9 N·m

11

12

5, 6, 7, 8

Damper removal

1.

Damper
Door assembly removal steps

Front scuff plate and cowl side trim
<Front door> (Refer to GROUP
52A, Interior Trim

P.52A-10

).

2.

Harness connector

3.

Door check connecting bolt

4.

Door assembly

Front door hinge removal steps

Fender rear protector (Refer to

P.42-6

).

5.

Front door upper hinge

6.

Front door lower hinge
Rear door hinge removal steps

Centre pillar trim (Refer to GROUP
52A, Interior Trim

P.52A-10

).

7.

Rear door upper hinge

8.

Rear door lower hinge
