The lubrication method is a fully force-fed, full-flow
filtration type. The oil pump is a gear type which is
driven by the crankshaft via the timing belt.

ENGINE OILS
Health Warning

Prolonged and repeated contact with mineral oil will
result in the removal of natural fats from the skin,
leading to dryness, irritation and dermatitis. In
addition, used engine oil contains potentially harmful
contaminants which may cause skin cancer.
Adequate means of skin protection and washing
facilities must be provided.

Recommended Precautions

The most effective precaution is to adapt working
practices which prevent, as far as practicable, the
risk of skin contact with mineral oils, for example by
using enclosed systems for handling used engine oil
and by degreasing components, where practicable,
before handling them. Other precautions:

• Avoid prolonged and repeated contact with oils,

particularly used engine oils.

• Wear protective clothing, including impervious

gloves where practicable.

• Avoid contaminating clothes, particularly

underpants, with oil.

• Do not put oily rags in pockets, the use of overalls

without pockets will avoid this.

• Do not wear heavily soiled clothing and

oil-impregnated foot-wear. Overalls must be
cleaned regularly and kept separate from
personal clothing.

• Where there is a risk of eye contact, eye

protection should be worn, for example, chemical
goggles or face shields; in addition an eye wash
facility should be provided.

• Obtain First Aid treatment immediately for open

cuts and wounds.

• Wash regularly with soap and water to ensure all

oil is removed, especially before meals (skin
cleansers and nail brushes will help). After
cleaning, the application of preparations
containing lanolin to replace the natural skin oils
is advised.

• Do not use petrol, kerosine, diesel fuel, gas oil,

thinners or solvents for cleaning skin.

• Use barrier creams, applying them before each

work period, to help the removal of oil from the
skin after work.

• If skin disorders develop, obtain medical advice

without delay.

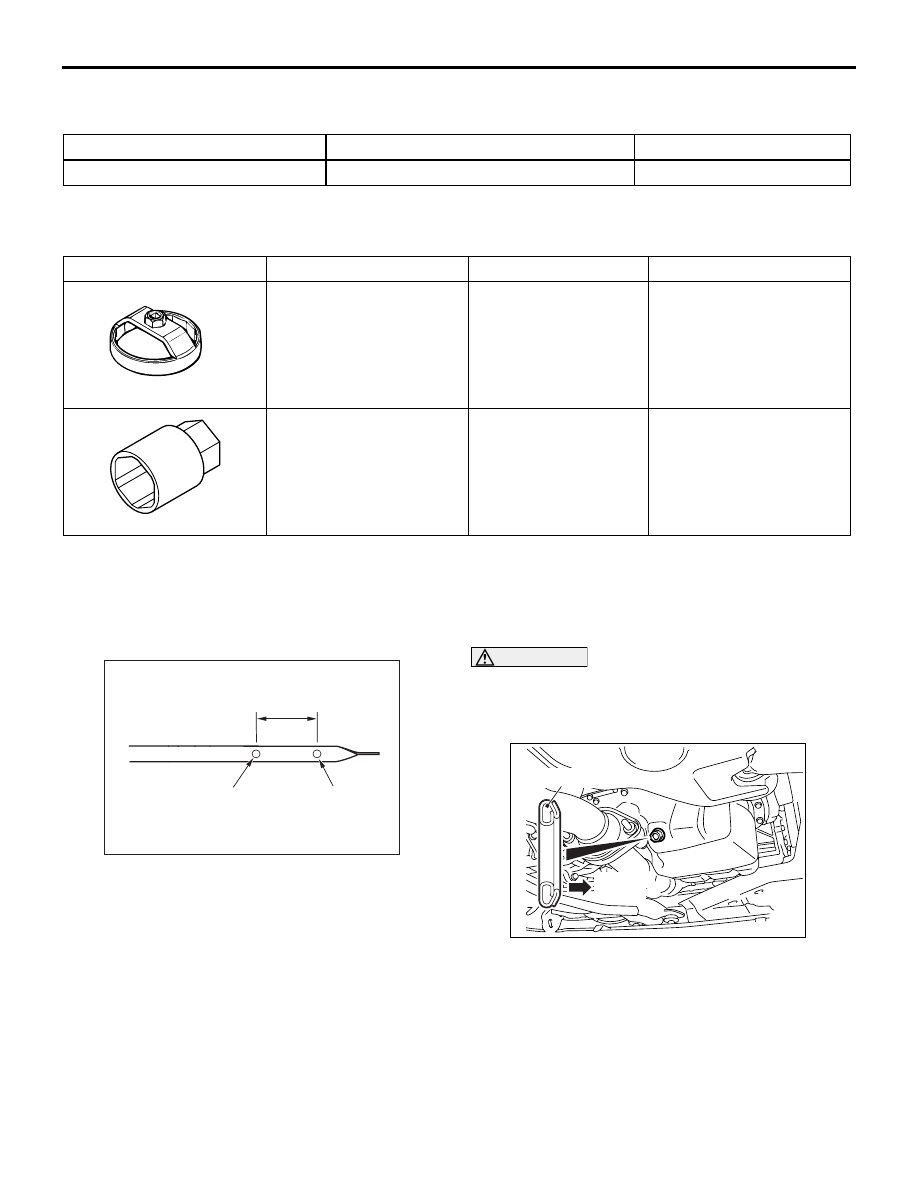

SERVICE SPECIFICATION

M1121000300254

LUBRICANT

M1121000400563

Item

Standard value

Oil pressure kPa

at idle

29 or more

at 3,500 r/min

294

− 686

Item

Specification

Engine oil ACEA classification

A1, A2 or A3

Engine oil API classification

SG or higher

Engine oil quantity L

Oil filter

0.3

Total

4.3

SEALANT

ENGINE LUBRICATION

12-3

SEALANT

M1121000500258

SPECIAL TOOLS

M1121000600330

ON-VEHICLE SERVICE

ENGINE OIL CHECK

M1121000900449

1. Pull out the engine oil level gauge slowly and

check that the oil level is in the illustrated range.

2. Check that the oil is not excessively dirty, that

there is no coolant or petrol mixed in, and that it
has sufficient viscosity.

ENGINE OIL REPLACEMENT

M1121001000535

1. Start the engine and allow it to warm up until the

temperature of the coolant reaches 80

°C to 90

°C.

2. Remove the engine oil filler cap.

CAUTION

Use care as engine oil could be hot.
3. Remove the engine oil pan drain plug to drain

engine oil.

4. Install a new engine oil pan drain plug gasket so

that it faces in the direction shown in the
illustration, and then tighten the engine oil pan
drain plug to the specified torque.

Tightening torque: 39

± 5 N⋅m

NOTE: Install the engine oil pan drain plug gasket
so it faces in the direction shown in the illustration.

Item

Specified sealant

Remark

Oil pressure switch

3M ATD Part No. 8660 or equivalent

Semi-drying sealant

Tool

Number

Name

Use

MB991610

Oil filter wrench

Removal and installation
of engine oil filter (When
using the oil filter of
MD356000)

MD998054

Oil pressure switch
wrench

Removal and installation
of oil pressure switch

MB991610

AC205268

Maximum

Minimum

Good

AC302089

Engine oil
pan side

Drain plug gasket

ON-VEHICLE SERVICE

ENGINE LUBRICATION

12-4

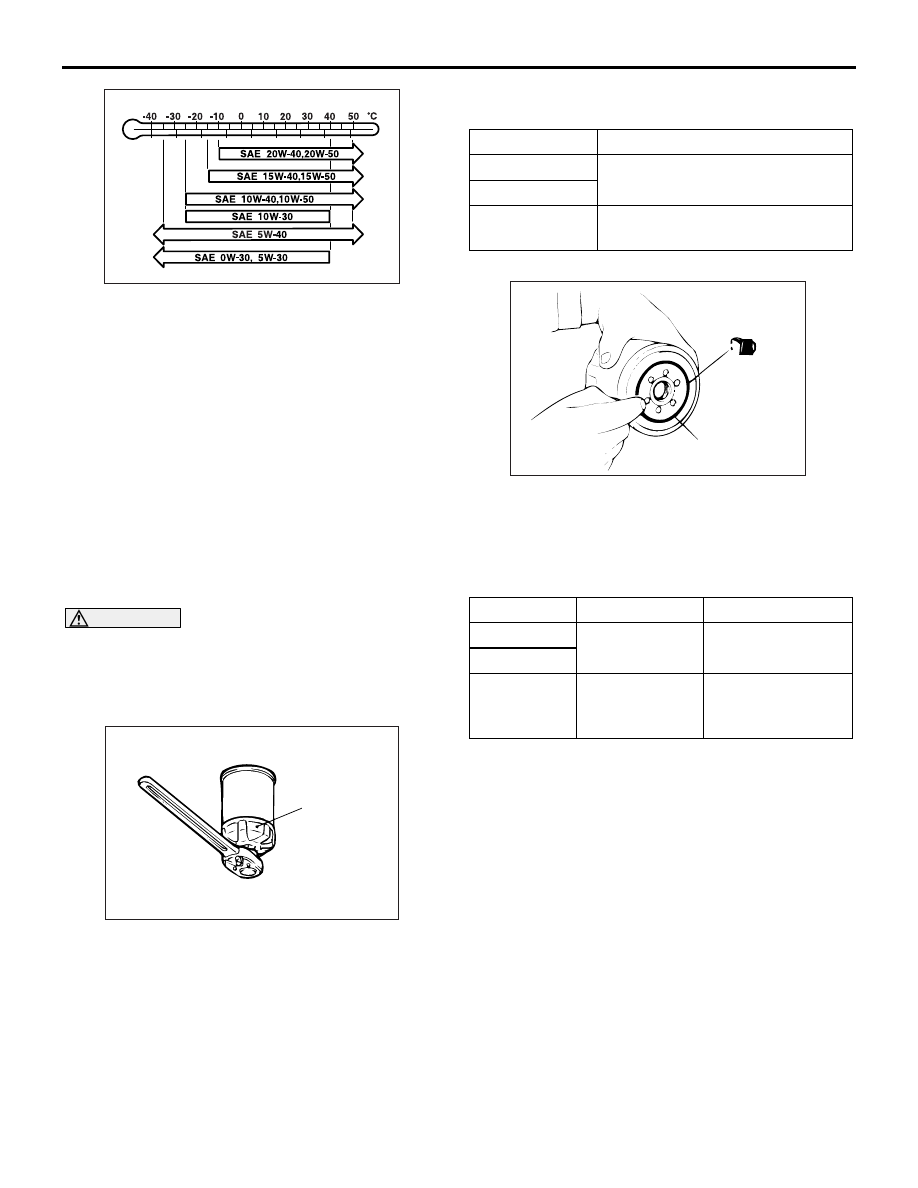

5. Refill with specified quantity of engine oil.

Specified Engine Oil (ACEA and API

classification): ACEA A1, A2 or A3/API SG or
higher

Total quantity (Includes volume inside engine

oil filter): 4.3 L

6. Install the engine oil filler cap.
7. Check engine oil level.

ENGINE OIL FILTER REPLACEMENT

M1121001100480

1. Start the engine and allow it to warm up until the

temperature of the coolant reaches 80

°C to 90

°C.

2. Remove the engine oil filler cap.

CAUTION

Use care as engine oil could be hot.
3. Remove the engine oil pan drain plug to drain

engine oil.

4. Remove the under cover.

5. Use the respective tool in the following table to

remove the engine oil filter.

6. Clean the filter bracket side mounting surface.

7. Apply a small amount of engine oil to the O-ring of

the new engine oil filter.

8. Once the O-ring of the engine oil filter is touching

the flange, use the respective tool in the following
table to tighten to the specified torque.

9. Install the engine oil pan drain plug and refill the

engine oil (Refer to

P.12-3

10.Race the engine 2

−3 times, and check to be sure

that no engine oil leaks from installation section of
the engine oil filter.

OIL PRESSURE CHECK

M1121002300476

1. Check engine oil quantity.

AC311073 AB

AC000093

MB991610 or
commercially-
available tool

Number

Special tool

MD136466

Commercially- available tool

MD322508
MD356000

Oil filter wrench (MB991610) or
equivalent

Number

Special tool

Tightening torque

MD136466

Commercially-
available tool

Approximately 3/4
turn (17

± 3 N⋅m)

MD322508
MD356000

Oil filter wrench
(MB991610) or
equivalent

Approximately 3/4
turn (14

± 2 N⋅m)

AC103250AD

O-ring
