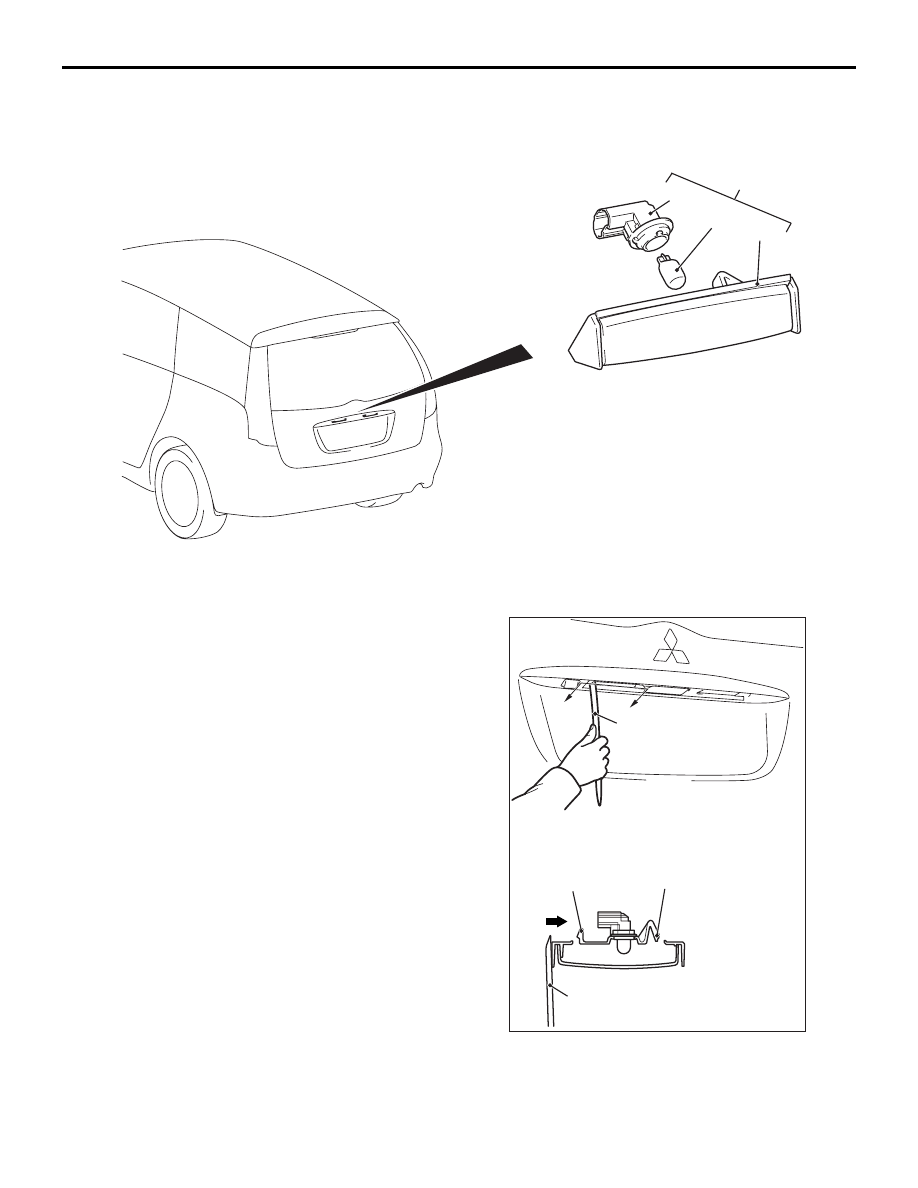

LICENCE PLATE LAMP

CHASSIS ELECTRICAL

54A-99

LICENCE PLATE LAMP

REMOVAL AND INSTALLATION

M1542004200177

REMOVAL SERVICE POINT
<<A>> LICENCE PLATE LAMP REMOVAL

Use special tool MB990784 (ornament remover) to
press the licence plate assembly, shorten the clip B
and disengage the claw A. Then remove the licence
plate lamp assembly.

AC301889AB

1

2

3

4

Removal steps

<<A>>

1.

Licence plate lamp assembly

2.

Socket

3.

Bulb

4.

Licence plate lamp body

AC303119 AB

A

A

MB990784

MB990784

Section A – A

Claw A

Claw B

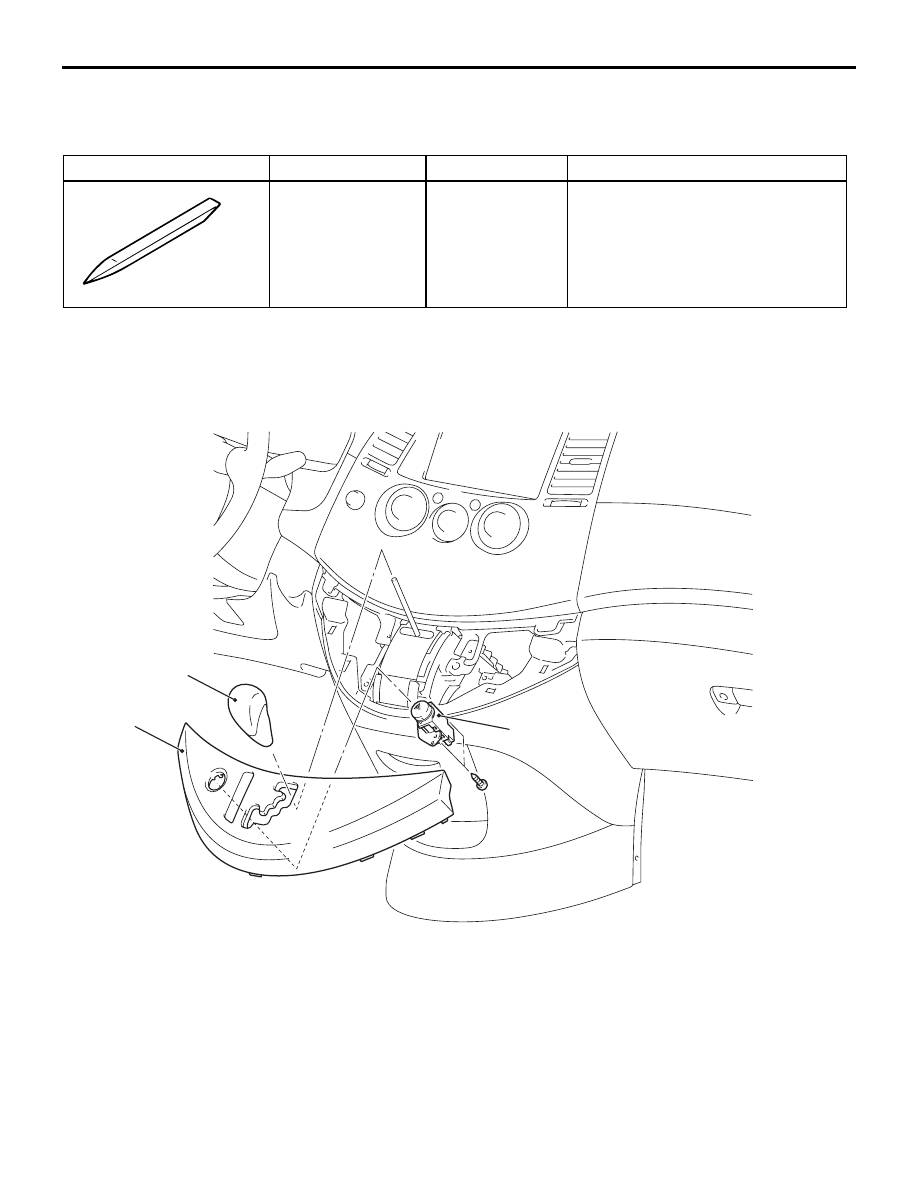

HAZARD WARNING LAMP SWITCH

CHASSIS ELECTRICAL

54A-100

HAZARD WARNING LAMP SWITCH

SPECIAL TOOL

M1542000600805

HAZARD WARNING LAMP SWITCH

REMOVAL AND INSTALLATION

M1542006600427

Tool

Number

Name

Application

MB990784

Ornament
remover

Removal of selector lever panel

MB990784

AC312952 AB

1

2

3

Removal steps

1.

Gearshift lever knob <M/T>

<<A>>

1.

Selector lever knob <A/T>

2.

Selector lever panel (Refer to
GROUP 52A, Instrument panel
assembly

P.52A-2

).

3.

Hazard warning lamp switch

Removal steps (Continued)

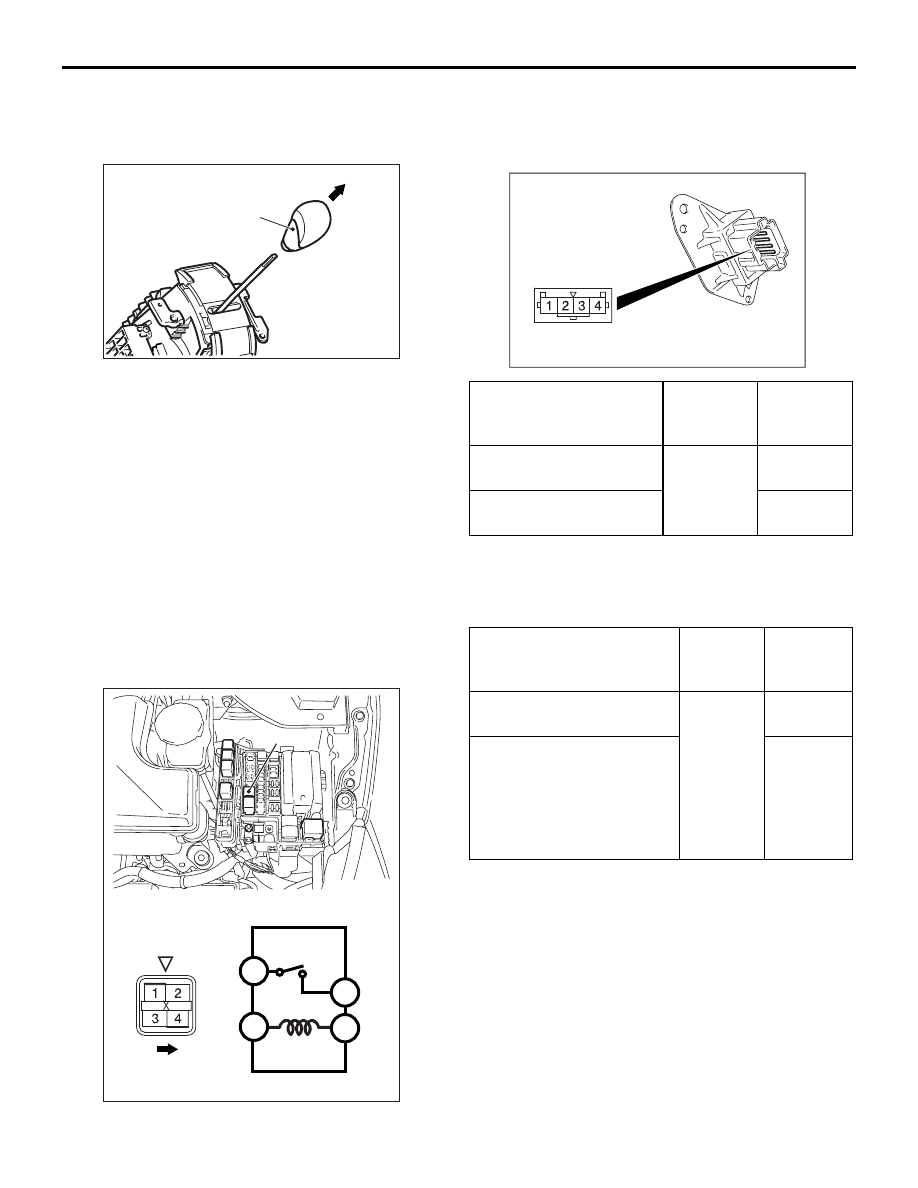

HORN

CHASSIS ELECTRICAL

54A-101

REMOVAL SERVICE POINTS
<<A>> SELECTOR LEVER KNOB
REMOVAL

Pull out the selector knob to the direction shown.

INSPECTION

M1542011200845

HAZARD WARNING LAMP SWITCH
CONTINUITY CHECK

HORN

INSPECTION

M1543019502247

HORN RELAY CONTINUITY CHECK

AC304001AB

Selector lever knob

Switch position

Tester
connectio
n

Specified
condition

OFF

1

− 2

Open
circuit

ON

Less than 2
ohms

AC313570 AB

AC312958

3

1

4

2

AB

Horn relay

Front of the vehicle

Battery voltage

Tester
connecti
on

Specified
condition

Not applied

1

− 4

Open
circuit

• Connect terminal 2 to

the positive battery
terminal

• Connect terminal 3 to

the negative battery
terminal

Less than
2 ohms

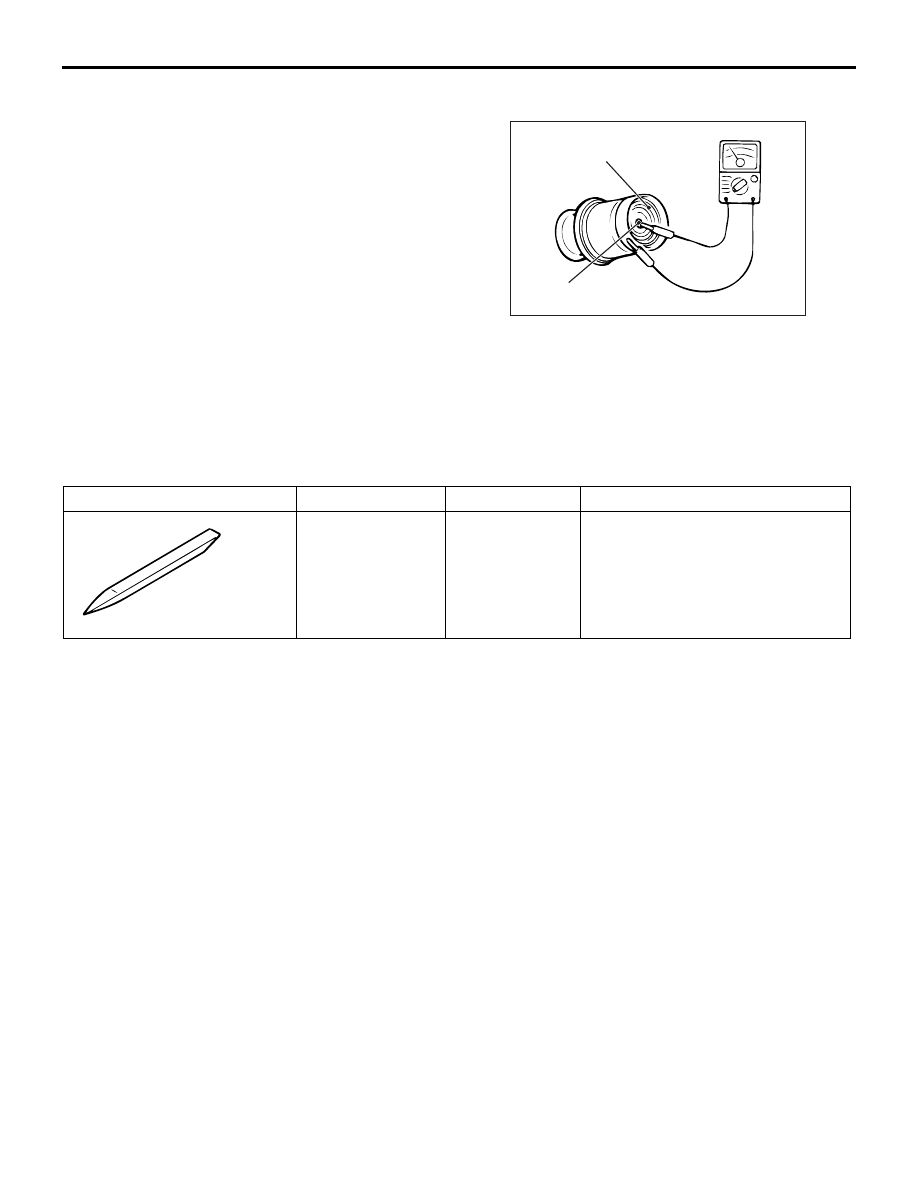

CIGARETTE LIGHTER

CHASSIS ELECTRICAL

54A-102

CIGARETTE LIGHTER

INSPECTION

M1543019502269

• Remove the plug and check the spot for wear.

• Check that there are no tobacco stains or foreign

particles on the element.

•

Use a multimeter to check the continuity of the

element.

COLUMN SWITCH

SPECIAL TOOL

M1543000601566

AC102585AB

Element

Spot

Tool

Number

Name

Application

MB990784

Ornament
remover

Removal of steering column cover

MB990784
