COLUMN SWITCH

CHASSIS ELECTRICAL

54A-103

COLUMN SWITCH

REMOVAL AND INSTALLATION

M1543009100424

INSPECTION

M1543019502270

COLUMN SWITCH (SWITCH BODY)
CONTINUITY CHECK

1. Removal the lighting switch and the windshield

wiper and washer switch.

2. Check that there is continuity between the same

terminals [terminals (3) and (11)] of each
connector of the column switch body which is still
on the steering column.

AC312967AB

1

1

3

2

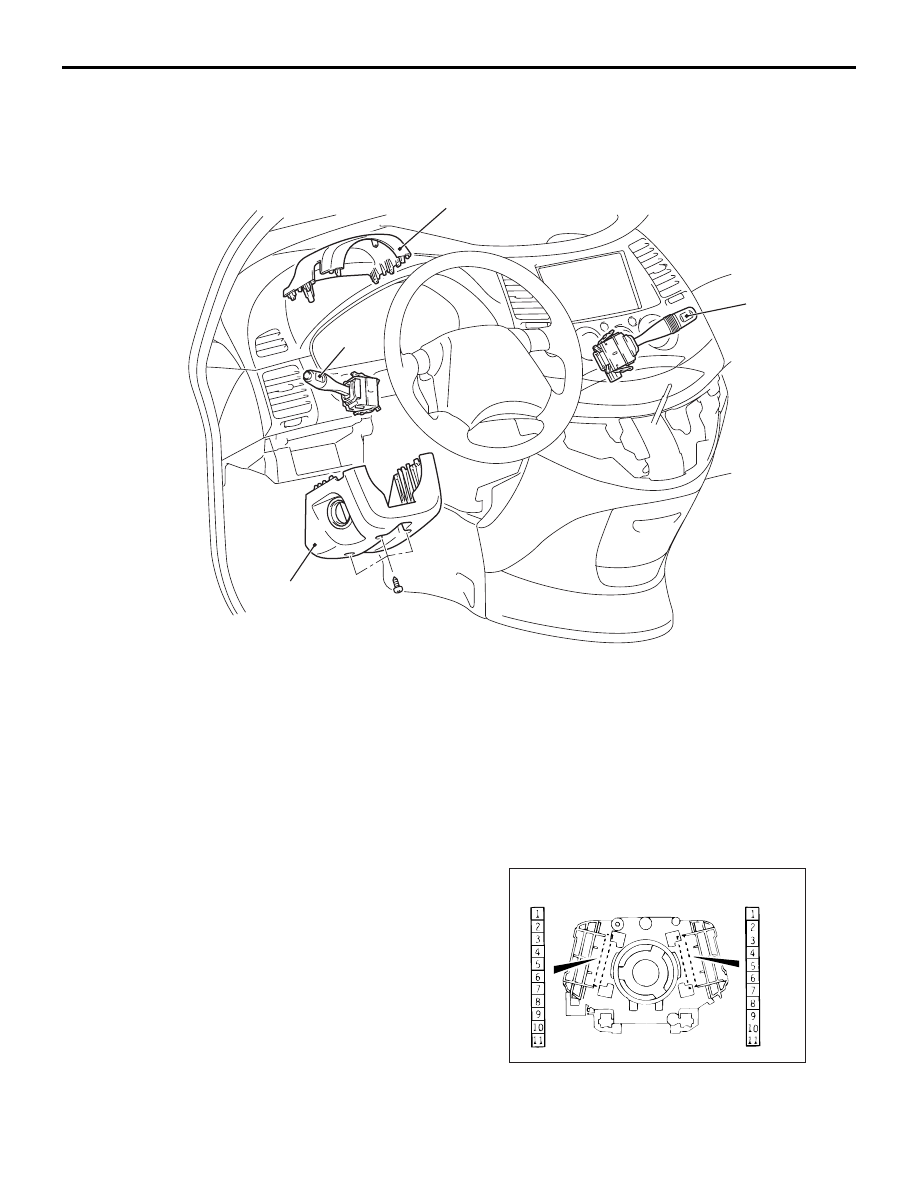

Removal steps

•

Gear shift lever knob <M/T> (Refer
to GROUP 22A, Transmission
Control

P.22A-7

).

•

Selector lever knob <A/T> (Refer to
GROUP 23A, Transmission Control

P.23A-141

).

•

Selector lever panel (Refer to
GROUP 52A, Instrument Panel
Assembly

P.52A-2

).

•

Front scuff plate inner, Cowl side
trim (Refer to GROUP 52A, Interior
Trim

P.52A-10

).

•

Fuel filler lid lock release handle
(Refer to GROUP 42, Fuel Filler Lid

P.42-7

).

•

Lower panel (Refer to GROUP 52A,
Instrument Panel Assembly

P.52A-2

).

1.

Steering column cover (Refer to
GROUP 52, Instrument Panel
Assembly

P.52A-2

).

2.

Windshield wiper and washer
switch

3.

Lighting switch

AC312979AB

Lighting switch
side

Windshield wiper and
washer switch side

RADIO AND CD PLAYER

CHASSIS ELECTRICAL

54A-104

RADIO AND CD PLAYER

SPECIAL TOOLS

M1542000601240

TROUBLESHOOTING

TROUBLESHOOTING

M1544000700143

Use these steps to plan your diagnostic strategy.
Follow through with each step to ensure that you
have exhausted all possible methods of finding an
audio system fault.
1. Gather information from the customer.

2. Verify that the condition described by the

customer exists.

3. Find the malfunction by following the Symptom

Chart.

4. Verify that the malfunction is eliminated.

STANDARD FLOW OF DIAGNOSIS
TROUBLESHOOTING

Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

P.00-5

.

Column switch
body

Tester
connection

Specified
condition

Lighting switch side
connector side,
Windshield wiper
and washer switch
side connector

3

− 3, 4 − 4, 5

− 5, 6 − 6, 7 −
7, 8

− 8, 9 − 9,

10

− 10, 11 −

11

Less than 2
ohms

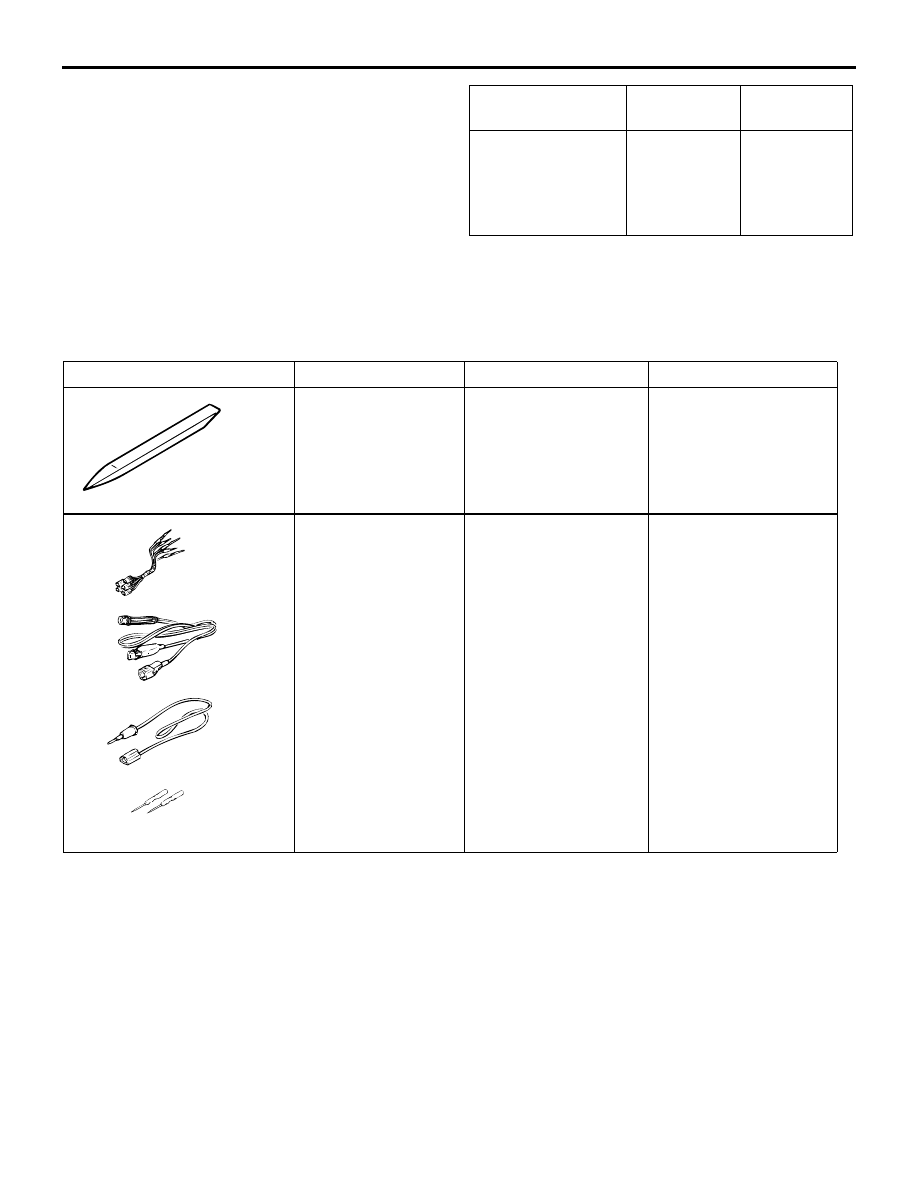

Tool

Number

Name

Application

MB990784

Ornament remover

Removal of selector
panel, instrument centre
panel

MB991223
A: MB991219
B: MB991220
C: MB991221
D: MB991222

Harness set
A: Test harness
B: LED harness
C: LED harness

adapter

D: Probe

For checking voltage
(continuity and value) at
harness and connectors

A: For checking

connector pin contact
voltage

B: For checking power

supply circuits

C: For checking power

supply circuits

D: For connection to

commercially
available tester

MB990784

MB991223

A

B

C

D

AC

RADIO AND CD PLAYER

CHASSIS ELECTRICAL

54A-105

TROUBLE SYMPTOM CHART

M1544004900514

Symptom

Inspection
Procedure No.

Reference
Page

Power of radio and CD player does not turn ON when the ignition switch
is in the "ACC" position or "ON" position.

1

P.54A-106

No sound from one speaker.

2

P.54A-109

Noise

Noise appears at certain places when travelling
(AM).

3

P.54A-121

Noise appears at certain places when travelling
(FM).

4

P.54A-122

Mixed with noise, only at night (AM).

5

P.54A-123

Broadcasts can be heard but both AM and FM have
a lot of noise.

6

P.54A-123

There is more noise on either AM or FM.

7

P.54A-124

There is noise when starting the engine.

8

P.54A-125

Some noise appears when there is vibration or
shocks during travelling.

9

P.54A-127

Noise sometimes appears on FM during travelling.

10

P.54A-127

Ever-present noise.

11

P.54A-128

Radio

There is noise but no reception for both AM and FM
or no sound from AM, or no sound from FM.

12

P.54A-128

Poor reception.

13

P.54A-129

Distortion on AM or on both AM and FM.

14

P.54A-130

Distortion on FM only.

15

P.54A-131

Using the auto select function, too few automatic
stations are selected.

16

P.54A-131

Preset stations are erased.

17

P.54A-132

CD player

CD can not be inserted.

18

P.54A-135

No sound (CD only).

19

P.54A-135

CD sound skips.

20

P.54A-136

Sound quality is poor.

21

P.54A-136

CD cannot be ejected.

22

P.54A-136

RADIO AND CD PLAYER

CHASSIS ELECTRICAL

54A-106

SYMPTOM PROCEDURES

Inspection Procedure 1: Power of radio and CD player does not turn ON when the ignition switch is in
the "ACC" position or "ON" position.

COMMENTS ON TROUBLE SYMPTOM

The cause is probably a faulty radio and CD player
power supply circuit system.

POSSIBLE CAUSES

• Damaged wiring harness or connector.

• Malfunction of radio and CD player.

DIAGNOSIS PROCEDURE

Step 1. Check to see that the power turns ON
when the power switch is turned ON.
(1) Turn the ignition switch to "ACC" position.
(2) Turn ON the radio and CD player power switch.

Q:  Is it possible to put the radio and CD player power

in the "ON" position?

YES :

Go to Step 2.

NO :

Go to Step 5.

IGNITION
SWITCH (ACC)

RELAY
BOX

RADIO AND
CD PLAYER

NOTE

: LHD
: RHD

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

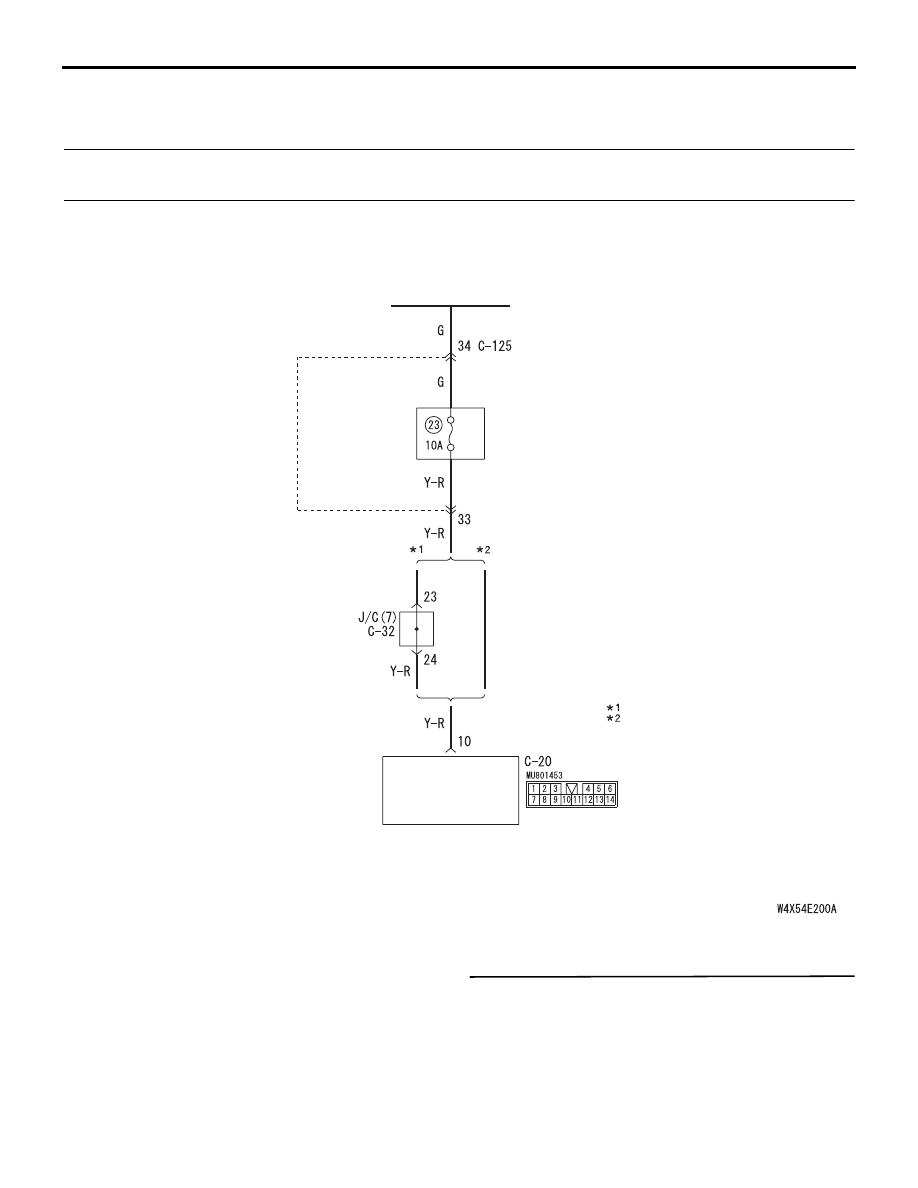

Radio and CD Player Power Supply Circuit
