INTERIOR LAMP

CHASSIS ELECTRICAL

54A-95

REMOVAL AND INSTALLATION

M1542012000112

INTERIOR LAMP

TROUBLESHOOTING

M1542000701689

The room lamps are controlled by the Smart Wiring
System (SWS). For troubleshooting procedures,
refer to GROUP 54B, Trouble Symptom Chart

P.54B-74

 or 54C, Trouble Symptom Chart

P.54C-44

.

INTERIOR LAMP

REMOVAL AND INSTALLATION

M1542006300039

• Front room lamp assembly (Refer to GROUP

52A, Headlining

P.52A-17

).

• Rear personal lamp (Refer to GROUP 52A,

Headlining

P.52A-19

).

INSPECTION

M1542011201321

FRONT ROOM LAMP CONTINUITY
CHECK

AC312889 AB

1

2

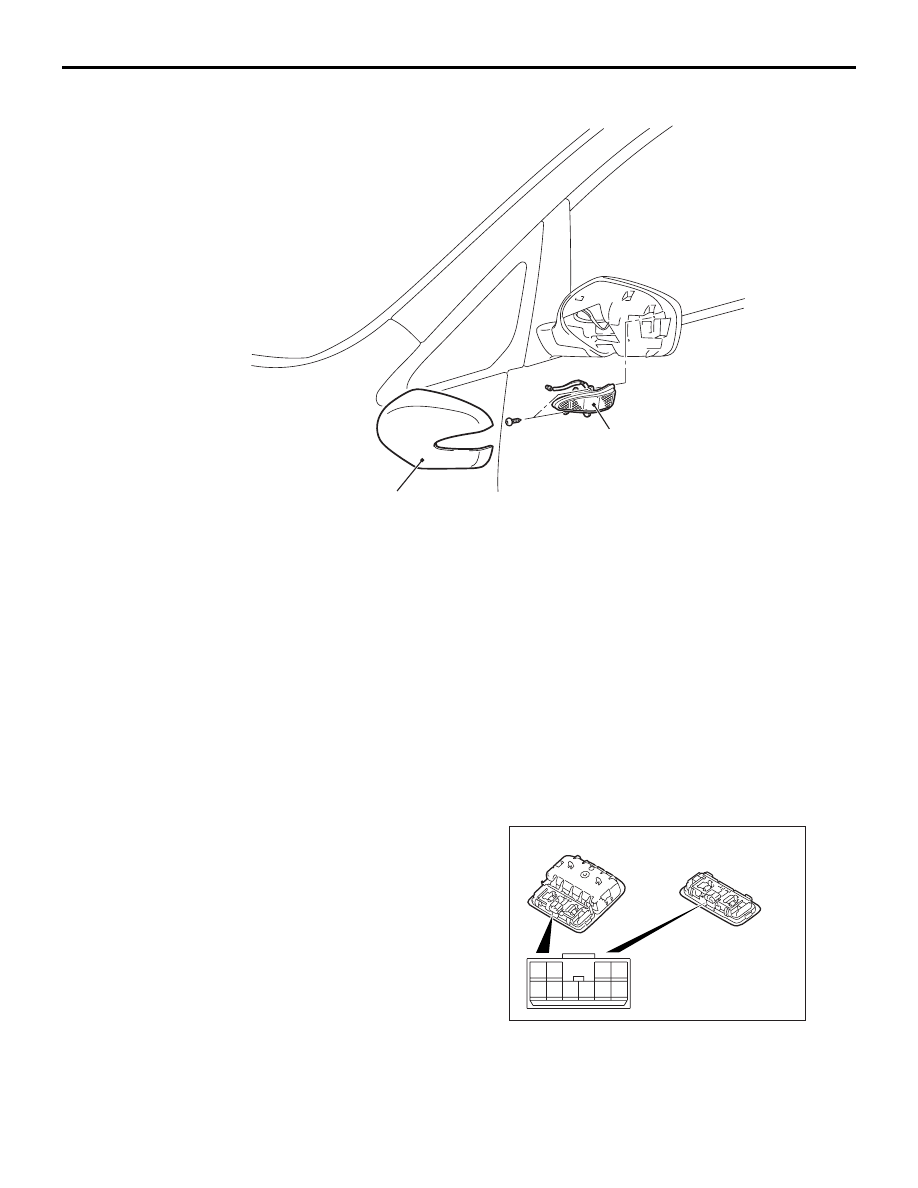

Removal steps

•

Mirror (Refer to GROUP 51, Door
Mirror

P.51-46

).

1.

Door mirror outer cover (GROUP
51, Mirror

P.51-46

).

2.

Side turn-signal lamp

Removal steps (Continued)

3

9

6

5

1 2

7 8

10

4

AC312897

AB

<Vehicles with sun roof>

<Vehicles without sun roof>

REAR COMBINATION LAMP

CHASSIS ELECTRICAL

54A-96

REAR COMBINATION LAMP

SPECIAL TOOL

M1542000600786

ON-VEHICLE SERVICE

BULB REPLACEMENT

M1542001300625

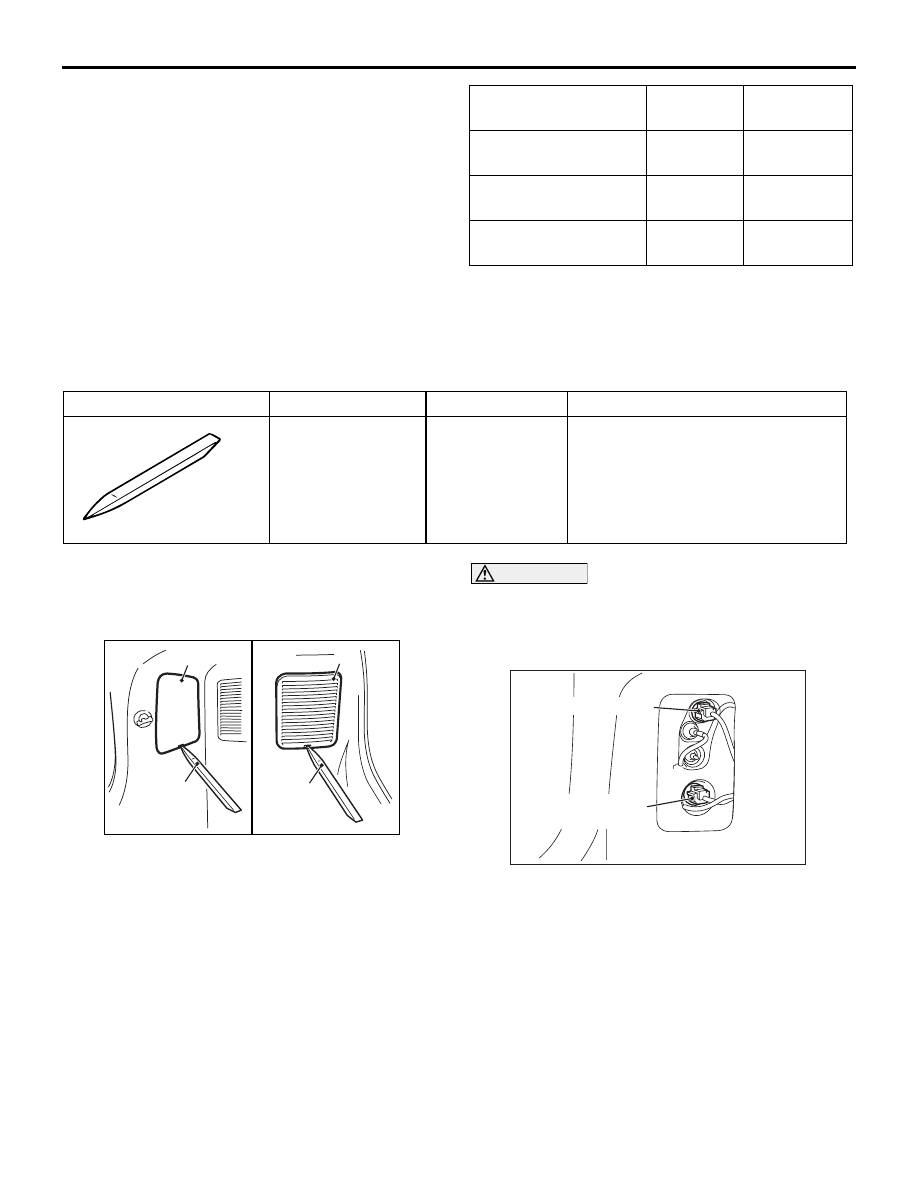

1. Insert special tool MB990784 (Ornament

Remover) into the notch under the lid, and pry out
the lid.

CAUTION

Don't touch the bulb surface with bare hands or
dirty gloves. if the bulb surface (glass part) gets
dirty, clean it with alcohol or thinner immediately
and dry well, and then install it.

2. Twist the socket to remove.

Switch position

Terminal
number

Normal
conditions

OFF

5

− 6

Less than 2
ohms

−

5

− 9

Less than 2
ohms

ON

5

− 7, 5 − 9,

7

− 9

Less than 2
ohms

Tool

Number

Name

Application

MB990784

Ornament
remover

Rear combination bulb replacement

MB990784

AC301801

AB

<LH>

<RH>

MB990784

MB990784

Lid

Lid

AC301802 AB

Turn-signal lamp

Back-up lamp or
rear fog lamp

HIGH-MOUNTED STOP LAMP

CHASSIS ELECTRICAL

54A-97

REAR COMBINATION LAMP

REMOVAL AND INSTALLATION

M1542003900429

HIGH-MOUNTED STOP LAMP

SPECIAL TOOL

M1542000600797

AC301887AB

1

2.5 ± 0.3 N·m

Removal steps

•

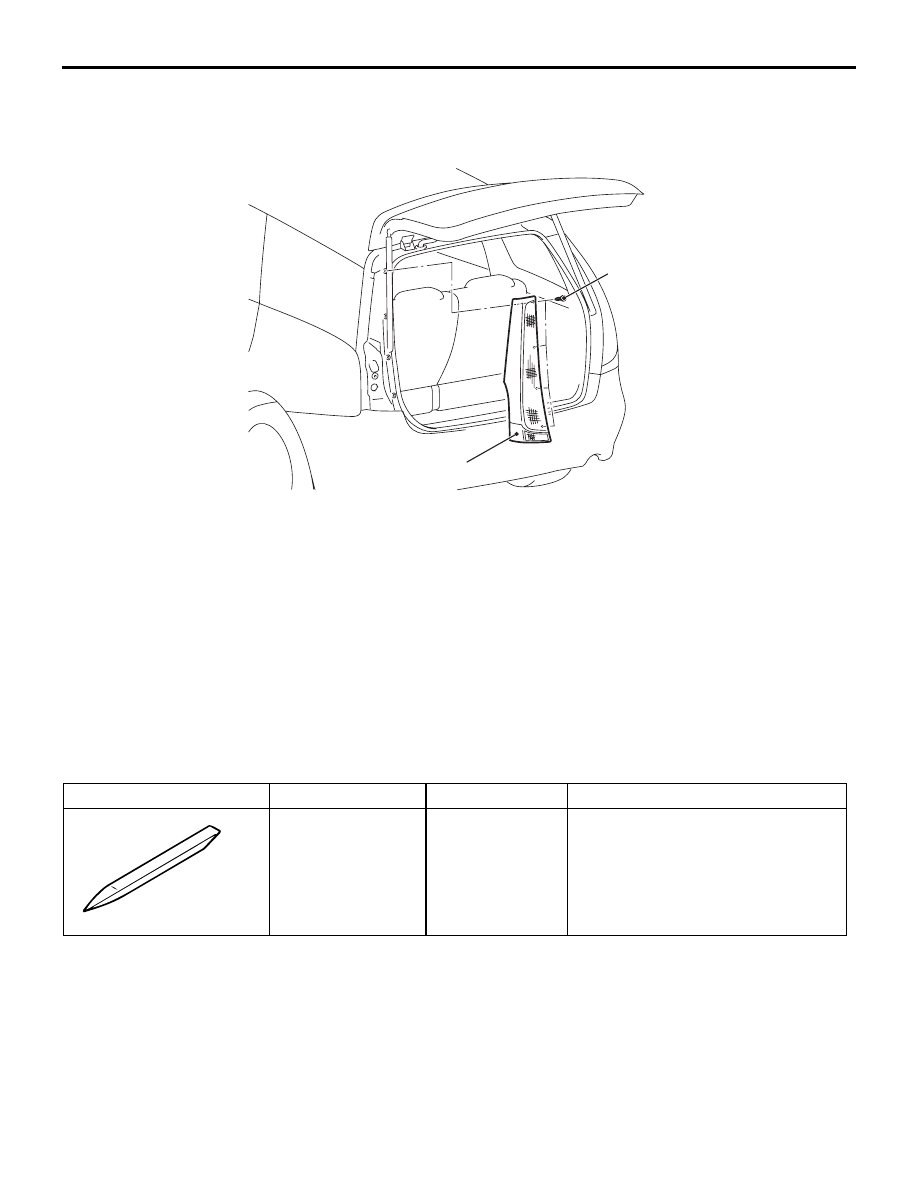

Quarter side cover (Refer to
GROUP 52A, Interior Trim

P.52A-10

).

•

Bulb connector connection

•

Tailgate damper lower (GROUP
42, Tailgate

P.42-48

).

1.

Rear combination lamp assembly

Removal steps (Continued)

Tool

Number

Name

Application

MB990784

Ornament
remover

Removal of high-mounted stop lamp

MB990784

LICENCE PLATE LAMP

CHASSIS ELECTRICAL

54A-98

HIGH-MOUNTED STOP LAMP

REMOVAL AND INSTALLATION

M1542005100430

LICENCE PLATE LAMP

SPECIAL TOOL

M1542000600838

AC303890 AB

1

2

A

A

1

2

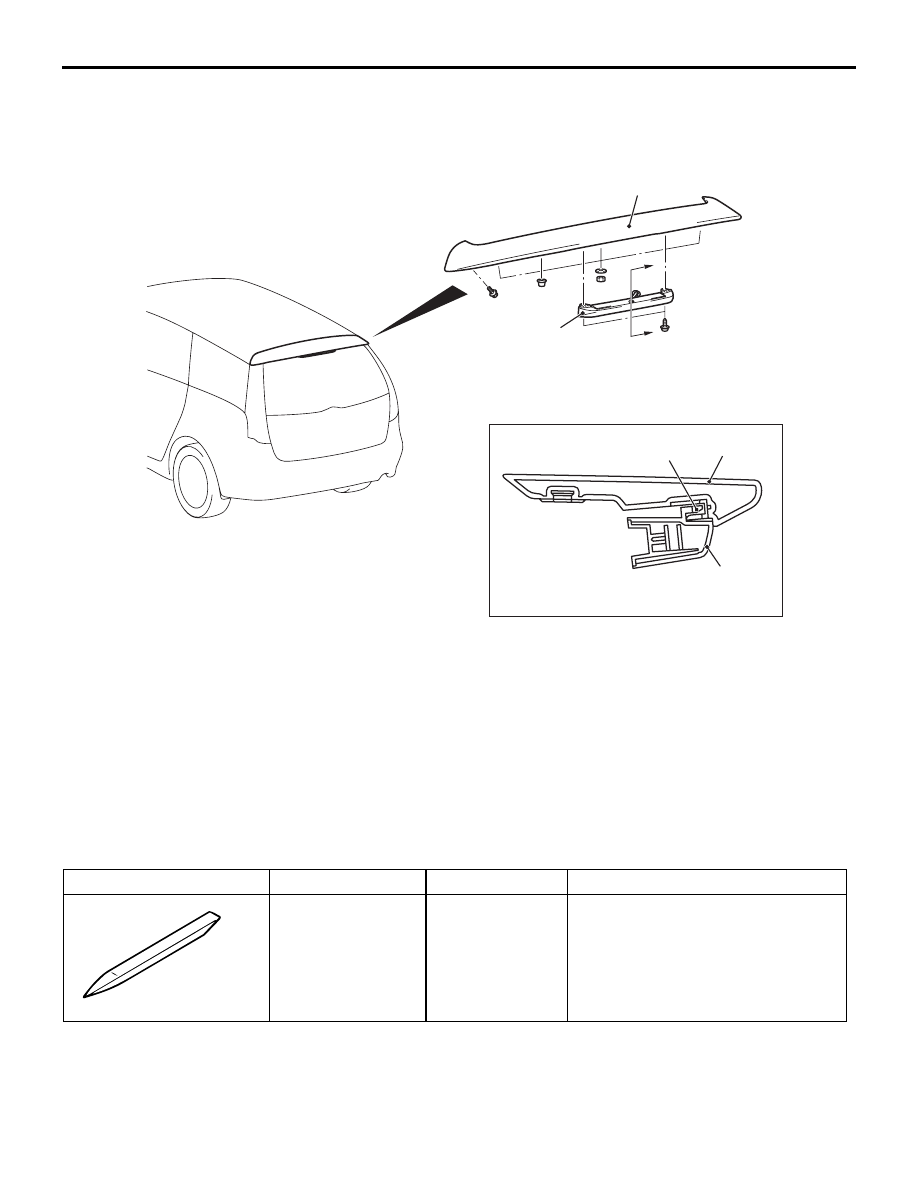

Section A – A

Claw

Removal steps

1.

Tailgate spoiler assembly (Refer to
GROUP 51, Tailgate spoiler

P.51-19

).

2.

High-mounted stop lamp

Tool

Number

Name

Application

MB990784

Ornament
remover

Removal of licence plate lamp

MB990784
