FRONT FOG LAMP

CHASSIS ELECTRICAL

54A-91

ON-VEHICLE SERVICE

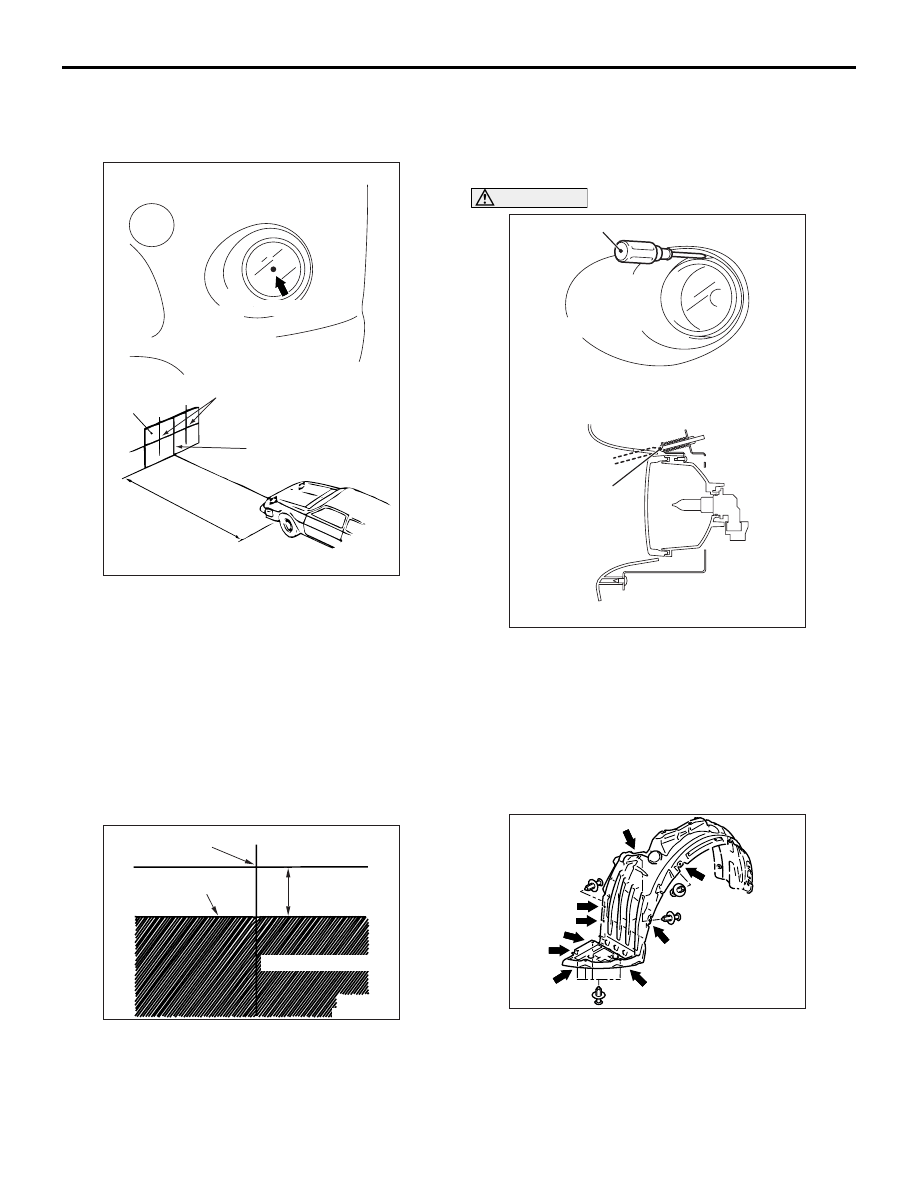

FRONT FOG LAMP AIMING

M1542013500024

1. Measure the centre of the front fog lamps, as

shown in the illustration.

2. Set the distance between the screen and the

centre of the front fog lamps as shown in the
illustration.

3. Inflate the types to the specified pressures and

there should be no other load in the vehicles other
than driver or substituted weight of approximately
75 kg placed in the driver’s position.

4. With the engine running at 2,000 r/min, aim the

front fog lamp.

5. Check if the beam shining onto the screen is at

the standard value.

Standard value:
(Vertical direction) 100 mm below horizontal
(H)
(Horizontal direction) Parallel to direction of
vehicle travel

CAUTION

When marking the aiming adjustment, be sure to
mask those lamps which are not being adjusted.
NOTE: The horizontal direction is non-adjustable. If
the deviation of the light beam axis exceeds the
standard value, check to be sure that the mounting
location or some other point is not defective.

BULB REPLACEMENT

M1542001300830

1. Remove the under cover and the splash shield

assembling clips as shown.

AC312857AB

Lamp centre

Fog lamp centre line

Vehicle centre line

Screen

5 m

AC312871AB

Vertical direction

V

H

Lamp centre

Cut off line

High intensity zone

AC312873AB

Vertical direction

Vertical direction

AC303130

FRONT FOG LAMP

CHASSIS ELECTRICAL

54A-92

CAUTION

Don't touch the bulb surface with bare hands or
dirty gloves. If the bulb surface (glass part) gets
dirty, clean it with alcohol or thinner immediately
and dry well, and then install it.

2. Disconnect the connector and withdraw the bulb.
3. Replace the valve, and connect securely the

connector.

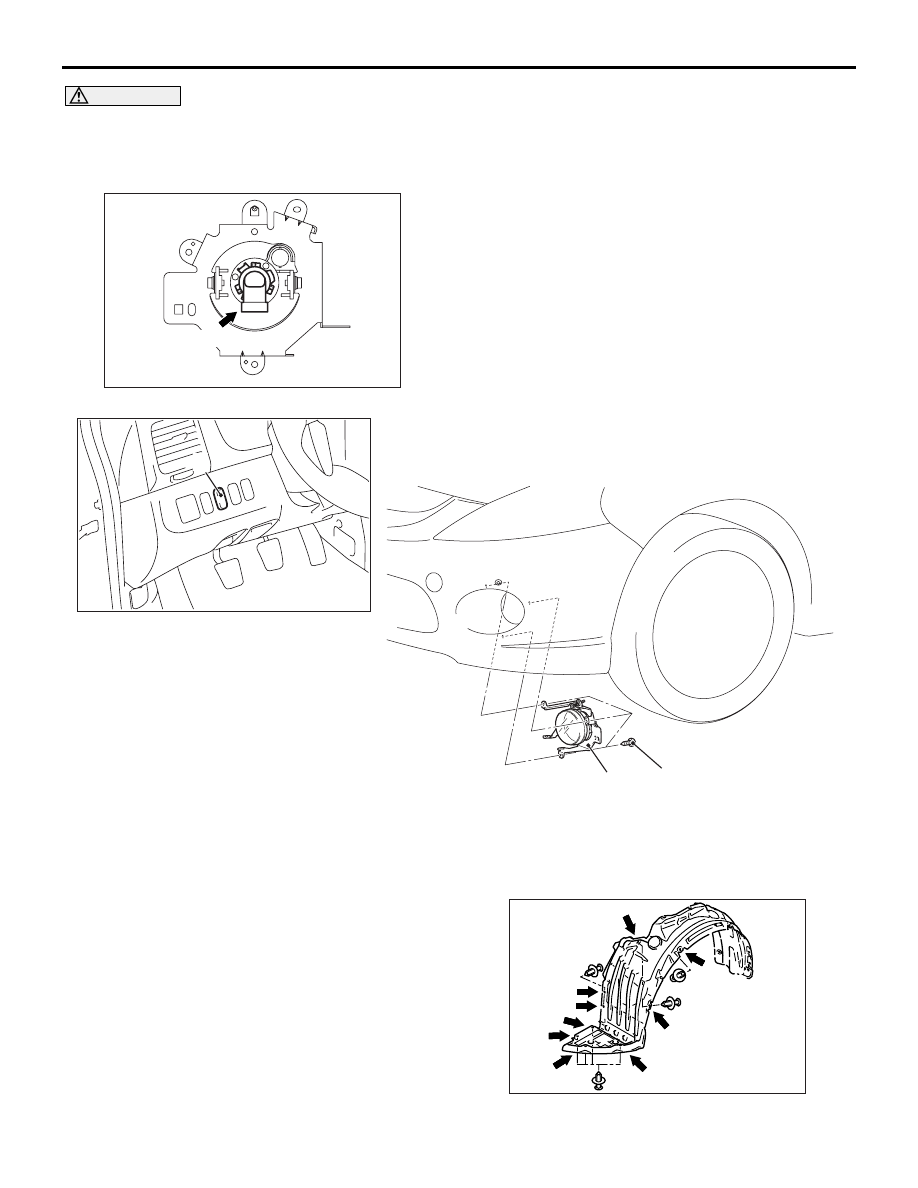

FRONT FOG LAMP

REMOVAL AND INSTALLATION

M1542013600043

REMOVAL SERVICE POINTS
<<A>> FOG LAMP ASSEMBLY REMOVAL

Remove the splash shield assembling bolts and clips
as shown.

AC303091AC

Fog lamp bulb

AC312874AB

1

2

2.5 ± 0.3 N·m

Fog lamp switch removal steps

•

Lower panel (Refer to GROUP 52A,
Instrument Panel Assembly

P.52A-2

).

1.

Fog lamp switch
Fog lamp removal steps

<<A>>

2.

Fog lamp assembly

AC303130

REAR FOG LAMP

CHASSIS ELECTRICAL

54A-93

INSPECTION

M1542011201310

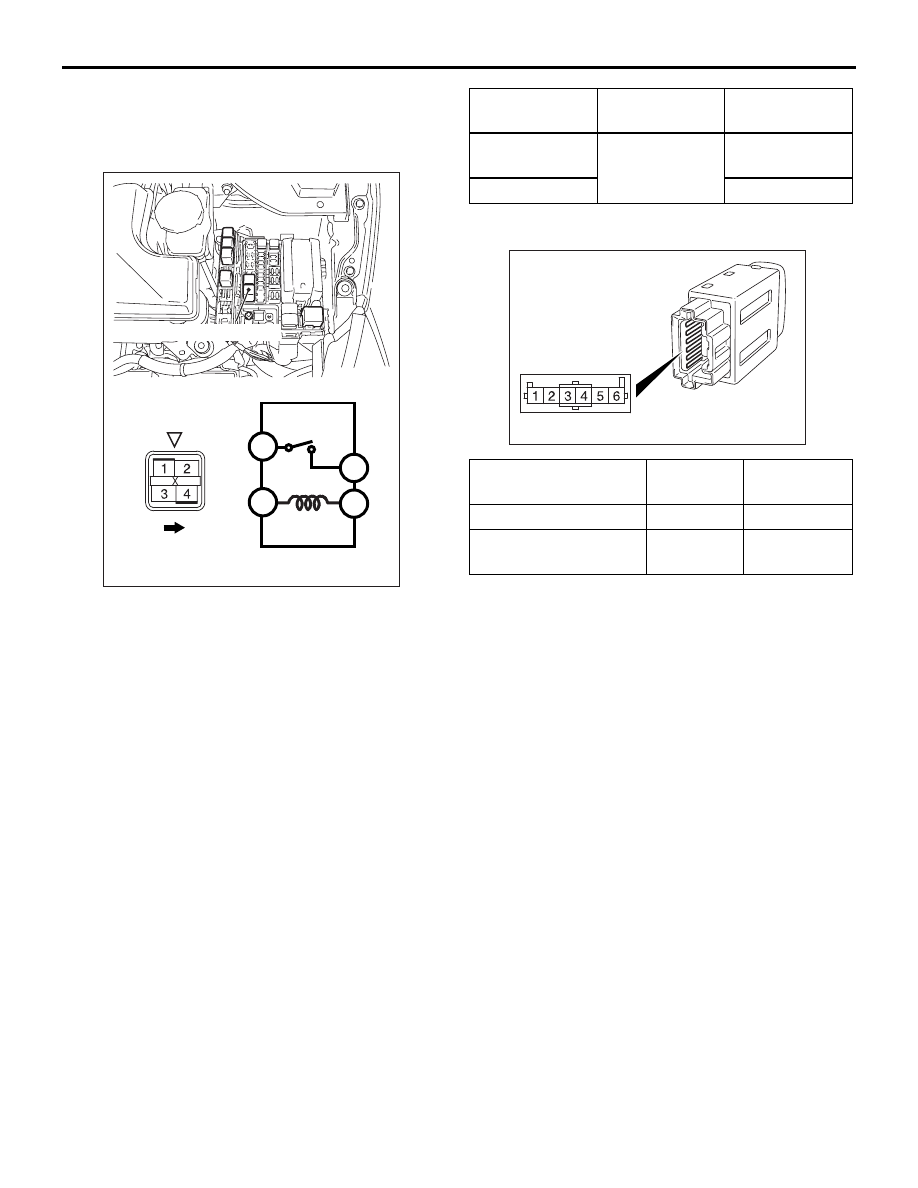

FRONT FOG LAMP RELAY CONTINUITY
CHECK

FOG LAMP SWITCH CONTINUITY CHECK

REAR FOG LAMP

REMOVAL AND INSTALLATION

M1542017100051

• Rear fog lamp (integrated with rear combination

lamp) (Refer to

P.54A-97

).

• Fog lamp switch (Refer to

P.54A-92

).

AC312876

3

1

4

2

AB

Front fog lamp relay

Front of the vehicle

Battery voltage Tester

connection

Specified
condition

Not supplied

1

− 4

Less than 2
ohms

Supplied

Open circuit

Switch position

Terminal
number

Normal
conditions

OFF

1

− 2

Open circuit

ON

1

− 2

Less than 2
ohms

AC302751AB

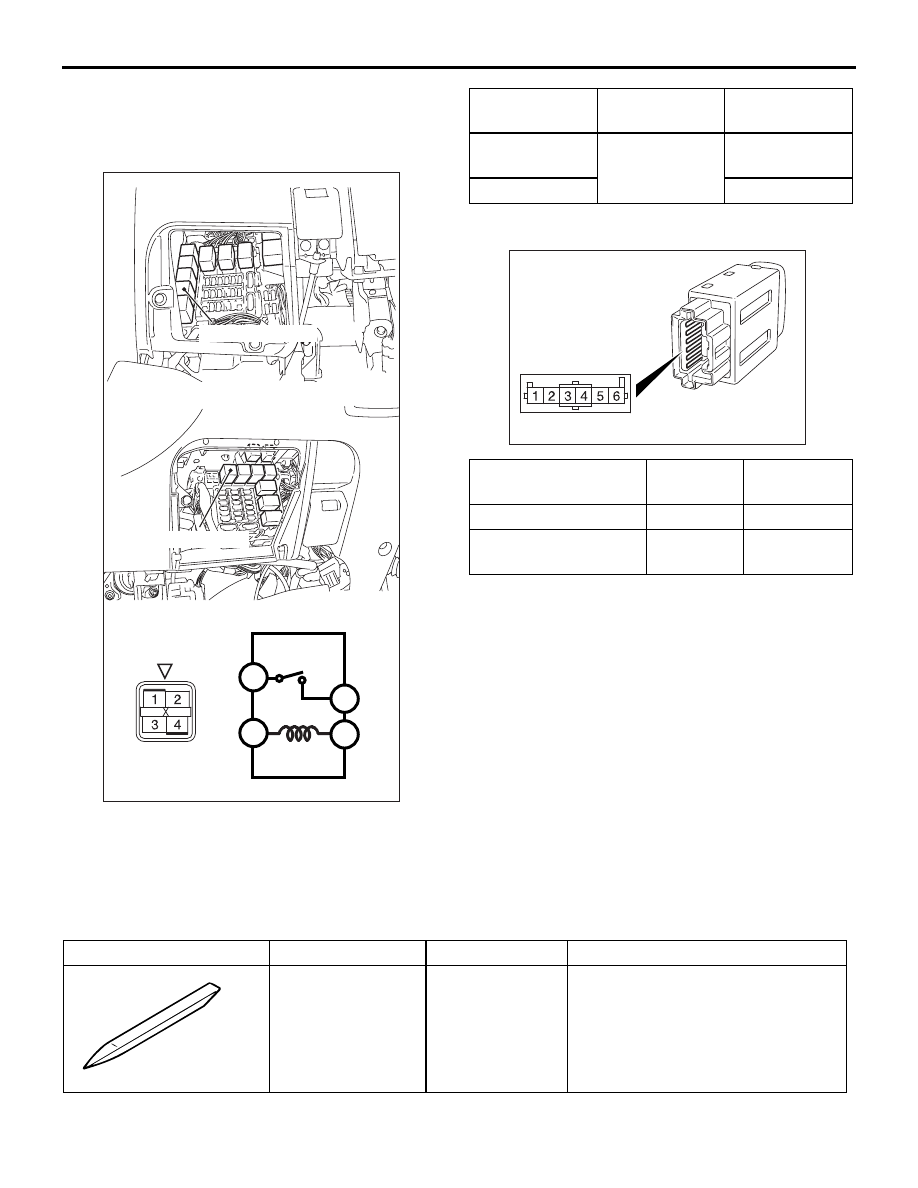

SIDE TURN-SIGNAL LAMP

CHASSIS ELECTRICAL

54A-94

INSPECTION

M1542011201332

REAR FOG LAMP RELAY CONTINUITY
CHECK

FOG LAMP SWITCH CONTINUITY CHECK

SIDE TURN-SIGNAL LAMP

SPECIAL TOOL

M1542000600775

AC312922

3

1

4

2

AB

Rear fog lamp relay

Rear fog lamp relay

<L.H. drive vehicles>

<R.H. drive vehicles>

Battery voltage Tester

connection

Specified
condition

Not supplied

1

− 4

Less than 2
ohms

Supplied

Open circuit

Switch position

Terminal
number

Normal
conditions

OFF

5

− 6

Open circuit

ON

5

− 6

Less than 2
ohms

AC302751AB

Tool

Number

Name

Application

MB990784

Ornament
remover

Removal of door mirror outer cover

MB990784
