COMBINATION METER

CHASSIS ELECTRICAL

54A-83

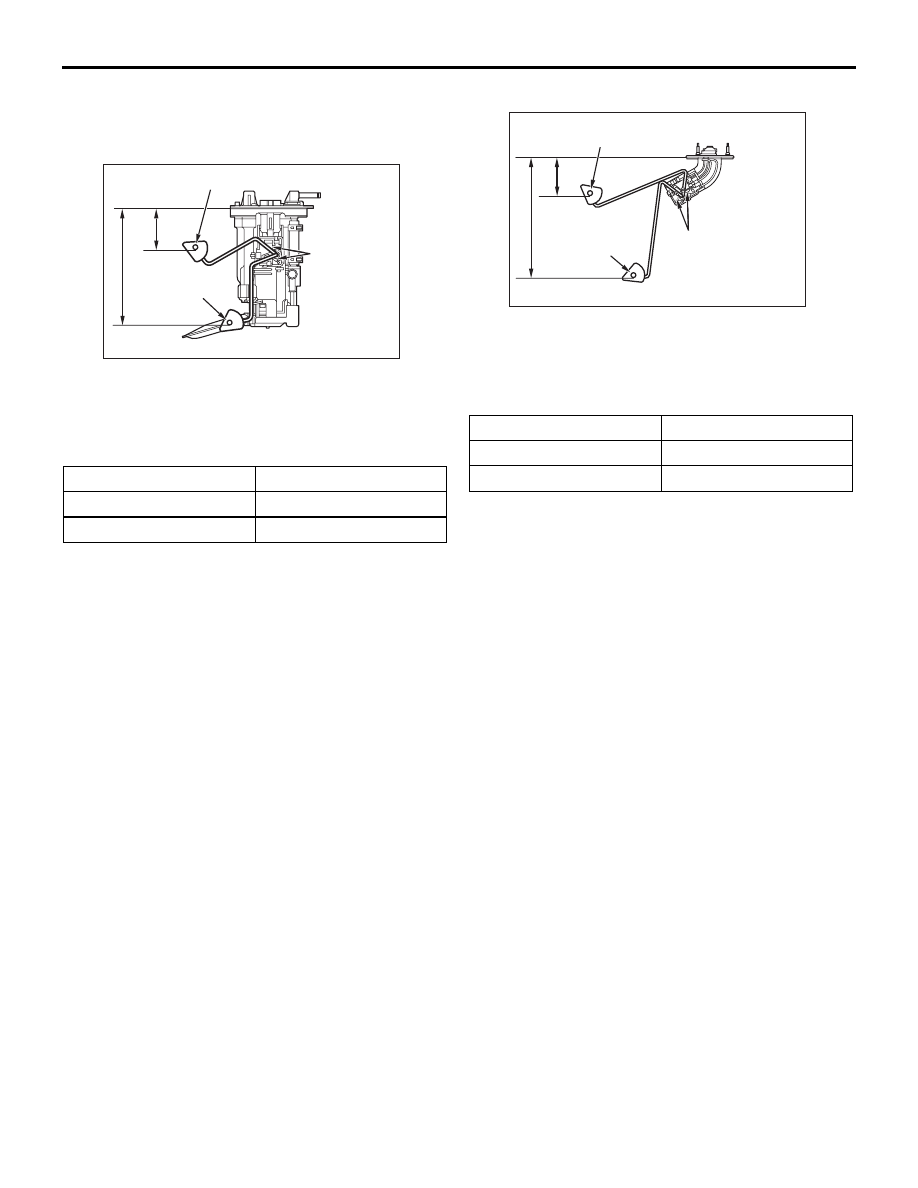

FUEL TANK GAUGE UNIT FLOAT HEIGHT
FUEL TANK PUMP AND GAUGE UNIT
ASSEMBLY

1. Move the float and check that F position height (A)

and E position height (B) are at the standard
values when the float arm touches the stopper.

Standard values:

2. If all checks are correct, go to fuel tank gauge unit

float height check. If any check is not correct,
replace the fuel tank gauge unit.

FUEL TANK GAUGE UNIT

1. Move the float and check that F position height (A)

and E position height (B) are at the standard
values when the float arm touches the stopper.

Standard values:

2. If all checks are correct, go to fuel tank gauge unit

float height check. If any check is not correct,
replace the fuel tank gauge unit.

Float Position

Float Centre Height

F position (A)

57.6

± 3 mm

E position (B)

158.4

± 3 mm

AC312743AB

F position

E position

Stopper

A

B

Float Position

Float Centre Height

F position (A)

57.0

± 3 mm

E position (B)

180.2

± 3 mm

AC312743AB

A

B

F position

E position

Stopper

COMBINATION METER

CHASSIS ELECTRICAL

54A-84

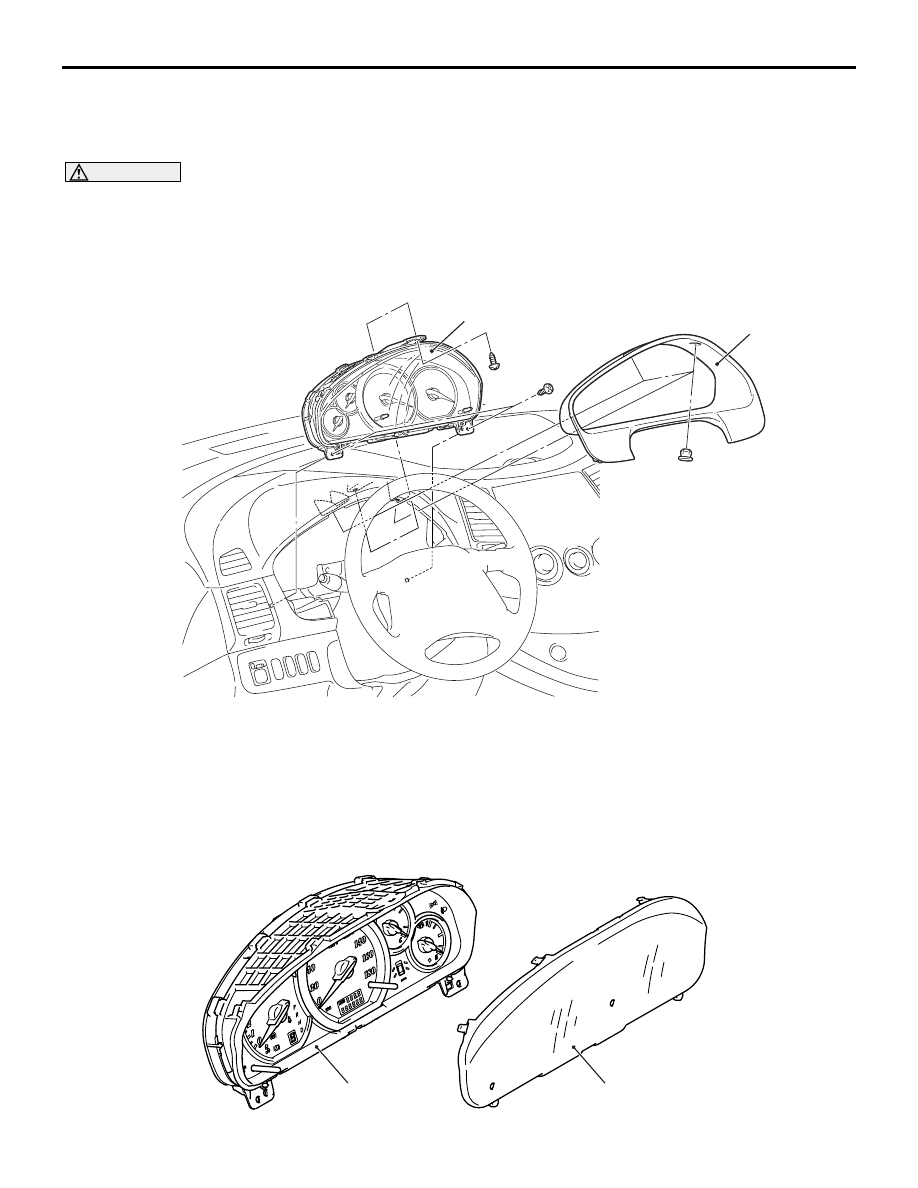

COMBINATION METER ASSEMBLY

REMOVAL AND INSTALLATION

M1543019800101

CAUTION

When the battery cable is disconnected or the combination meter is removed, the fuel gauge learned
value will be erased. To let the display unit re-learn it, enter the vehicle speed (by driving the vehicle
or entering simulated vehicle speed) and then stop the vehicle. Service on a level surface. (If the
vehicle is inclined, the measurement value will go out.)

DISASSEMBLY AND REASSEMBLY

M1543019900108

AC311964AB

1

2

Removal steps

•

Steering column cover (Refer to
GROUP 52A, Instrument Panel
Assembly

P.52A-2

).

1.

Combination meter bezel (Refer
to GROUP 52A, Instrument Panel
Assembly

P.52A-2

).

2.

Combination meter assembly

Removal steps (Continued)

AC313279

AB

1

2

HEADLAMP

CHASSIS ELECTRICAL

54A-85

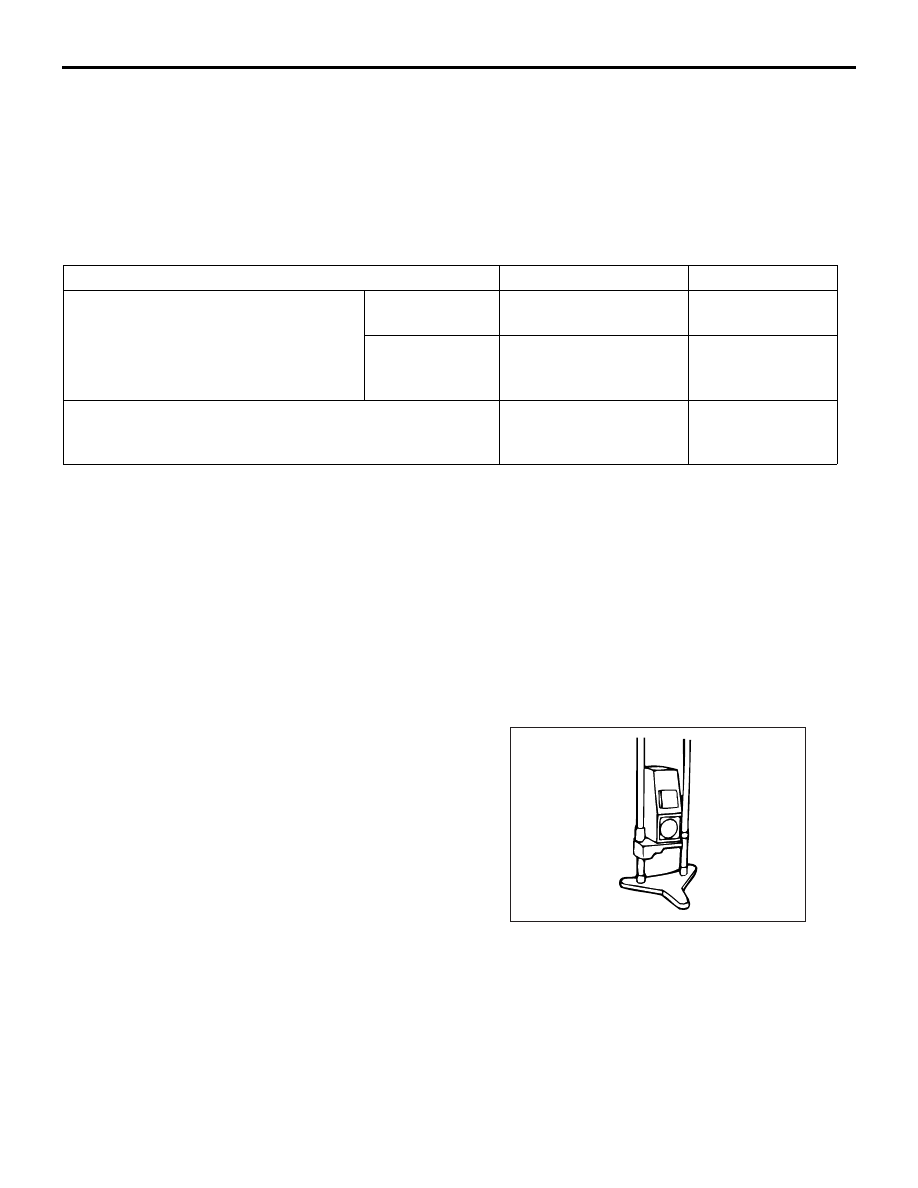

HEADLAMP

SERVICE SPECIFICATIONS

M1542000300495

PRECAUTIONS ON HOW TO USE THE
HEADLAMP ASSEMBLY

Be careful with the following items as resin lenses
are used in the headlamp assembly.

• Don't illuminate the headlamp for three minutes

or more when the headlamp is covered with
scratch protector.

• Don't tape the outer lens.

• Don't scratch the outer lens surface with a sharp

edged special tool.

• Use the specified wax remover and rinse the wax

off cleanly.

• Use the specified genuine bulb.

TROUBLESHOOTING

M1542011800201

Features the headlamp automatic-shutdown function
to avoid battery drain when the headlamps are left
on. The main features are as follows:

• Extinguishes automatically in three minutes if the

ignition switch is turned off with the lighting switch
on.

• Extinguishes in one second if the driver's door is

opened within that 3-minute period.

• If the headlamps are turned on with the ignition

switch off, the headlamps and tail lamps will
extinguish in three minutes after the driver's door
is opened or closed.

The headlamps are controlled by the Smart Wiring
System (SWS). For troubleshooting, refer to
respective Groups below.

• Not using SWS monitor: GROUP 54B,

Troubleshooting

P.54B-74

.

• Using SWS monitor: GROUP 54C,

Troubleshooting

P.54C-44

.

ON-VEHICLE SERVICE

HEADLAMP AIMING

M1542000900635

<USING A BEAM SETTING EQUIPMENT>

1. The headlamps should be aimed with the proper

beam setting equipment, and in accordance with
the equipment manufacture’s instructions.

2. Alternately turn the adjusting screw to adjust the

headlamp aiming.

Disassembly steps

1.

Combination meter glass

2.

Combination meter

Item

Standard value

Limit

Headlamp aiming

Vertical direction 60 mm below horizontal

(H)

−

Horizontal
direction

15

° sloping section

intersects the vertical
line (V)

−

Headlamp luminous intensity measurement cd
(Corresponding to the illumination 40 m ahead of the
vehicle at low beam)

−

30,000 cd or more

AC102583

HEADLAMP

CHASSIS ELECTRICAL

54A-86

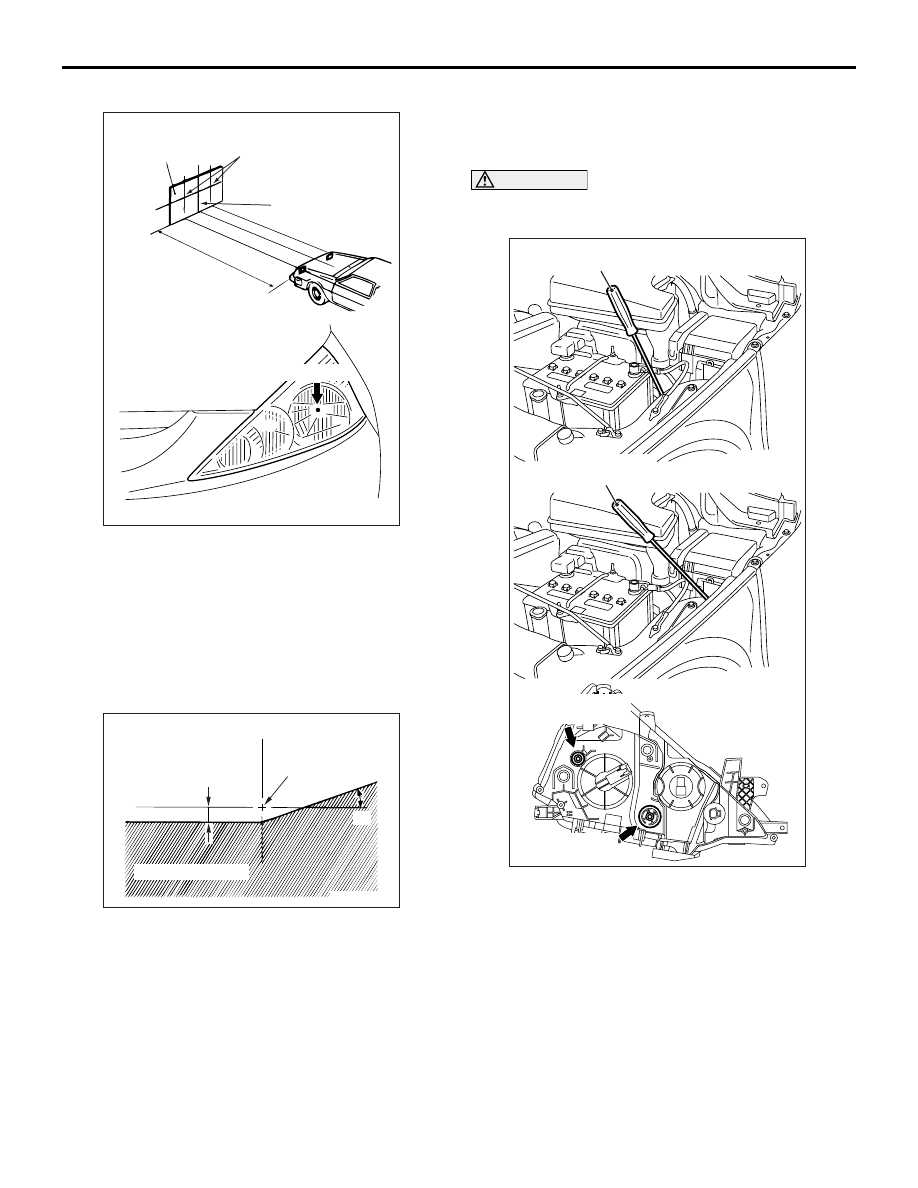

<USING A SCREEN>

1. Inflate the tyres to the specified pressures and

there should be no other load in the vehicles other
than driver or substituted weight of approximately
75 kg placed in driver’s position.

2. Put the headlamp levelling switch in "0" position.
3. Set the distance between the screen and the

centre marks of the headlamps as shown in the
illumination.

4. Check if the beam shining onto the screen is at

the standard value.

Standard value:
(Vertical direction) 60 mm below horizontal
(H)

(Horizontal direction) 15

° sloping section

intersects the vertical line (V)

NOTE: The illustration shows LH drive vehicles.
For RH drive vehicles, it is symmetrical.

CAUTION

Be sure to adjust the aiming adjustment screw in
the tightening direction.

5. Alternately turn the adjusting screw to adjust the

headlamp aiming.

HEADLAMP INTENSITY MEASUREMENT

M1542001000550

Using a photometer, and following its manufacture’s
instruction manual, measure the headlamp intensity
and check to be sure that the limit value is satisfied.

Limit: 30,000 cd or more

AC312769

Headlamp centre line

Vehicle centre line

Screen

5 m

Lamp centre

AB

AC312781

(H)

(V)

AB

Lamp centre

15

High intensity zone

Distance of
vertical direction

AC312820AB

Vertical direction
adjustment

Horizontal direction
adjustment

Vertical direction
adjustment

Horizontal direction
adjustment
