COMBINATION METER

CHASSIS ELECTRICAL

54A-79

Indicator lamp and
warning lamp

Illuminate the indicator lamp
and the warning lamp.

Turn the ignition
switch to the ON
position.

Turn, door, fog, high
beam, parking brake,
check engine, charge,
oil pressure, SRS,
ABS and seatbelt
indicator lamps, and
fuel and cruise
warning lamps
illuminate.

Extinguish the indicator
lamps and the warning
lamps.

Turn, door, fog, high
beam, parking brake,
check engine, charge,
oil pressure, SRS,
ABS and seatbelt
indicator lamps, and
fuel and cruise
warning lamps go out.

Illuminate the indicator lamp
and the warning lamp.

The position indicator
lamp illuminates.

Extinguish the indicator
lamps and the warning
lamps.

The position indicator
lamp goes out.

Illuminate the indicator lamp
and the warning lamp.

The oil level warning
lamp illuminates.

Extinguish the indicator
lamps and the warning
lamps.

The oil level warning
lamp goes out.

A/T indicator lamp
and display

Illuminate the A/T indicator
lamp or display the A/T
indicator.

Turn the ignition
switch to the ON
position.

• A/T indicator lamp

(P, R, N, D)
illuminates.

• A/T indicator

displays gear
position (1,2,3 or 4)
on LED.

Illuminate the A/T indicator
lamp or display the A/T
indicator.

• A/T indicator lamp

(P, R, N, D) goes
out.

• A/T indicator does

not display gear
position (1,2,3 or 4)
on LED.

Item
No.

Check items

Test content

Check conditions

Normal conditions

COMBINATION METER

CHASSIS ELECTRICAL

54A-80

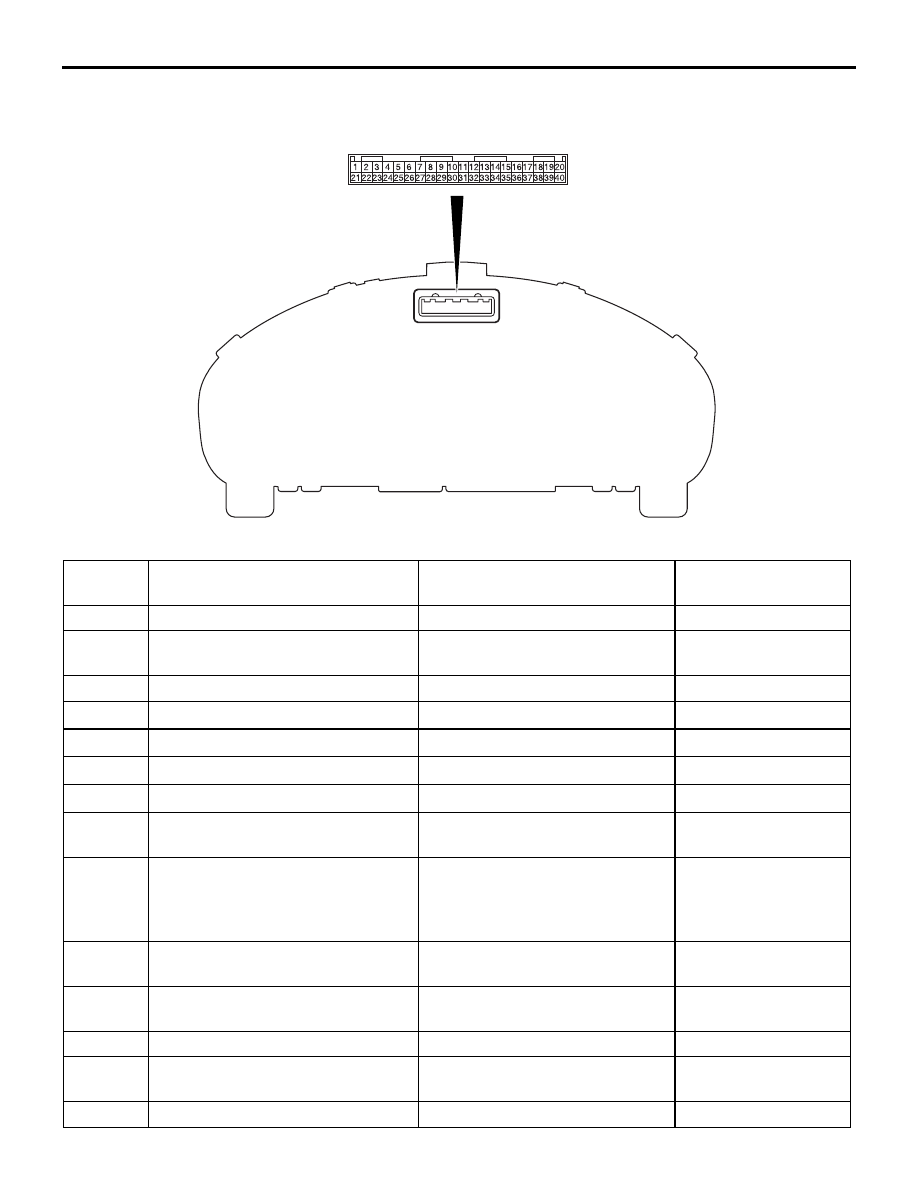

CHECK AT ECU TERMINALS

M1543007600616

AC302719AB

Terminal
No.

Check items

Check conditions

Normal conditions

Earth

Always

0 V

Power supply from ignition switch
(ACC)

Ignition switch: ACC

Battery voltage

Earth

Always

0 V

Fuel earth

Ignition switch: ON

−

CAN L

−

CAN H

−

Input of fuel gauge

Ignition switch: ON

−

Input of seatbelt switch

Ignition switch: ON and the seat
belt is unfastened.

−

Input of parking brake switch and
brake fluid level switch

• Ignition switch: ON and parking

brake switch: ON

• Ignition switch: ON and brake

fluid level switch: ON

−

Charging

Ignition switch: ON and before
power generation by alternator

−

Oil pressure switch

Ignition switch: ON and before
starting the engine

−

Illumination (power supply)

Illumination switch: ON

Battery voltage

Power supply from ignition switch
(IG1)

Ignition switch: ON

Battery voltage

Battery power supply

Always

Battery voltage

COMBINATION METER

CHASSIS ELECTRICAL

54A-81

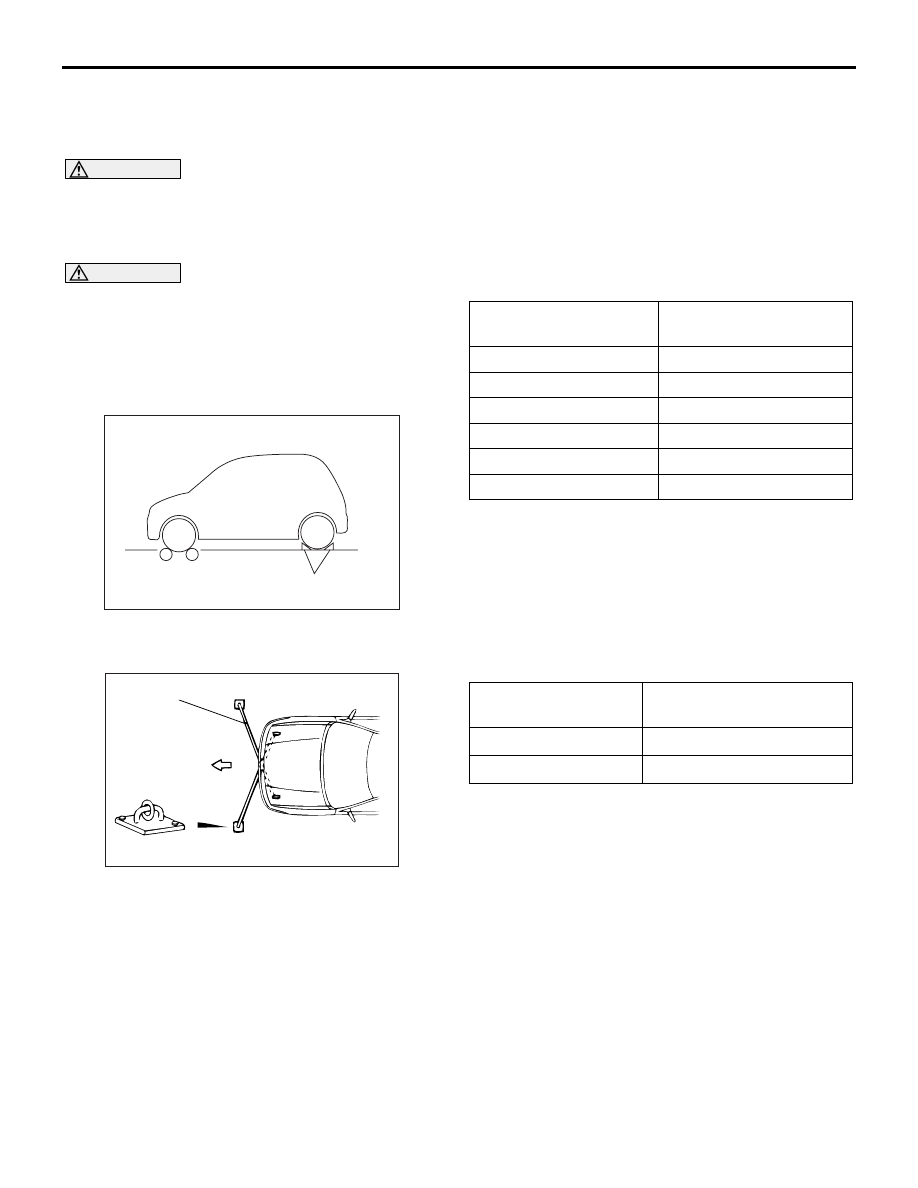

ON-VEHICLE SERVICE

CHECK THE SPEEDOMETER.

M1543000900553

CAUTION

Since the diagnosis code may be stored in the
ABS-ECU or the ASC-ECU when checking the
speedometer with speedometer tester, erase the
diagnosis code.

CAUTION

Do not accelerate or decelerate suddenly during
servicing work.
1. Check that the tyre pressure is within the tyre

pressure label. (Refer to GROUP 31 - On-vehicle
Service

P.31-8

2. Set the vehicle on the speedometer tester.

3. Chock the rear wheels and depress the parking

brake pedal.

4. To prevent the front wheel from moving from side

to side, attach tension bars to the tie-down hook,
and secure both ends to anchor plates.

5. To prevent the vehicle from moving, attach a chain

or wire to the rear retraction hook, and make sure
the end of the chain or wire is secured.

6. Check that the speedometer indicating range is

within the standard value or the needle fluctuation
is within the limit.

Standard value:

Limit: Needle fluctuation (Driving speed is 35
km/h (21 mph) or more)

± 3 km/h (1 mph)

TACHOMETER CHECK

M1543001000531

Check that the tachometer indicating error is within
the standard value when the actuator tests (item
No.85 and 86) are performed using MUT-III.

Standard value:

FUEL TANK GAUGE UNIT CHECK

M1543001200676

Remove the fuel tank gauge unit and fuel tank pump
and gauge unit assembly (Refer to GROUP 13B,
Fuel Tank

P.13B-5

AC105247AB

Wheel chocks

AC001288

Tension bar

Front

Anchor plate

Standard indicator
km/h (mph)

Allowance range km/h
(mph)

20 (10)

− 24 (10 − 12)

40 (25)

− 44 (25 − 27)

80 (50)

− 85 (50 − 53)

120 (75)

121

− 127 (76 − 80)

160 (100)

162

− 169 (101 − 106)

200 (125)

203

− 211 (127 − 132)

Engine speed r/min

Tachometer indicating
error r/min

2000

± 100

5000

± 200

COMBINATION METER

CHASSIS ELECTRICAL

54A-82

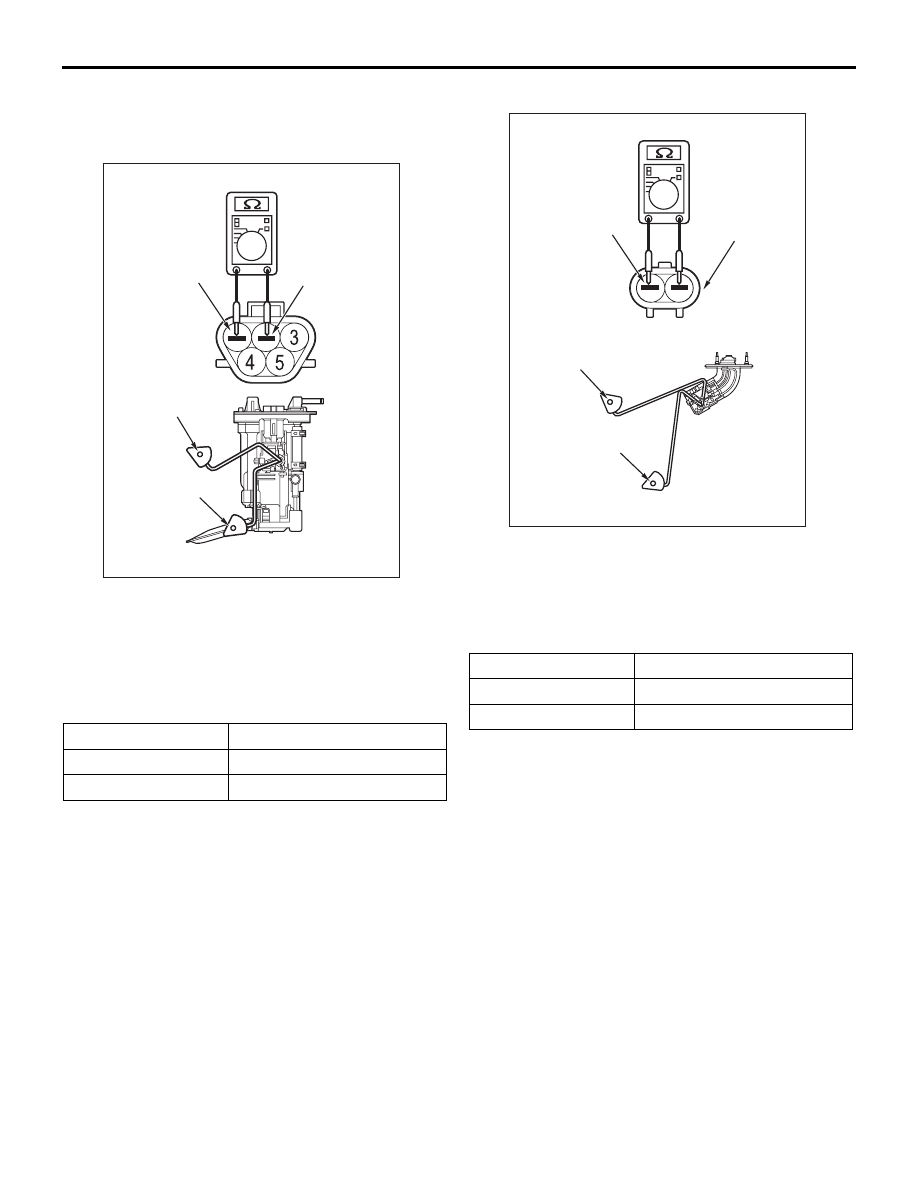

FUEL TANK GAUGE UNIT RESISTANCE
FUEL TANK PUMP AND GAUGE UNIT
ASSEMBLY

1. Check that the resistance value between the fuel

tank pump and gauge unit assembly terminal and
the earth terminal is at the standard value when
the float of the fuel tank pump and gauge unit
assembly is at the F position and the E position.

Standard values:

2. Check that the resistance value changes

smoothly when the float is moved slowly between
the F position and the E position.

3. If all checks are correct, go to fuel tank pump and

gauge unit assembly float height check. If any
check is not correct, replace the fuel tank pump
and gauge unit assembly.

FUEL TANK GAUGE UNIT

1. Check that the resistance value between the fuel

tank gauge unit terminal and earth terminal is at
the standard value when the float of the fuel tank
gauge unit is at the F position and the E position.

Standard values:

2. Check that the resistance value changes

smoothly when the float moved slowly between
the F position and the E position.

3. If all checks are correct, go to fuel tank gauge unit

float height check. If any check is not correct,
replace the fuel tank gauge unit.

Float Position

Gauge resistance value

F position

6.5

± 1 Ω

E position

53.2

± 1 Ω

AC312741AB

Fuel tank pump
and gauge unit
assembly

Earth

F position

E position

Float Position

Gauge resistance value

F position

6.5

± 1 Ω

E position

66.8

± 1 Ω

AC312742 AB

Fuel tank
gauge unit

Earth

F position

E position
