COMBINATION METER

CHASSIS ELECTRICAL

54A-31

REMOVAL SERVICE POINT

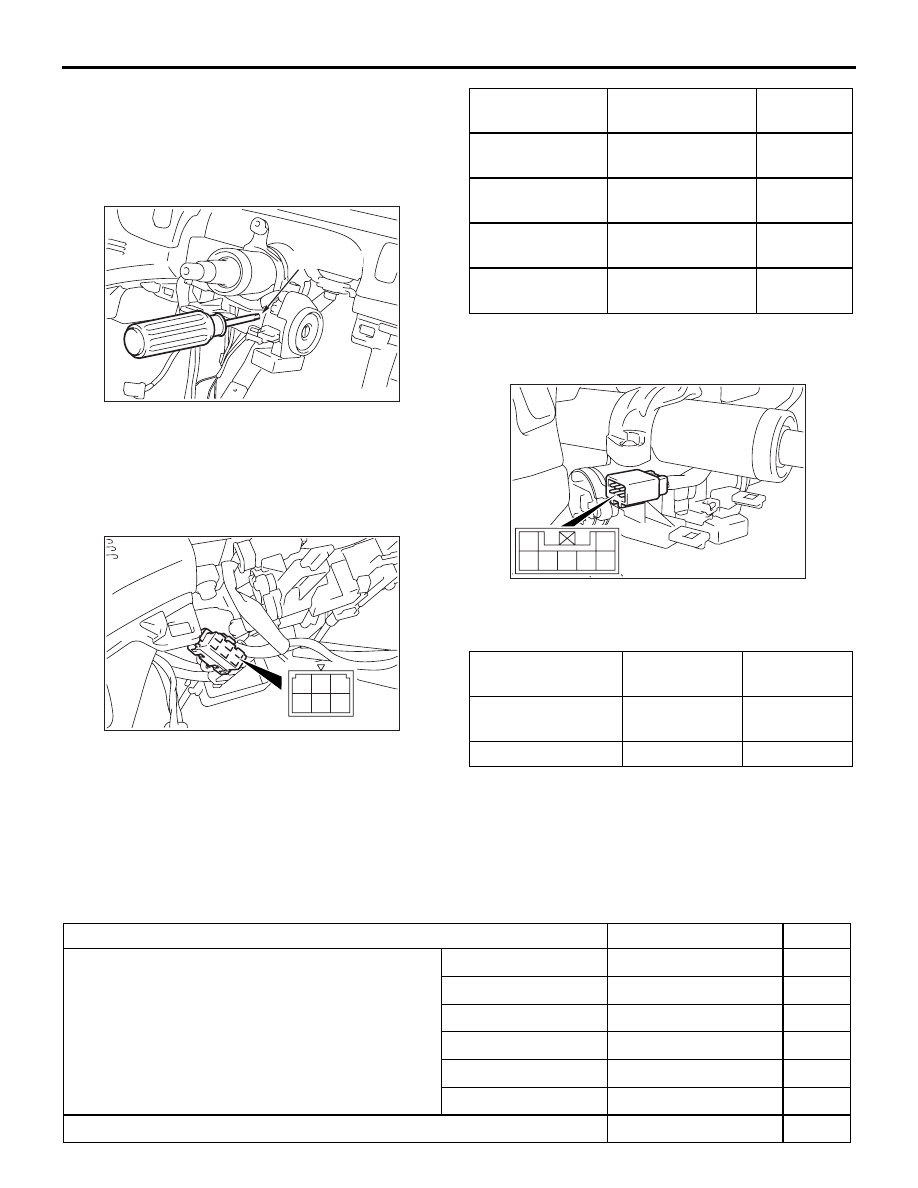

<<A>> STEERING LOCK CYLINDER
REMOVAL

1. Insert the key in the steering lock cylinder and turn

it to the "ACC" position.

2. Using a small Phillips head screwdriver, pull the

steering lock cylinder toward you.

INSPECTION

M1543019502827

IGNITION SWITCH CONTINUITY CHECK

Disconnect ignition switch connector C-307 without
removing the ignition switch. Then check the
continuity.

KEY REMINDER SWITCH CONTINUITY
CHECK

Disconnect key reminder switch connector C-308
without removing the ignition switch and key
reminder switch. Then check the continuity.

COMBINATION METER

SERVICE SPECIFICATIONS

M1543000300465

AC302621AB

Lock pin

AC302623

3
6

1
4

2
5

AB

Switch position Tester

connection

Specified
condition

"LOCK" (OFF)

− 2, 1 − 4, 1 − 5,

− 6

Open
circuit

"ACC"

− 6

Less than 2
ohms

"ON"

− 2, 1 − 4, 1 − 6,

− 4, 2 − 6, 4 − 6

Less than 2
ohms

"START"

− 2, 1 − 5, 2 − 5

Less than 2
ohms

Status of ignition
key

Tester
connection

Specified
condition

Removed

− 6

Less than 2
ohms

Inserted

− 6

Open circuit

AC302622

6

2
7

5

1
3 4

AB

Item

Standard value

Limit

Speedometer indicating range km/h (mph)

20 (10)

20

− 24 (10 − 12)

40 (25)

40

− 44 (25 − 27)

80 (50)

80

− 85 (50 − 53)

120 (75)

121

− 127 (76 − 80)

160 (100)

162

− 169 (101 − 106) −

200 (125)

203

− 211 (127 − 132) −

The voltmeter needle fluctuation km/h (Vehicle speed is 35km/h or more)  −

± 3

COMBINATION METER

CHASSIS ELECTRICAL

54A-32

Tachometer indicating error r/min

2,000

± 100

6,000

± 200

Fuel tank pump and gauge unit assembly
resistance

Float position F
(highest)

6.5

± 1

Float position E
(lowest)

53.2

± 1

Fuel tank gauge unit assembly resistance

Float position F
(highest)

6.5

± 1

Float position E
(lowest)

66.8

± 1

Fuel tank pump and gauge unit assembly float
height mm

Float position F (A)

57.6

± 3

Float position E (B)

158.4

± 3

Fuel tank gauge unit float height mm

Float position F (A)

57.0

± 3

Float position E (B)

180.2

± 3

Item

Standard value

Limit

COMBINATION METER

CHASSIS ELECTRICAL

54A-33

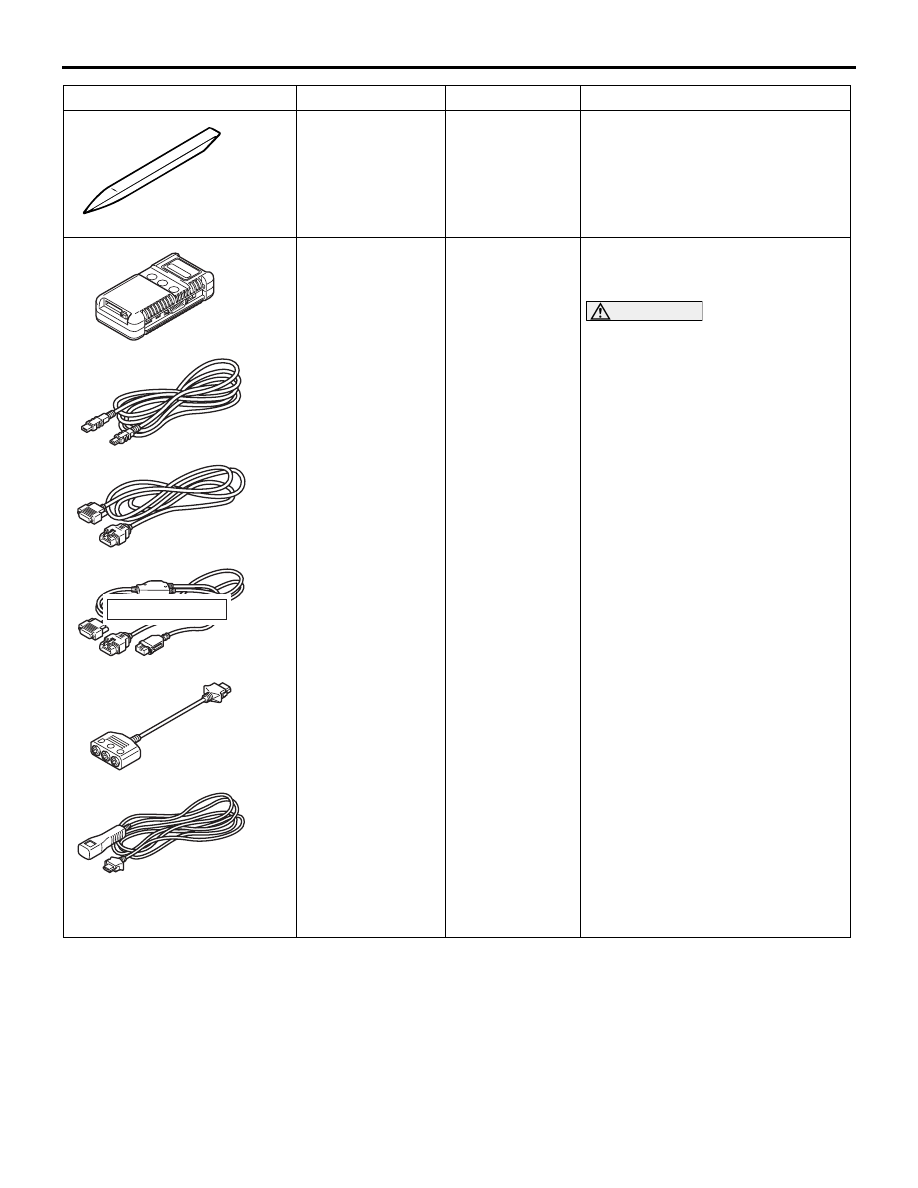

SPECIAL TOOLS

M1543000602042

COMBINATION METER

CHASSIS ELECTRICAL

54A-34

Tool

Number

Name

Application

MB990784

Ornament
remover

Removal of meter bezel

MB991955
A: MB991824
B: MB991827
C: MB991910
D: MB991911
E: MB991825
F: MB991826

MUT-III
sub-assembly

A: (V. C.I.)

Vehicle
communicatio
n interface

B: MUT-III USB

cable

C: MUT-III Main

harness A
(Vehicles with
CAN
communicatio
n system)

D: MUT-III Main

harness B
(Vehicles
without CAN
communicatio
n system)

E: MUT-III

Measurement
adapter

F: MUT-III

Trigger
harness

Combination meter (incorporating
the meter-ECU) check (Diagnosis
code, service data, actuator test)

CAUTION

For vehicles with CAN
communication, use MUT-III main
harness A to send simulated
vehicle speed. If you connect
MUT-III main harness B instead,
the CAN communication does
not function correctly.

MB990784

MB991910

MB991826

MB991955

MB991911

MB991824

MB991827

MB991825

A

B

C

D

E

F

DO NOT USED
