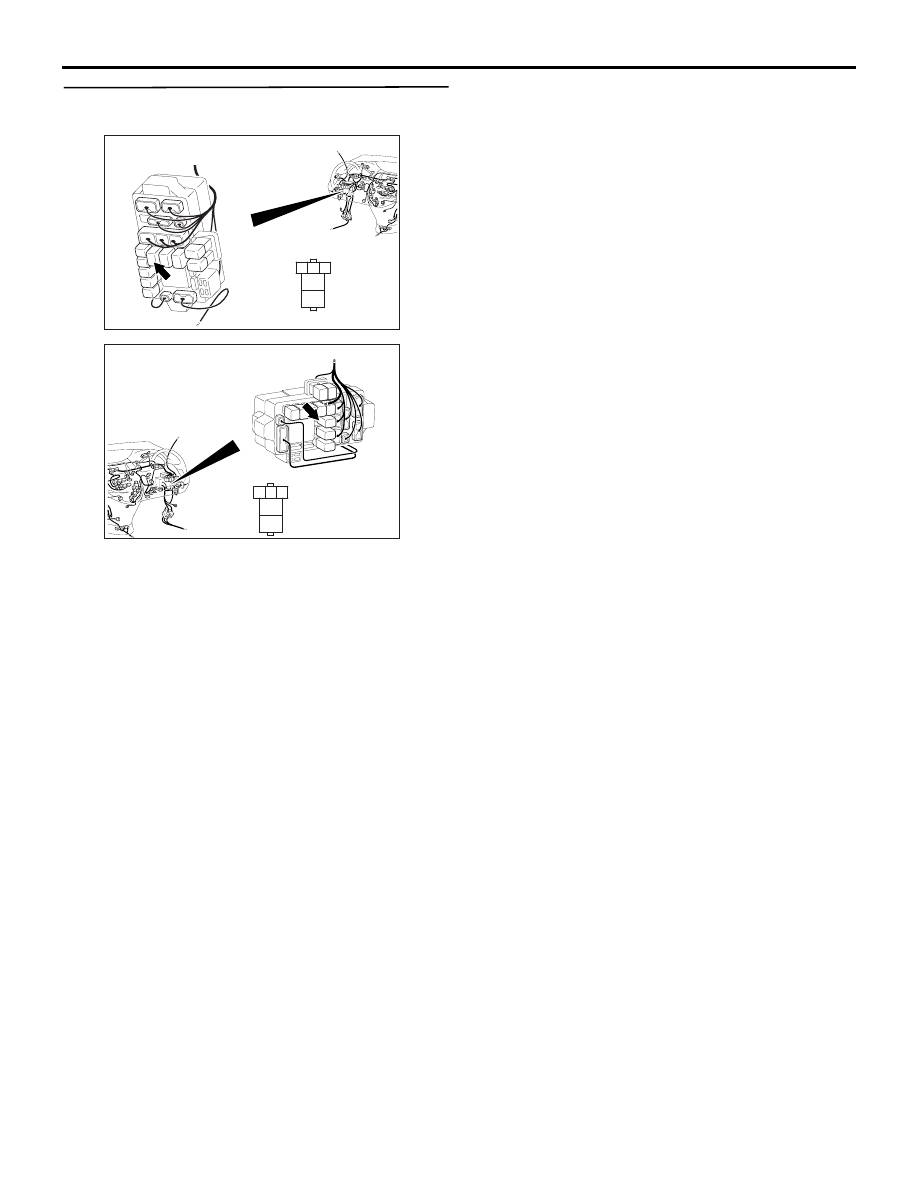

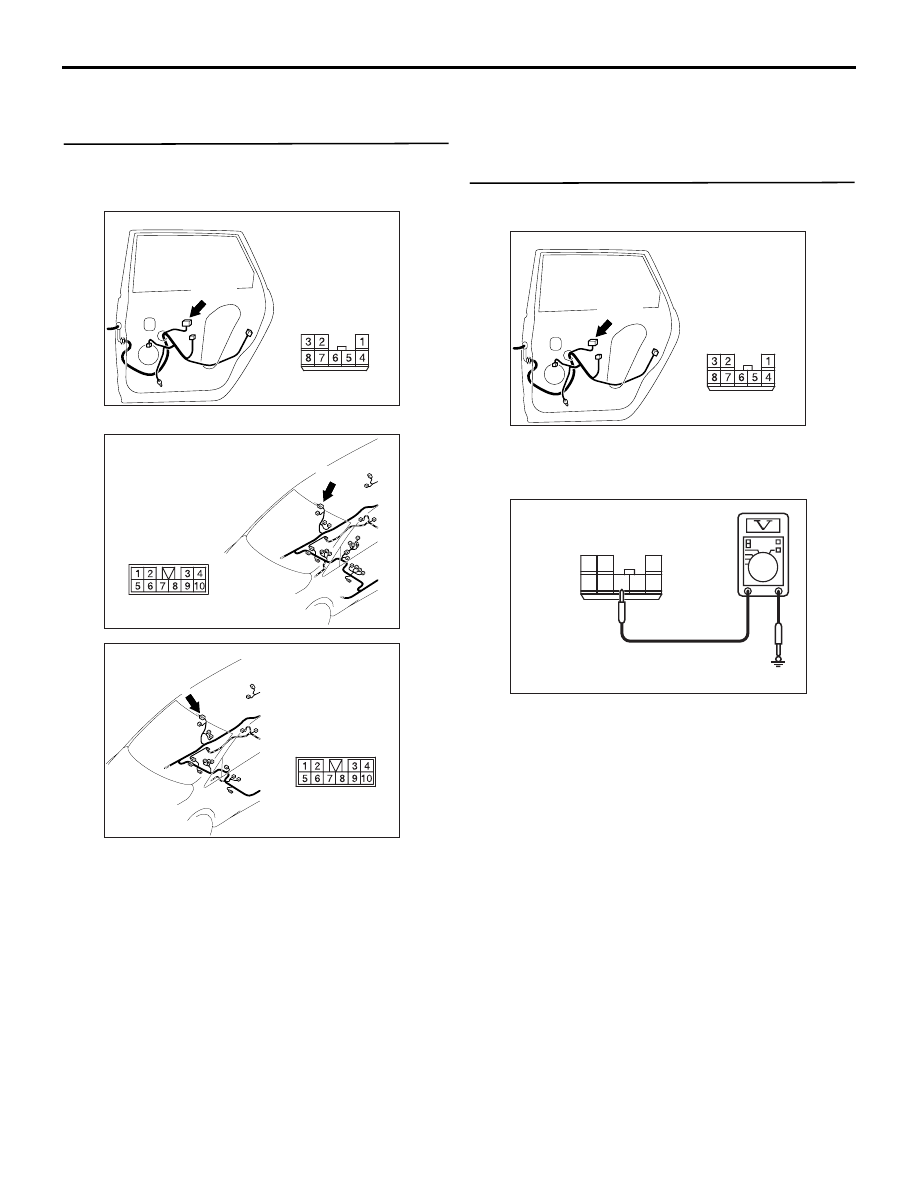

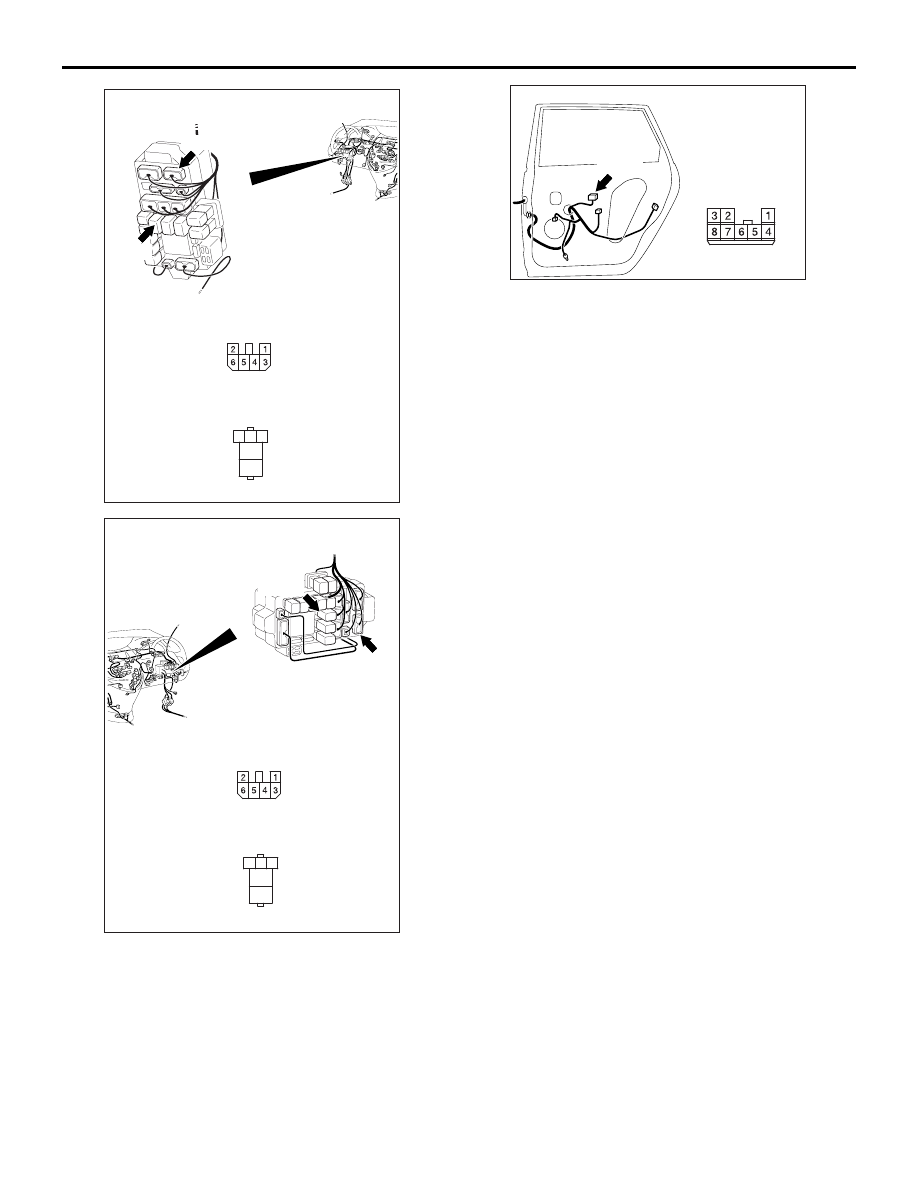

SYMPTOM PROCEDURES SMART WIRING SYSTEM (SWS) USING SWS MONITOR 54C-146 YES : Go to Step 24. NO : Go to Step 23. Step 23. Check the wiring harness from F-18 NOTE: Prior to the wiring harness inspection, check • Check the earth wires for open circuit. Q: Is the check result normal? YES : The trouble can be an intermittent malfunction (Refer to GROUP 00 − How to Cope with Intermittent Malfunction NO : Repair the wiring harness. Step 24. Voltage measurement at F-18 power (1) Disconnect the connector, and measure at the wiring harness side. (2) Turn the ignition switch to the ON position. (3) Voltage between terminal 4 and body earth OK: System voltage Q: Is the check result normal? YES : Go to Step 27. NO : Go to Step 25. AC310216 Connector: F-18 F-18(B) AB Harness side AC310633 AB Connector: D-03 <LHD> D-03(B) AC310205 AB Connector: D-03 <RHD> D-03(B) AC310216 Connector: F-18 F-18(B) AB Harness side 1 4 5 3 2 7 6 8 AC311361 Connector F-18 AB |
