Mitsubishi Grandis. Manual - part 169

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-138

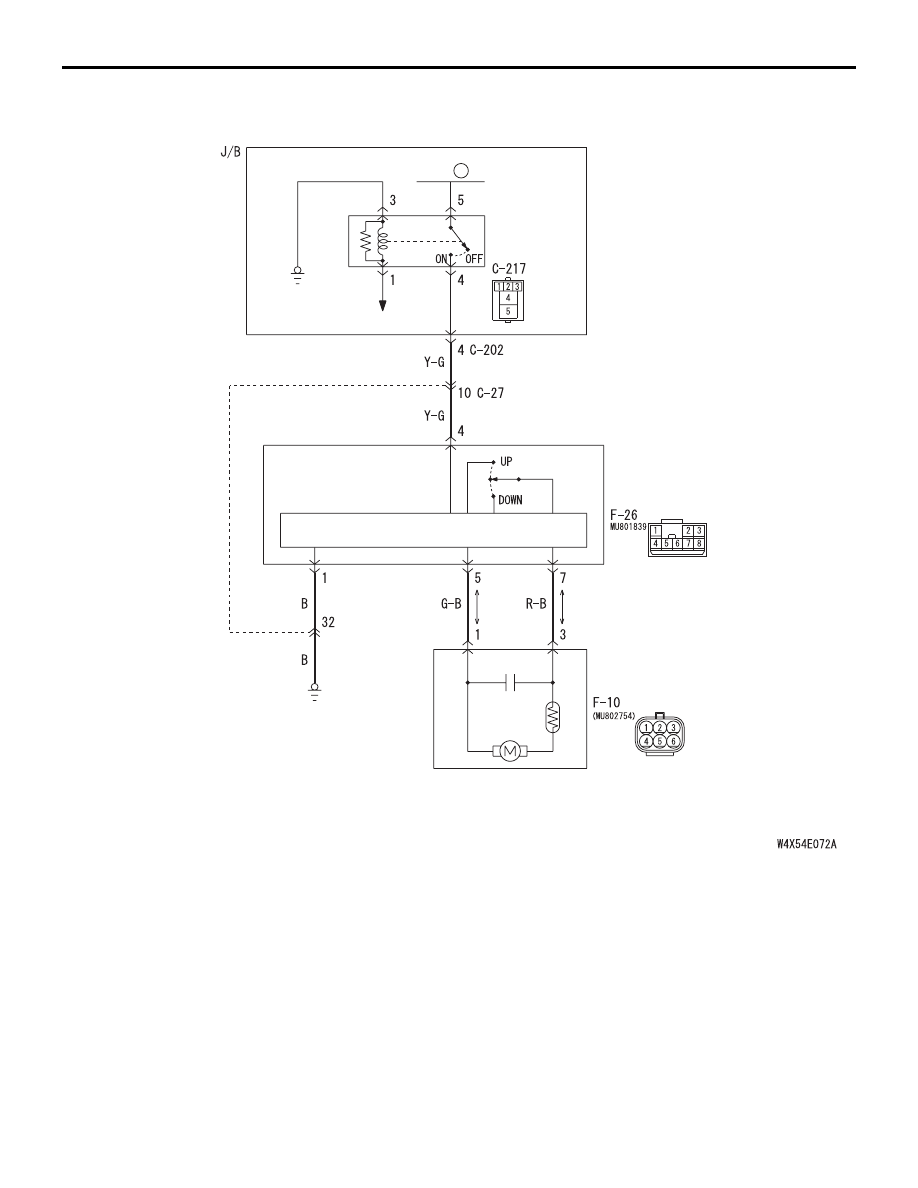

Power Window (front: LH) Circuit <RHD>

FUSIBLE
LINK

5

POWER
WINDOW
RELAY

CPU

POWER
WINDOW
SUB SWITCH

POWER WINDOW
MOTOR

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

ETACS-
ECU

(FRONT: LH)

(FRONT: LH)

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-139

COMMENTS ON TROUBLE SYMPTOM

If the front passenger's or rear power window does
not work by means of the respective power window
sub switch, the power window sub switch or the
power window motor may be defective.

POSSIBLE CAUSES <LH DRIVE
VEHICLES>

• Malfunction of the power window sub switch

(front: RH), the power window sub switch (rear:
RH) or the power window sub switch (rear: LH)

• Malfunction of the power window motor (front:

RH), the power window motor (rear: RH) or the
power window motor (rear: LH)

• Damaged harness wires and connectors

POSSIBLE CAUSES <RH DRIVE
VEHICLES>

• Malfunction of the power window sub switch

(front: LH), the power window sub switch (rear:
RH) or the power window sub switch (rear: LH)

FUSIBLE
LINK

5

POWER
WINDOW
RELAY

ETACS-ECU

POWER
WINDOW
SUB SWITCH
(REAR: LH)

POWER
WINDOW
MOTOR
(REAR: LH)

POWER
WINDOW
SUB SWITCH
(REAR: RH)

POWER
WINDOW
MOTOR
(REAR: RH)

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

CPU

CPU

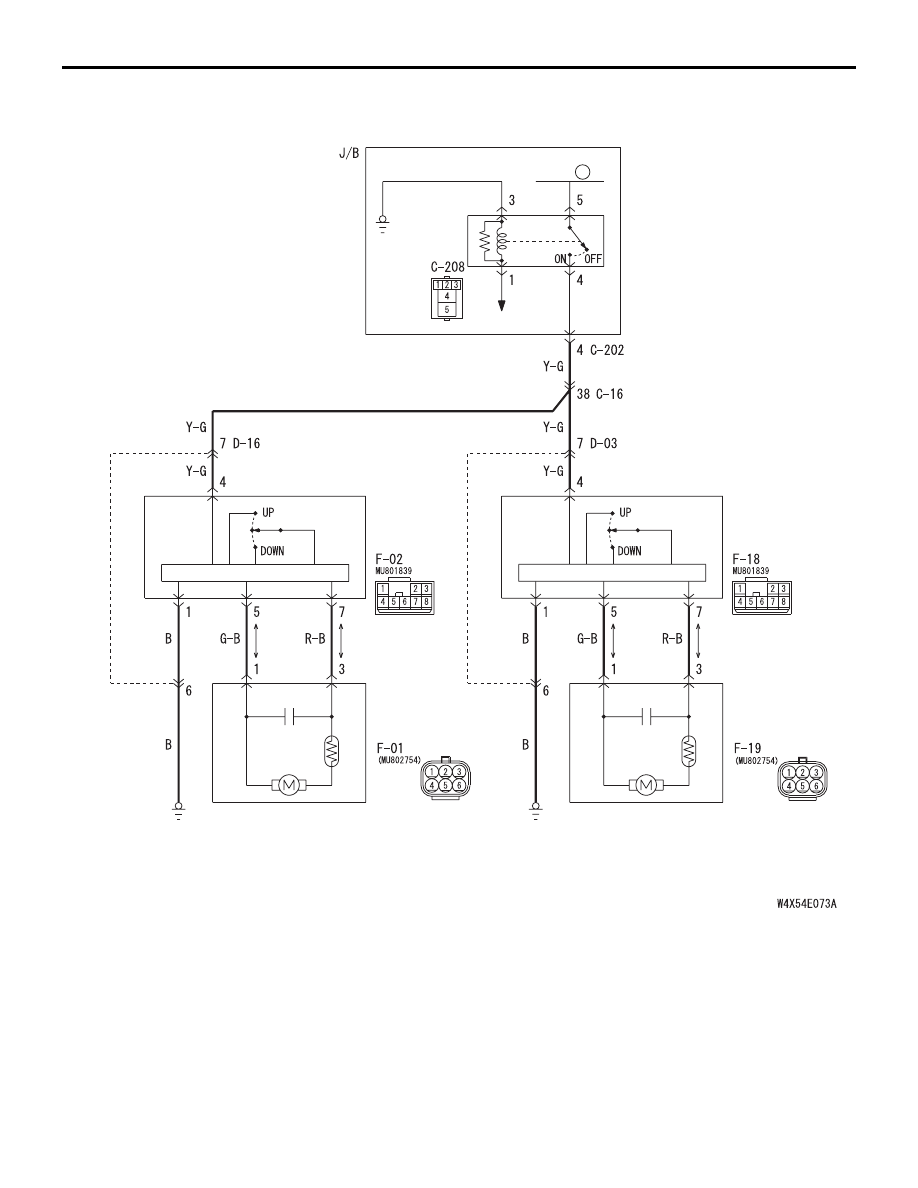

Power Window (rear) Circuit

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-140

• Malfunction of the power window motor (front:

LH), the power window motor (rear: RH) or the
power window motor (rear: LH)

• Damaged harness wires and connectors

DIAGNOSIS PROCEDURE

Step 1. Check the power window main switch.

Check that the power window lock switch is turned
off.

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Turn off the power window lock switch.

Step 2. Determine a trouble spot.

Q: Which power window does not work?

Passenger's door <LH drive vehicles> :

Go to Step

3.

Passenger's door <RH drive vehicles> :

Go to Step

12.

Rear right door :

Go to Step 21.

Rear left door :

Go to Step 30.

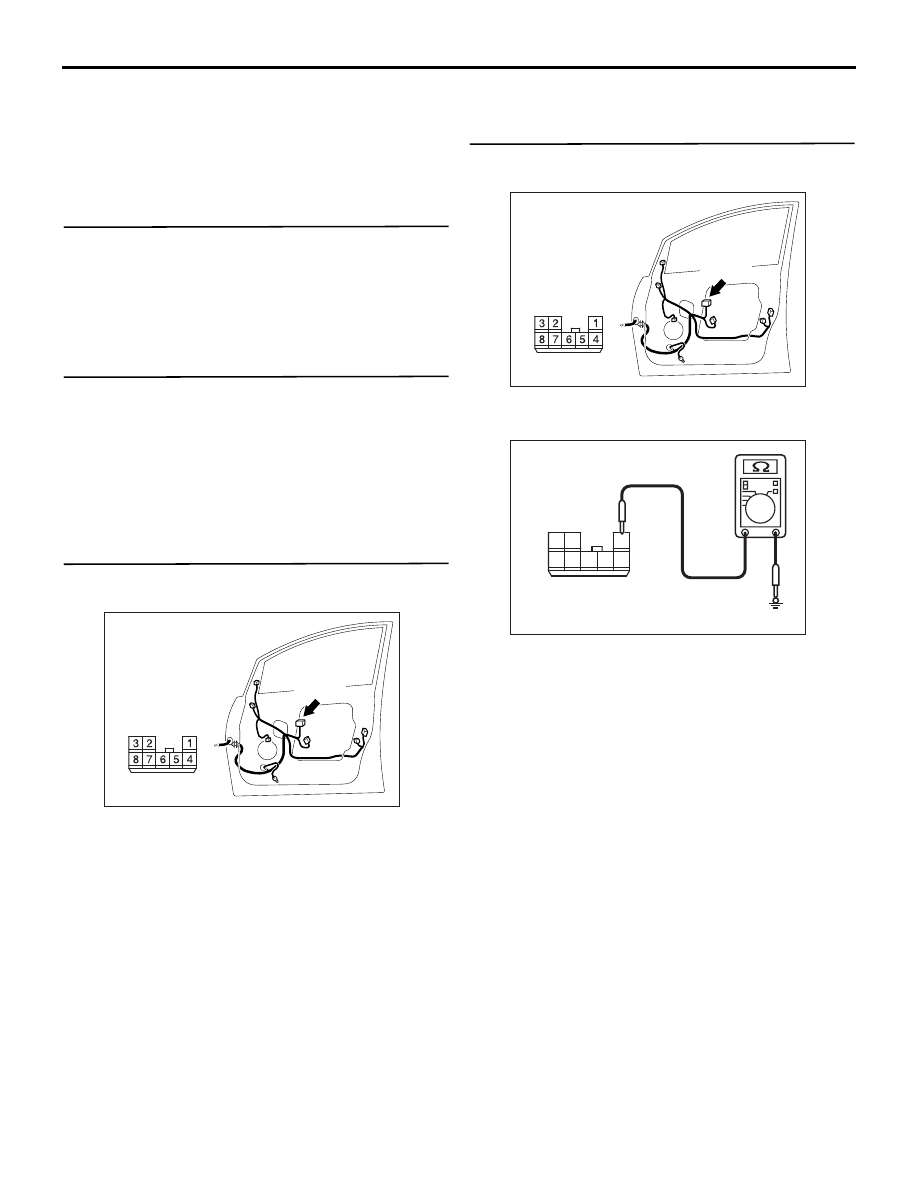

Step 3. Connector check: F-15 power window sub
switch (front: RH) connector

Q: Is the check result normal?

YES :

Go to Step 4.

NO :

Repair the connector.

Step 4. Resistance measurement at F-15 power
window sub switch (front: RH) connector.

(1) Disconnect the connector, and measure at the

wiring harness side.

(2) Resistance between terminal No.1 and body

earth.

OK: 2

Ω or less

Q: Is the check result normal?

YES :

Go to Step 6.

NO :

Go to Step 5.

AC311147

AB

Connector: F-15

<LHD>

Harness side

F-15(B)

AC311147

AB

Connector: F-15

<LHD>

Harness side

F-15(B)

1

4

5

3 2

7 6

8

AC301474

Connector F-15
(Harness side)

AE

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-141

Step 5. Check the wiring harness from F-15
power window sub switch (front: RH) connector
terminal No.1 to body earth.

NOTE:

Prior to the wiring harness inspection, check
intermediate connector C-14 and repair if necessary.

• Check the earth wires for open circuit.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

Cope with Intermittent Malfunction

P.00-5

).

NO :

Repair the wiring harness.

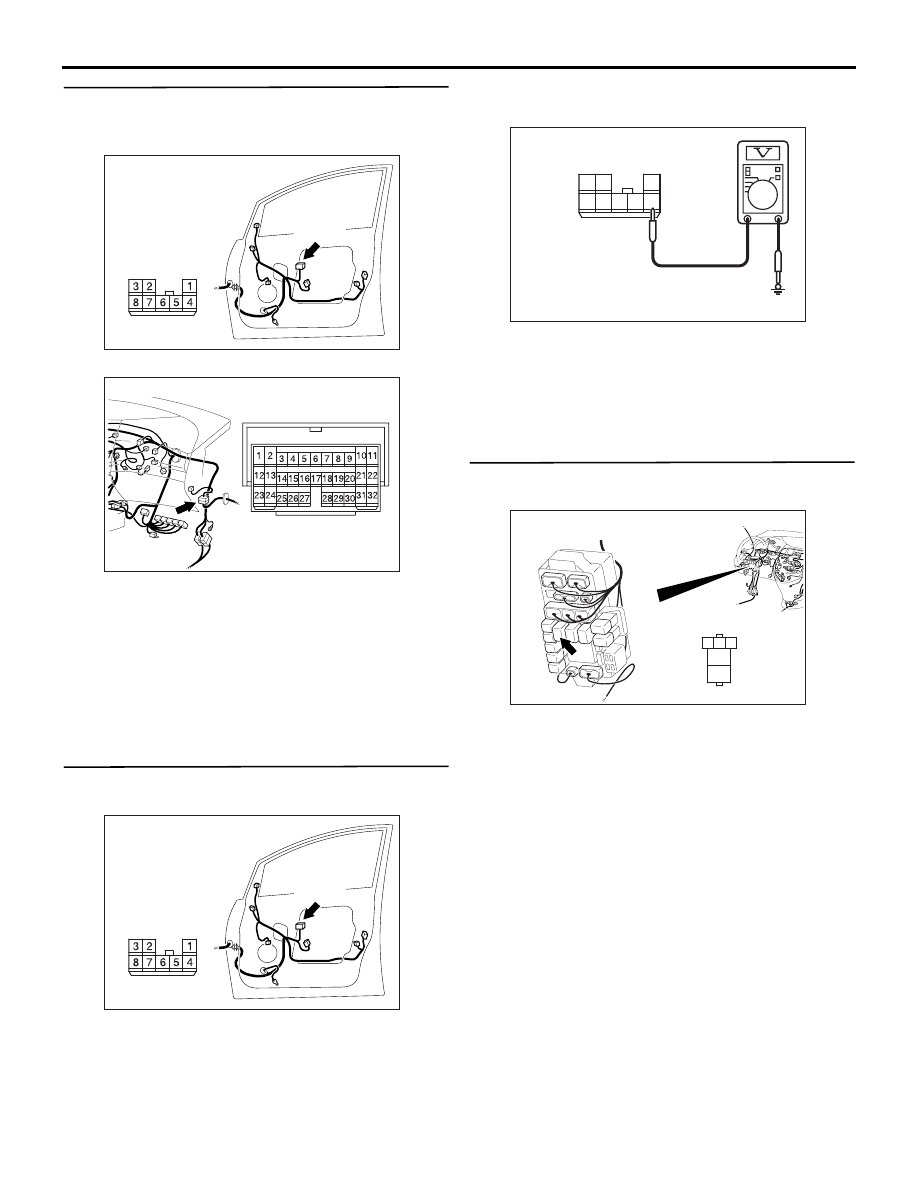

Step 6. Voltage measurement at F-15 power
window sub switch (front: RH) connector.

(1) Disconnect the connector, and measure at the

wiring harness side.

(2) Turn the ignition switch to the ON position.

(3) Voltage between terminal No.4 and body earth

OK: System voltage

Q: Is the check result normal?

YES :

Go to Step 9.

NO :

Go to Step 7.

Step 7. Connector check: C-217 power window
relay connector

Q: Is the check result normal?

YES :

Go to Step 8.

NO :

Repair the connector.

AC311147

AB

Connector: F-15

<LHD>

Harness side

F-15(B)

AC310615

AB

Connector: C-14 <LHD>

AC311147

AB

Connector: F-15

<LHD>

Harness side

F-15(B)

1

4

5

3 2

7 6

8

AC301470

Connector F-15
(Harness Side)

AE

AC310623

Connector: C-217

AB

3

4

5

1

2

Junction block side

<LHD>

Junction block (Front view)
