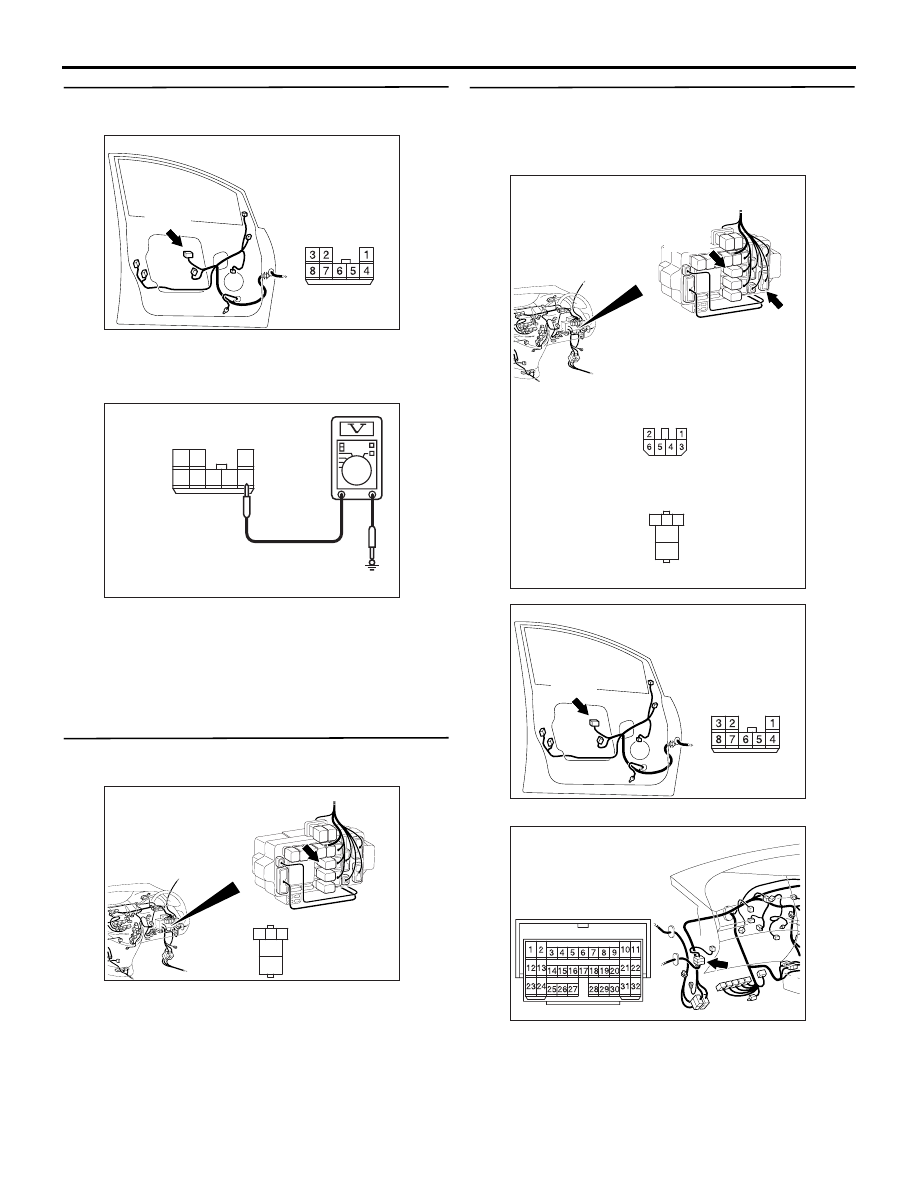

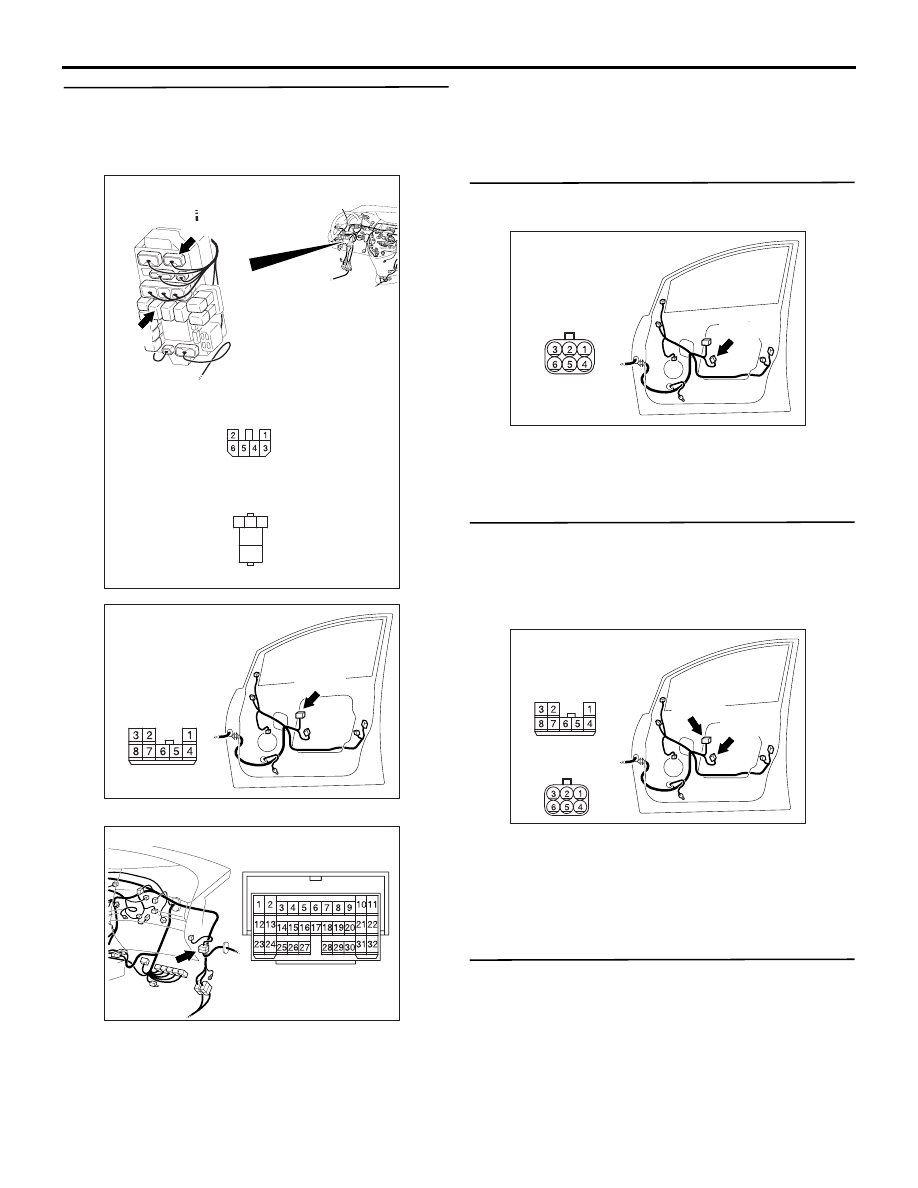

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-142

Step 8. Check the wiring harness from F-15
power window sub switch (front: LH) connector
terminal No.4 to C-217 power window connector
terminal No.4.

NOTE:

Prior to the wiring harness inspection, check
intermediate connectors C-14 and junction block
connector C-202, and repair if necessary.

• Check the power supply line for open circuit.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

Cope with Intermittent Malfunction

P.00-5

).

NO :

Repair the wiring harness.

Step 9. Connector check: F-16 power window
motor (front: RH) connector.

Q: Is the check result normal?

YES :

Go to Step 10.

NO :

Repair the connector.

Step 10. Check the wiring harness from F-16
power window motor (front: RH) connector
terminal Nos.1 and 3 to F-15 power window sub
switch (front: RH) connector terminal Nos.5 and
7.

• Check the input and output lines for open or short

circuit.

Q: Is the check result normal?

YES :

Go to Step 11.

NO :

Repair the wiring harness.

Step 11. Retest the system.

After the power window sub switch (front: RH) is
replaced, check that the front passenger's door
power window can be operated by the power window
sub switch (front: RH).
(1) Replace the power window sub switch (front:

RH).

(2) Check that the front passenger's door power

window can be operated by the power window

AC310624

Connector: C-202, C-217

AB

3

4

5

1

2

Junction block side

<LHD>

Junction block (Front view)

C-217

C-202

C-217

C-202

Harness side

AC311147

AB

Connector: F-15

<LHD>

Harness side

F-15(B)

AC310615

AB

Connector: C-14 <LHD>

AC311147

AC

Connector: F-16

Harness side

<LHD>

F-16(B)

AC311147

AD

Connectors: F-15, F-16

Harness side

F-15(B)

Harness side

F-16(B)

F-15

F-16

<LHD>

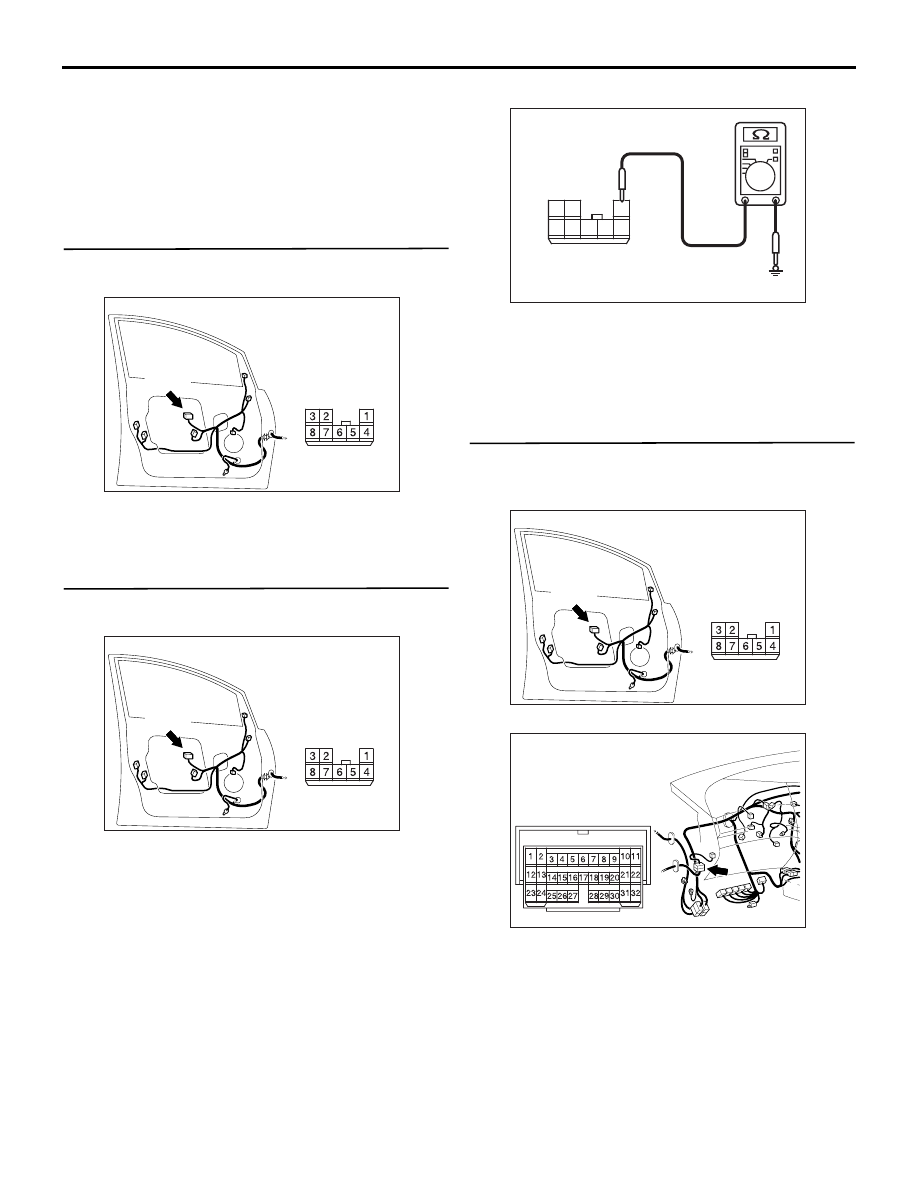

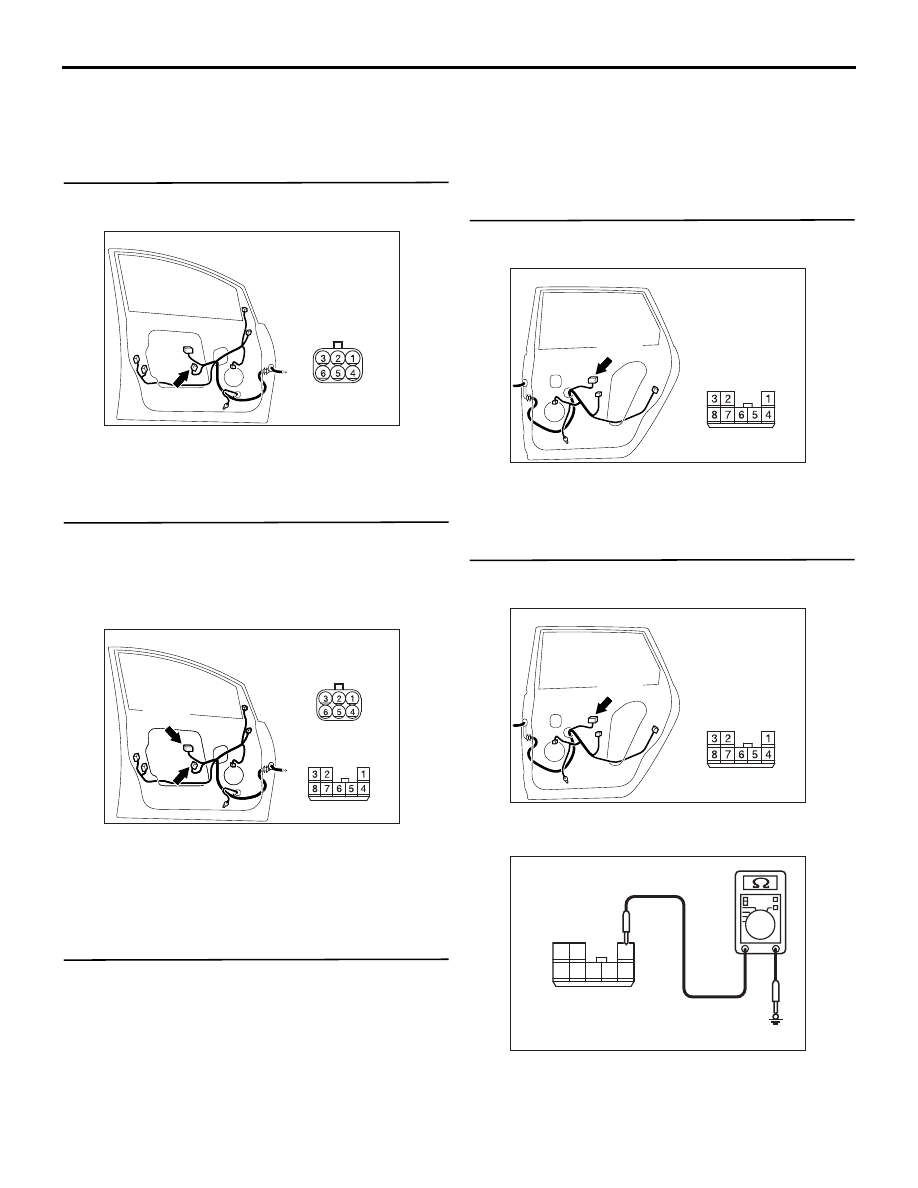

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-143

sub switch (front: RH).

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

Cope with Intermittent Malfunction

P.00-5

).

NO :

Replace the power window motor assembly
(front: RH).

Step 12. Connector check: F-26 power window
sub switch (front: LH) connector.

Q: Is the check result normal?

YES :

Go to Step 13.

NO :

Repair the connector.

Step 13. Resistance measurement at F-26 power
window sub switch (front: LH) connector.

(1) Disconnect the connector, and measure at the

wiring harness side.

(2) Resistance between terminal 1 and body earth

OK: 2

Ω or less

Q: Is the check result normal?

YES :

Go to Step 15.

NO :

Go to Step 14.

Step 14. Check the wiring harness from F-26
power window sub switch (front: LH) terminal
No.1 to body earth.

NOTE:

Prior to the wiring harness inspection, check
intermediate connector C-27 and repair if necessary.

• Check the earth wires for open circuit.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

Cope with Intermittent Malfunction

P.00-5

).

NO :

Repair the wiring harness.

AC310211

AB

Connector: F-26

Harness side

<RHD>

F-26(B)

AC310211

AB

Connector: F-26

Harness side

<RHD>

F-26(B)

1

4

5

3 2

7 6

8

AC301474

Connector F-26
(Harness side)

AF

AC310211

AB

Connector: F-26

Harness side

<RHD>

F-26(B)

AC310628AC

Connector: C-27 <RHD>

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-144

Step 15. Voltage measurement at F-26 power
window sub switch (front: LH) connector.

(1) Disconnect the connector, and measure at the

wiring harness side.

(2) Turn the ignition switch to the ON position.

(3) Voltage between terminal 4 and body earth

OK: System voltage

Q: Is the check result normal?

YES :

Go to Step 18.

NO :

Go to Step 16.

Step 16. Connector check: C-217 power window
relay connector.

Q: Is the check result normal?

YES :

Go to Step 17.

NO :

Repair the connector.

Step 17. Check the wiring harness from F-26
power window sub switch (front: LH) connector
terminal No.4 to C-217 power window connector
terminal No.4.

NOTE:

Prior to the wiring harness inspection, check
intermediate connectors C-27 and junction block
connector C-202, and repair if necessary.

• Check the power supply line for open circuit.

Q: Is the check result normal?

AC310211

AB

Connector: F-26

Harness side

<RHD>

F-26(B)

1

4

5

3 2

7 6

8

AC301470

Connector F-26
(Harness Side)

AF

AC310618

Connector: C-217

3

4

5

1

2

Junction block side

<RHD>

Junction block (Front view)

AB

AC310619

Connector: C-202, C-217

AB

3

4

5

1

2

Junction block side

<RHD>

Junction block (Front view)

C-217

C-202

C-217

C-202

Harness side

AC310211

AB

Connector: F-26

Harness side

<RHD>

F-26(B)

AC310628AC

Connector: C-27 <RHD>

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-145

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

Cope with Intermittent Malfunction

P.00-5

).

NO :

Repair the wiring harness.

Step 18. Connector check: F-10 power window
motor (front: LH) connector

Q: Is the check result normal?

YES :

Go to Step 19.

NO :

Repair the connector.

Step 19. Check the wiring harness from F-10
power window motor (front: LH) connector
terminal Nos.1 and 3 to F-26 power window sub
switch (front: LH) connector terminal Nos.5 and
7.

• Check the input and output lines for open or short

circuit.

Q: Is the check result normal?

YES :

Go to Step 20.

NO :

Repair the wiring harness.

Step 20. Retest the system.

After the power window sub switch (front: LH) is
replaced, check that the front passenger's door
power window can be operated by the power window
sub switch (front: LH).
(1) Replace the power window sub switch (front: LH).
(2) Check that the front passenger's door power

window can be operated by the power window
sub switch (front: LH).

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

Cope with Intermittent Malfunction

P.00-5

).

NO :

Replace the power window motor assembly
(front: LH).

Step 21. Connector check: F-18 power window
sub switch (rear: RH) connector.

Q: Is the check result normal?

YES :

Go to Step 22.

NO :

Repair the connector.

Step 22. Resistance measurement at F-18 power
window sub switch (rear: RH) connector.

(1) Disconnect the connector, and measure at the

wiring harness side.

(2) Resistance between terminal 1 and body earth

OK: 2

Ω or less

Q: Is the check result normal?

AC310211

AC

Connector: F-10

Harness side

<RHD>

F-10(B)

AC310211

AC310211

AD

Connectors: F-10, F-26 <RHD>

Harness side

F-10(B)

F-26(B)

Harness side

F-26

F-10

AC310216

Connector: F-18

F-18(B)

AB

Harness side

AC310216

Connector: F-18

F-18(B)

AB

Harness side

1

4

5

3 2

7 6

8

AC301472

Connector F-18
(Harness side)

AC
