SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-150

NOTE:

Prior to the wiring harness inspection, check
intermediate connectors C-16, D-03 and junction
block connector C-202, and repair if necessary.

• Check the power supply line for open circuit.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

Cope with Intermittent Malfunction

P.00-5

).

NO :

Repair the wiring harness.

Step 27. Connector check: F-19 power window
motor (rear: RH) connector.

Q: Is the check result normal?

YES :

Go to Step 28.

NO :

Repair the connector.

Step 28. Check the wiring harness from F-19
power window motor (rear: RH) connector
terminal Nos.1 and 3 to F-18 power window sub
switch (rear: RH) connector terminal Nos.5 and 7.

• Check the input and output lines for open or short

circuit.

Q: Is the check result normal?

YES :

Go to Step 29.

NO :

Repair the wiring harness.

Step 29. Retest the system.

After the power window sub switch (rear: RH) is
replaced, check that the rear right door power
window can be operated by the power window sub
switch (rear: RH).
(1) Replace the power window sub switch (rear: RH).
(2) Check that the rear right door power window can

be operated by the power window sub switch
(rear: RH).

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

Cope with Intermittent Malfunction

P.00-5

).

NO :

Replace the power window motor assembly
(rear: RH).

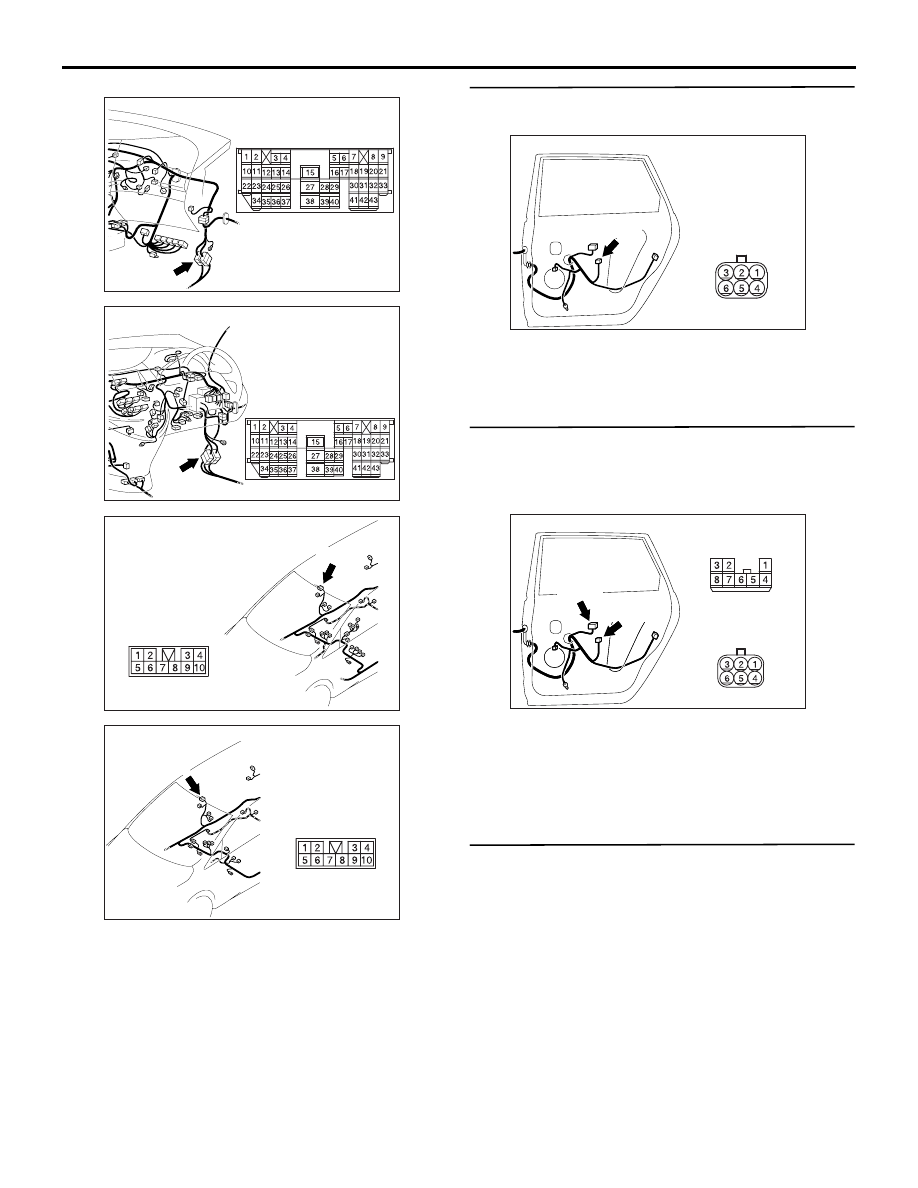

AC310615

AE

Connector: C-16 <LHD>

AC310631 AD

Connector: C-16 <RHD>

AC310633 AB

Connector: D-03 <LHD>

D-03(B)

AC310205

AB

Connector: D-03 <RHD>

D-03(B)

AC310216

Connector: F-19

F-19(B)

AC

Harness side

AC310216

AC310216

Connectors: F-18, F-19

F-18(B)

AD

Harness side

F-18

F-19(B)

Harness side

F-19

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-151

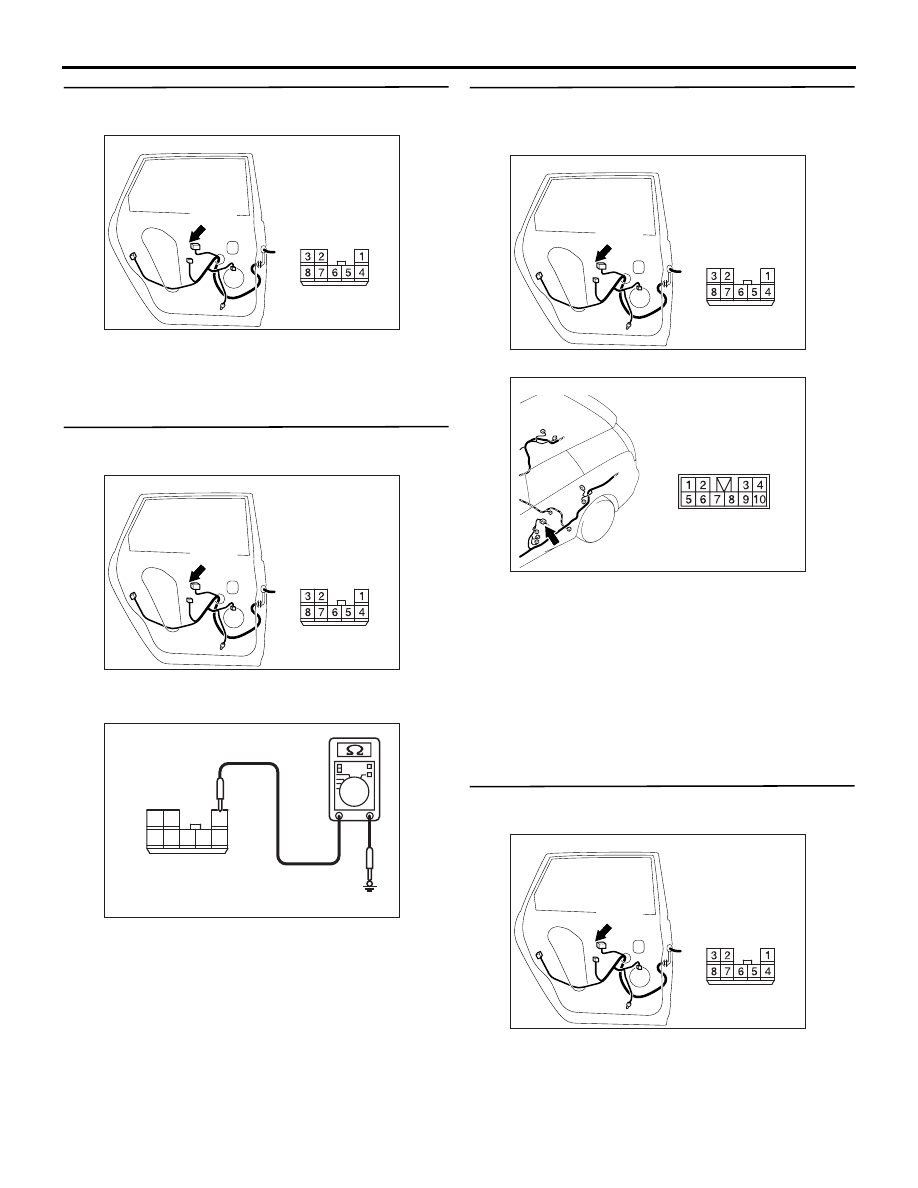

Step 30. Connector check: F-02 power window
sub switch (rear: LH) connector.

Q: Is the check result normal?

YES :

Go to Step 31.

NO :

Repair the connector.

Step 31. Resistance measurement at F-02 power
window sub switch (rear: LH) connector.

(1) Disconnect the connector, and measure at the

wiring harness side.

(2) Resistance between terminal 1 and body earth

OK: 2

Ω or less

Q: Is the check result normal?

YES :

Go to Step 33.

NO :

Go to Step 32.

Step 32. Check the wiring harness from F-02
power window sub switch (rear: LH) connector
terminal No.1 to body earth.

NOTE:

Prior to the wiring harness inspection, check
intermediate connectors D-16, and repair if
necessary.

• Check the earth wires for open circuit.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

Cope with Intermittent Malfunction

P.00-5

).

NO :

Repair the wiring harness.

Step 33. Voltage measurement at F-02 power
window sub switch (rear: LH) connector.

(1) Disconnect the connector, and measure at the

wiring harness side.

AC310209

Connector: F-02

F-02(B)

AB

Harness side

AC310209

Connector: F-02

F-02(B)

AB

Harness side

1

4

5

3 2

7 6

8

AC301461

Connector F-02
(Harness Side)

AC

AC310209

Connector: F-02

F-02(B)

AB

Harness side

AC310207

AB

Connector: D-16

AC310209

Connector: F-02

F-02(B)

AB

Harness side

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-152

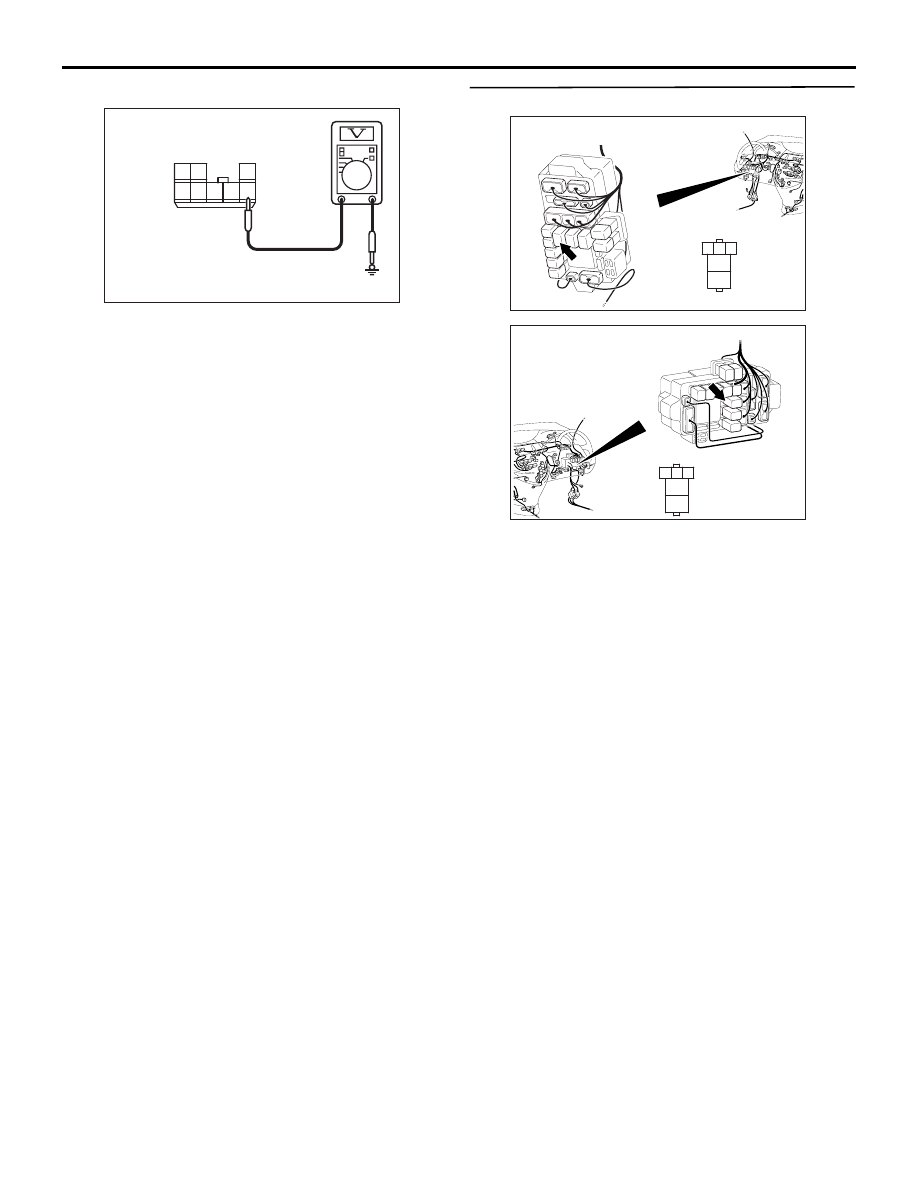

(2) Turn the ignition switch to the ON position.

(3) Voltage between terminal 4 and body earth

OK: System voltage

Q: Is the check result normal?

YES :

Go to Step 36.

NO :

Go to Step 34.

Step 34. C-217 power window relay connector.

Q: Is the check result normal?

YES :

Go to Step 35.

NO :

Repair the connector.

1

4

5

3 2

7 6

8

AC301462

Connector F-02
(Harness side)

AD

AC310623

Connector: C-217

AB

3

4

5

1

2

Junction block side

<LHD>

Junction block (Front view)

AC310618

Connector: C-217

3

4

5

1

2

Junction block side

<RHD>

Junction block (Front view)

AB

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-153

Step 35. Check the wiring harness from F-02
power window sub switch (rear: LH) connector
terminal No.4 to C-217 power window connector
terminal No.4.
