Mitsubishi L200. Manual - part 901





INSTRUMENT PANEL

CONFIGURATION DIAGRAMS

80-14

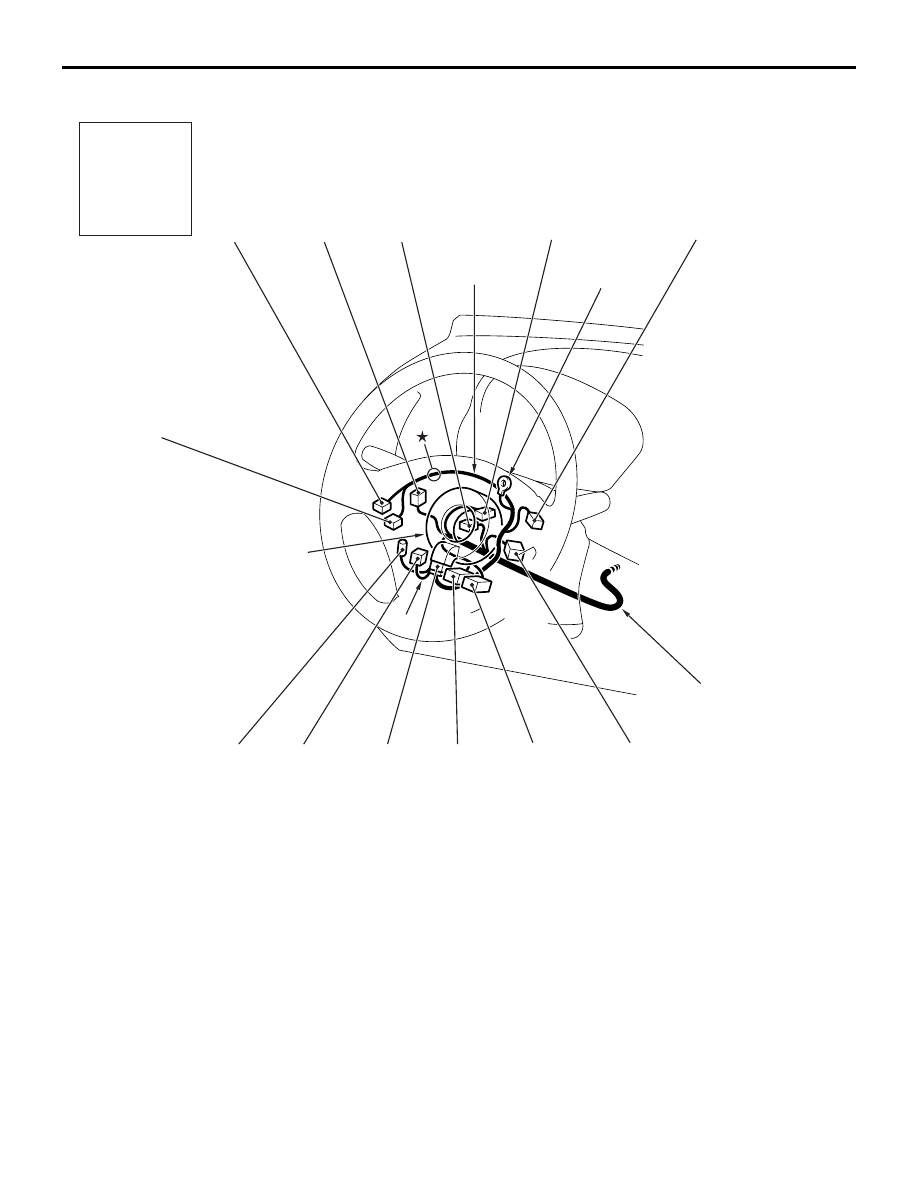

INSTRUMENT PANEL <LHD> (CONTINUED)

ACB01365

AB

C-301

Y

C-302

C-306

C-305

Instrument panel
wiring harness

<Steering column>

Connector
symbol

-301
thru
-312

C

C-309

C-308

C-311

C-307

C-310

Steering sub
wiring harness

Clock spring

Connector colour
code
B : Black
BR : Brown
G : Green
GR : Grey
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow

C-304

C-303

Steering
switch earth

C-312

C-301 (7)

Key reminder switch

C-302 (10)

Column switch

C-303 (2)

Driver’s air bag module (squib)

C-304 (1)

Horn switch

C-305 (4-Y)

Clock spring

C-306 (6-B)

Clock spring

C-307 (6)

Ignition switch

C-308 (5)

Steering wheel sensor <ASTC>

C-309 (4-L)

Cruise control switch

C-310 (5)

Clock spring and steering sub wiring
harness combination

C-311 (5-R)

Steering wheel audio remote control
switch

C-312 (4)

Steering wheel voice control switch

INSTRUMENT PANEL

CONFIGURATION DIAGRAMS

80-15

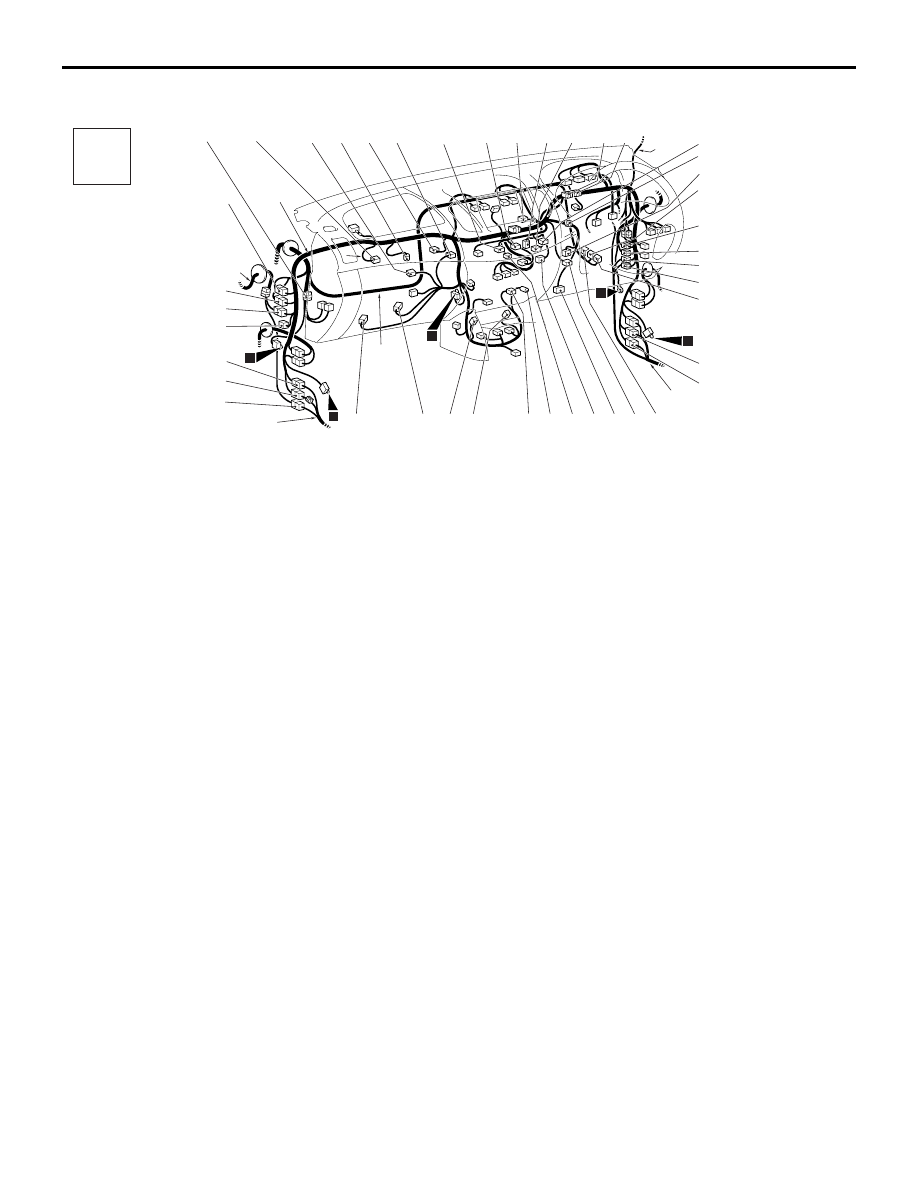

INSTRUMENT PANEL <RHD>

M1801000702459

ACB01795

Connector
symbol

-01
thru
-60

C

C-28

C-27

C-03

C-01

Front wiring
harness

Control
wiring
harness

Frame
wiring
harness

C-02

C-51

Instrument panel
wiring harness

C-35

C-34

C-33

C-32

C-31

C-30

C-29

7

11

8

Y

C-40

C-41

C-39

C-38

AB

C-13

C-14

C-12

C-10

C-06
C-44

C-21
C-45

C-23
C-46

Roof
wiring
harness

Floor
wiring
harness

C-07

C-25

C-60

C-49 C-22

C-24

C-50

10

9

C-05
C-43

C-48

C-19

C-20

C-47

C-08

C-09

Connector colour
code
B: Black
BR: Brown
G: Green
GR: Grey
L: Blue
NONE: Milk white
O: Orange
R: Red
V: Violet
Y: Yellow

C-59

C-58

C-15

C-16

C-01

(22-L)

J/C (CAN2)

C-02

(2-R)

Passenger’s (front) air bag module
(squib)

C-03

(2)

Glove box lamp

C-05

(12)

A/C switch module <Heater, manual
A/C>

C-06

(6)

Blower switch <Heater, manual A/
C>

C-07

(4)

Hazard warning switch

C-08

(12-B)

J/C (8)

C-09

(22-GR) J/C (7)

C-10

(12-GR) J/C (9)

C-12

(16)

A/T-ECU

C-13

(20)

Instrument panel wiring harness
and front wiring harness
combination

C-14

(16)

Instrument panel wiring harness
and front wiring harness
combination

C-15

(20)

Instrument panel wiring harness
and floor wiring harness
combination

C-16

(20)

Instrument panel wiring harness
and floor wiring harness
combination

C-19

(26)

A/T-ECU

C-20

(22)

A/T-ECU

C-21

(6)

A/C evaporator air outlet thermistor
<Manual A/C>

C-22

(16-B)

Diagnosis connector

C-23

(4)

A/C temperature control resister
<Manual A/C>

C-24

(2)

Down lamp

C-25

(2)

Cigarette lighter

C-27

(10)

4WD indicator-ECU

C-28

(2)

Blower motor

C-29

(20)

Frame wiring harness and front
wiring harness combination

C-30

(16)

Instrument panel wiring harness
and frame wiring harness
combination

C-31

(10)

Instrument panel wiring harness
and frame wiring harness
combination

C-32

(12-GR) J/C (6)

C-33

(14)

Instrument panel wiring harness
and front wiring harness
combination

C-34

(16)

Instrument panel wiring harness
and control wiring harness
combination

C-35

(24)

Instrument panel wiring harness
and control wiring harness
combination

C-38

(6-B)

Mode selection damper control
motor and potentiometer
<Automatic A/C>

C-39

(6-Y)

Passenger’s air bag cut off switch

C-40

(4)

Outside/ inside air selection damper
control motor <Automatic A/C>

C-41

(2)

No connection

C-43

(22)

A/C-ECU <Automatic A/C>

C-44

(14)

A/C-ECU <Automatic A/C>

C-45

(2)

Air thermo sensor <Automatic A/C>

C-46

(3)

Power transistor <Automatic A/C>

C-47

(1)

Parking brake switch <Stick type>

C-48

(2)

Interior temperature sensor
<Automatic A/C>

C-49

(6-B)

Air mixing damper control motor
and potentiometer <Automatic A/C>

C-50

(6)

Heated seat switch (RH)

C-51

(6)

Heated seat switch (LH)

C-58

(16)

Instrument panel wiring harness
and floor wiring harness
combination

INSTRUMENT PANEL

CONFIGURATION DIAGRAMS

80-16

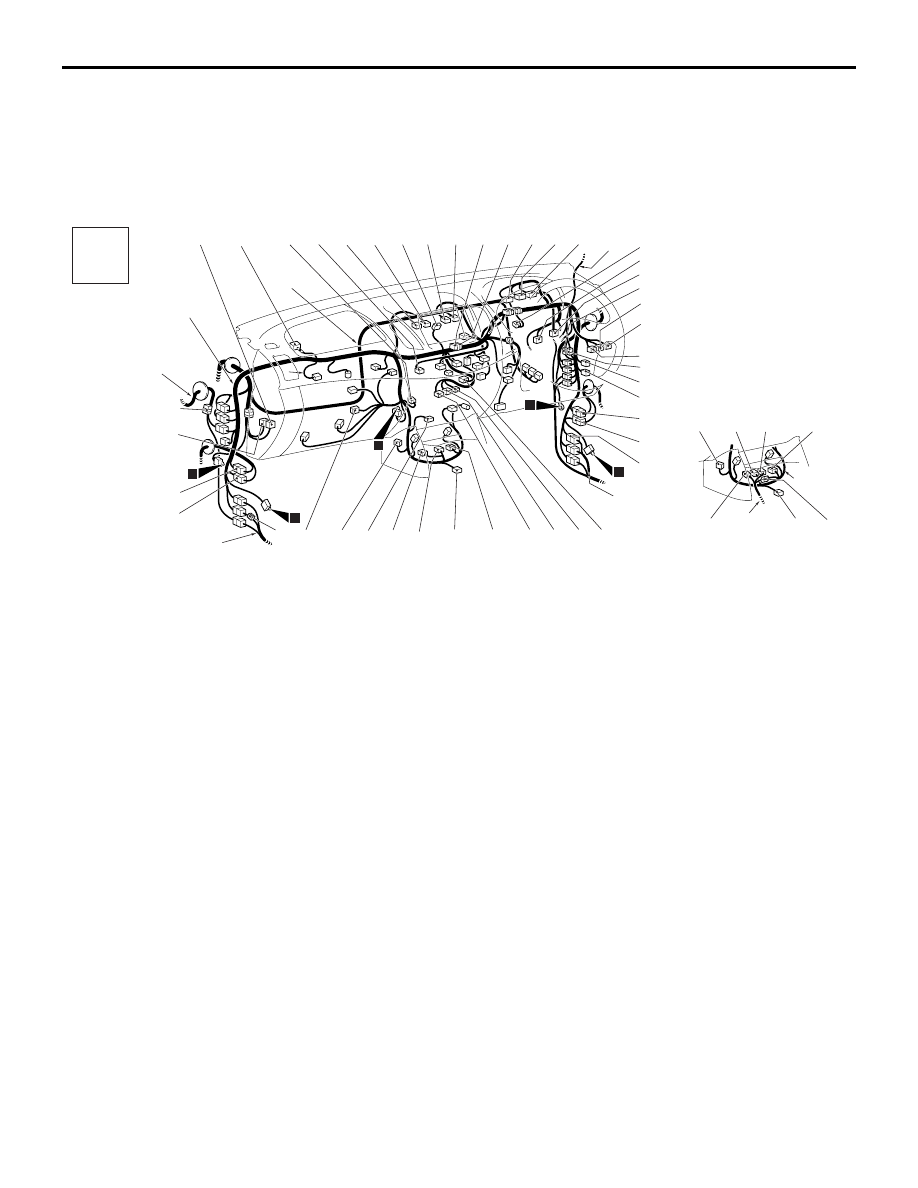

INSTRUMENT PANEL <RHD> (CONTINUED)

ACB01366

Connector
symbol

-103
thru
-174

C

C-145

C-127

C-103

Front wiring
harness

Control
wiring harness

Frame
wiring
harness

C-105

C-131

Instrument panel
wiring harness

C-147

C-134

C-133

7

11

8

Y

C-168

C-167

C-135

C-146

AB

C-118

C-119

C-120

C-122

C-121

C-117

C-137

C-138

Roof
wiring
harness

Floor
wiring
harness

C-114

C-125 C-107

C-126

C-128
C-144

C-130

C-166

10

9

C-171

C-169

C-170

C-123

C-139
C-140

C-141

C-115

C-112

C-111

C-113

C-143

C-129
C-172

<Vehicles with side-airbag>

C-154

C-153

C-155

C-128
C-144

C-129
C-172

C-156

C-127

Floor wiring
harness

Instrument panel
wiring harness

C-132

C-157

Connector colour
code
B: Black
BR: Brown
G: Green
GR: Grey
L: Blue
NONE: Milk white
O: Orange
R: Red
V: Violet
Y: Yellow

C-152

C-173
C-174

C-59

(20)

Instrument panel wiring harness
and floor wiring harness
combination

C-60

(1)

Roof antenna <Vehicles with
MMCS>

C-103 (58-B)

Engine-ECU

C-105 (96-B)

Engine-ECU

C-107 (1-B)

Radio or spare connector (for audio
system)

C-111 (14)

Combination meter

C-112 (12)

Combination meter

C-113 (24)

Combination meter

C-114 (4)

Stop lamp switch

C-115 (6-B)

Accelerator pedal position sensor

C-117 (6)

Instrument panel wiring harness
and roof wiring harness
combination

C-118 (10)

Remote controlled mirror switch

C-119 (22-GR) J/C (CAN1)
C-120 (12-L)

J/C (1)

C-121 (20)

Instrument panel wiring harness
and front door wiring harness (RH)
combination

C-122 (16)

Instrument panel wiring harness
and front door wiring harness (RH)
combination

C-123 (4-Y)

Instrument panel wiring harness
and floor wiring harness
combination

C-125 (14)

Radio and CD player or spare
connector (for audio system)

C-126 (22)

Radio and CD player or spare
connector (for audio system)

C-127 (22-GR) J/C (2)
C-128 (3-B)

G-sensor <ABS>

C-129 (8)

Overdrive switch <4A/T>

C-130 (22-Y)

SRS-ECU <Vehicles without side-
airbag>

C-131 (20-Y)

SRS-ECU <Vehicles without side-
airbag>

C-132 (22-GR) J/C (5)
C-133 (20)

Instrument panel wiring harness
and front door wiring harness (LH)
combination

C-134 (16)

Instrument panel wiring harness
and front door wiring harness (LH)
combination

C-135 (3)

Passenger’s air bag cut off indicator
lamp

C-137 (22-L)

J/C (3)

C-138 (22-L)

J/C (3)

C-139 (6)

Rear differential lock switch

C-140 (6)

ASC switch

C-141 (6-GR)

Headlamp levelling switch

C-143 (1)

Roof antenna <Vehicles without
MMCS>

C-144 (4-GR)

G and yaw rate sensor <ASTC>

C-145 (10-B)

Rear differential lock-ECU

C-146 (3)

Spare connector (for trailer)

C-147 (4)

Spare connector (for trailer)

C-152 (2)

Clutch switch <Cruise control
system-M/T>

C-153 (16-Y)

SRS-ECU <Vehicles with side-
airbag>

C-154 (23-Y)

SRS-ECU <Vehicles with side-
airbag>

INSTRUMENT PANEL

CONFIGURATION DIAGRAMS

80-17

C-155 (16-Y)

SRS-ECU <Vehicles with side-
airbag>

C-156 (4-Y)

Instrument panel wiring harness
and floor wiring harness
combination <Vehicles with side-
airbag>

C-157 (4-Y)

Instrument panel wiring harness
and roof wiring harness
combination

C-166 (8)

Rear panel power window switch

C-167 (32-GR) Multivision display <Vehicles with

MMCS>

C-168 (7-G)

Multivision display <Vehicles with
MMCS>

C-169 (5-GR)

Multivision display <Vehicles with
MMCS>

C-170 (17-GR) Multivision display <Vehicles with

MMCS>

C-171 (28-GR) RV meter
C-172 (8)

Shift switch assembly <5A/T>

C-173 (28)

Hands free-ECU

C-174 (28)

USB box
