ENGINE COMPARTMENT

CONFIGURATION DIAGRAMS

80-6

NOTE:

.

1. *

1

: 2-bulb type headlamp

2. *

2

: 4-bulb type headlamp

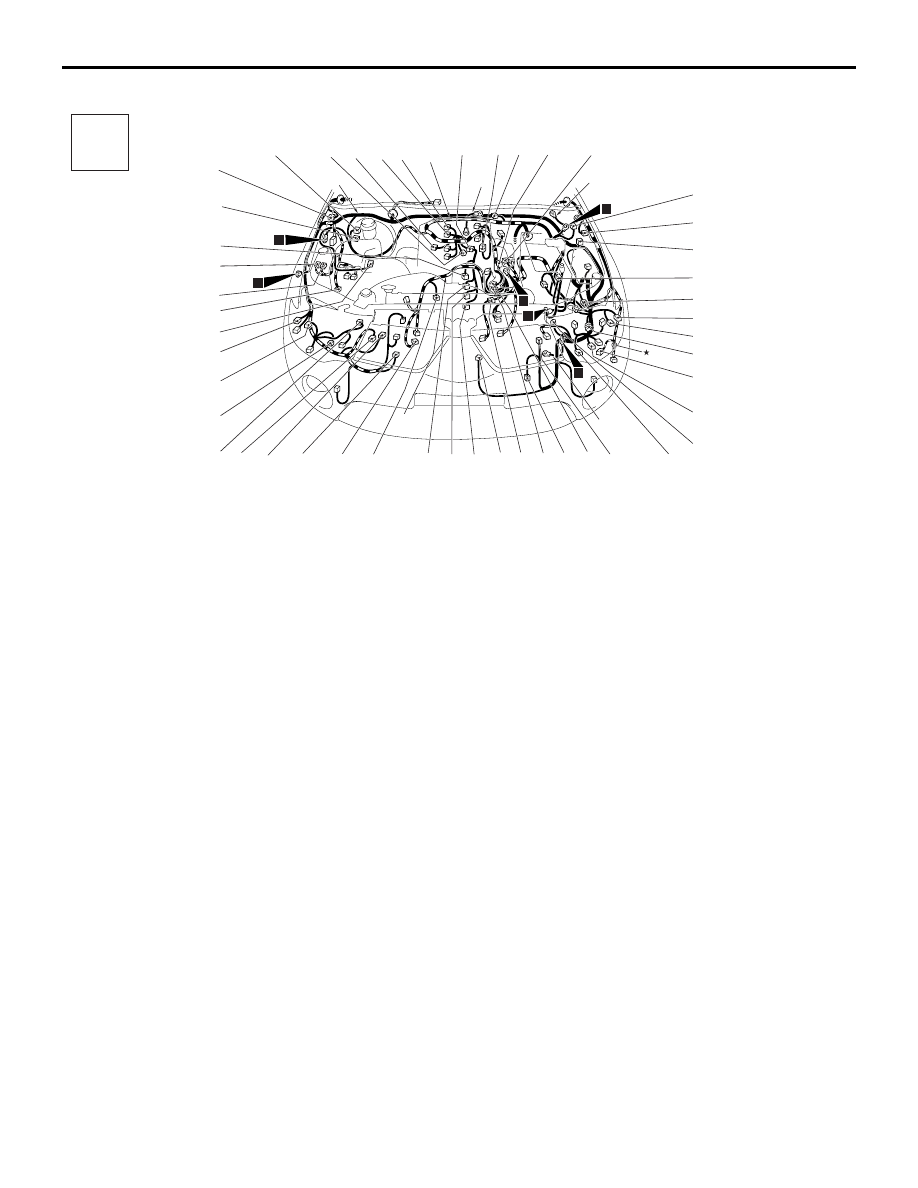

ENGINE COMPARTMENT <RHD>

M1801000308653

ACB01363

Front wiring
harness

A-05

A-41

A-01
A-48

A-39

A-40

A-37

Connector
symbol

-01
thru
-59

A

1

A-54

A-36

A-38

A-34

Battery wiring
harness

A-35
A-57

6

A-53

A-37

AB

A-44

A-45

A-27

A-12

A-10

A-28

A-29

A-07

2

Earth
cable

A-43

A-52

A-46

A-30

A-47

A-33

4

5

3

A-59

A-58

A-51

A-13X
A-14X
A-16X
A-17X
A-19X

A-21X
A-22X
A-23X
A-24X
A-25X

A-20X

A-42

Control wiring
harness

A-56

¹

*

²

*

Connector colour
code
B: Black
BR: Brown
G: Green
GR: Grey
L: Blue
NONE: Milk white
O: Orange
R: Red
V: Violet
Y: Yellow

Earth
cable

Earth
cable

A-01

(34-GR) ABS-ECU

A-05

(5-GR)

Windshield wiper motor

A-07

(3-B)

Crank angle sensor

A-10

(1)

Starter

A-12

(1-GR)

Front wiring harness and relay box
combination

A-13X (4)

Front fog lamp relay

A-14X (4)

No connection

A-16X (4)

Starter relay

A-17X (4)

Horn relay

A-19X (4)

A/T control relay

A-20X (4)

Engine control relay

A-21X (4)

A/C compressor relay

A-22X (4)

Headlamp relay (LO)

A-23X (4)

Headlamp relay (HI)

A-24X (4)

Power window relay

A-25X (4)

Headlamp washer relay

A-27

(8-B)

Front wiring harness and battery
wiring harness combination

A-28

(12-B)

Front wiring harness and control
wiring harness combination

A-29

(2-GR)

Washer motor

A-30

(2-Y)

Front impact sensor (LH)

A-33

(1-B)

A/C compressor and clutch assembly

A-34

(1)

Alternator

A-35

(1-B)

Engine oil pressure switch <Except
vehicles with high power engine>

A-36

(2-B)

Ambient air temperature sensor (for
RV meter)

A-37

(2-B)

Position lamp (RH)

A-38

(2-BR)

Dual pressure switch

A-39

(2-B)

Solenoid valve 1

A-40

(2-B)

Solenoid valve 2

A-41

(2-GR)

Injector 2

A-42

(2-GR)

Injector 1

A-43

(3-B)

Camshaft position sensor

A-44

(3-B)

Rail pressure sensor

A-45

(6-GR)

EGR valve assembly

A-46

(2-B)

Fuel temperature sensor

A-47

(2-GR)

Suction control valve

A-48

(34-B)

ASTC-ECU

A-51

(3-GR)

Headlamp levelling unit (LH)

A-52

(2-B)

Front fog lamp (LH)

A-53

(2-B)

Front fog lamp (RH)

A-54

(3-GR)

Headlamp levelling unit (RH)

A-56

(2-BR)

Variable geometry control solenoid
valve

A-57

(1-L)

Engine oil pressure switch <Vehicles
with high power engine>

A-58

(2-B)

Headlamp (LO: LH) <4-bulb type>

A-59

(2-B)

Headlamp (HI: LH) <4-bulb type>

NOTE:

.

1. *

1

: 2-bulb type headlamp

2. *

2

: 4-bulb type headlamp

ENGINE COMPARTMENT

CONFIGURATION DIAGRAMS

80-7

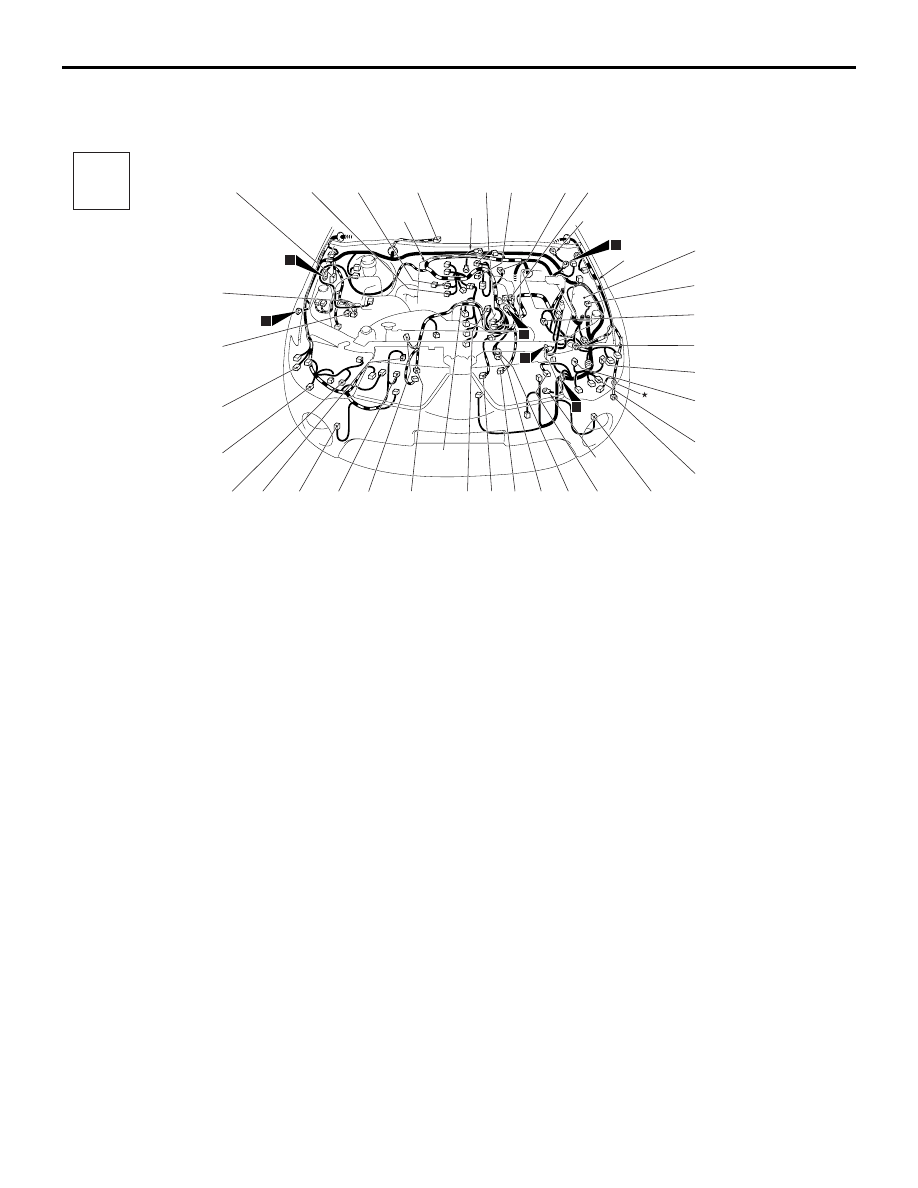

ENGINE COMPARTMENT <RHD> (CONTINUED)

ACB01363

Front wiring
harness

A-129

A-130

A-101

A-102

A-127

A-128

A-135

A-147

A-146

A-126

Connector
symbol

-101
thru
-159

A

1

A-123

A-125

A-122

A-134

A-124

Battery
wiring
harness

6

Control
wiring
harness

AC

A-105

A-115

A-113

A-132

A-118

A-116

A-117

2

Earth
cable

A-117

A-110

A-131

A-120

A-107

A-108

A-133

A-121

4

5

3

A-151

A-114

A-137

A-119

A-138

A-139

A-144

Connector colour
code
B: Black
BR: Brown
G: Green
GR: Grey
L: Blue
NONE: Milk white
O: Orange
R: Red
V: Violet
Y: Yellow

Earth
cable

Earth
cable

¹

*

²

*

A-152

A-158

A-159

A-157

A-148

A-149

A-150

A-156

A-153

A-154

A-155

A-101 (2-GR)

Side turn-signal lamp (RH)

A-102 (2-GR)

Brake fluid level switch

A-105 (3-L)

Manifold absolute pressure sensor

A-107 (2-B)

Engine coolant temperature sensor

A-108 (1-B)

Engine coolant temperature gauge
unit

A-110 (1-B)

Starter

A-113 (2-B)

No connection <Vehicles without fuel-
line heater>

A-114 (2-GR)

Side turn-signal lamp (LH)

A-115 (12)

Front wiring harness and control
wiring harness combination

A-116 (3-B)

Headlamp (LH) <2-bulb type>

A-117 (2-B)

Position lamp (LH)

A-118 (2-BR)

Front turn-signal lamp (LH)

A-119 (2-B)

Front wheel speed sensor (LH)

A-120 (2-B)

No connection

A-121 (1-B)

Horn (HI)

A-122 (4-GR)

Alternator

A-123 (1-B)

Horn (LO)

A-124 (2-Y)

Front impact sensor (RH)

A-125 (2-B)

Front wheel speed sensor (RH)

A-126 (3-B)

Headlamp (RH) <2-bulb type>

A-127 (2-BR)

Front turn-signal lamp (RH)

A-128 (2-GR)

Free wheel engage switch

A-129 (2-GR)

Injector 4

A-130 (2-GR)

Injector 3

A-131 (6-B)

Fuel pressure sensor harness and
control harness combination

A-132 (6-B)

Electronic-controlled throttle valve

A-133 (3-B)

Crank angle sensor harness and
control harness combination

A-134 (1-B)

Power steering fluid pressure switch

A-135 (5-B)

Air flow sensor

A-137 (2-GR)

Headlamp washer motor

A-138 (4)

Spare connector (for trailer)

A-139 (2-B)

Ambient temperature sensor (for air
conditioner)

A-144 (2)

No connection <Vehicles with fuel-line
heater>

A-146 (2-B)

Headlamp (HI: RH) <4-bulb type>

A-147 (2-B)

Headlamp (LO: RH) <4-bulb type>

A-148 (3-B)

Exhaust differential pressure sensor

A-149 (2-B)

No.1 exhaust gas temperature sensor

A-150 (4-B)

Control wiring harness and glow wiring
harness combination

A-151 (12-B)

Glow control unit

A-152 (4-GR)

Battery current sensor

A-153 (1-B)

Glow plugs 1

A-154 (1-B)

Glow plugs 2

A-155 (1-B)

Glow plugs 3

A-156 (1-B)

Glow plugs 4

A-157 (2-B)

EGR gas temperature sensor

A-158 (3-B)

No.3 exhaust gas temperature sensor

A-159 (2-B)

No.2 exhaust gas temperature sensor

NOTE:

.

1. *

1

: 2-bulb type headlamp

2. *

2

: 4-bulb type headlamp

TRANSMISSION

CONFIGURATION DIAGRAMS

80-8

TRANSMISSION

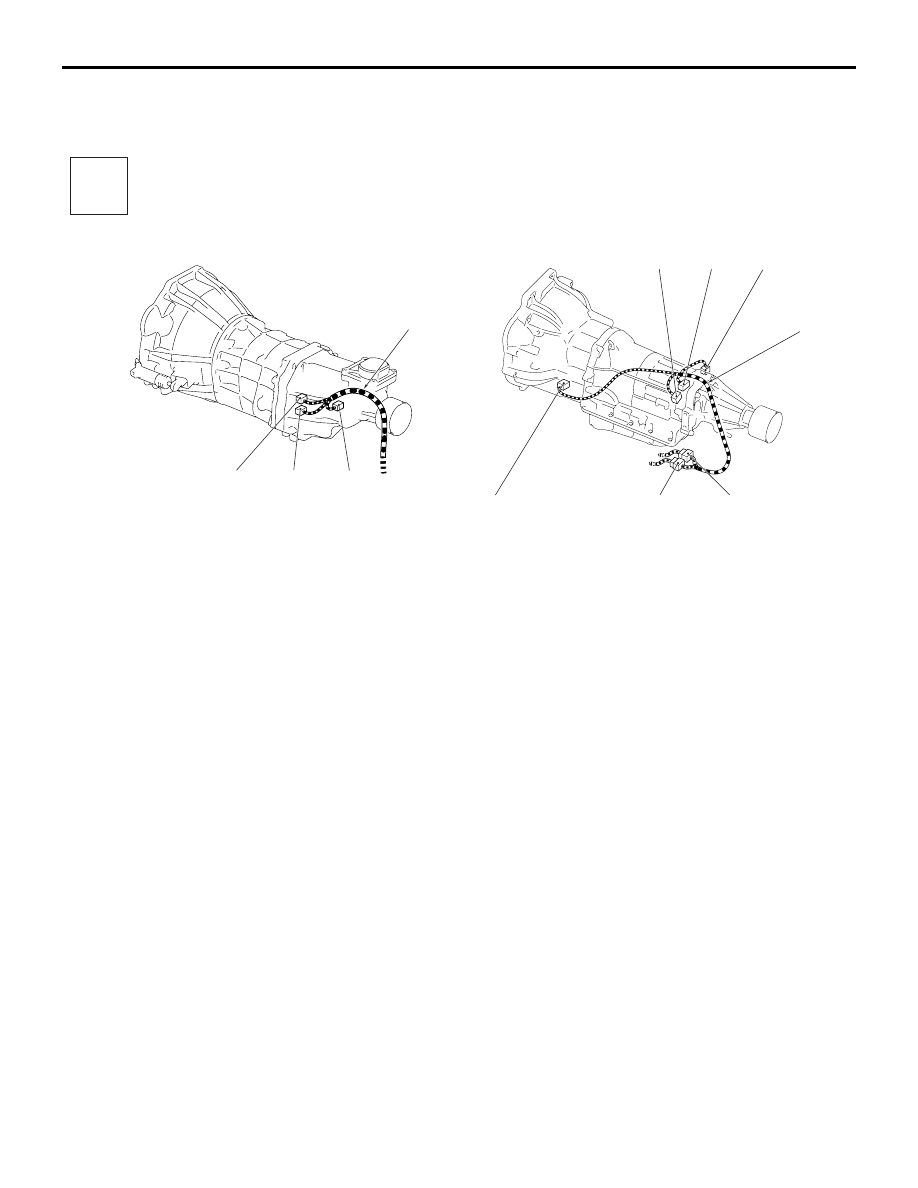

TRANSMISSION <2WD>

M1801000500835

AC608648

Connector
symbol

B

AD

B-02

B-01

Frame wiring
harness

B-14

B-11

B-15

B-17

B-10

B-16

Transmission
wiring harness

<M/T>

<A/T>

B-06

Connector colour
code
B: Black
BR: Brown
G: Green
GR: Grey
L: Blue
NONE: Milk white
O: Orange
R: Red
V: Violet
Y: Yellow

B-01

(3-B)

Vehicle speed sensor <M/T>

B-02

(2-B)

Back-up lamp switch <M/T>

B-06

(2-GR)

1ST rail switch <M/T>

B-10

(12-B)

Control wiring harness and
transmission wiring harness
combination <A/T>

B-11

(10-B)

Control wiring harness and
transmission wiring harness
combination <A/T>

B-14

(10-B)

Inhibitor switch <A/T>

B-15

(10-B)

A/T control solenoid valve assembly

B-16

(3-GR)

Output shaft speed sensor <A/T>

B-17

(3-B)

Input shaft speed sensor <A/T>

TRANSMISSION

CONFIGURATION DIAGRAMS

80-9

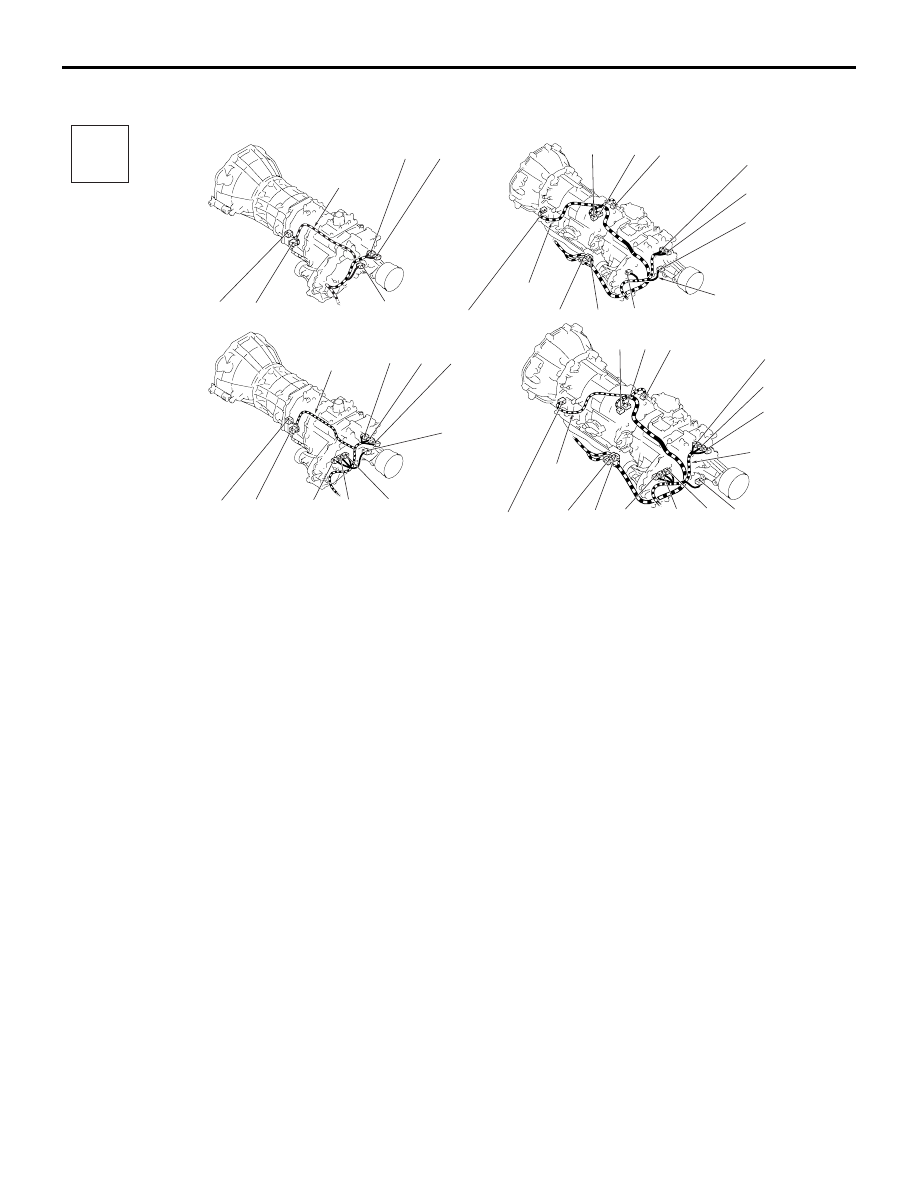

TRANSMISSION <4WD>

M1801000501032

ACA01265

Connector
symbol

B

<M/T-EASY SELECT 4WD>

<M/T-SUPER SELECT 4WD>

Frame wiring
harness

B-06

B-02

B-01

B-04

B-03

Frame wiring
harness

B-06

B-02

B-01

B-20

B-18

B-19

B-21

B-05

<A/T-EASY SELECT 4WD>

B-22

B-14

B-11

B-17

B-10

B-05

B-01

B-16

B-15

B-20

B-19

<A/T-SUPER SELECT 4WD>

Transmission
wiring harness

Frame wiring
harness

B-21

B-22

B-18

B-14

B-11

B-17

B-10

B-01

B-16

B-15

B-04

Transmission
wiring harness

Frame wiring
harness

B-03

AB

Connector colour
code
B: Black
BR: Brown
G: Green
GR: Grey
L: Blue
NONE: Milk white
O: Orange
R: Red
V: Violet
Y: Yellow

B-05

B-01

(3-B)

Vehicle speed sensor

B-02

(2-B)

Back-up lamp switch <M/T>

B-03

(2-B)

4WD detection switch <Easy select
4WD>

B-04

(2-GR)

High range/low range detection switch
<Easy select 4WD>

B-05

(1)

4LLc switch <A/T or vehicles with high
power engine>

B-06

(2-GR)

1ST rail switch <M/T>

B-10

(12-B)

Control wiring harness and
transmission wiring harness
combination <A/T>

B-11

(10-B)

Control wiring harness and
transmission wiring harness
combination <A/T>

B-14

(10-B)

Inhibitor switch <A/T>

B-15

(10-B)

A/T control solenoid valve assembly

B-16

(3-GR)

Output shaft speed sensor <A/T>

B-17

(3-B)

Input shaft speed sensor <A/T>

B-18

(1-BR)

Centre differential lock detection
switch <Super select 4WD>

B-19

(1-B)

2WD/4WD detection switch <Super
select 4WD>

B-20

(1)

High /low detection switch <Super
select 4WD>

B-21

(1-B)

4WD operation detection switch
<Super select 4WD>

B-22

(1-GR)

Centre differential lock operation
detection switch <Super select 4WD>
