Mitsubishi L200. Manual - part 898





OVERALL CONFIGURATION DIAGRAM

CONFIGURATION DIAGRAMS

80-2

OVERALL CONFIGURATION DIAGRAM

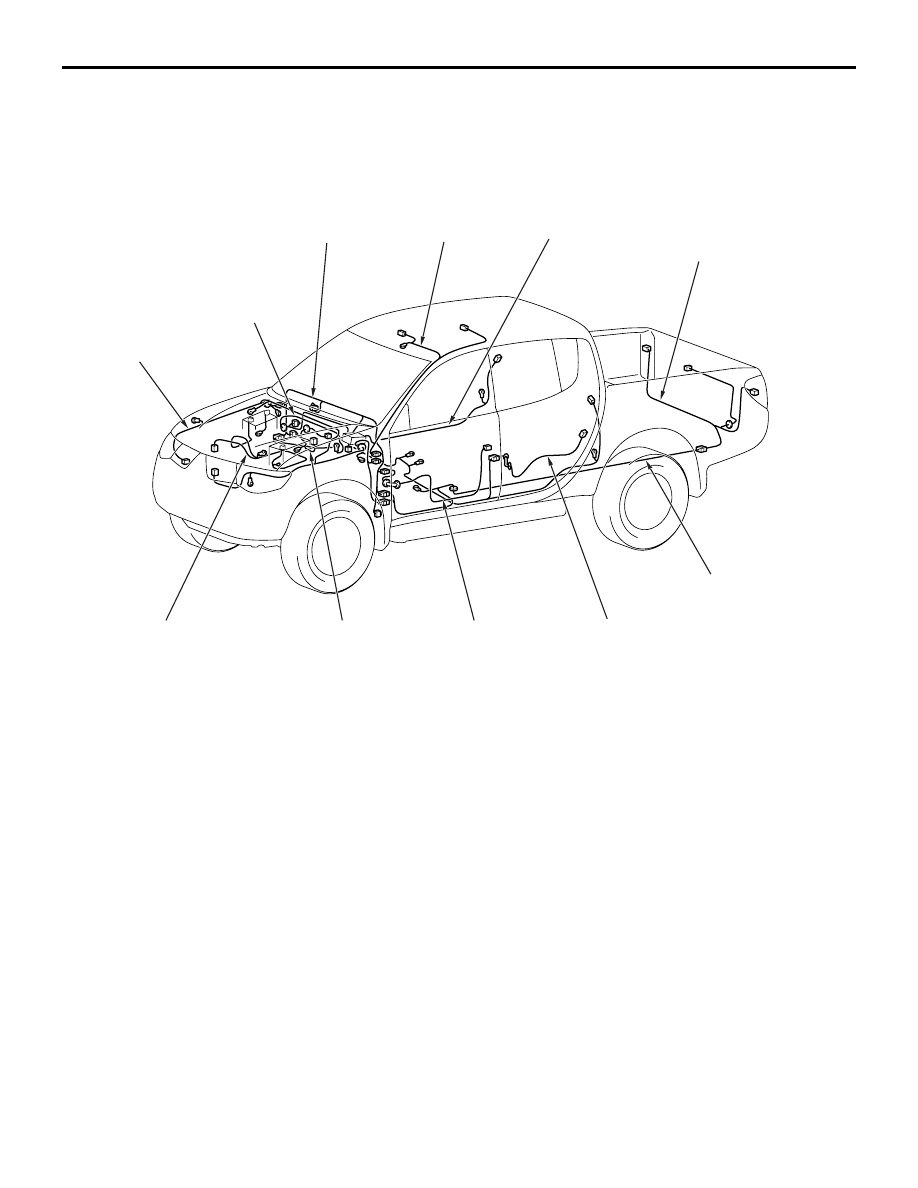

OVERALL CONFIGURATION DIAGRAM
<LHD>

M1801000103320

AC809485

AB

*

Control wiring
harness

Instrument panel
wiring harness

Roof wiring
harness

Floor wiring
harness

PTC heater
wiring harness

Front wiring
harness

Front door
wiring harness

Frame wiring
harness

Rear door
wiring harness

*

Rear body wiring
harness

Battery wiring
harness

NOTE:

.

1. This illustration shows only major wiring harnesses.
2. *: also equipped at the right side.

OVERALL CONFIGURATION DIAGRAM

CONFIGURATION DIAGRAMS

80-3

OVERALL CONFIGURATION DIAGRAM

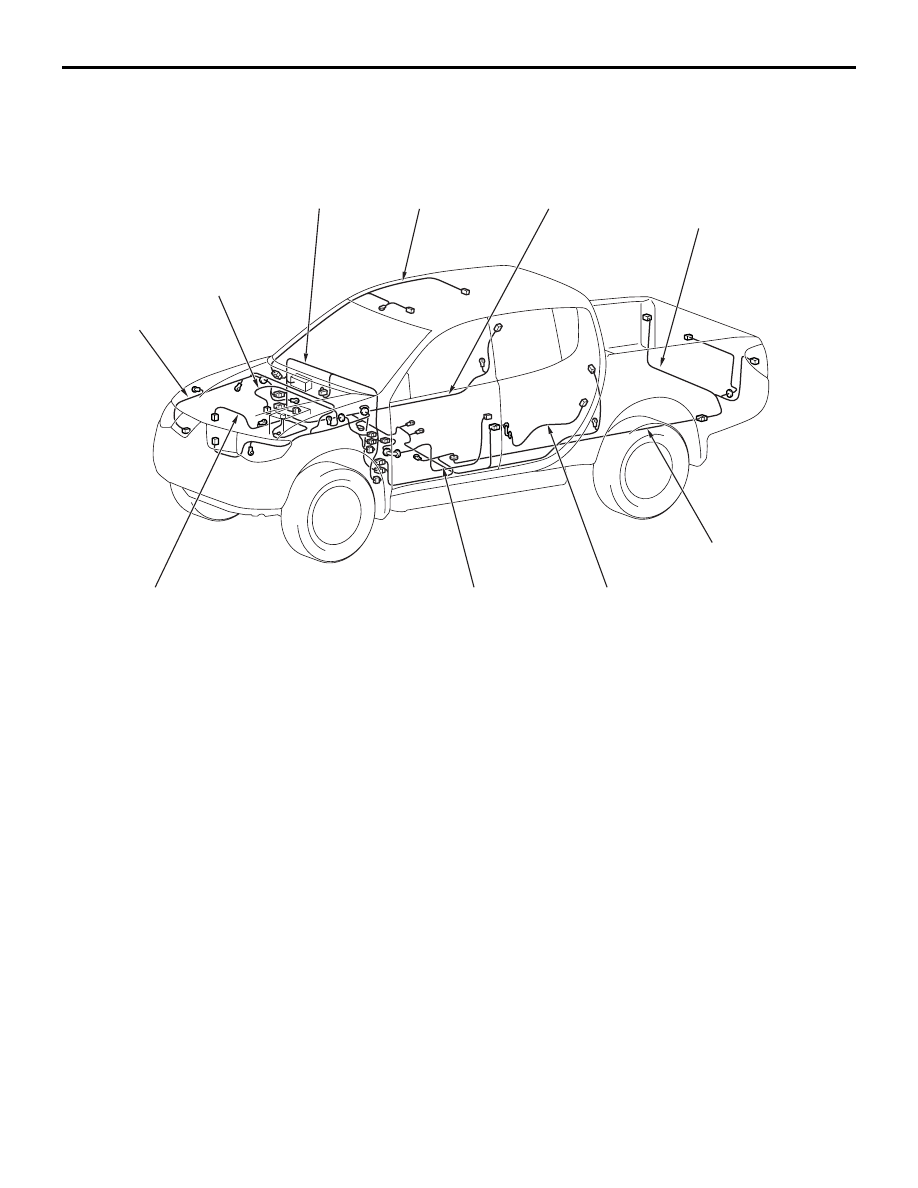

<RHD>

M1801000101498

AC509447AB

*

Control wiring
harness

Instrument panel
wiring harness

Roof wiring
harness

Floor wiring
harness

Front wiring
harness

Front door
wiring harness

Frame wiring
harness

Rear door
wiring harness

*

Rear body wiring
harness

Battery wiring
harness

NOTE:

.

1. This illustration shows only major wiring harnesses.
2. *: also equipped at the right side.

ENGINE COMPARTMENT

CONFIGURATION DIAGRAMS

80-4

ENGINE COMPARTMENT

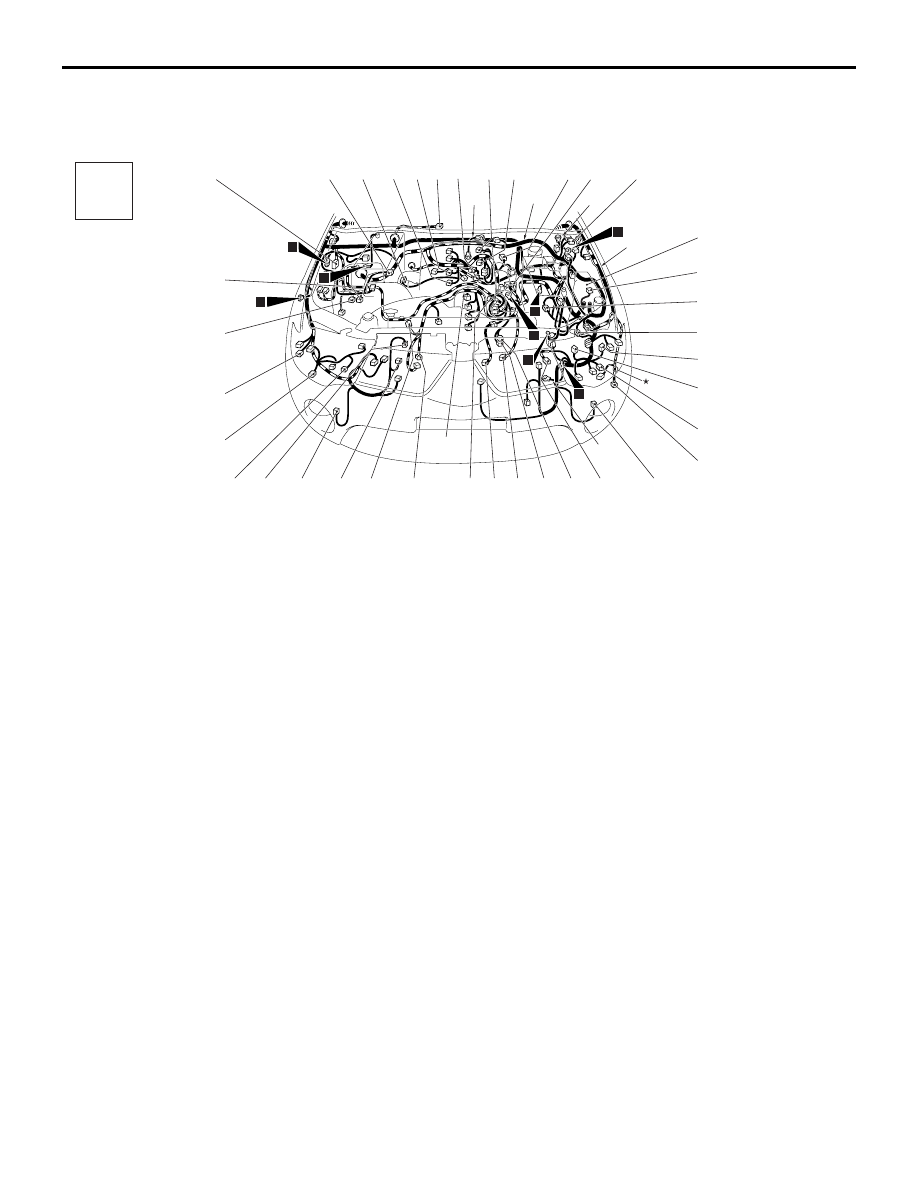

ENGINE COMPARTMENT <LHD>

M1801000308642

ACB01362

Front wiring
harness

A-05

A-41

A-01
A-48

A-39

A-40

A-37

Connector
symbol

-01
thru
-59

A

1

A-54

A-36

A-38

A-34

Battery wiring
harness

A-35
A-57

6

A-53

A-37

A-55

19

AB

A-44

A-45

A-06

A-27

A-12

A-11

A-10

A-13X
A-14X
A-16X
A-17X
A-18X

A-20X
A-21X
A-22X
A-23X
A-24X
A-25X

A-28

A-29

A-07

2

Earth
cable

A-43

A-52

A-46

A-30

A-47

A-33

4

5

3

A-59

A-58

A-51

20

A-19X

A-55

A-42

Control wiring
harness

A-56

¹

*

²

*

Connector colour
code
B: Black
BR: Brown
G: Green
GR: Grey
L: Blue
NONE: Milk white
O: Orange
R: Red
V: Violet
Y: Yellow

Earth
cable

Earth
cable

3

*

4

*

A-01

(34-GR) ABS-ECU

A-05

(5-GR)

Windshield wiper motor

A-06

(1)

Glow plugs <Except Euro5>

A-07

(3-B)

Crank angle sensor

A-10

(1)

Starter

A-11

(1)

Glow plug relay <Except Euro5>

A-12

(1-GR)

Front wiring harness and relay box
combination

A-13X (4)

Front fog lamp relay

A-14X (4)

Condenser fan relay <Vehicles for
Israel>

A-16X (4)

Starter relay

A-17X (4)

Horn relay

A-18X (4)

Blow-by heater relay

A-19X (4)

A/T control relay

A-20X (4)

Engine control relay

A-21X (4)

A/C compressor relay

A-22X (4)

Headlamp relay (LO)

A-23X (4)

Headlamp relay (HI)

A-24X (4)

Power window relay

A-25X (4)

Headlamp washer relay

A-27

(8-B)

Front wiring harness and battery
wiring harness combination

A-28

(12-B)

Front wiring harness and control
wiring harness combination

A-29

(2-GR)

Washer motor

A-30

(2-Y)

Front impact sensor (LH)

A-33

(1-B)

A/C compressor and clutch assembly

A-34

(1)

Alternator

A-35

(1-B)

Engine oil pressure switch <Except
vehicles with high power engine>

A-36

(2-B)

Ambient air temperature sensor (for
RV meter)

A-37

(2-B)

Position lamp (RH)

A-38

(2-BR)

Dual pressure switch

A-39

(2-B)

Solenoid valve 1 <Vehicles for Europe
(4WD)>

A-40

(2-B)

Solenoid valve 2 <Vehicles for Europe
(4WD)>

A-41

(2-GR)

Injector 2

A-42

(2-GR)

Injector 1

A-43

(3-B)

Camshaft position sensor

A-44

(3-B)

Rail pressure sensor

A-45

(6-GR)

EGR valve assembly

A-46

(2-B)

Fuel temperature sensor

A-47

(2-GR)

Suction control valve

A-48

(34-B)

ASTC-ECU

A-51

(3-GR)

Headlamp levelling unit (LH)

A-52

(2-B)

Front fog lamp (LH)

A-53

(2-B)

Front fog lamp (RH)

A-54

(3-GR)

Headlamp levelling unit (RH)

A-55

(2-B)

Blow-by hose heater

A-56

(2-BR)

Variable geometry control solenoid
valve <Euro5>

A-57

(1-L)

Engine oil pressure switch <Vehicles
with high power engine>

A-58

(2-B)

Headlamp (LO: LH) <4-bulb type>

A-59

(2-B)

Headlamp (HI: LH) <4-bulb type>

NOTE:

.

1. *

1

: Except vehicles with high power engine

2. *

2

: Vehicles with high power engine

3. *

3

: 2-bulb type headlamp

4. *

4

: 4-bulb type headlamp

ENGINE COMPARTMENT

CONFIGURATION DIAGRAMS

80-5

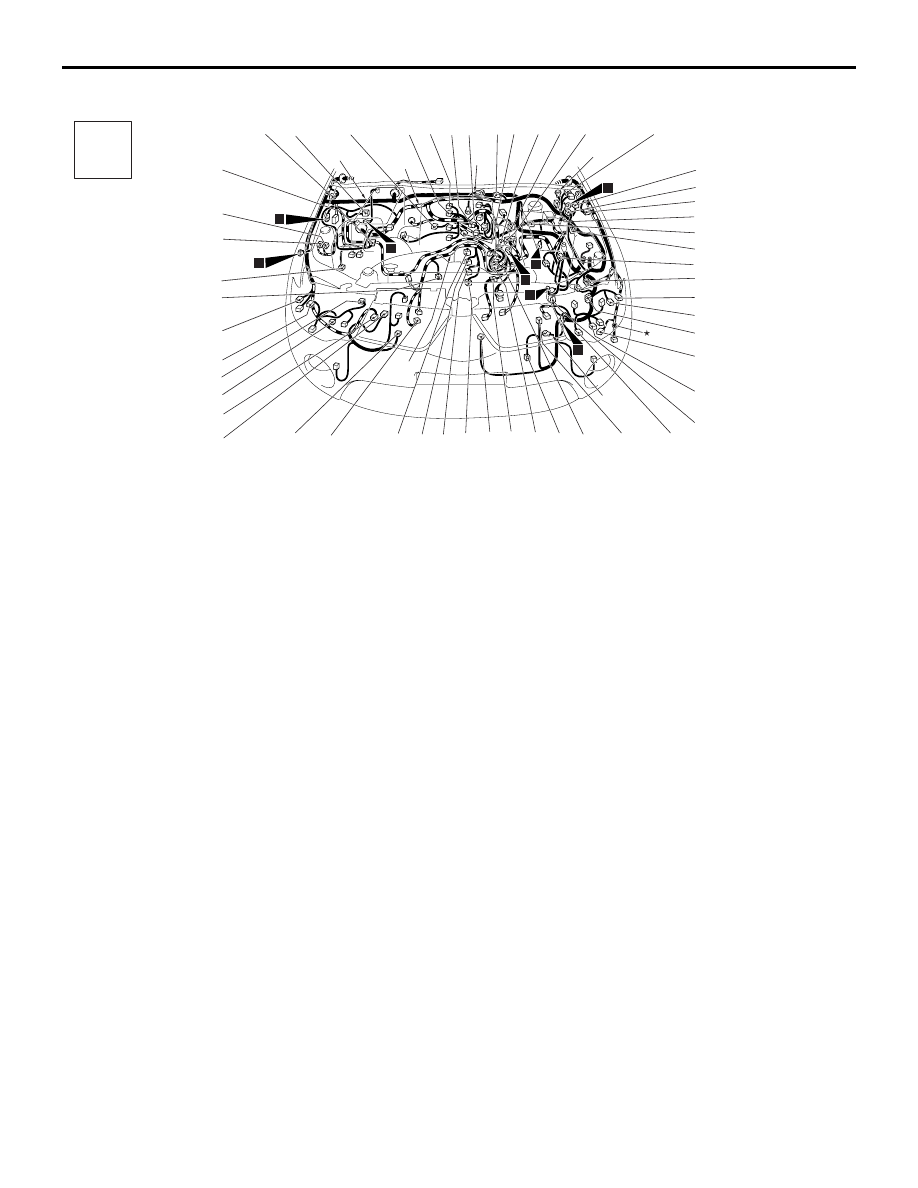

ENGINE COMPARTMENT <LHD> (CONTINUED)

ACB01362

Front wiring
harness

A-129

A-130

A-101

A-127

A-128

A-135

A-147

A-146

A-126

Connector
symbol

-101
thru
-159

A

1

A-123

A-125

A-122

A-124

Battery
wiring
harness

6

Control
wiring
harness

19

AC

A-136

A-105

A-115

A-113

A-111

A-132

A-118

A-116

A-117

2

Earth
cable

A-102

A-117

A-110

A-131

A-120

A-107

A-108

A-133

A-121

4

5

3

A-112
A-151

A-114

A-137

A-119

A-138

A-139

A-140X
A-141X

20

A-143

A-144

Connector colour
code
B: Black
BR: Brown
G: Green
GR: Grey
L: Blue
NONE: Milk white
O: Orange
R: Red
V: Violet
Y: Yellow

Earth
cable

Earth
cable

¹

*

²

*

A-148

A-150

A-149

A-159

A-158

A-152

A-134

A-157

A-153

A-156

A-155 A-154

A-101 (2-GR)

Side turn-signal lamp (RH)

A-102 (2-GR)

Brake fluid level switch

A-105 (3-L)

Manifold absolute pressure sensor

A-107 (2-B)

Engine coolant temperature sensor

A-108 (1-B)

Engine coolant temperature gauge
unit

A-110 (1-B)

Starter

A-111 (1)

Glow plug relay <Except Euro5>

A-112 (2-B)

Glow plug relay <Except Euro5>

A-113 (2-B)

No connection <Except vehicles for
Russia>

A-114 (2-GR)

Side turn-signal lamp (LH)

A-115 (12)

Front wiring harness and control
wiring harness combination

A-116 (3-B)

Headlamp (LH) <2-bulb type>

A-117 (2-B)

Position lamp (LH)

A-118 (2-BR)

Front turn-signal lamp (LH)

A-119 (2-B)

Front wheel speed sensor (LH)

A-120 (2-B)

Condenser fan motor <Vehicles for
Israel>

A-121 (1-B)

Horn (HI)

A-122 (4-GR)

Alternator

A-123 (1-B)

Horn (LO)

A-124 (2-Y)

Front impact sensor (RH)

A-125 (2-B)

Front wheel speed sensor (RH)

A-126 (3-B)

Headlamp (RH) <2-bulb type>

A-127 (2-BR)

Front turn-signal lamp (RH)

A-128 (2-GR)

Free wheel engage switch <Vehicles
for Europe (4WD)>

A-129 (2-GR)

Injector 4

A-130 (2-GR)

Injector 3

A-131 (6-B)

Fuel pressure sensor harness and
control harness combination

A-132 (6-B)

Electronic-controlled throttle valve

A-133 (3-B)

Crank angle sensor harness and
control harness combination

A-134 (1-B)

Power steering fluid pressure switch

A-135 (5-B)

Air flow sensor

A-136 (2-B)

Intake air temperature sensor No.2
<Except Euro5>

A-137 (2-GR)

Headlamp washer motor

A-138 (4)

Spare connector (for trailer)

A-139 (2-B)

Ambient temperature sensor (for air
conditioner)

A-140X(4)

PTC heater relay 1

A-141X(4)

PTC heater relay 2

A-143 (2-B)

Fuel filter pressure switch <Vehicles
for Russia and Morocco>

A-144 (2)

Water level switch <Vehicles for
Russia>

A-146 (2-B)

Headlamp (HI: RH) <4-bulb type>

A-147 (2-B)

Headlamp (LO: RH) <4-bulb type>

A-148 (3-B)

Exhaust differential pressure sensor
<Euro5>

A-149 (2-B)

No.1 exhaust gas temperature sensor
<Euro5>

A-150 (4-B)

Control wiring harness and glow wiring
harness combination <Euro5>

A-151 (12-B)

Glow control unit <Euro5>

A-152 (4-GR)

Battery current sensor <Euro5>

A-153 (1-B)

Glow plugs 1 <Euro5>

A-154 (1-B)

Glow plugs 2 <Euro5>

A-155 (1-B)

Glow plugs 3 <Euro5>

A-156 (1-B)

Glow plugs 4 <Euro5>

A-157 (2-B)

EGR gas temperature sensor <Euro5>

A-158 (3-B)

No.3 exhaust gas temperature sensor
<Euro5>

A-159 (2-B)

No.2 exhaust gas temperature sensor
<Euro5>
