RADIO AND CD PLAYER

CHASSIS ELECTRICAL

54A-263

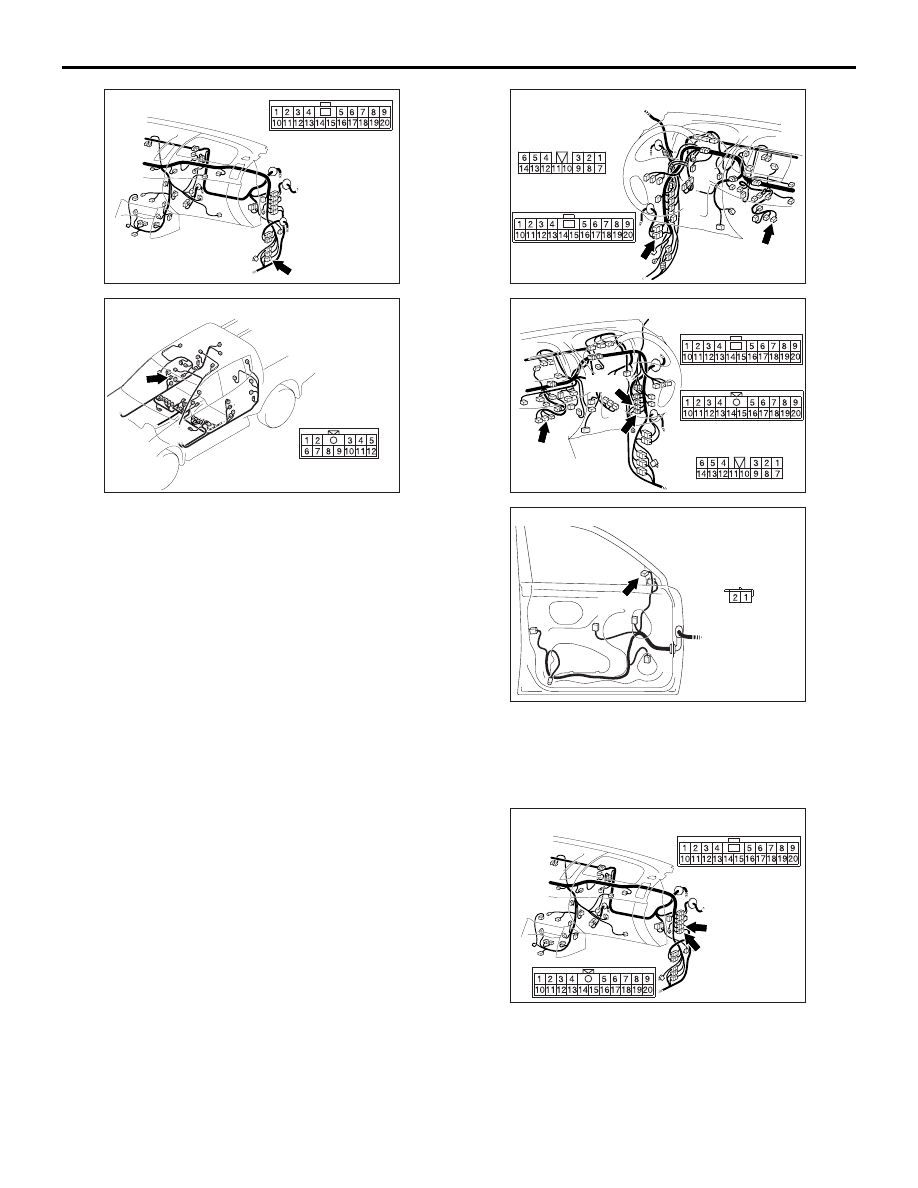

Prior to the wiring harness inspection, check interme-

diate connectors D-24 and C-59, and repair if
necessary.

•

<Tweeter (LH)> Check the wire harness between E-

24 tweeter (LH) connector terminal No.1, 2 and
C-125 radio and CD player connector terminal
No.13, 5.

NOTE:

Prior to the wiring harness inspection, check interme-

diate connector C-133, C-16 and C-15, and repair
if necessary.

AC903853

AF

Connector: C-59 <LHD>

AC903885

Connector: D-24

AF

AC903856AL

Harness side

Connectors: C-125, C-133 <LHD>

C-125

C-133

C-125

C-133

AC903868

Connectors: C-15, C-16, C-125 <RHD>

AR

C-16

C-15

C-16

C-125

C-125

Harness side

C-15

AC509952

Connector: E-24

AC

Harness side

AC903853

AM

Connectors: C-15, C-16 <LHD>

C-16

C-16

C-15

C-15

RADIO AND CD PLAYER

CHASSIS ELECTRICAL

54A-264

•

<Tweeter (RH)> Check the wire harness between E-

25 tweeter (RH) connector terminal No.2, 1 and
C-125 radio and CD player connector terminal
No.6, 14.

NOTE:

Prior to the wiring harness inspection, check interme-

diate connector C-121, C-16 and C-15, and repair
if necessary.

Q: Is the check result normal?

YES :

Go to Step 6.

NO :

Repair the wiring harness.

STEP 6. Retest the system
Then check that the audio sound is output.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

Use Troubleshooting/inspection Service
Points

− How to Cope with Intermittent

Malfunction ).

NO :

Go to Step 7.

STEP 7. Replace the radio and CD player
temporarily, and check the trouble symptom.
Replace the radio and CD player temporarily, and
check that the sound is output from the speaker.

Q: Is the check result normal?

YES :

Replace the radio and CD player.

NO :

Retest the diagnosis. Go to Step 1.

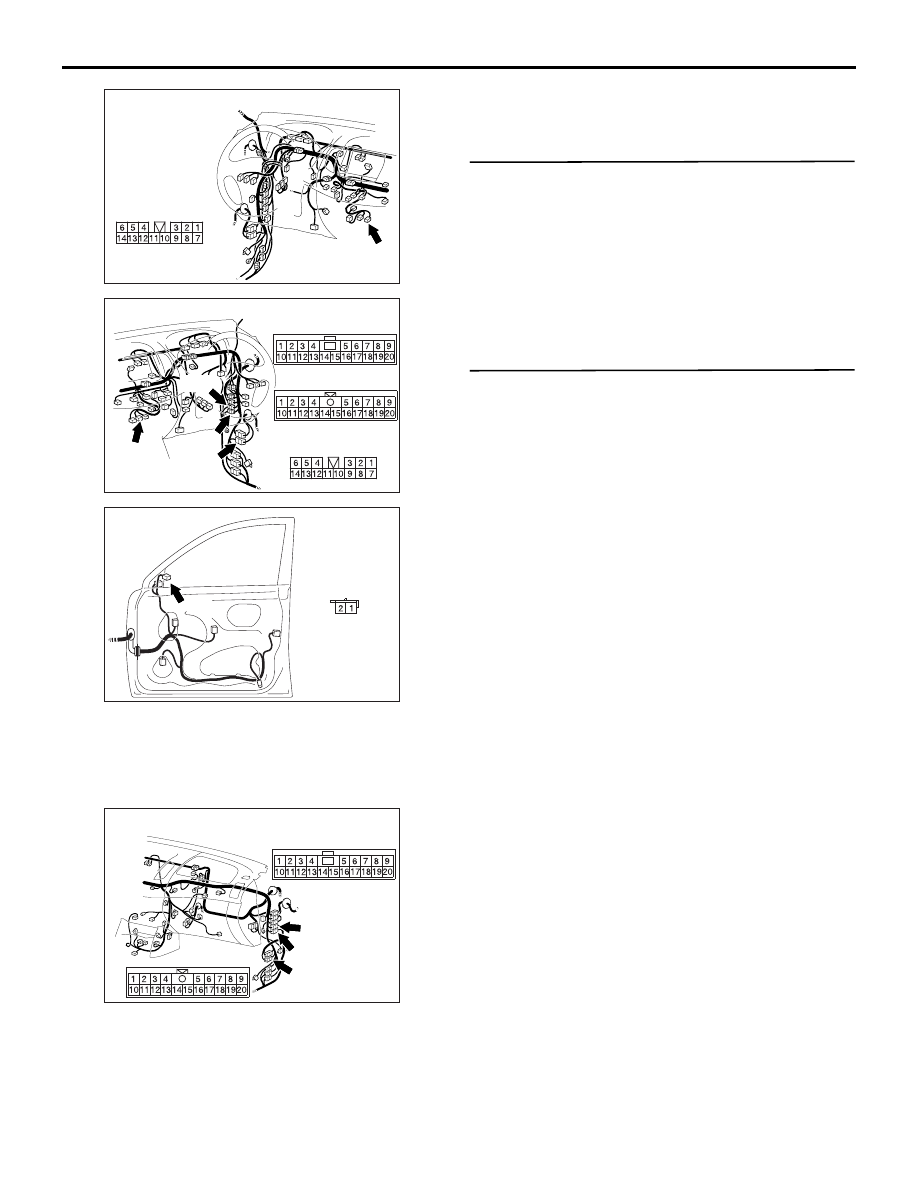

AC903856AE

Harness side

Connector: C-125 <LHD>

AC903868

Connectors: C-15, C-16, C-121, C-125 <RHD>

AS

C-16

C-15, C-121

C-16

C-125

C-125

Harness side

C-15

C-121

AC509954AC

Connector: E-25

Harness side

AC903853

AN

Connectors: C-15, C-16, C-121 <LHD>

C-16

C-16

C-15

C-15, C-121

C-121

RADIO AND CD PLAYER

CHASSIS ELECTRICAL

54A-265

Inspection Procedure 3: No sound is heard from one of the speakers. <Vehicles with audio amplifier>

CAUTION

Before replacing the radio and CD player or
audio amplifier, ensure that the power supply cir-
cuit, the earth circuit and the communication cir-
cuit are normal.

TWEETER (LH)

TWEETER (RH)

FRONT DOOR
SPEAKER (LH)

FRONT DOOR
SPEAKER (RH)

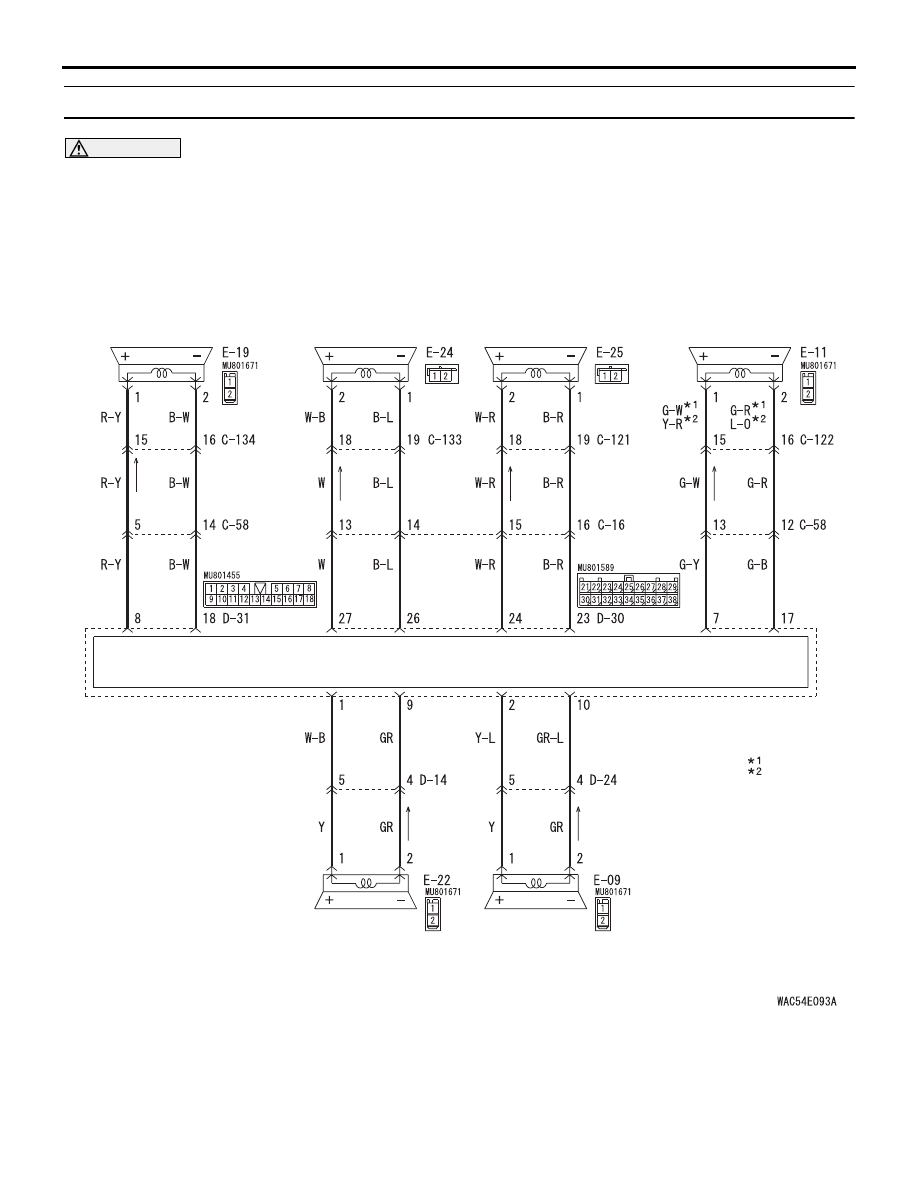

Speaker System Circuit

AUDIO AMPLIFIER

REAR DOOR
SPEAKER (RH)

REAR DOOR
SPEAKER (LH)

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Grey     R : Red     P : Pink     V : Violet     PU : Purple     SI : Silver

NOTE

:LHD
:RHD

RADIO AND CD PLAYER

CHASSIS ELECTRICAL

54A-266

COMMENTS ON TROUBLE SYMPTOM
If the sound is not heard from one of the speakers,
the speaker, radio and CD player, audio amplifier,
communication line from the radio and CD player to
the audio amplifier, or communication line from the
audio amplifier to the speaker may have a problem.

PROBABLE CAUSES

• Malfunction of speaker

• Malfunctions of radio and CD player

• Malfunction of audio amplifier

• Damaged harness wires and connectors

DIAGNOSIS PROCEDURE

STEP 1. Checking with speaker test
Perform the speaker test, and check which speaker
does not output the sound. (Refer to

P.54A-294

.)

NOTE: In the following procedure, check the
speaker, tweeter or subwoofer that is abnormal.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

Use Troubleshooting/inspection Service
Points

− How to Cope with Intermittent

Malfunction ).

NO :

Go to Step 2.

AUDIO AMPLIFIER

RADIO AND CD PLAYER

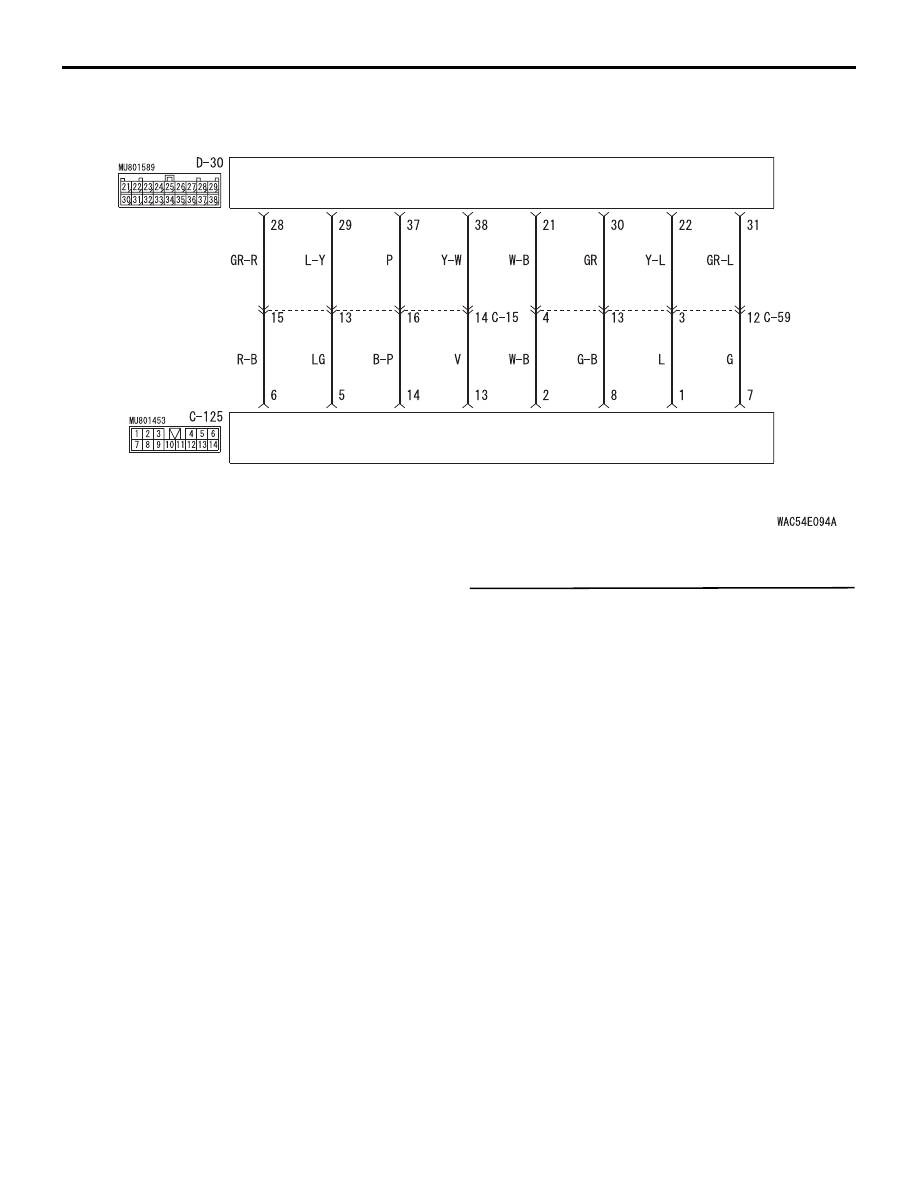

Audio Amplifier System Circuit

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Grey     R : Red     P : Pink     V : Violet     PU : Purple     SI : Silver
