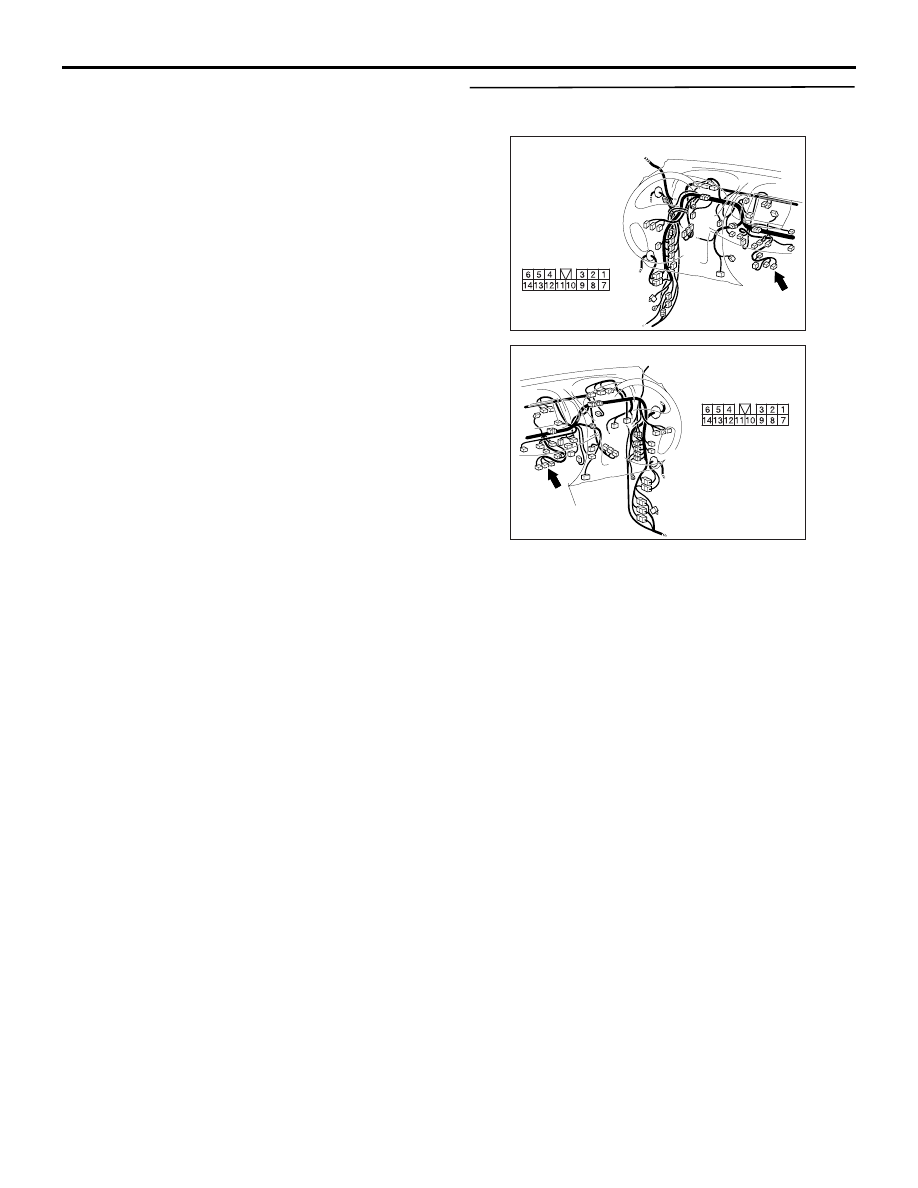

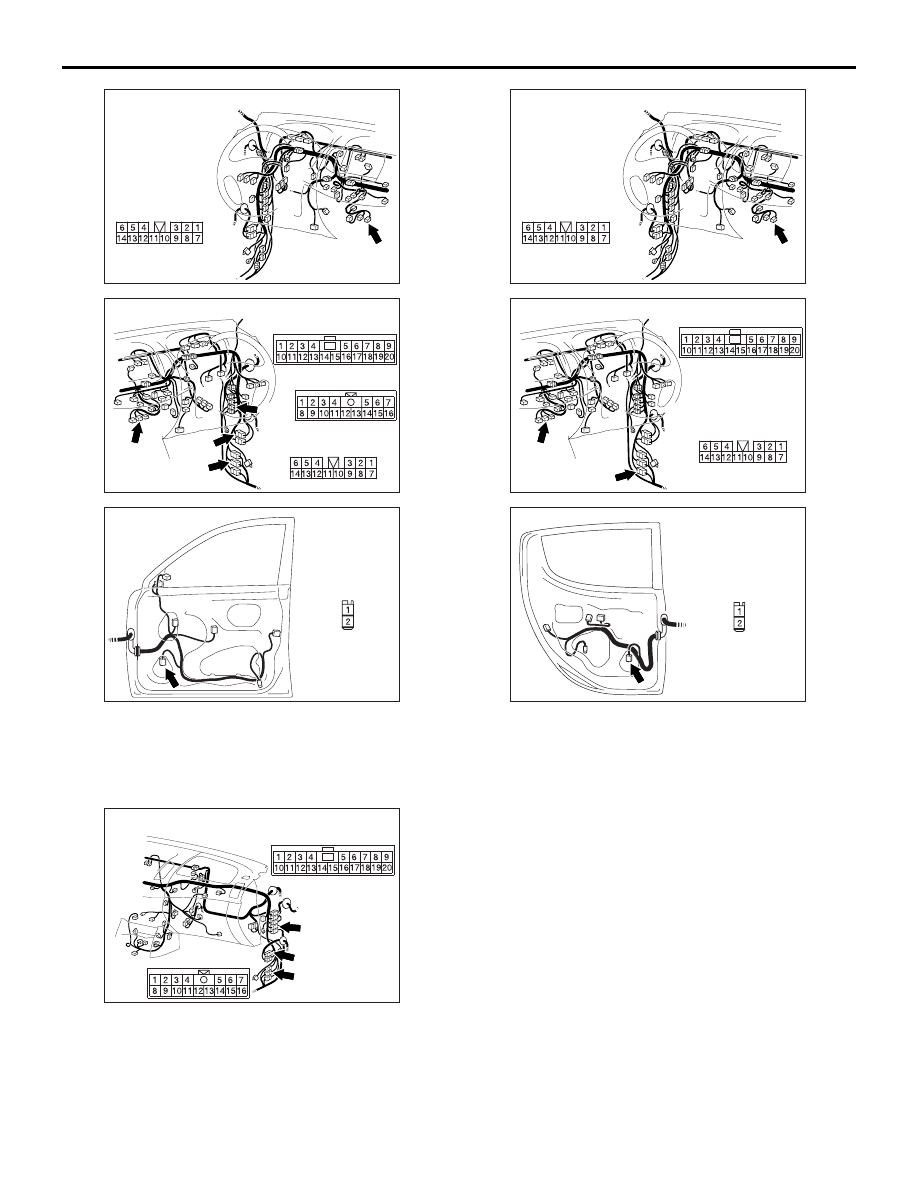

RADIO AND CD PLAYER

CHASSIS ELECTRICAL

54A-259

445

.

(2) Check that the speaker or tweeter outputs the

noise when the voltage of 5 V is applied to the
speaker or tweeter connector terminal.

Q: Is the check result normal?

YES :

Go to Step 4.

NO :

Replace the speaker or tweeter.

STEP 4. Connector check: C-125 radio and CD
player connector.

Q: Is the check result normal?

YES :

Go to Step 5.

NO :

Repair the defective connector.

AC903856AE

Harness side

Connector: C-125 <LHD>

AC903868

AE

Harness side

Connector: C-125 <RHD>

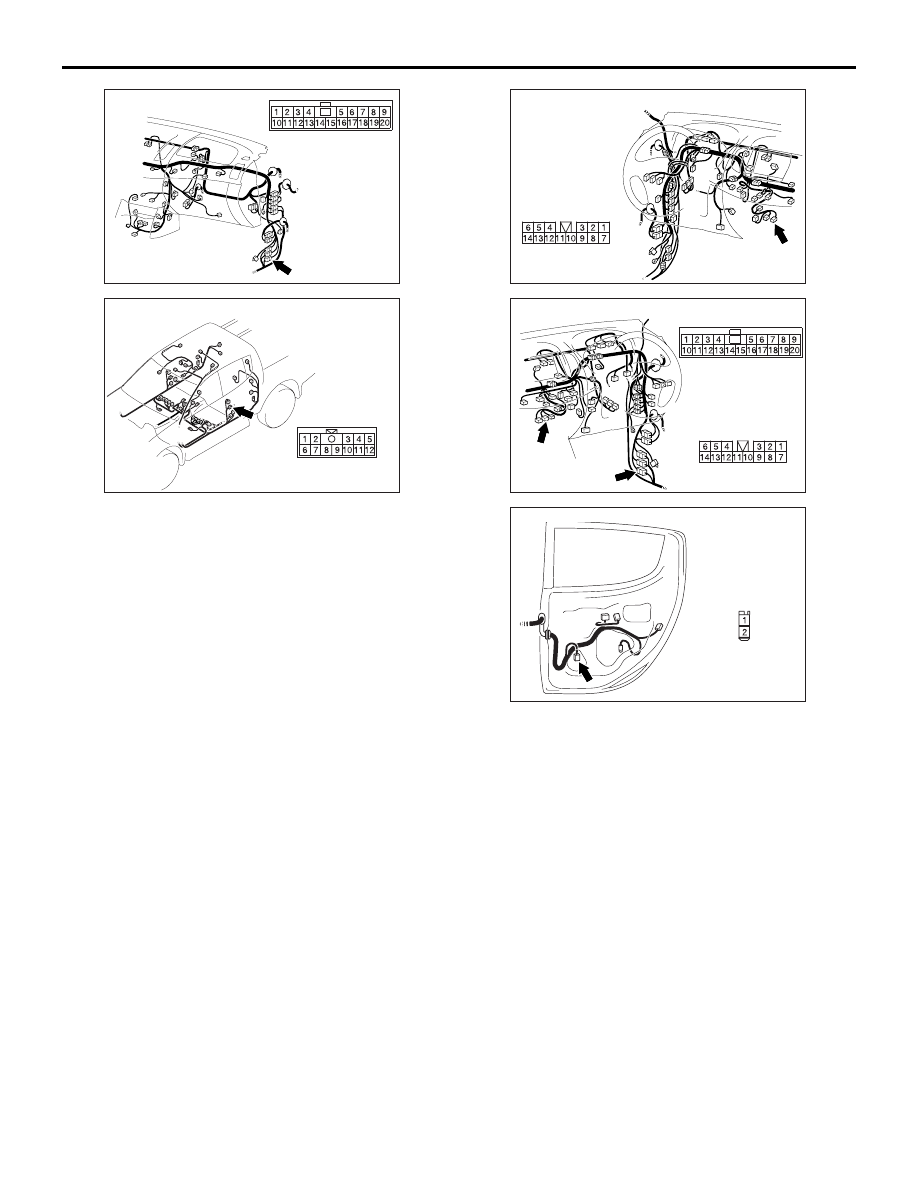

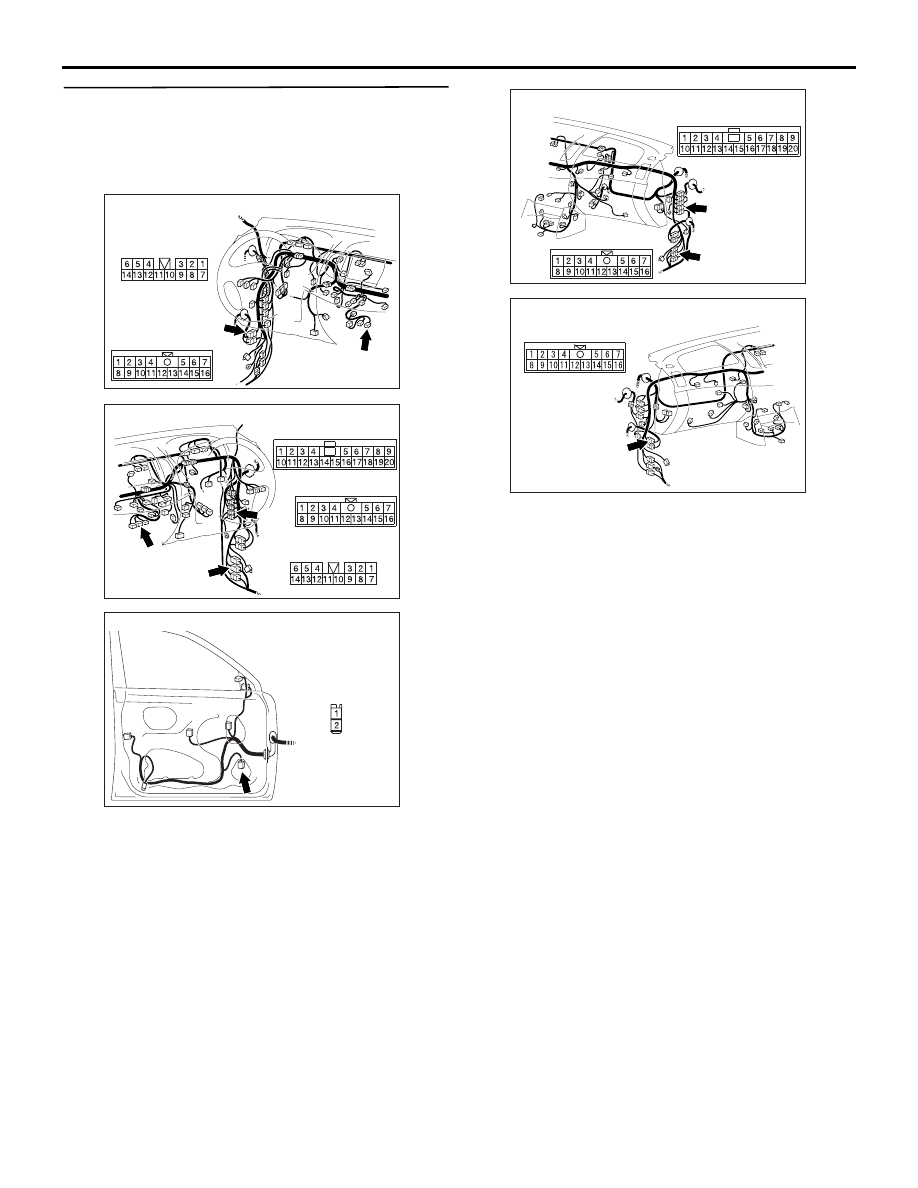

RADIO AND CD PLAYER

CHASSIS ELECTRICAL

54A-260

STEP 5. Check the wire harness between the
speaker or tweeter connector terminal and the
radio and CD player connector terminal.
Check the communication lines for open circuit and
short circuit.

•

<Front door speaker (LH)> Check the wire harness

between E-19 front door speaker (LH) connector
terminal No.1, 2 and C-125 radio and CD player
connector terminal No.5, 13.

NOTE:

Prior to the wiring harness inspection, check interme-

diate connectors C-134, C-58 and C-15, and
repair if necessary.

AC903856 AK

Harness side

Connectors: C-125, C-134 <LHD>

C-125

C-134

C-134

C-125

AC903868

Connectors: C-15, C-58, C-125 <RHD>

AM

C-58

C-15

C-15

C-58

C-125

C-125

Harness side

AC509952

Connector: E-19

AB

Harness side

AC903853

Connectors: C-15, C-58 <LHD>

AJ

C-58

C-15

C-15

C-58

AC903865

Connector: C-134 <RHD>

AF

RADIO AND CD PLAYER

CHASSIS ELECTRICAL

54A-261

•

<Front door speaker (RH)> Check the wire harness

between E-11 front door speaker (RH) connector
terminal No.1, 2 and C-125 radio and CD player
connector terminal No.6, 14.

NOTE:

Prior to the wiring harness inspection, check interme-

diate connectors C-122, C-58 and C-15, and
repair if necessary.

•

<Rear door speaker (LH)> Check the wire harness

between E-22 rear door speaker (LH) connector
terminal No.1, 2 and C-125 radio and CD player
connector terminal No.2, 8.

NOTE:

AC903856AE

Harness side

Connector: C-125 <LHD>

AC903868

Connectors: C-15, C-58, C-122, C-125 <RHD>

AO

C-58

C-15

C-15

C-58, C-122

C-125

C-125

Harness side

C-122

AC509954AB

Connector: E-11

Harness side

AC903853

Connectors: C-15, C-58, C-122 <LHD>

AK

C-58

C-15

C-15

C-58, C-122

C-122

AC903856AE

Harness side

Connector: C-125 <LHD>

AC903868

AP

Connectors: C-59, C-125 <RHD>

C-59

Harness side

C-59

C-125

C-125

AC502333AB

Connector: E-22

Harness side

RADIO AND CD PLAYER

CHASSIS ELECTRICAL

54A-262

Prior to the wiring harness inspection, check interme-

diate connectors D-14 and C-59, and repair if
necessary.

•

<Rear door speaker (RH)> Check the wire harness

between E-09 rear door speaker (RH) connector
terminal No.1, 2 and C-125 radio and CD player
connector terminal No.1, 7.

NOTE:

AC903853

AF

Connector: C-59 <LHD>

AC903885

Connector: D-14

AE

AC903856AE

Harness side

Connector: C-125 <LHD>

AC903868

AP

Connectors: C-59, C-125 <RHD>

C-59

Harness side

C-59

C-125

C-125

AC502334AB

Harness side

Connector: E-09
