RADIO AND CD PLAYER

CHASSIS ELECTRICAL

54A-251

STEP 7. Check the wiring harness between C-125
radio and CD player connector terminal No.3 and
D-30 audio amplifier connector No.25.

• Check the communication line for open circuit

and short circuit.

NOTE: Prior to the wiring harness inspection, check
intermediate connector C-59, and repair if necessary.

Q: Is the check result normal?

YES :

Go to Step 8.

NO :

Repair the wiring harness.

STEP 8. Check the following connectors.
Check the following connectors:

• E-19 front door speaker (LH) connector

• E-11 front door speaker (RH) connector

• E-22 rear door speaker (LH) connector

• E-09 rear door speaker (RH) connector

• E-24 tweeter (LH) connector

• E-25 tweeter (RH) connector

Q: Are all the connectors in good condition?

YES :

Go to Step 9.

NO :

Repair the defective connector.

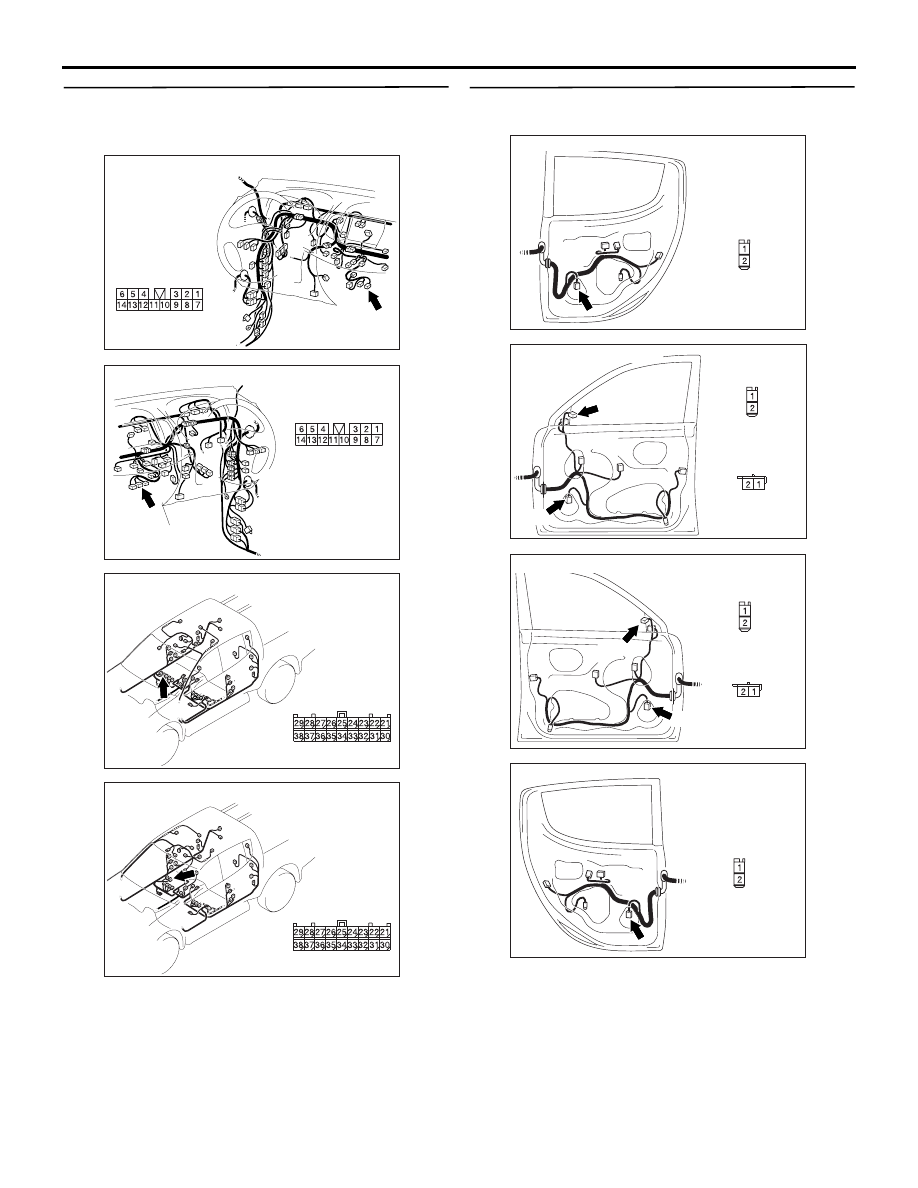

AC903856AE

Harness side

Connector: C-125 <LHD>

AC903868

AE

Harness side

Connector: C-125 <RHD>

AC903885AD

Connector: D-30 <LHD>

Harness side

AC903886 AD

Connector: D-30 <RHD>

Harness side

AC502334AB

Harness side

Connector: E-09

AC509954AR

Harness side

Connectors: E-11, E-25

E-11

E-11

Harness side

E-25

E-25

AC509952

Connectors: E-19, E-24

AS

Harness side

Harness side

E-19

E-24

E-24

E-19

AC502333AB

Connector: E-22

Harness side

RADIO AND CD PLAYER

CHASSIS ELECTRICAL

54A-252

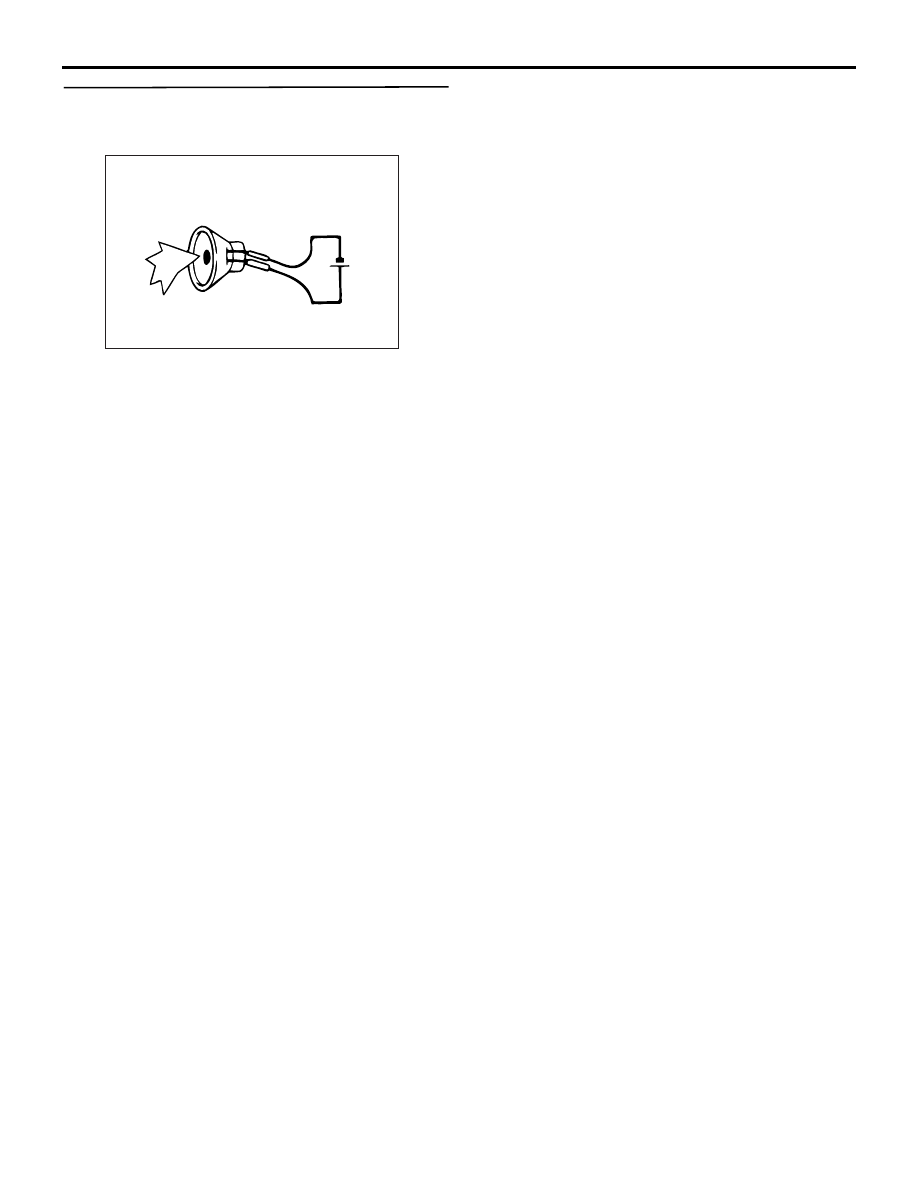

STEP 9. Check the speaker or tweeter.
(1) Remove the speaker or tweeter. Refer to

P.54A-

445

.

(2) Check that the speaker or tweeter outputs the

noise when the voltage of 5 V is applied to the
speaker or tweeter connector terminal.

Q: Do the speaker or tweeter output the noise?

YES :

Go to Step 10.

NO :

Replace the speaker or tweeter.

AC707572 AB

5 V

RADIO AND CD PLAYER

CHASSIS ELECTRICAL

54A-253

STEP 10. Check the wiring harness between the
speaker or tweeter connector terminal and the
audio amplifier connector terminal.
Check the communication lines for short circuit.

RADIO AND CD PLAYER

CHASSIS ELECTRICAL

54A-254

• <Front door speaker (LH)> Check the wiring har-

ness between E-19 front door speaker (LH) con-
nector terminal No.1, 2 and D-31 audio amplifier
connector terminal No.8, 18.

NOTE: Prior to the wiring harness inspection, check

intermediate connectors C-58 and C-134, and
repair if necessary.

• <Front door speaker (RH)> Check the wiring har-

ness between E-11 front door speaker (RH) con-
nector terminal No.1, 2 and D-31 audio amplifier
connector terminal No.7, 17.

NOTE: Prior to the wiring harness inspection, check

intermediate connectors C-58 and C-122, and
repair if necessary.

• <Rear door speaker (LH)> Check the wiring har-

ness between E-22 rear door speaker (LH) con-
nector terminal No.1, 2 and D-31 audio amplifier
connector terminal No.1, 9.

NOTE: Prior to the wiring harness inspection, check

intermediate connector D-14, and repair if neces-
sary.

• <Rear door speaker (RH)> Check the wiring har-

ness between E-09 rear door speaker (RH) con-
nector terminal No.1, 2 and D-31 audio amplifier
connector terminal No.2, 10.

NOTE: Prior to the wiring harness inspection, check

intermediate connector D-24, and repair if neces-
sary.

• <Tweeter (LH)> Check the wiring harness

between E-24 tweeter (LH) connector terminal
No.1, 2 and D-30 audio amplifier connector termi-
nal No.26, 27.

NOTE: Prior to the wiring harness inspection, check

intermediate connectors C-16 and C-133, and
repair if necessary.

• <Tweeter (RH)> Check the wiring harness

between E-25 tweeter (RH) connector terminal
No.1, 2 and D-30 audio amplifier connector termi-
nal No.23, 24.

NOTE: Prior to the wiring harness inspection, check

intermediate connectors C-16 and C-121, and
repair if necessary.

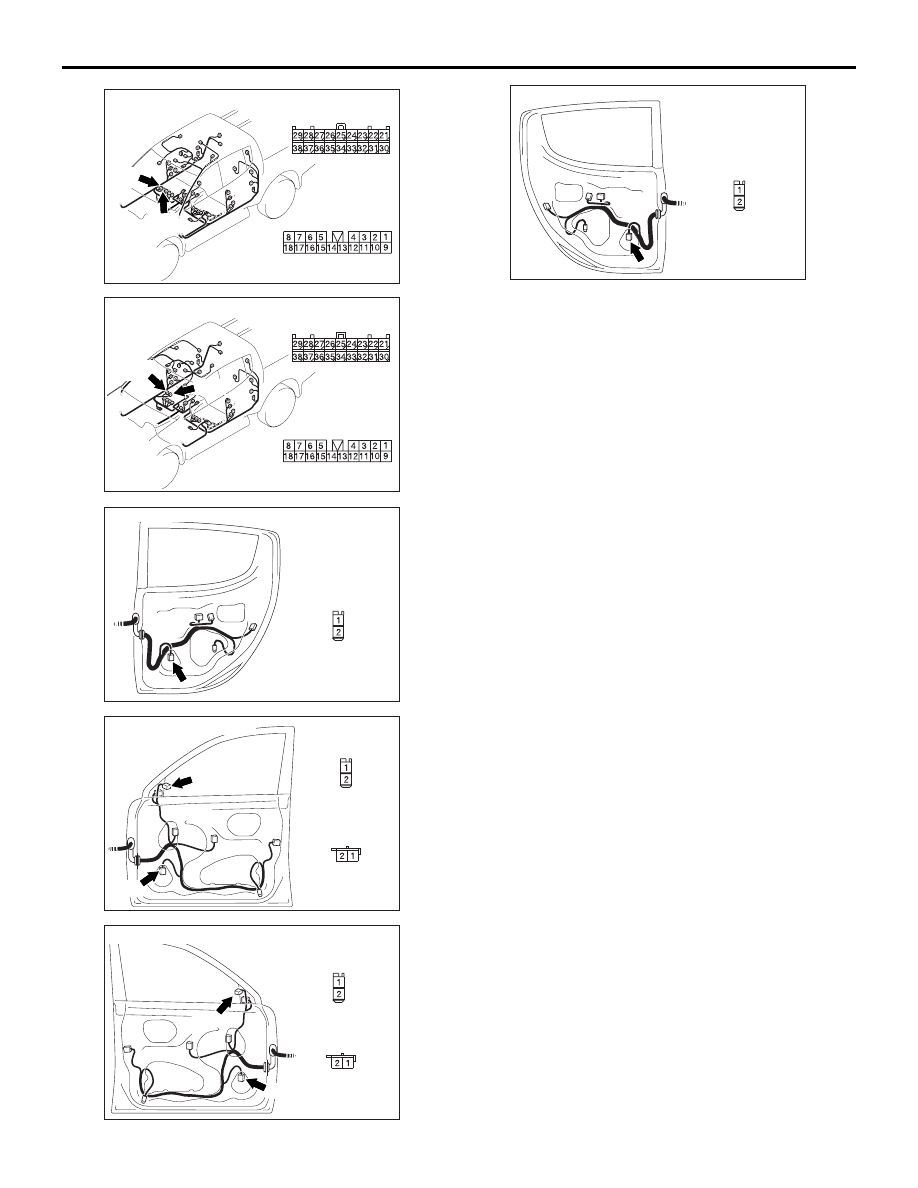

AC903885AB

Connectors: D-30, D-31 <LHD>

D-30

Harness side

D-31

Harness side

D-30

D-31

AC903886 AB

Connectors: D-30, D-31 <RHD>

D-30

Harness side

D-31

Harness side

D-30

D-31

AC502334AB

Harness side

Connector: E-09

AC509954AR

Harness side

Connectors: E-11, E-25

E-11

E-11

Harness side

E-25

E-25

AC509952

Connectors: E-19, E-24

AS

Harness side

Harness side

E-19

E-24

E-24

E-19

AC502333AB

Connector: E-22

Harness side
