RADIO AND CD PLAYER

CHASSIS ELECTRICAL

54A-267

STEP 2. Connector check: E-19 <front-LH>, E-11
<front-RH> door speaker connector, E-22 <LH>
or E-09 <RH> rear door speaker connector, E-24
<LH>, E-25 <RH> tweeter connector

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Repair the defective connector.

STEP 3. Check the speaker or tweeter.
(1) Remove the speaker or tweeter. Refer to

P.54A-

445

.

(2) Check that the speaker or tweeter outputs the

noise when the voltage of 5 V is applied to the
speaker or tweeter connector terminal.

Q: Do the speaker or tweeter output the noise?

YES :

Go to Step 4.

NO :

Replace the speaker or tweeter.

STEP 4. Connector check: D-30 <tweeter> or D-
31 <front door speaker or rear door speaker>
audio amplifier connector .

Q: Is the check result normal?

YES :

Go to Step 5.

NO :

Repair the defective connector.

AC502334AB

Harness side

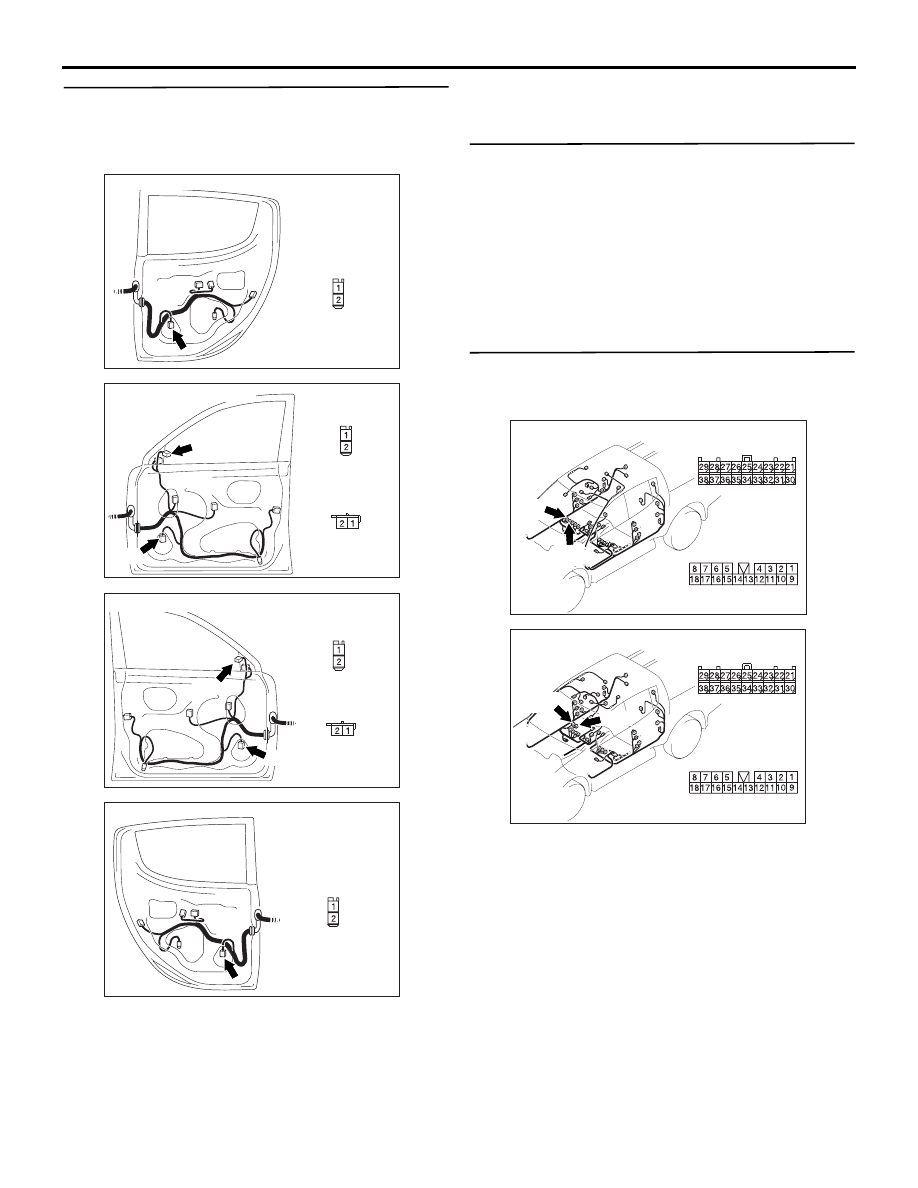

Connector: E-09

AC509954AR

Harness side

Connectors: E-11, E-25

E-11

E-11

Harness side

E-25

E-25

AC509952

Connectors: E-19, E-24

AS

Harness side

Harness side

E-19

E-24

E-24

E-19

AC502333AB

Connector: E-22

Harness side

AC903885AB

Connectors: D-30, D-31 <LHD>

D-30

Harness side

D-31

Harness side

D-30

D-31

AC903886 AB

Connectors: D-30, D-31 <RHD>

D-30

Harness side

D-31

Harness side

D-30

D-31

RADIO AND CD PLAYER

CHASSIS ELECTRICAL

54A-268

STEP 5. Check the wire harness between the
speaker or tweeter connector terminal and the
audio amplifier connector terminal.
Check the communication lines for open circuit and
short circuit.

•

<Front door speaker (LH)> Check the wire harness

between E-19 front door speaker (LH) connector
terminal No.1, 2 and D-31 audio amplifier con-
nector terminal No.8, 18.

NOTE:

Prior to the wiring harness inspection, check interme-

diate connectors C-134 and C-58, and repair if
necessary.

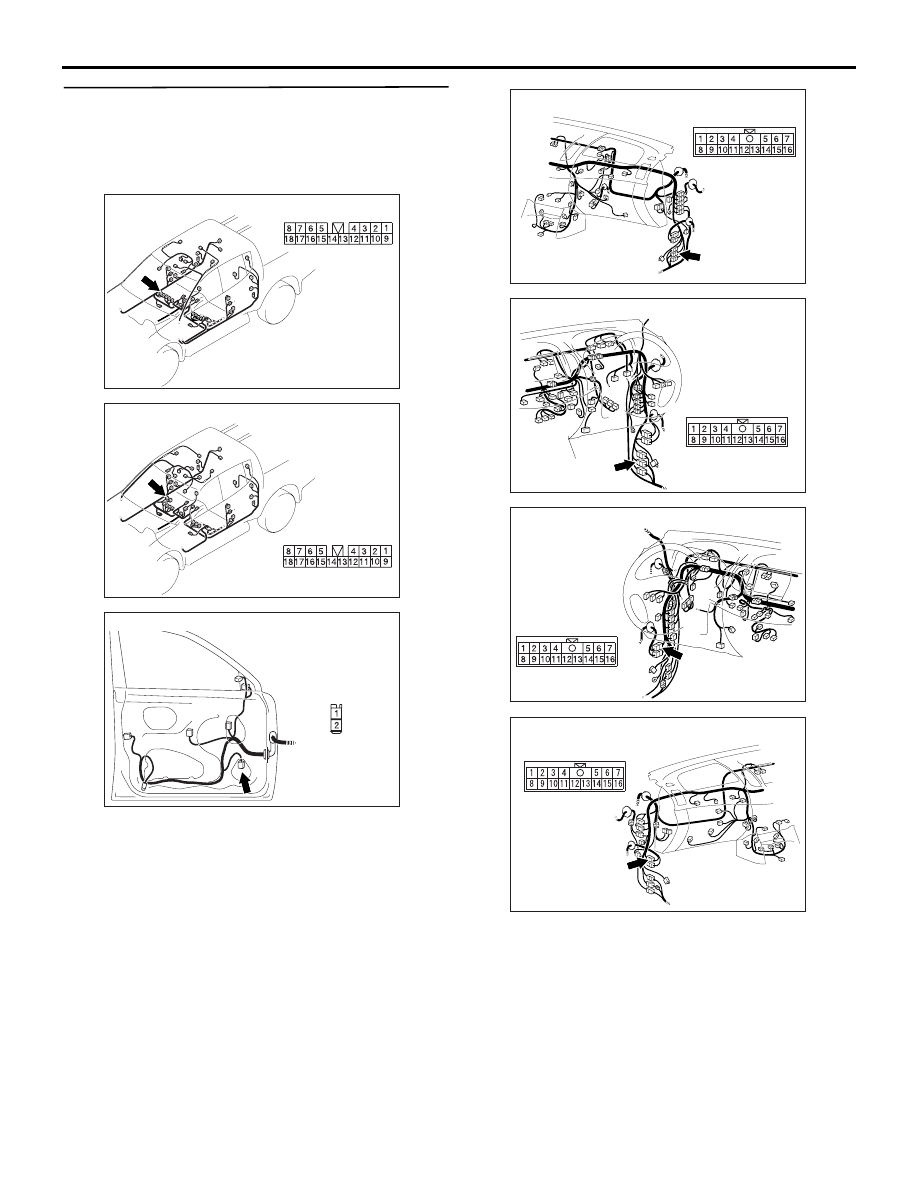

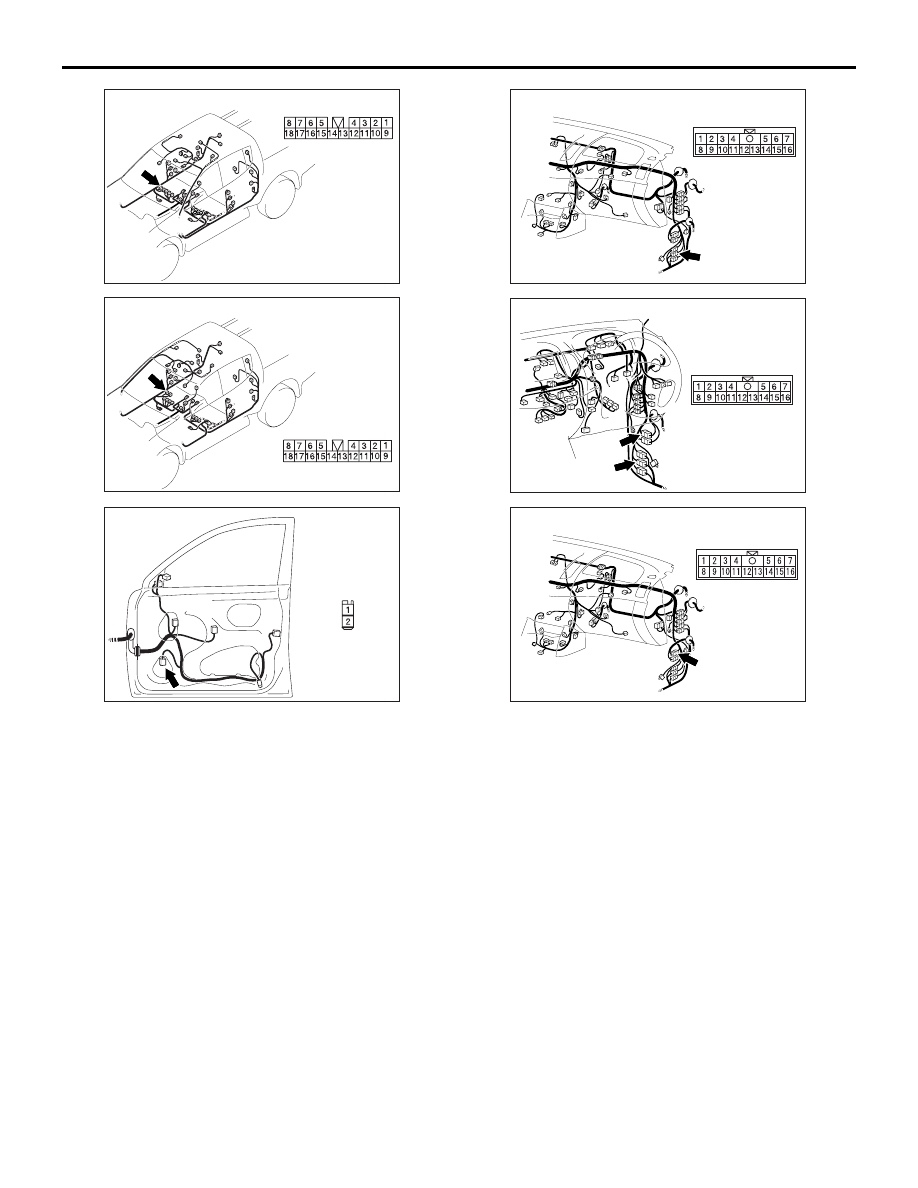

AC903885AC

Connector: D-31 <LHD>

Harness side

AC903886 AC

Connector: D-31 <RHD>

Harness side

AC509952

Connector: E-19

AB

Harness side

AC903853

Connector: C-58 <LHD>

AO

AC903868

Connector: C-58 <RHD>

AT

AC903856AG

Connector: C-134 <LHD>

Harness side

AC903865

Connector: C-134 <RHD>

AF

RADIO AND CD PLAYER

CHASSIS ELECTRICAL

54A-269

•

<Front door speaker (RH)> Check the wire harness

between E-11 front door speaker (RH) connector
terminal No.1, 2 and D-31 audio amplifier con-
nector terminal No.7, 17.

NOTE:

Prior to the wiring harness inspection, check interme-

diate connectors C-122 and C-58, and repair if
necessary.

AC903885AC

Connector: D-31 <LHD>

Harness side

AC903886 AC

Connector: D-31 <RHD>

Harness side

AC509954AB

Connector: E-11

Harness side

AC903853

Connector: C-58 <LHD>

AO

AC903868

Connectors: C-58, C-122 <RHD>

AU

C-58

C-58, C-122

C-122

AC903853

Connector: C-122 <LHD>

AG

RADIO AND CD PLAYER

CHASSIS ELECTRICAL

54A-270

•

<Rear door speaker (LH)> Check the wire harness

between E-22 rear door speaker (LH) connector
terminal No.1, 2 and D-31 audio amplifier con-
nector terminal No.1, 9.

NOTE: Prior to the wiring harness inspection, check

intermediate connector D-14, and repair if neces-
sary.

•

<Rear door speaker (RH)> Check the wire harness

between E-09 rear door speaker (RH) connector
terminal No.1, 2 and D-31 audio amplifier con-
nector terminal No.2, 10.

NOTE: Prior to the wiring harness inspection, check

intermediate connector D-24, and repair if neces-
sary.

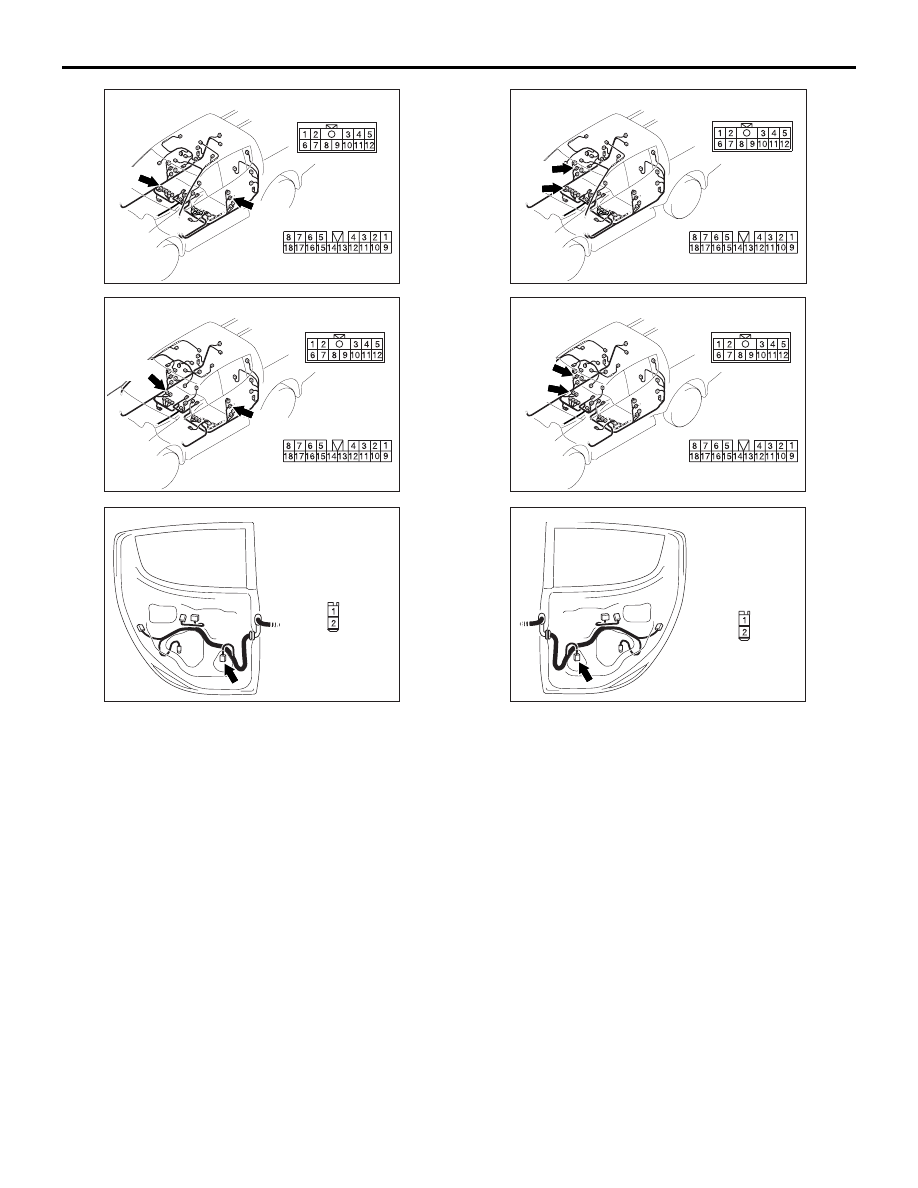

AC903885AG

Connectors: D-14, D-31 <LHD>

D-31

D-14

Harness side

D-31

D-14

AC903886 AE

Connectors: D-14, D-31 <RHD>

D-31

Harness side

D-31

D-14

D-14

AC502333AB

Connector: E-22

Harness side

AC903885

Connectors: D-24, D-31 <RHD>

AH

D-24

D-24

D-31

Harness side

D-31

AC903886 AF

Connectors: D-24, D-31 <RHD>

D-31

Harness side

D-31

D-24

D-24

AC502334AB

Harness side

Connector: E-09
