REAR FOG LAMP
CHASSIS ELECTRICAL
54A-171
STEP 11. Retest the system
Check that the rear fog lamp illuminate normally.
Q: Is the check result normal?
YES :
The trouble can be an intermittent
malfunction (Refer to GROUP 00
− How to
use Troubleshooting/inspection Service
Points
− How to Cope with Intermittent
Malfunction ).
NO :
Replace the ETACS-ECU and register the
ID codes (Refer to
STEP 12. Connector check: F-24 <LHD> or F-20
<RHD> rear fog lamp connector
Q: Is the check result normal?
YES :
Go to Step 13.
NO :
Repair the defective connector.
STEP 13. Check the bulbs of the rear fog lamps
lamp.
Check the bulb(s) of the defective lamp.
Q: Is the check result normal?
YES :
Go to Step 14.
NO :
Replace the bulb(s) of the defective lamp.

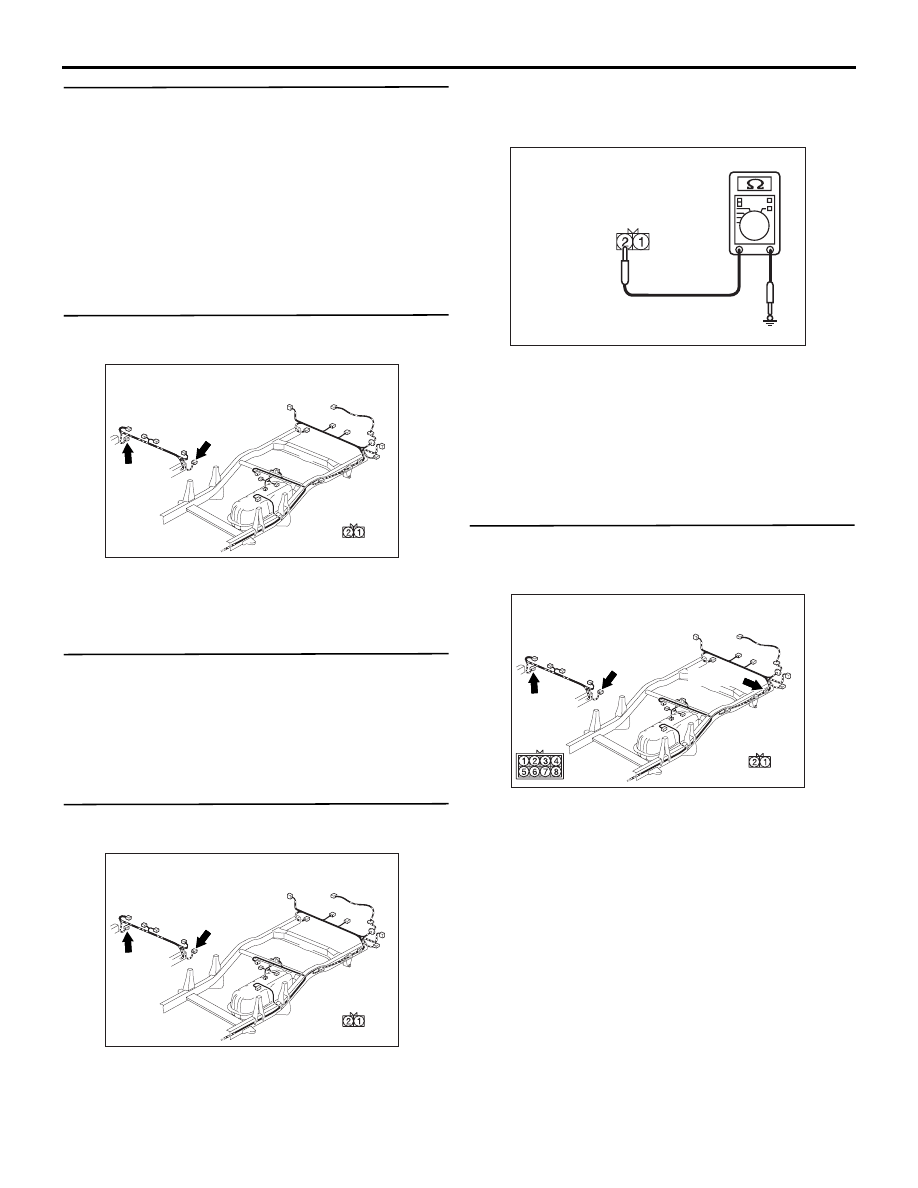

STEP 14. Resistance measurement at the F-24
<LHD> or F-20 <RHD> rear fog lamp connector.
(1) Disconnect the connector, and measure at the
wiring harness side.
(2) Check the resistance between the lamp
connector and body earth.
•
Resistance between F-24 <LHD> or F-20 <RHD>
rear fog lamp connector terminal No.2 and
body earth
OK: Continuity exists (2
Ω or less)
Q: Is the check result normal?
YES :
Go to Step 16.
NO :
Go to Step 15.
STEP 15. Check the wiring harness from F-24
<LHD> or F-20 <RHD> rear fog lamp connector
terminal No.2 to body earth.
NOTE: Prior to the wiring harness inspection, check
intermediate connector F-07, and repair if necessary.
• Check the earth wires for open circuit.
Q: Is the check result normal?
YES :
Go to Step 18.
NO :
Repair the wiring harness.

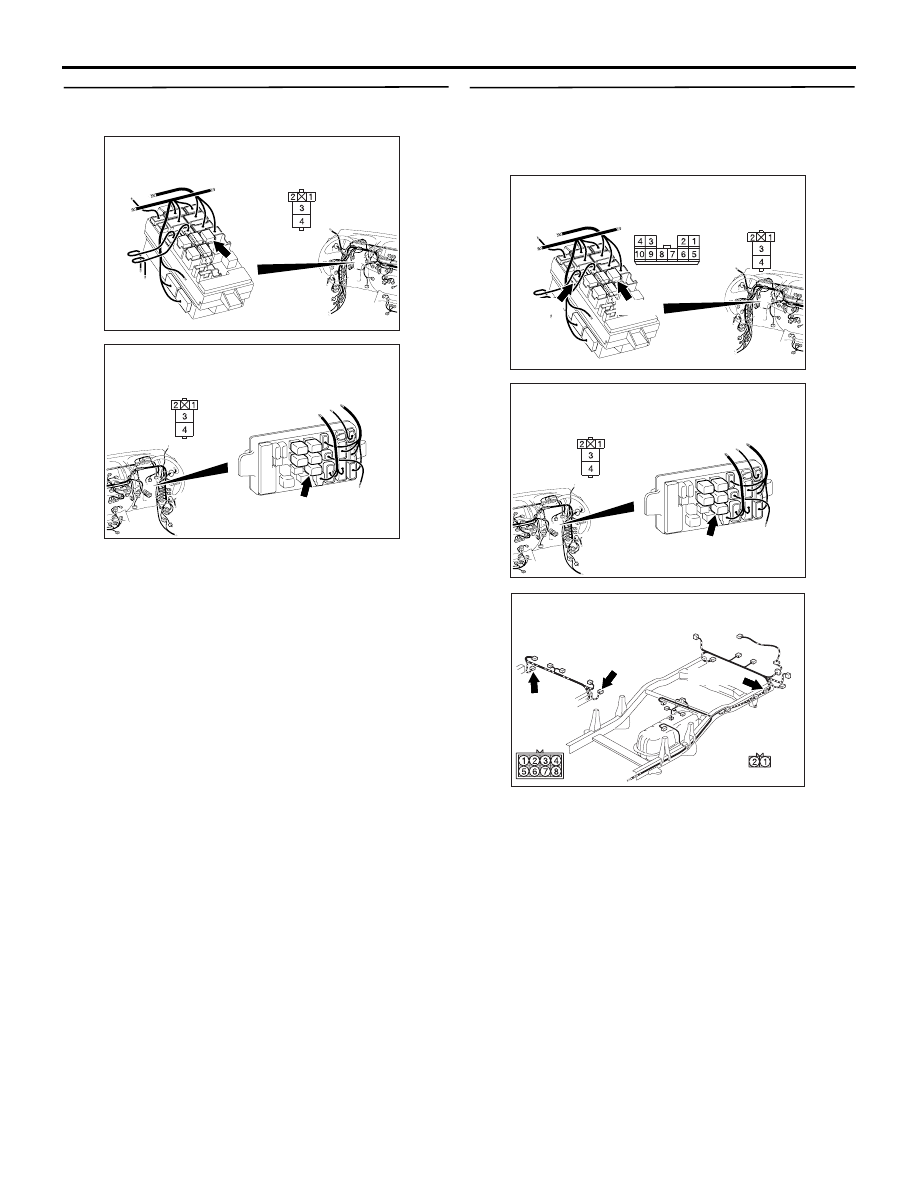

AC903957AG
Connectors: F-20, F-24
Harness side
<Vehicles without
rear body>
F-20 (B)
F-24 (B)
F-20, F-24
AC903957AG
Connectors: F-20, F-24
Harness side
<Vehicles without
rear body>
F-20 (B)
F-24 (B)
F-20, F-24
AC310506LE
Connector: F-24 <LHD> or F-20 <RHD>
(Harness side)
AC903957AH
Connectors: F-07, F-20, F-24
Harness side
<Vehicles without
rear body>
F-20 (B)
F-24 (B)
F-20, F-24
F-07
F-07 (B)
