REAR FOG LAMP

CHASSIS ELECTRICAL

54A-175

<VEHICLES WITHOUT REAR BODY>

AC903706

4.9 ± 0.7 N·m

AB

4

3

2

1

5

4.9 ± 0.7 N·m

6

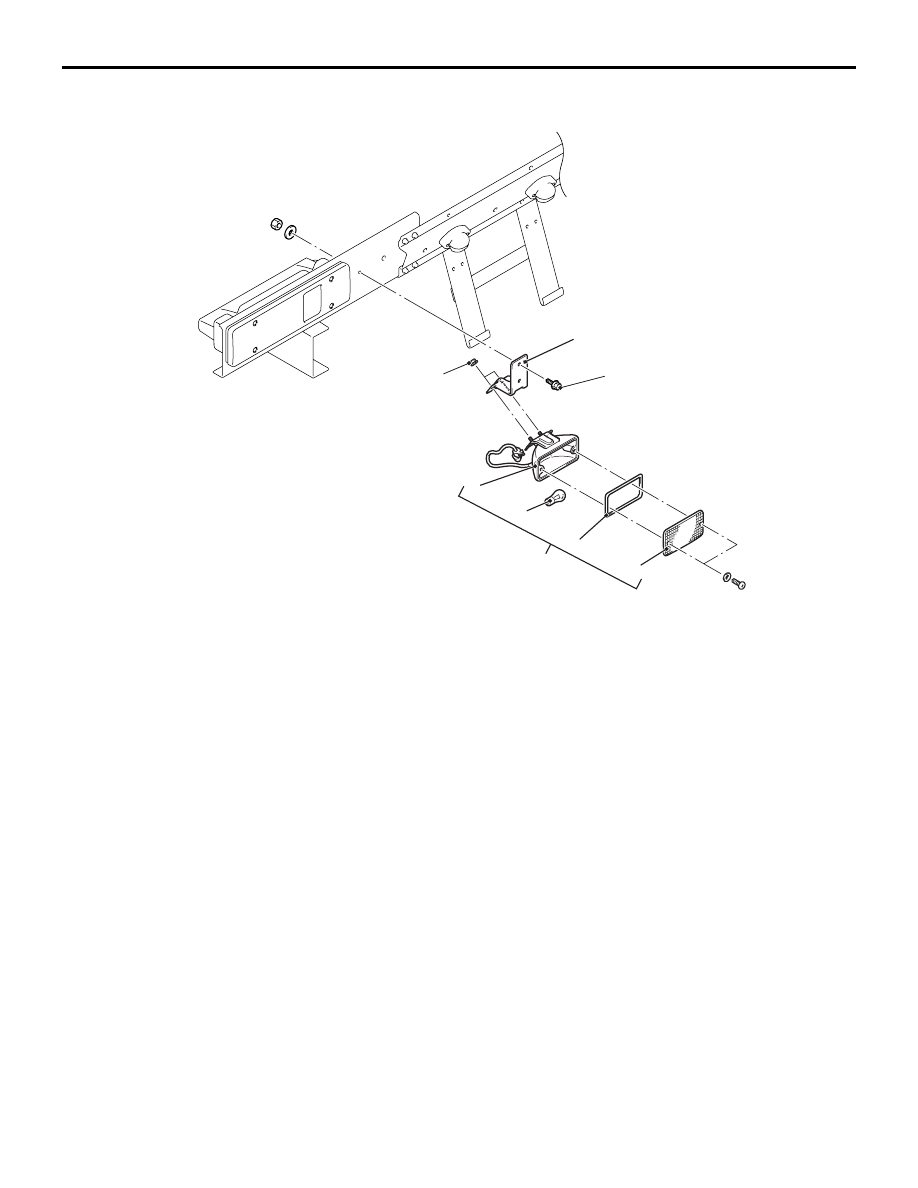

Removal steps

1. Rear fog lamp assembly
2. Rear fog lamp lens
3. Rear fog lamp lens gasket

4. Bulb
5. Rear fog lamp body assembly
6. Rear fog lamp bracket

Removal steps (Continued)

REAR FOG LAMP

CHASSIS ELECTRICAL

54A-176

INSPECTION

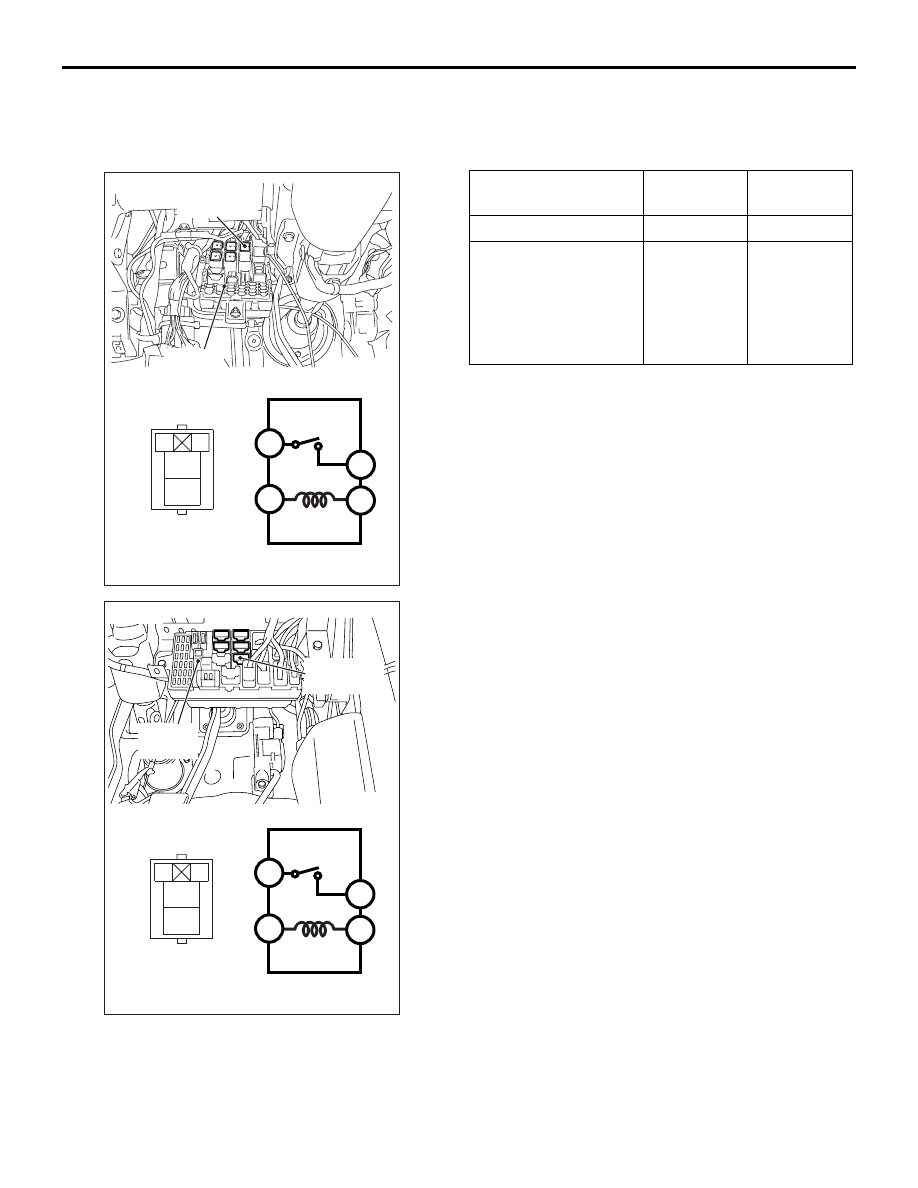

REAR FOG LAMP RELAY CONTINUITY CHECK

M1542600500101

AC510090

AF

4

1

3

2

Rear fog
lamp relay

4

1

2

3

Junction
block

<LHD>

AC510088

AE

4

1

3

2

Rear fog
lamp relay

4

1

2

3

Junction
block

<RHD>

Battery voltage

Tester
connection

Specified
condition

Not supplied

3

− 4

Open circuit

• Connect terminal 1

to the positive
battery terminal

• Connect terminal 2

to the negative
battery terminal

3

− 4

Continuity
exists (2

Ω

or less)

SIDE TURN-SIGNAL LAMP

CHASSIS ELECTRICAL

54A-177

SIDE TURN-SIGNAL LAMP

SPECIAL TOOL

M1541800300012

REMOVAL AND INSTALLATION

M1541800200026

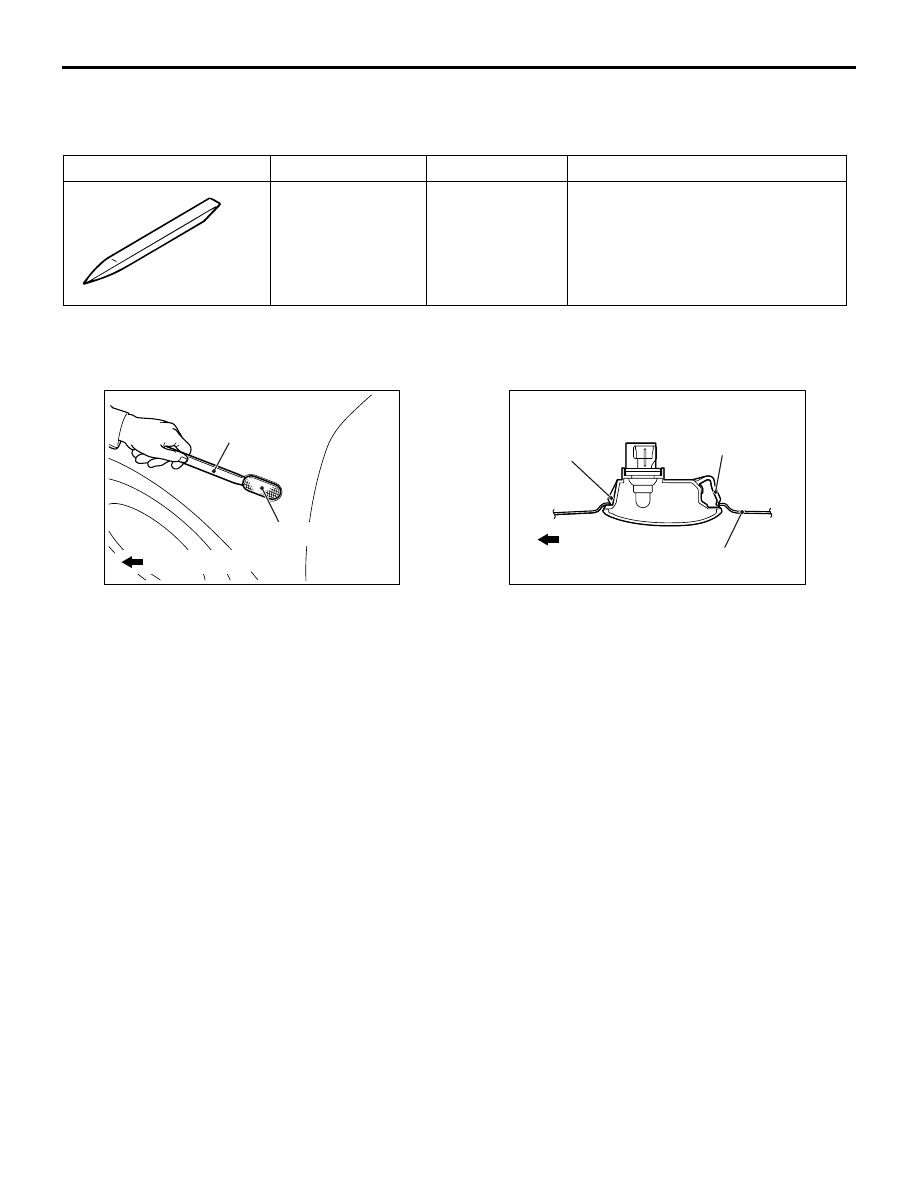

REMOVAL SERVICE POINT

Use the special tool ornament remover (MB990784)
to pry out the tab from the fender, and remove the
side turn-signal lamp.

INSTALLATION SERVICE POINT

Insert pawls into fender panel and install side turn-
signal lamp.

Tool

Number

Name

Use

MB990784

Ornament
remover

Removal of side turn-signal lamp

MB990784

AC500497

AB

Side turn-signal lamp

MB990784

: Front of vehicle

AC407202

AB

Hook

Tab

Fender panel

: Front of vehicle
