FRONT FOG LAMP

CHASSIS ELECTRICAL

54A-163

INSPECTION

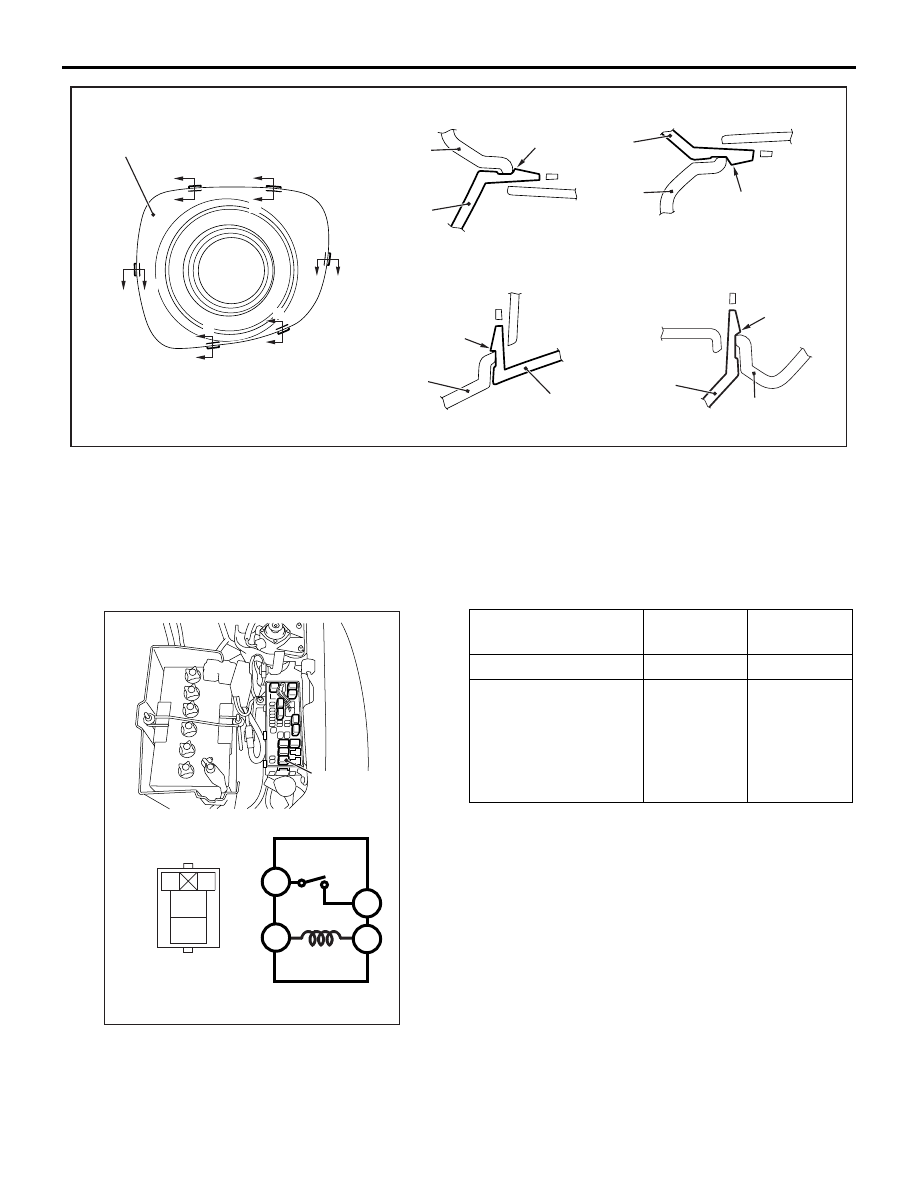

FRONT FOG LAMP RELAY CONTINUITY CHECK

M1540400700149

AC903807

1

Front
bumper
face

AB

Section A - A

Section B - B

Section C - C

Section D - D

Claw

A

A

Claw

Claw

Claw

1

1

1

Front
bumper
face

Front
bumper
face

Front bumper
face

B

B

C

C

D

D

1

A

A

C

C

Removal steps

1.

Fog lamp bezel

2.

Fog lamp assembly

3.

Bulb

4.

Fog lamp

AC601669

AG

4

1

3

2

Front fog lamp
relay

4

1

2

3

Battery voltage

Tester
connection

Specified
condition

Not supplied

3

− 4

Open circuit

• Connect terminal 1

to the positive
battery terminal

• Connect terminal 2

to the negative
battery terminal

3

− 4

Continuity
exists (2

Ω

or less)

REAR FOG LAMP

CHASSIS ELECTRICAL

54A-164

REAR FOG LAMP

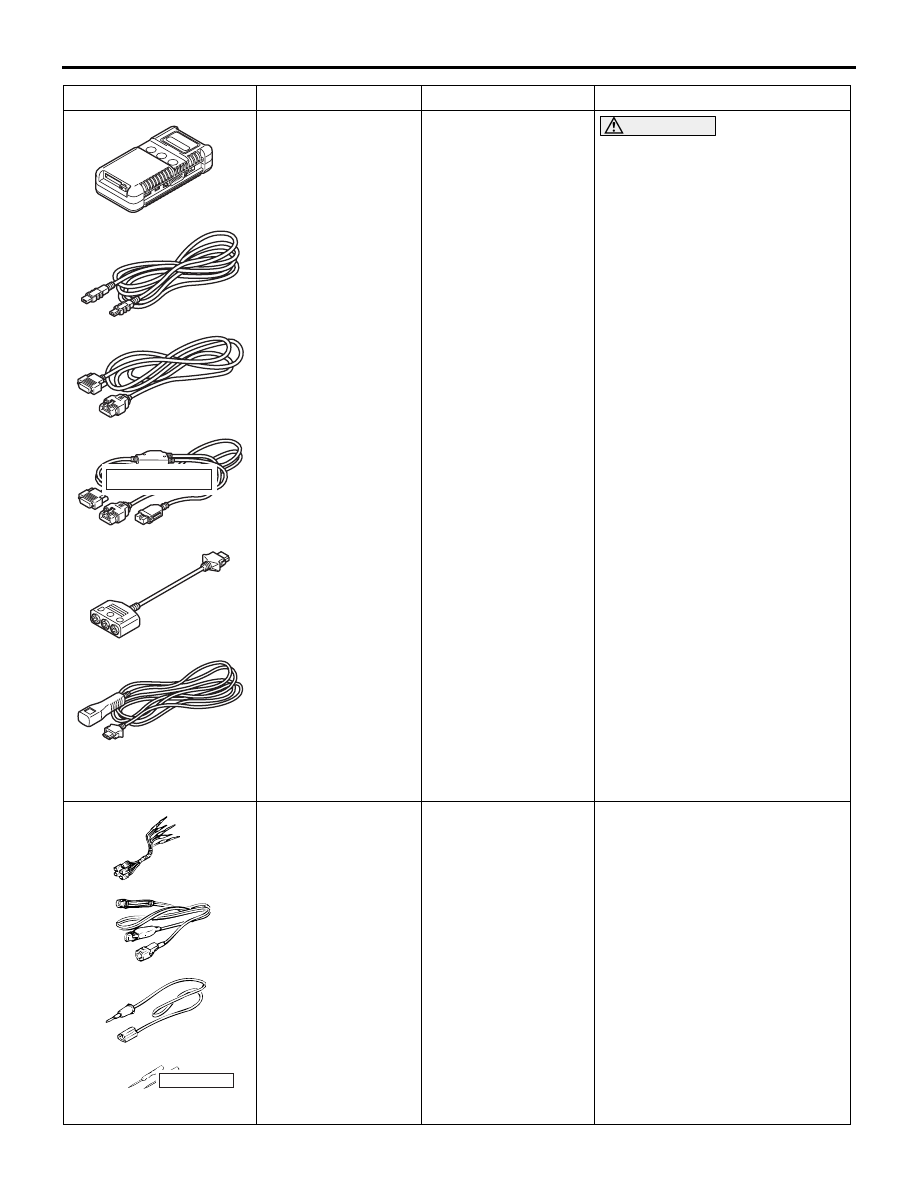

SPECIAL TOOLS

M1542601200017

REAR FOG LAMP

CHASSIS ELECTRICAL

54A-165

Tool

Number

Name

Use

MB991955

A: MB991824
B: MB991827
C: MB991910
D: MB991911
E: MB991825
F: MB991826

M.U.T.-III sub-
assembly

A: Vehicle

Communication
Interface (V.C.I.)

B: M.U.T.-III USB

cable

C: M.U.T.-III main

harness A
(Vehicles with CAN
communication
system)

D: M.U.T.-III main

harness B
(Vehicles without
CAN
communication
system)

E: M.U.T.-III measure

adapter

F: M.U.T.-III trigger

harness

CAUTION

For vehicles with CAN
communication, use M.U.T.-III
main harness A to send
simulated vehicle speed. If you
connect M.U.T.-III main harness
B instead, the CAN
communication does not
function correctly.
Checking ETACS-ECU (service
data and diagnosis codes)

MB991223

A: MB991219
B: MB991220
C: MB991221
D: MB991222

Harness set

A: Check harness
B: LED harness
C: LED harness

adapter

D: Probe

Continuity check and voltage
measurement at harness wire or
connector

A: For checking connector pin

contact pressure

B: For checking power supply

circuit

C: For checking power supply

circuit

D: For connecting a locally

sourced tester

MB991910

MB991826

MB991955

MB991911

MB991824

MB991827

MB991825

A

B

C

D

E

F

DO NOT USE

MB991223

A

D

C

B

AZ

DO NOT USE

REAR FOG LAMP

CHASSIS ELECTRICAL

54A-166

TROUBLESHOOTING

DIAGNOSIS TROUBLESHOOTING FLOW

M1542601100010

Refer to GROUP 00

− Contents of Troubleshooting .

TROUBLE SYMPTOM CHART

M1542600700053

MB992006

Extra fine probe

Continuity check and voltage
measurement at harness wire or
connector

Tool

Number

Name

Use

MB992006

Symptom

Inspection
procedure
number

Reference
page

Rear fog lamp

The rear fog lamp do not illuminate normally.

1

P.54A-167
