FRONT FOG LAMP

CHASSIS ELECTRICAL

54A-155

relay connector and body earth.

• Voltage between A-13X front fog lamp relay

connector terminal No.1 and body earth

• Voltage between A-13X front fog lamp relay

connector terminal No.4 and body earth

OK: System voltage

Q: Is the check result normal?

YES :

Go to Step 8.

NO :

Go to Step 7.

STEP 7. Check the wiring harness between A-13X
front fog lamp relay connector terminals Nos.1, 4
and the fusible link (23).

• Check the power supply line for open circuit and

short circuit.

Q: Is the check result normal?

YES :

Go to Step 10.

NO :

Repair the wiring harness.

STEP 8. Connector check: C-219 ETACS-ECU
connector

Q: Is the check result normal?

YES :

Go to Step 9.

NO :

Repair the defective connector.

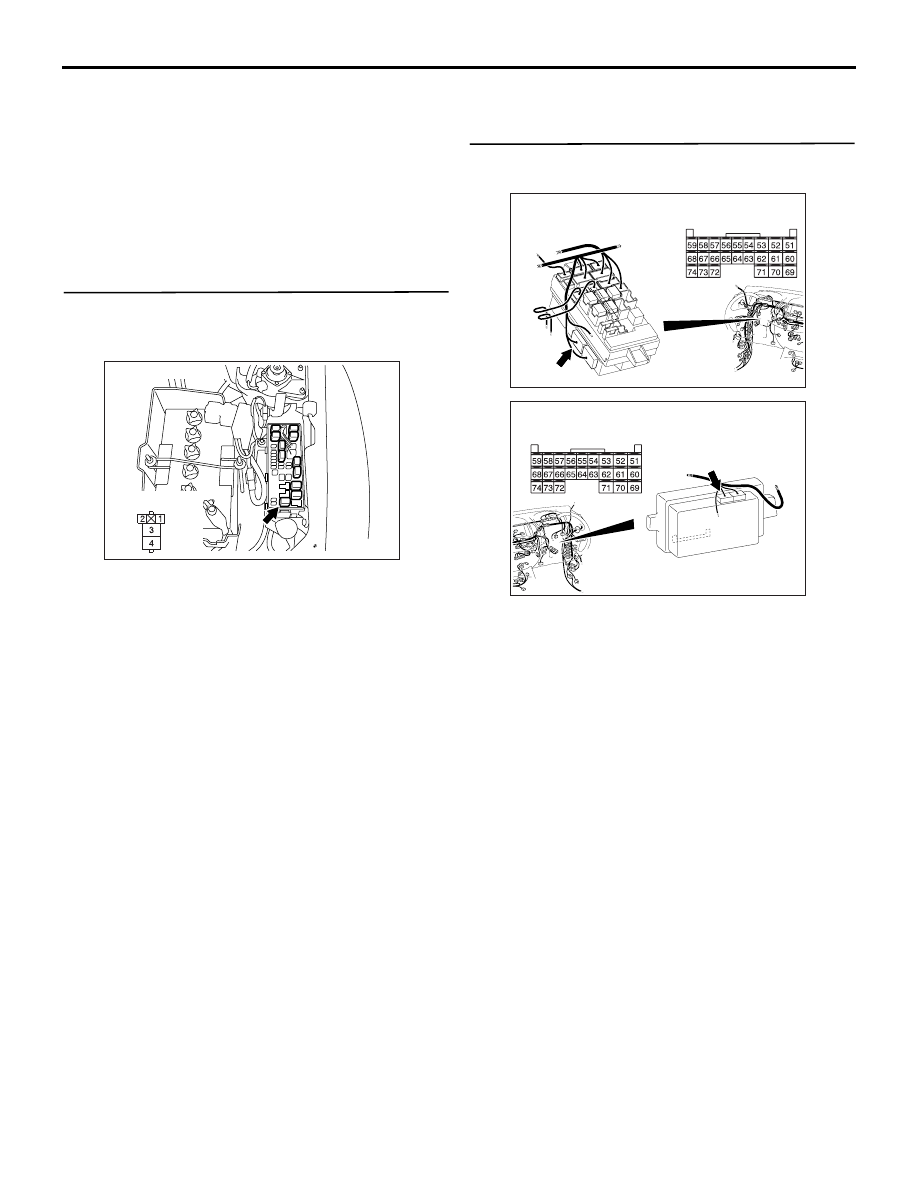

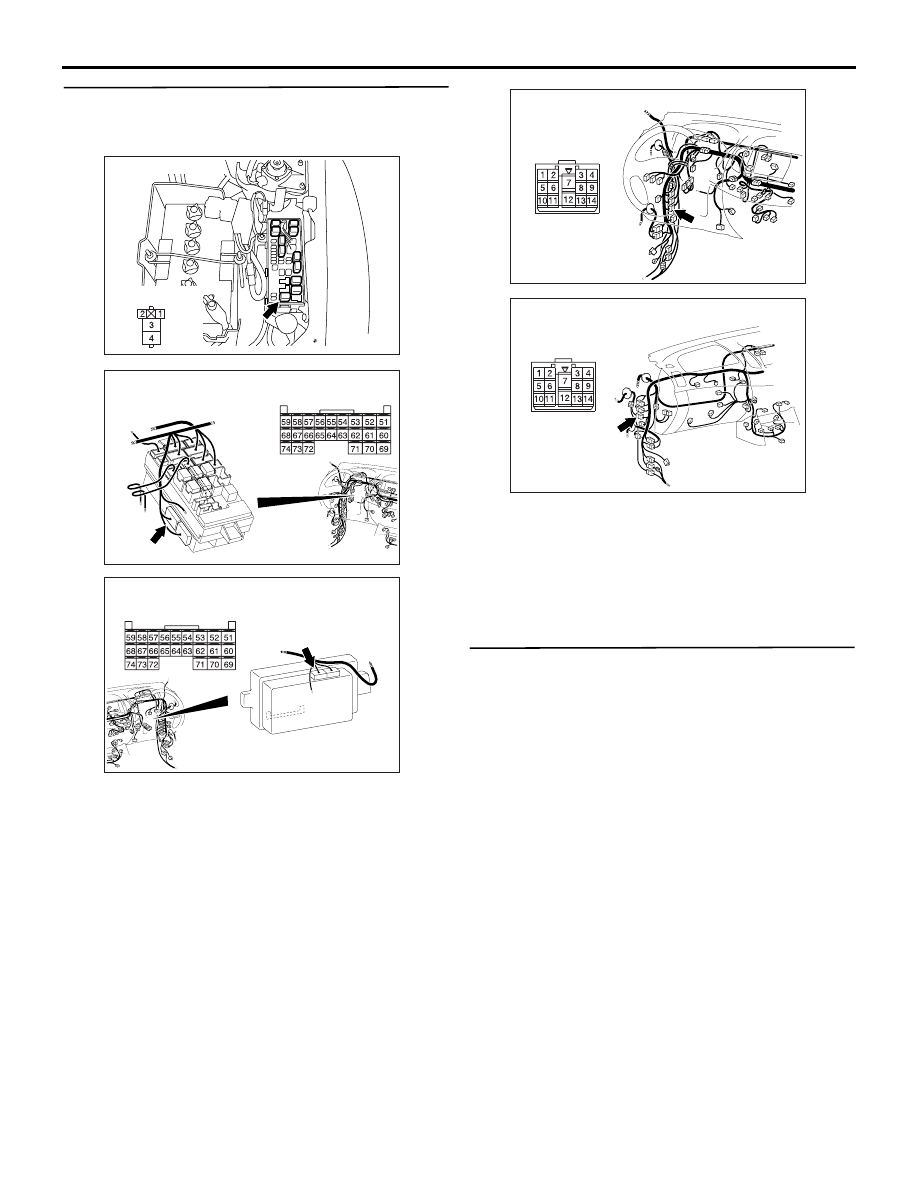

AC903878

AE

Connector: A-13X

Relay box side

AC509934

Connector: C-219 <LHD>

AD

C-219 (GR)

Harness side

Junction block

AC509943

Connector: C-219 <RHD>

AB

C-219 (GR)

Harness side

Junction block
 (Rear view)

FRONT FOG LAMP

CHASSIS ELECTRICAL

54A-156

STEP 9. Check the wiring harness between A-13X
front fog lamp relay connector terminal No.2 and
C-219 ETACS-ECU connector terminal No.67.

NOTE:

Prior to the wiring harness inspection, check interme-
diate connector C-33, and repair if necessary.

• Check the output lines for open circuit.

Q: Is the check result normal?

YES :

Go to Step 10.

NO :

Repair the wiring harness.

STEP 10. Retest the system
Check that the front fog lamps illuminate normally.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

use Troubleshooting/inspection Service
Points

− How to Cope with Intermittent

Malfunction ).

NO :

Replace the ETACS-ECU and register the
ID codes (Refer to

P.54A-39

).

AC903878

AE

Connector: A-13X

Relay box side

AC509934

Connector: C-219 <LHD>

AD

C-219 (GR)

Harness side

Junction block

AC509943

Connector: C-219 <RHD>

AB

C-219 (GR)

Harness side

Junction block
 (Rear view)

AC903856

Connector: C-33 <LHD>

AM

AC903865

Connector: C-33 <RHD>

AH

FRONT FOG LAMP

CHASSIS ELECTRICAL

54A-157

Inspection Procedure 2: One of the front fog lamps does not illuminate normally.

CAUTION

Whenever the ECU is replaced, ensure that the
input and output signal circuits are normal.

COMMENTS ON TROUBLE SYMPTOM
If one of the front fog lamps do not illuminate, the wir-
ing harness connector(s), the bulb or the fuse may
be defective or burned out.

PROBABLE CAUSES

• Burned-out front fog lamp bulb

• Damaged harness wires and connectors

(RH)

FRONT FOG
LAMP RELAY

FRONT FOG
LAMP

(LH)

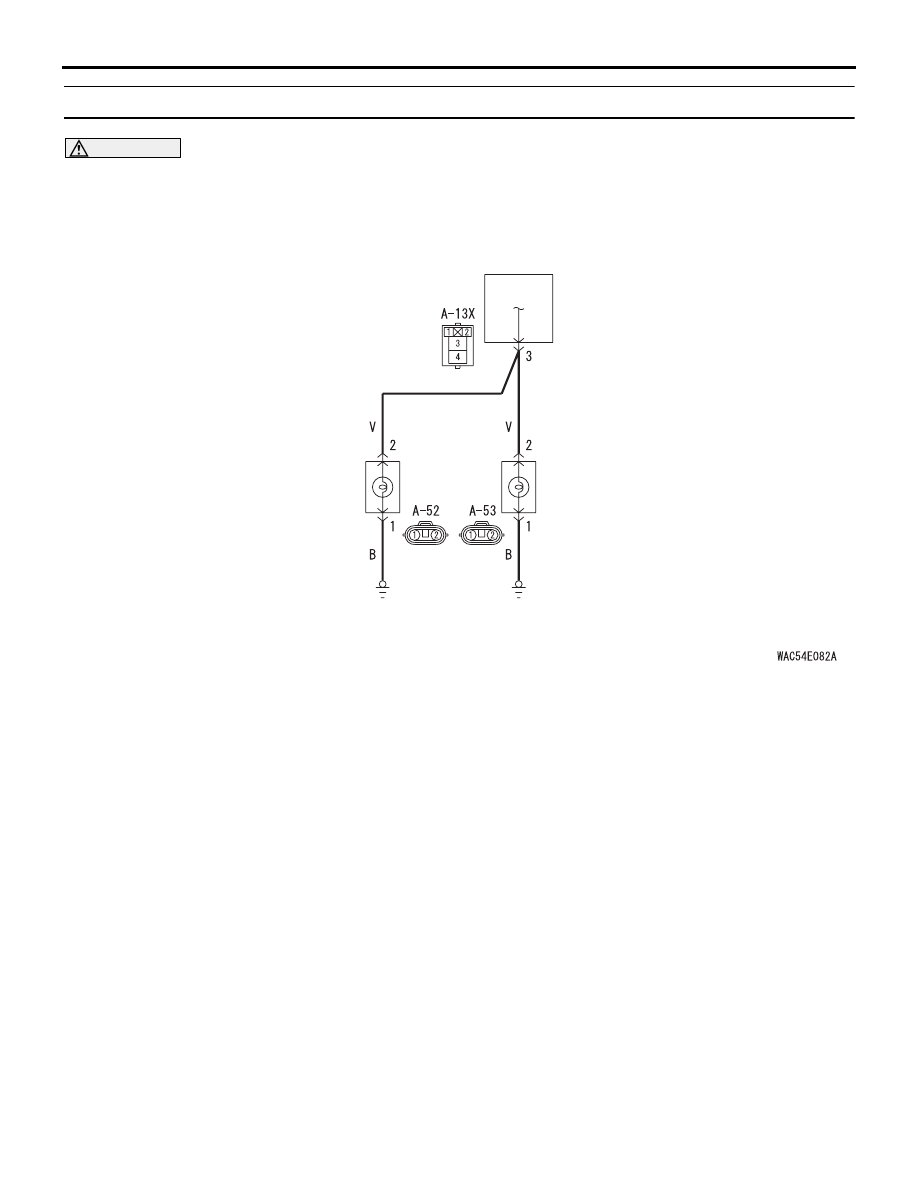

Front Fog Lamps Circuit

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Grey     R : Red     P : Pink     V : Violet     PU : Purple     SI : Silver

FRONT FOG LAMP

CHASSIS ELECTRICAL

54A-158

DIAGNOSIS PROCEDURE

STEP 1. Connector check: A-52 front fog lamp
(LH) connector or A-53 front fog lamp (RH)
connector

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Repair the defective connector.

STEP 2. Check the bulbs of the front fog lamps
lamp.
Check the bulb(s) of the defective lamp.

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Replace the bulb(s) of the defective lamp.

STEP 3. Resistance measurement at the A-52
front fog lamp (LH) connector or A-53 front fog
lamp (RH) connector.

(1) Disconnect the connector, and measure at the

wiring harness side.

(2) Check the resistance between the lamp

connector and body earth.

•

Resistance between A-52 front fog lamp (LH)

connector terminal No.1 and body earth

• Resistance between A-53 front fog lamp (RH)

connector terminal No.1 and body earth

OK: Continuity exists (2

Ω or less)

Q: Is the check result normal?

YES :

Go to Step 5.

NO :

Go to Step 4.

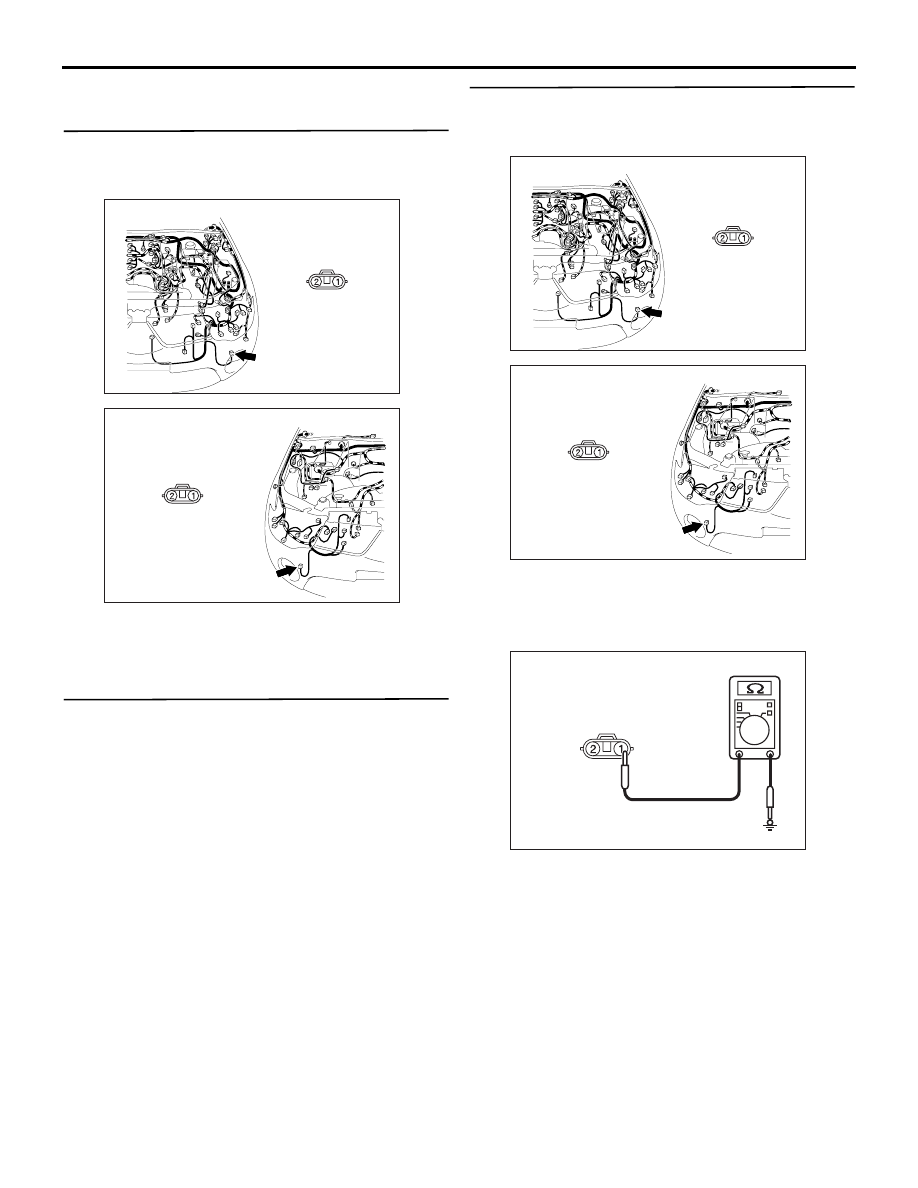

AC903898

AI

Connector: A-52

Harness side

A-52 (B)

AC903897

AI

Connector: A-53

Harness side

A-53 (B)

AC903898

AI

Connector: A-52

Harness side

A-52 (B)

AC903897

AI

Connector: A-53

Harness side

A-53 (B)

AC310506KC

Connectors: A-52, A-53
(Harness side)
